Understanding Your Car's Brake Pedal System

When you're cruising down a busy street or navigating a tricky roundabout, the ability to stop your vehicle safely and effectively is paramount. Yet, for many, the humble brake pedal remains a mystery – a simple foot-operated lever that, by some magic, brings a multi-tonne machine to a standstill. Far from magic, it's a meticulously engineered system, relying on fundamental physics and clever hydraulic principles to transform the gentle pressure of your foot into immense stopping power. Understanding how your car's brake pedal works isn't just for mechanics; it empowers every driver to appreciate the complexity and importance of this critical safety feature.

The journey from your foot pressing the pedal to your tyres gripping the road is a fascinating chain of events. It begins with mechanical leverage, transitions through hydraulic pressure, and culminates in the friction that ultimately halts your vehicle. This article will demystify that process, breaking down each component and explaining its role in ensuring your safety on the road.

The Initial Push: From Foot to Force

The brake pedal itself is the first point of contact. It's not just a simple switch; it's a lever designed to multiply the force you apply. When you press the pedal, it pivots, and a pushrod connected to its top end moves forward. This initial mechanical action is crucial, but the force generated by your foot alone isn't nearly enough to stop a moving car. This is where the ingenious brake booster, or vacuum servo, comes into play.

The Power of the Brake Booster (Vacuum Servo)

Most modern vehicles utilise a brake booster to amplify the force applied to the pedal. This large, round component typically sits between the brake pedal and the master cylinder. It uses the vacuum created by the engine (in petrol cars) or a dedicated vacuum pump (in diesel cars or some modern petrol engines) to assist in pushing the master cylinder piston. Essentially, when you press the pedal, you open valves within the booster, allowing atmospheric pressure to push on a diaphragm, which in turn assists your foot in pushing the master cylinder pushrod. This is why a car's brake pedal feels much harder to press when the engine is off – there's no vacuum assistance.

The Heart of the System: The Master Cylinder

Once the amplified force from the pedal and booster reaches the master cylinder, the real magic of hydraulics begins. The master cylinder is a critical component that converts the mechanical force into hydraulic pressure. It contains one or more pistons (typically two, for safety redundancy) that move within a bore filled with brake fluid.

• Primary Piston: Connected directly to the pushrod from the brake booster.
• Secondary Piston: Located in front of the primary piston, operating independently but pushed by the fluid displaced by the primary piston.

As the pistons move forward, they push the incompressible brake fluid out of the master cylinder and into the brake lines. The dual-piston design is a vital safety feature: if one hydraulic circuit fails (e.g., a burst brake line), the other circuit can still provide some braking capability, albeit reduced.

The Network: Brake Lines and Hoses

From the master cylinder, the high-pressure brake fluid travels through a network of robust steel brake lines and flexible rubber brake hoses. The steel lines run along the car's chassis, providing a rigid conduit for the fluid. At the wheels, where flexibility is required due to suspension movement, shorter rubber hoses connect the steel lines to the calipers or wheel cylinders. These lines and hoses are designed to withstand extremely high pressures without expanding, ensuring that the force applied at the pedal is efficiently transmitted to the braking components at each wheel.

The Stopping Point: Calipers, Wheel Cylinders, and Friction

Upon reaching the wheels, the hydraulic pressure is converted back into mechanical force to create friction and slow the vehicle down. The exact components depend on whether the car uses disc brakes or drum brakes, or a combination of both.

Disc Brakes

Most modern cars use disc brakes on all four wheels, or at least on the front. Here's how they work:

• Brake Caliper: This component clamps onto the brake disc. It contains one or more pistons.

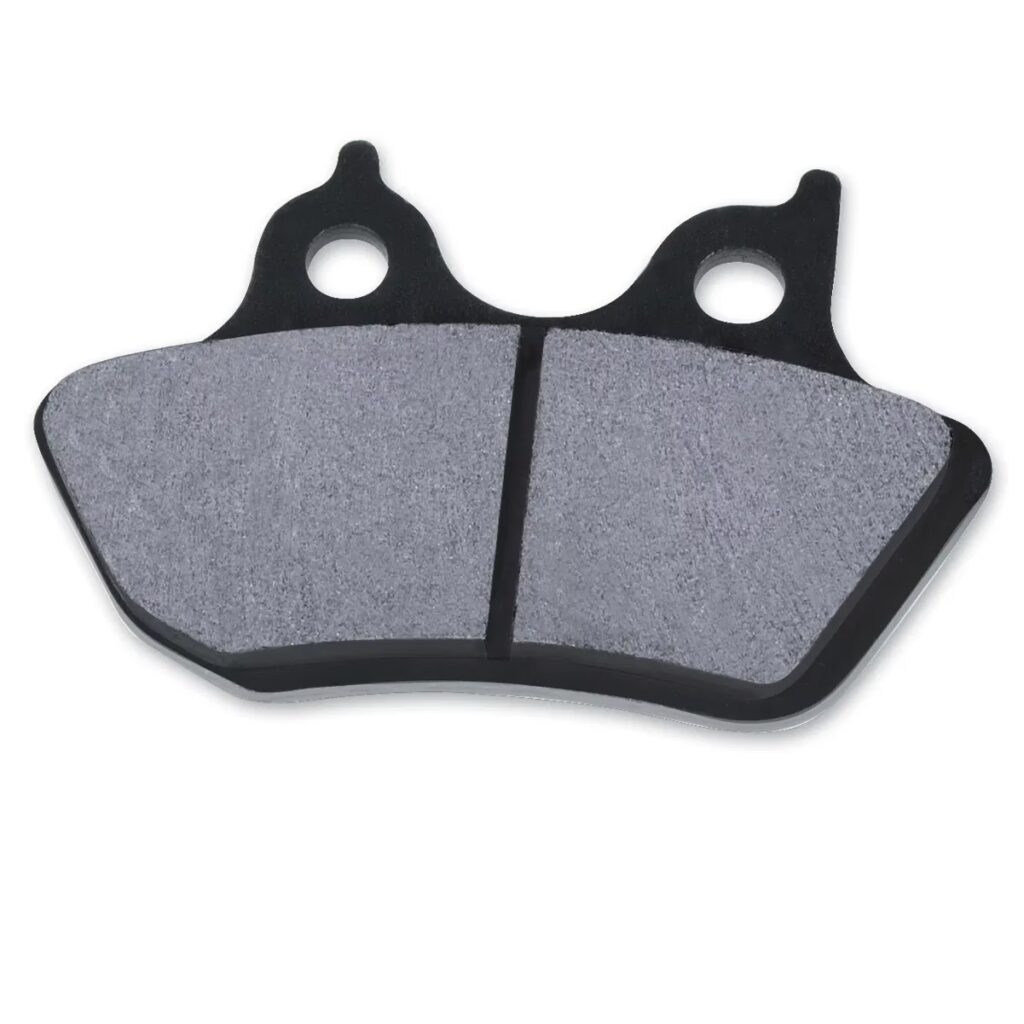

• Brake Pads: These are friction materials mounted within the caliper.
• Brake Disc (Rotor): A rotating metal disc attached to the wheel hub.

When brake fluid enters the caliper, it pushes the caliper piston(s), which in turn press the brake pads against both sides of the rotating brake disc. The resulting friction between the pads and the disc generates heat and slows the wheel down. This system is highly effective due to its excellent heat dissipation and consistent braking performance.

Drum Brakes

Often found on the rear wheels of older or smaller vehicles, drum brakes operate differently:

• Wheel Cylinder: Located inside the brake drum, this hydraulic cylinder contains pistons.
• Brake Shoes: Curved friction materials that press against the inside of the drum.
• Brake Drum: A rotating, cup-shaped component attached to the wheel hub.

When brake fluid enters the wheel cylinder, it pushes the cylinder's pistons outwards, forcing the brake shoes against the inner surface of the rotating brake drum. The friction between the shoes and the drum slows the wheel. Drum brakes are generally less powerful than disc brakes and can suffer from heat buildup (brake fade) more easily, but they can also serve as effective parking brakes.

The Role of Brake Fluid

Brake fluid is the unsung hero of the braking system. It's a specially formulated hydraulic fluid designed to operate under extreme temperatures and pressures. Its key property is that it's virtually incompressible. This means that when you apply pressure to it at one end of the system (the master cylinder), that pressure is transmitted almost instantly and equally to the other end (the calipers or wheel cylinders). Brake fluid also has a high boiling point, which is crucial because braking generates significant heat. If the fluid boils, it creates vapour bubbles, which are compressible, leading to a spongy pedal and severely reduced braking effectiveness – a dangerous condition known as brake fade.

Safety and Advanced Systems

Modern braking systems incorporate several advanced features to enhance safety and performance:

• Anti-lock Braking System (ABS): This system prevents the wheels from locking up during hard braking, allowing the driver to maintain steering control. It works by rapidly modulating brake pressure to individual wheels, releasing and reapplying pressure many times per second.
• Electronic Brakeforce Distribution (EBD): EBD works with ABS to optimise the braking force applied to each wheel, adapting to factors like vehicle load and road conditions.
• Brake Assist (BA): This system detects emergency braking situations (based on the speed and force of pedal application) and automatically applies maximum braking power even if the driver doesn't press the pedal hard enough.

Common Brake Pedal Issues and Troubleshooting

Understanding how the system works can help you identify potential issues. Here are some common problems:

Frequently Asked Questions (FAQs)

Q: How often should I check my brake fluid?

A: It's advisable to check your brake fluid level at least every few months, or during routine service checks. The fluid itself should be replaced according to your car manufacturer's recommendations, typically every 2-3 years, as it can absorb moisture over time, reducing its boiling point.

Q: Why does my brake pedal feel different after the engine is off?

A: This is normal. When the engine is off, the vacuum supply to the brake booster is no longer being generated. The booster usually holds enough residual vacuum for one or two assisted pedal presses, but after that, the pedal will feel much harder because you are pushing the master cylinder directly without power assistance.

Q: Can I drive with a spongy brake pedal?

A: Absolutely not. A spongy brake pedal indicates a serious issue, most commonly air in the brake lines or a failing master cylinder, both of which severely compromise your braking ability. It is extremely dangerous and you should have your vehicle inspected by a qualified mechanic immediately.

Q: What is brake fade and how can I avoid it?

A: Brake fade is the reduction in braking power that occurs due to excessive heat buildup in the braking system. This can happen during prolonged or aggressive braking, such as driving down a long, steep hill. It's often caused by the brake fluid boiling or the friction materials overheating. To avoid it, use engine braking (downshift) on long descents, avoid riding the brakes, and ensure your braking system is properly maintained with good quality fluid and pads.

Q: Are disc brakes better than drum brakes?

A: Generally, yes. Disc brakes offer superior stopping power, better heat dissipation (making them less prone to fade), and more consistent performance, especially in wet conditions. Drum brakes are simpler and cheaper to manufacture, and can be very effective for parking brakes, but they are less efficient for primary stopping power in modern, faster vehicles.

Conclusion

The car brake pedal, seemingly a simple control, is the gateway to a sophisticated system that ensures your safety every time you drive. From the initial leverage and vacuum assistance to the intricate hydraulic network and the final friction at the wheels, each component plays a vital role. Understanding this process not only satisfies curiosity but also empowers you to recognise potential issues early, contributing to safer driving for yourself and everyone else on the road. Regular maintenance, including checking fluid levels and inspecting pads and discs, is crucial to keeping this life-saving system in prime condition. So, the next time you press that pedal, take a moment to appreciate the engineering marvel beneath your foot.
