In the intricate world of automotive engineering, few systems are as paramount to your safety as the brakes. They are your first, and often last, line of defence against road hazards, responsible for transforming kinetic energy into thermal energy to bring your vehicle to a controlled halt. Yet, for many motorists, the brake system remains a mysterious black box. This is precisely where the humble, yet incredibly powerful, brake part diagram comes into its own. It serves as an indispensable visual guide, demystifying the complex interplay of components and empowering you to better understand, inspect, and maintain this critical system.
Understanding your vehicle's braking system isn't just for mechanics; it's a fundamental aspect of responsible vehicle ownership. Whether you're a seasoned DIY enthusiast or simply wish to have more informed conversations with your garage, a detailed brake part diagram provides the clarity needed to identify each crucial element. From the pedal you press to the rotors that resist your wheels' rotation, every single part plays a vital role in your vehicle's braking efficiency and, ultimately, your safety on the road. Let's delve into why these diagrams are so essential and explore the core components that make up your vehicle's stopping power.
Why a Brake Part Diagram is Indispensable
A brake part diagram is far more than just a picture; it's a technical blueprint that offers unparalleled insight into your vehicle's braking system. Its utility extends across several critical areas, making it an invaluable tool for both professionals and everyday drivers.
- Visual Clarity and Identification: For those unfamiliar with the specific names or locations of brake components, a diagram provides immediate visual clarity. It helps you quickly identify a brake caliper, distinguish it from a brake rotor, or locate the master cylinder. This visual aid is crucial for accurate diagnosis and repair.
- Troubleshooting Efficiency: When you encounter a braking issue – perhaps a spongy pedal or a grinding noise – a diagram helps you narrow down the potential culprits. By understanding the system's layout, you can logically trace the path of hydraulic pressure or pinpoint the area where friction is generated, leading to more efficient troubleshooting.
- Accurate Parts Replacement: Modern vehicles have numerous variations of brake components, even within the same make and model. A diagram, often accompanied by part numbers, ensures that you order and install the correct replacement parts, avoiding costly errors and ensuring compatibility.
- Enhanced Safety: Ultimately, the primary benefit of understanding your brake system through a diagram is enhanced safety. When you know how each part contributes to stopping your vehicle, you're better equipped to recognise signs of wear or failure, allowing for timely maintenance and preventing dangerous situations.
- Effective Communication: Whether you're explaining an issue to a mechanic or discussing a repair with a parts supplier, having a shared visual reference dramatically improves communication. You can confidently point to the 'caliper piston' or the 'ABS sensor' on the diagram, ensuring everyone is on the same page.
Anatomy of Your Braking System: Key Components Explained
The braking system is a complex network, but its core function is simple: to convert the kinetic energy of a moving vehicle into heat through friction, thereby slowing it down or bringing it to a complete stop. Let's break down the essential components you'll typically see on a brake part diagram.
The Input Side: Pedal and Master Cylinder
The journey of braking begins with your foot on the brake pedal. This seemingly simple action initiates a sophisticated chain of events:
- Brake Pedal: This is your primary interface with the braking system. When pressed, it applies force to the master cylinder.
- Master Cylinder: Often likened to the heart of the hydraulic braking system, the master cylinder converts the mechanical force from the brake pedal into hydraulic pressure. It contains one or more pistons and fluid reservoirs. Most modern vehicles use a dual-circuit master cylinder for added safety, meaning if one circuit fails, the other can still provide some braking power.
The Transmission: Brake Lines and Fluid
Once hydraulic pressure is generated, it needs to be transmitted efficiently to the wheels:
- Brake Fluid: This specialised fluid is non-compressible, making it ideal for transferring force. It fills the master cylinder, brake lines, and calipers/wheel cylinders. The type of brake fluid (e.g., DOT 3, DOT 4) is crucial and should never be mixed or contaminated.
- Brake Lines and Hoses: Rigid metal brake lines typically run along the vehicle's chassis, connecting the master cylinder to flexible rubber brake hoses at each wheel. These hoses allow for the movement of the suspension without compromising the hydraulic connection. Integrity of these lines is paramount; leaks or corrosion can lead to brake failure.

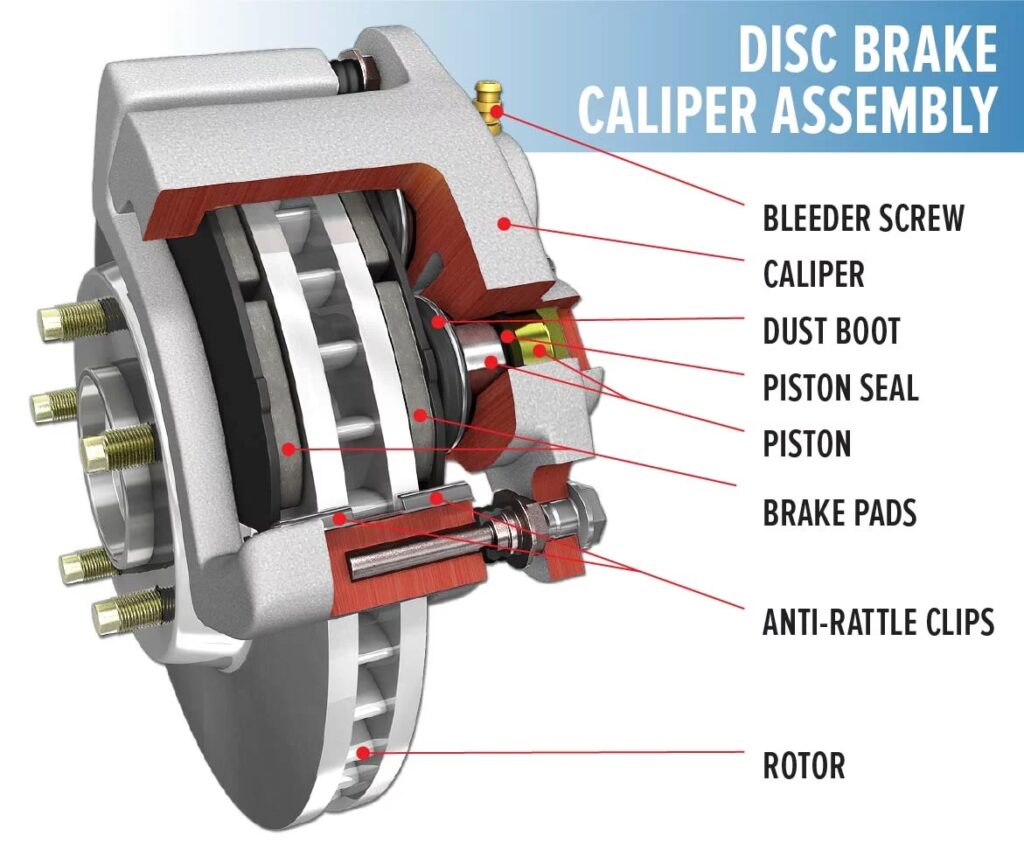

The Action: Calipers, Pads, and Rotors (Disc Brakes)
At each wheel, the hydraulic pressure is converted back into mechanical force to slow the vehicle:
- Brake Calipers: These components house one or more pistons and the brake pads. When hydraulic pressure from the master cylinder reaches the caliper, it forces the piston(s) to extend, pressing the brake pads against the rotor.
- Brake Pads: These are consumable friction materials designed to press against the brake rotor. They come in various compounds (e.g., organic, semi-metallic, ceramic), each with different characteristics regarding noise, dust, and stopping power. Brake pads wear down over time and require regular inspection and replacement.
- Brake Rotors (Discs): The rotor is a flat, circular metal disc that rotates with the wheel. When the brake pads clamp down on the rotor, the friction generated converts the vehicle's kinetic energy into heat, slowing the wheel's rotation. Rotors can be solid or vented (with internal fins for better heat dissipation).
The Action: Wheel Cylinders, Shoes, and Drums (Drum Brakes)
While less common on front axles of modern vehicles, drum brakes are still found on the rear axles of many cars, especially smaller models, and commercial vehicles:
- Brake Drum: A hollow, drum-shaped component that rotates with the wheel.
- Brake Shoes: Curved friction materials mounted inside the drum.
- Wheel Cylinder: Similar to a caliper, it uses hydraulic pressure to push the brake shoes outwards against the inside surface of the rotating brake drum.
Additional Safety Features: ABS Components
Modern vehicles are equipped with advanced safety systems:
- ABS (Anti-lock Braking System) Components: This system prevents the wheels from locking up during hard braking, allowing the driver to maintain steering control. It comprises:
- Wheel Speed Sensors: Monitor the rotational speed of each wheel.
- ABS Control Module: An electronic control unit (ECU) that processes data from the sensors.
- ABS Pump/Modulator: A hydraulic pump that rapidly modulates brake pressure to individual wheels based on the control module's commands.
The Crucial Dance: How Pads and Rotors Work Together
The interaction between brake pads and rotors is the core mechanism by which your vehicle slows down. When you press the brake pedal, hydraulic pressure from the master cylinder travels through the brake lines to the calipers. The caliper pistons then extend, squeezing the brake pads against both sides of the spinning brake rotor. This contact generates intense friction, which is the force that opposes the motion of the rotor. As the rotor's motion is resisted, the wheel slows down. The kinetic energy of the moving vehicle is not simply 'destroyed' but rather transformed into heat through this friction. This heat is then dissipated into the surrounding air, primarily by the rotor itself, especially if it's a vented design. This continuous process of friction generation and heat dissipation is what allows your vehicle to stop safely and repeatedly.
Disc Brakes vs. Drum Brakes: A Quick Comparison
While both disc and drum brakes achieve the same objective, they do so with different mechanisms and offer distinct advantages and disadvantages.
| Feature | Disc Brakes | Drum Brakes |
|---|---|---|
| Heat Dissipation | Excellent (open design, often vented rotors) | Poor (enclosed design traps heat) |
| Performance | Superior stopping power, consistent in wet conditions | Less effective, prone to fade with heat |
| Complexity | Simpler design, fewer moving parts | More complex, multiple springs and levers |
| Maintenance | Easier pad replacement, visible wear | More challenging shoe replacement, wear less visible |
| Cost | Generally higher manufacturing and replacement cost | Lower manufacturing and replacement cost |
| Common Usage | Front wheels of almost all vehicles, rear wheels of many modern cars | Rear wheels of many economy cars, older vehicles, parking brakes |
Maintaining Your Brakes: What to Look For
Regular inspection and timely maintenance are crucial for brake system longevity and your safety. A brake part diagram can guide you in understanding what to check.
- Brake Pad Thickness: Visually inspect your brake pads. Most manufacturers recommend replacement when the friction material is worn down to 3mm or less.
- Rotor Condition: Look for deep grooves, scoring, cracks, or signs of warping (often indicated by a pulsating brake pedal). Rotors should be smooth and even.
- Brake Fluid Level and Condition: Check the fluid level in the master cylinder reservoir. It should be between the 'Min' and 'Max' marks. Also, note the fluid's colour; dark, murky fluid indicates contamination and a need for flushing.
- Fluid Leaks: Inspect brake lines, hoses, calipers, and wheel cylinders for any signs of fluid leaks. Any leak is a serious safety concern.
- Unusual Noises: Listen for squealing (often an indicator of worn pads or a wear indicator), grinding (metal-on-metal, very serious), or clunking sounds.
- Brake Pedal Feel: A spongy, soft, or excessively firm pedal, or one that travels too far before engaging, can indicate a problem.
Frequently Asked Questions (FAQs)
How often should I check my brakes?
It's generally recommended to have your brakes inspected by a qualified technician at least once a year or every 12,000 miles (approximately 19,000 km), whichever comes first. However, it's a good practice to visually inspect your brake pads and rotors more frequently, perhaps with every tyre rotation or oil change, if you're comfortable doing so.
What are the signs of worn brake pads?
Common signs include a high-pitched squealing noise when braking (often from a built-in wear indicator), a grinding sound (indicating metal-on-metal contact, which is severe), a pulsating brake pedal (often due to warped rotors), or increased stopping distances. If your brake pedal feels lower or softer than usual, this could also be a sign of worn pads or other hydraulic issues.
Can I replace brake components myself?
While some mechanically inclined individuals might tackle brake pad replacement, working on your vehicle's braking system requires specific tools, knowledge, and a high degree of precision. Incorrect installation can lead to catastrophic brake failure. For anything beyond a simple visual check, it's highly recommended to consult a professional mechanic, especially for components like brake lines, calipers, or anything involving the hydraulic system or ABS.
What is ABS and why is it important?
ABS, or Anti-lock Braking System, is a crucial safety feature designed to prevent your wheels from locking up during emergency braking. When a wheel begins to lock, ABS rapidly modulates the brake pressure to that wheel, allowing it to continue rotating just enough to maintain traction. This prevents skidding and allows the driver to retain steering control, which is vital for avoiding obstacles during a sudden stop.
Why do my brakes squeal?
Brake squeal can have several causes. It might be a normal occurrence with new pads as they bed in, or due to environmental factors like moisture. However, it's most commonly a sign that your brake pads are worn down to their wear indicators, which are small metal tabs designed to make noise when the pads need replacing. Other causes can include improper installation, glazed pads or rotors, or vibrations. If the squealing is persistent or accompanied by other symptoms, it's best to have your brakes inspected.
In conclusion, the brake part diagram is an unsung hero in vehicle maintenance. It simplifies the complex, making your vehicle's most vital safety system accessible and understandable. By taking the time to familiarise yourself with these diagrams and the components they represent, you're not just learning about your car; you're actively investing in your own safety and the longevity of your vehicle. Proactive maintenance, guided by a clear understanding of your braking system, ensures that your vehicle will always be ready to stop when it matters most.
