When it comes to maintaining your vehicle's braking system, understanding the purpose and function of specialised tools is crucial. One such indispensable item in any mechanic's arsenal, whether professional or amateur, is the brake piston rewind tool. This seemingly simple device plays a significant role in the process of replacing worn-out brake pads, making what can be a fiddly and frustrating job considerably more manageable. Let's delve into what this tool is and why it's an invaluable addition to your automotive toolkit.

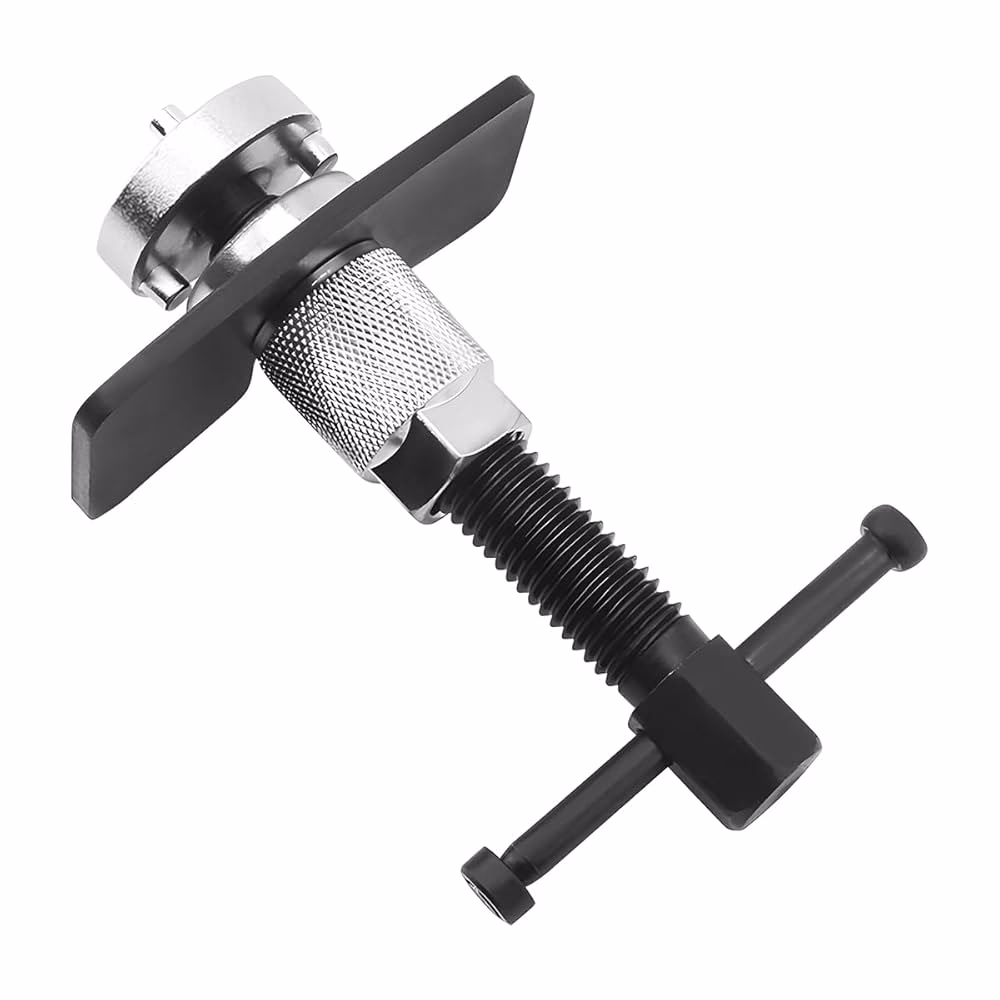

What Exactly is a Brake Piston Rewind Tool?
At its core, a brake piston rewind tool is designed specifically to facilitate the retraction of the piston within a brake caliper. When your brake pads wear down, they become thinner, and the piston in the caliper gradually extends further out to maintain contact with the brake disc. To fit new, thicker brake pads, this piston needs to be pushed back into its housing within the caliper body. This is where the rewind tool comes into play. It provides a mechanical advantage to compress the piston, allowing enough space for the new pads.
Why is it Necessary?
You might wonder why a dedicated tool is needed for this task. While some vehicles, particularly those with older or simpler braking systems, might allow you to push the piston back with a suitable flathead screwdriver or clamp, many modern cars, especially those with rear disc brakes, have pistons that require a different approach. These pistons often incorporate a mechanism that needs to be rotated or 'rewound' back into the caliper, rather than simply pushed. Attempting to force these types of pistons back without the correct tool can lead to damage to the piston, the caliper seals, or even the brake fluid reservoir, potentially causing costly repairs and compromising braking performance.
The universal brake piston rewind tool, as described, is particularly effective on disc brake calipers fitted to most cars with a right-handed thread. This means that as you turn the tool, it simultaneously pushes and rotates the piston, mimicking the action required to retract it smoothly and safely.
How Does it Work?
The operation of a brake piston rewind tool is generally straightforward, though the exact mechanism can vary slightly between different models. The most common type features a handle or a ratchet mechanism that attaches to a central spindle. This spindle has interchangeable adaptors or 'bits' that fit into the grooves or notches found on the face of the brake piston.
The process typically involves the following steps:
- Safety First: Ensure the vehicle is parked on a level surface, the handbrake is engaged (or disengaged if working on the rear brakes, with chocks in place), and the engine is off. Allow the brakes to cool down if you've been driving.
- Remove the Old Pads: Safely jack up the vehicle and remove the road wheel. Then, undo the caliper bolts to allow the caliper to be opened or removed. The old brake pads can then be taken out.
- Select the Correct Adaptor: The rewind tool will come with a set of different sized discs or adaptors. You need to select the one that best fits the piston you are working on. Many adaptors have pins that slot into the piston's face, while others have a flat face with notches that engage with the piston's grooves.
- Attach and Rewind: Place the selected adaptor onto the piston. Then, attach the winding mechanism to the adaptor. Slowly and steadily turn the handle clockwise. You will feel resistance as the piston retracts into the caliper body. It's important to apply firm, consistent pressure and avoid forcing it. Some tools may require you to hold the caliper body steady with a separate wrench while winding.
- Check Clearance: Continue rewinding until the piston is fully retracted. You should have enough space to comfortably slide the new, thicker brake pads into the caliper.
- Reassemble: Once the piston is retracted, you can install the new brake pads, reassemble the caliper, and refit the wheel. Remember to pump the brake pedal several times to bring the piston back out and engage the new pads before driving.
Key Features and Benefits
The benefits of using a dedicated brake piston rewind tool are numerous:
- Ease of Use: Significantly simplifies the process of retracting brake pistons.
- Prevents Damage: Protects the caliper and piston from damage that can occur with improper methods.
- Versatility: Many universal kits come with a range of adaptors to suit a wide variety of vehicles and caliper designs.
- Efficiency: Speeds up the brake pad replacement process, saving valuable time.
- Durability: Tools made from robust materials like 45 steel, as mentioned, are built to last and withstand the forces involved.
Materials and Construction
The construction of the tool is vital for its effectiveness and longevity. As highlighted, being made of 45 steel is a significant indicator of quality. This type of steel is known for its strength, hardness, and wear resistance, making it ideal for tools that will be subjected to considerable force. The precision machining of the adaptors and the winding mechanism ensures a snug fit on the piston and smooth operation, minimising the risk of slippage or damage.
When Might You Need This Tool?
This tool is primarily used during routine brake maintenance, specifically when replacing brake pads. If you notice your brake warning light is on, or if you hear grinding noises when braking, it's a strong indicator that your brake pads need inspection and likely replacement. This tool will be essential if your vehicle is equipped with rear disc brakes that have pistons requiring rotation.
Comparison with Alternative Methods
While not recommended for pistons that require rotation, it's worth noting the differences between using a rewind tool and other methods:
| Method | Pros | Cons | Suitability |
|---|---|---|---|
| Brake Piston Rewind Tool | Safe, efficient, prevents damage, designed for rotating pistons. | Requires specific tool purchase. | Rear disc brakes, many modern vehicles. |
| Large Screwdriver/C-Clamp | Readily available, cheap. | Can damage piston/caliper, ineffective on rotating pistons, messy fluid spillage. | Some older front disc brakes, drum brake adjusters (not pistons). |
| Dedicated Piston Pusher (Non-Rotating) | Pushes pistons directly, simpler than rewind. | Only for non-rotating pistons, requires purchase. | Many front disc brakes. |
Frequently Asked Questions (FAQs)
Do all cars need a brake piston rewind tool?
No, not all cars require a rewind tool. Many vehicles, particularly those with front disc brakes, have pistons that can be pushed back into the caliper simply by applying pressure. However, a significant number of modern cars, especially those with rear disc brakes, have pistons that *must* be rotated. It's always best to check your vehicle's service manual or consult with a mechanic if you're unsure.
Can I just push the piston back without a rewind tool?
For vehicles with pistons that require rotation, attempting to push them back without the correct tool can cause damage to the caliper, seals, or the piston itself. This can lead to brake fluid leaks and compromised braking performance. It is strongly advised to use the appropriate tool for the job.
What happens if I don't retract the piston enough?
If the piston is not retracted sufficiently, you will not be able to fit the new, thicker brake pads. You may also find that the caliper cannot be properly reassembled, leading to excessive force being applied, which could damage components.
How do I know if my car has a right-handed thread on the piston?
The most reliable way to know is to consult your vehicle's owner's manual or a repair guide specific to your make and model. Generally, rear brake calipers on many European and some Asian vehicles are designed with pistons that require rotation. If you inspect the caliper piston, you might see indentations or grooves specifically designed to accept the pins or adaptors of a rewind tool.
Is it difficult to use?
With a little practice, the brake piston rewind tool is quite easy to use. The main challenge is selecting the correct adaptor and applying steady, consistent pressure while turning. The tool itself makes the mechanical part of the job straightforward.
Conclusion
The universal brake piston rewind tool is a specialised but incredibly useful piece of automotive equipment. Its primary function is to safely and efficiently retract brake caliper pistons that require rotation, a common feature in many modern vehicles, particularly with rear disc brakes. By using the correct tool, you protect your braking system from damage, ensure a proper fit for new brake pads, and ultimately make your brake maintenance tasks much simpler and more effective. Investing in a quality tool, often made from durable materials like 45 steel, is a wise decision for any car owner who performs their own maintenance or for professional mechanics looking to streamline their workflow.
