Mastering Brake Pad Wear: The Colour-Coded Gauge

Brakes are, without doubt, one of the most critical safety systems in any vehicle. They are your primary means of stopping, slowing down, and maintaining control, making their optimal performance non-negotiable. Yet, many drivers overlook the crucial task of regularly inspecting their brake pads until a problem becomes glaringly obvious, often accompanied by alarming noises or a noticeable reduction in braking efficiency. This oversight can lead to more significant, expensive repairs and, more importantly, compromise your safety and the safety of others on the road. Understanding the condition of your brake pads is paramount, and thankfully, there's a straightforward, ingenious tool designed to make this inspection both quick and accurate: the brake pad thickness gauge.

While experienced mechanics might be able to eyeball brake pad wear, relying solely on visual inspection can be imprecise and misleading. What looks 'fine' might actually be dangerously thin, or what appears worn might still have life left. This is where the brake pad thickness gauge comes into its own, providing a definitive measurement that removes all guesswork. Among the various types of gauges available, the colour-coded brake pad thickness gauge stands out for its simplicity, efficiency, and clarity, making it an invaluable tool for both professional technicians and DIY enthusiasts alike.

What Exactly is a Brake Pad Thickness Gauge?

At its core, a brake pad thickness gauge is a specialised measuring instrument designed to accurately assess the remaining friction material on your brake pads. Brake pads consist of a metal backing plate and a layer of friction material, often referred to as the 'lining'. Over time and through repeated use, this friction material wears down. The gauge is specifically shaped to fit into the tight space between the brake disc (rotor) and the brake pad's backing plate, allowing it to measure the thickness of the lining without needing to remove the wheel or even the brake caliper in many cases. These gauges typically feature dual markings, providing measurements in both metric (millimetres) and imperial (inches) units, catering to a wide range of vehicle specifications and user preferences.

The primary purpose of this tool is to provide a precise indication of how much life is left in your brake pads. This information is vital for scheduling maintenance, preventing unexpected brake failures, and avoiding the potential for costly damage to other braking components, such as the brake discs, which can occur if pads wear down to the metal backing plate.

The Genius of Colour-Coded Brake Pad Gauges

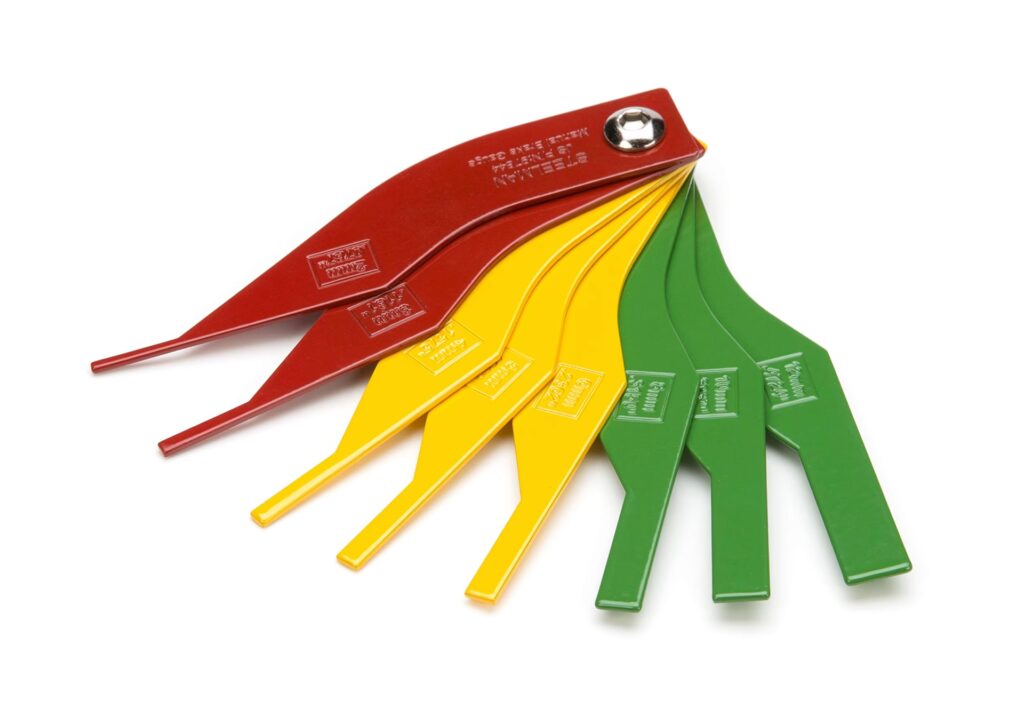

While standard brake pad gauges provide numerical measurements, the colour-coded version elevates the user experience through its intuitive 'traffic light' system. This system simplifies the assessment process, allowing for instant, clear communication of the pad's condition. It's a particularly handy tool for demonstrating wear to customers in a workshop setting, as the visual cues are universally understood.

The colour-coding typically follows this convention:

• Green: Indicates that the brake pads have ample thickness remaining and are in good condition. You're typically looking at measurements of 8mm, 10mm, and 12mm (or SAE equivalents like 0.3150-0.4720 inches). This means your pads are healthy and don't require immediate attention, though regular monitoring is always recommended.
• Yellow: Signals that the brake pads are approaching their wear limit and will soon require replacement. This is the 'caution' zone. Measurements in this range are typically 4mm, 5mm, and 6mm (or SAE equivalents like 0.1575-0.2382 inches). While not critically dangerous yet, these pads should be scheduled for replacement in the near future, perhaps at your next service interval or within a few thousand miles. It's a proactive warning to plan for maintenance.
• Red: Denotes that the brake pads are dangerously thin and require immediate replacement. This is the 'stop' or 'danger' zone. Measurements here are typically 2mm and 3mm (or SAE equivalents like 0.0787-0.1181 inches). Driving with pads in this condition is highly risky, as it significantly compromises braking performance and increases the likelihood of metal-on-metal contact, which can severely damage your brake discs and lead to complete brake failure.

The clear visual feedback provided by the colour-coded system makes brake inspection accessible to everyone, regardless of their mechanical expertise. It removes ambiguity and promotes timely maintenance, which is key to both safety and cost-effective vehicle ownership.

Why Using a Brake Pad Thickness Gauge is Essential

Beyond the obvious safety implications, utilising a brake pad thickness gauge offers numerous benefits:

• Precision and Accuracy: Unlike subjective visual checks, a gauge provides a precise, quantifiable measurement, ensuring you know exactly how much material is left.
• Early Detection: It allows you to identify wear long before it becomes critical, enabling proactive maintenance scheduling rather than reactive, emergency repairs.
• Preventing Further Damage: By replacing pads before they wear too thin, you prevent the metal backing plates from grinding against the brake discs, which can cause irreparable damage to the discs, leading to much more expensive repairs.
• Cost Savings: Timely pad replacement is significantly cheaper than replacing worn-out pads AND damaged discs. It also helps avoid unexpected breakdowns or costly towing services.
• Enhanced Safety: Well-maintained brake pads ensure optimal braking performance, reducing stopping distances and significantly enhancing your vehicle's safety on the road.
• Peace of Mind: Knowing your brakes are in good condition provides confidence and peace of mind every time you drive.

How to Use a Colour-Coded Brake Pad Thickness Gauge

Using this tool is surprisingly straightforward, even for those with limited mechanical experience. Here's a step-by-step guide:

1. Safety First: Ensure your vehicle is on a flat, stable surface. For the most accurate and safe inspection, it's often best to jack up the vehicle and remove the wheel, using appropriate axle stands for support. This provides clear access to the brake caliper and pads. If you're inspecting without removing the wheel, ensure the steering is turned to allow maximum access to the caliper.
2. Locate the Brake Pads: The brake pads are housed within the brake caliper, gripping the brake disc. You'll need to identify the inner and outer pads.
3. Insert the Gauge: Carefully slide the appropriate coloured prong of the gauge (starting with green) into the gap between the brake disc and the brake pad's friction material. Ensure the gauge is fully seated against the backing plate of the pad.
4. Read the Measurement: The gauge will stop at the point where the pad thickness matches one of its steps. The colour of the prong that fits snugly, or the last one that fits without force, indicates the approximate thickness. For example, if the green 8mm prong fits easily, but the green 10mm prong does not, your pad is likely around 8mm thick. The colour-coded system makes this even simpler: if the green probe fits, your pads are good. If only the yellow probe fits, they're getting low. If only the red probe fits, they need immediate replacement.
5. Check All Pads: Remember to check both the inner and outer pads on each wheel, as wear can sometimes be uneven. It's also wise to check all four wheels, as front brakes typically wear faster than rear brakes due to their greater braking contribution.
6. Interpret the Results: Refer to the colour-coding system (Green, Yellow, Red) to understand the condition of your pads and decide on the necessary action.

Interpreting the Colours: What Action to Take

Understanding what each colour signifies is key to proactive maintenance:

• Green (8mm-12mm): Your brake pads are in excellent condition with plenty of life left. Continue with routine checks, perhaps every 5,000-10,000 miles or at your vehicle's service intervals.
• Yellow (4mm-6mm): Your brake pads are getting thin and nearing their wear limit. This is a warning to start planning for replacement. You might monitor them more frequently (e.g., every 3,000-5,000 miles) and aim to replace them within the next few months or at your next scheduled service. Do not ignore this warning.
• Red (2mm-3mm): Your brake pads are critically worn and require immediate replacement. Driving with pads this thin is dangerous and risks damaging your brake discs. Do not delay this repair.

Brake Pad Wear Status Table

When to Check Your Brake Pads

While a brake pad thickness gauge makes checks easy, knowing when to perform them is just as important. Here are some guidelines:

• Regular Service Intervals: Always have your brake pads checked as part of your vehicle's routine service.
• Every Tyre Rotation: This is an excellent opportunity, as the wheels are already off.
• Before Long Journeys: A quick check provides peace of mind before extended drives.
• If You Notice Warning Signs: Listen for squealing or grinding noises when braking. Feel for a pulsating brake pedal or if the car pulls to one side during braking. If your brake warning light illuminates on the dashboard, it's an urgent sign.

Common Mistakes to Avoid

• Only Checking One Pad: Always check both inner and outer pads on each wheel, as wear can be uneven.
• Ignoring Uneven Wear: If one pad is significantly more worn than another, it could indicate a problem with the caliper or other brake components, requiring further investigation.
• Relying Solely on Visual Inspection: While a quick glance can highlight severe wear, it lacks the precision of a gauge.
• Delaying Replacement: Ignoring yellow or red readings can lead to more expensive repairs and safety hazards.

Frequently Asked Questions (FAQs)

How often should I check my brake pads?

It's generally recommended to check your brake pads every 5,000 to 10,000 miles, or at least twice a year. Always check them if you notice any changes in braking performance or hear unusual noises.

Can I use a ruler instead of a brake pad thickness gauge?

While a ruler can give you a rough estimate, it's not designed for the confined spaces and precise measurements required for brake pads. A dedicated brake pad thickness gauge provides far greater accuracy and ease of use, especially the colour-coded versions.

What if only one brake pad is worn on a wheel?

Uneven wear on brake pads on the same wheel can indicate an issue with the brake caliper, such as a sticking piston or seized guide pins. This requires professional inspection and repair, as it can compromise braking effectiveness.

Is it difficult to use a colour-coded brake pad gauge?

No, they are specifically designed for ease of use. The colour-coded system makes interpretation incredibly straightforward, even for novices.

Can these gauges be used on all vehicles?

Most colour-coded brake pad thickness gauges are universal and can be used on a wide range of cars and light commercial vehicles. However, always check the product specifications if you have a particularly unusual or heavy-duty vehicle.

Conclusion

In the realm of vehicle maintenance, proactive care is always preferable to reactive repairs. The humble brake pad thickness gauge, particularly the ingenious colour-coded version, embodies this philosophy perfectly. It's a small, inexpensive tool that provides invaluable insights into the health of your braking system. By incorporating regular brake pad checks into your maintenance routine, you're not just saving money on potentially costly repairs; you're actively investing in your own safety and the safety of everyone on the road. Don't leave your brakes to chance; empower yourself with the knowledge and tools to keep them in peak condition.
