Maximising Life from Your Racing Brake Pads

Fifteen years ago, the idea of racing brake pads needing an owner's manual might have seemed laughable. How complex could a simple block of friction material truly be? However, after decades of track driving and extensive discussions with countless brake enthusiasts, it's abundantly clear that brake pads are, in fact, incredibly intricate components. Automotive forums are teeming with questions regarding their usage: 'Why are my pads tapering or cracked? How long will they last? When should I replace them?' This article aims to demystify these common issues and provide track enthusiasts with the knowledge to get the most out of their brake pads.

Understanding Brake Pad Terminology

Before delving into the nuances of pad wear and management, let's establish a common understanding of the terminology associated with brake pads:

• Backing Plate: The sturdy steel plate to which the friction material, often called a friction puck, is bonded.
• Bedding-in: A critical process involving heating a brake pad to a specific temperature, allowing a thin, even layer of pad material to adhere to the disc face. This process induces vital chemical changes within the pad material.
• Burnishing: A mechanical action where the surfaces of the brake pad and disc are rubbed together until they become level and perfectly mated. Often, bedding-in and burnishing occur simultaneously, leading to their interchangeable use.
• Friction Puck: The actual compound or friction material that generates stopping power, bonded securely to the backing plate.
• Shim: A thin plate typically attached to the rear of the backing plate, designed primarily to reduce NVH (Noise/Vibration/Harshness). Shims are rarely found on racing pads, as noise reduction is a low priority on the track, and they can sometimes increase pedal travel at high temperatures.
• Pad Length: The straightforward measurement from one end of the pad backing plate to the other.
• Pad Width / Height: While 'width' is less commonly used by experts, 'height' describes the distance from the top edge of the pad backing plate (visible from the caliper's top) down to the lower edge closest to the wheel hub.
• Pad Radial Depth: Closely related to height, this refers to the height of the friction puck itself. It's crucial for ensuring the pad sits correctly on a given brake disc. Ideally, the pad's radial depth should match the disc's radial depth (the distance from the disc's outer to inner edge). An ill-fitting radial depth can lead to an unswept ring on the disc, causing temperature gradients and potential cracking, or interference with the disc hat.
• Pad Thickness: The measurement from the friction surface (which contacts the disc) to the part of the backing plate touching the caliper pistons. Manufacturers usually quote the combined thickness of both the friction material and the backing plate. Many pad shapes are available in various thicknesses, so ensure compatibility with your caliper and disc setup.
• Pad Volume: Approximately calculated as the length x height x thickness of the friction puck. A greater pad volume generally indicates a higher capacity to absorb heat. However, the optimal volume can vary based on the brake system's design goals. For instance, carbon ceramic discs, which don't conduct heat well, often pair with very tall but thin pads to maximise surface area for heat radiation. Iron racing discs, with superior heat conductivity and complex vane patterns, can use shorter radial depths and achieve greater volume through increased thickness, often seen in endurance racing where 25-30mm thick pads are common.
• Pad Surface Area: The length x height of the friction puck's surface. While often overemphasised, overall pad volume is generally a more critical factor in determining a pad's heat capacity and potential lifespan.

The Intricacies of Racing Pad Construction

The formulation of brake pad compounds is a complex art and science. Imagine engineers as part scientist, part artist, and part chef, meticulously combining up to 35 ingredients, including adhesives, fillers, friction modifiers, resins, and lubricants. Unlike street pads, which prioritise low noise and cold bite, race pads are engineered for unwavering stability and consistency under extremely high temperatures.

Professional-grade racing pads, such as the Ferodo DS series, often feature a thermal underlayer. This thin layer, pressed between the backing plate and the friction material, ensures proper bonding while crucially preventing heat penetration into the caliper pistons and brake fluid. While most racing pads use adhesives for bonding, top-tier pads often incorporate mechanical retention systems, like Ferodo's brass studs, as an added safety measure to prevent the friction puck from de-laminating (detaching from the backing plate).

Another common feature on racing pads are vertical grooves cut into their face. These expansion grooves serve a vital purpose, similar to expansion joints in roads: they provide space for the materials to expand and contract without fracturing as the pads undergo repeated heating and cooling cycles on the track.

One of the final manufacturing steps is 'scorching'. This process involves blasting the pad's friction surface with flames in an oven to burn off residual binders or resins. If these surface resins aren't removed through scorching (and proper bedding-in), they can melt or vaporise during initial hard braking, leading to unstable friction levels—a phenomenon often called 'green fade'. Scorching can be seen as an incomplete form of bedding, preparing the pad for a more successful bed-in process by reducing the chance of uneven deposits on the disc face. Many pads marketed as 'pre-bed' are, in fact, only scorched.

Deciphering Brake Pad Wear Rates

One of the most frequent questions from track enthusiasts is, 'How long will these pads last?' This is an impossible question to answer definitively, given the multitude of contributing factors: vehicle power and weight, weight distribution, tyre choice, track configuration, driving style, and the brake disc material and groove pattern all play a significant role.

It's also important to recognise that the hardest, longest-wearing pads aren't always the best choice. Your brake system's primary function is to convert kinetic energy into heat through the friction generated by your pads rubbing against the discs. When two components, mostly metal, are repeatedly heated to extreme temperatures (e.g., 800°C / 1500°F) and rubbed together vigorously, wear is inevitable. The softer of the two materials will wear faster. An incredibly hard, abrasive pad will rapidly consume grey iron brake discs, especially when run cold. If you're using a £300 set of pads on a £1000 set of discs, you need to consider which consumable you'd prefer to replace more frequently. Always remember that both brake pads and discs are consumables.

A crucial factor in understanding pad and disc wear is the pad transfer layer. This occurs when a brake pad is heated to a specific temperature, causing an ultra-thin layer of friction material to transfer and adhere evenly to the disc face. The goal, achieved through the bed-in procedure, is to gradually build this uniform transfer layer. Once established, pad material is continually transferred back and forth between the disc face and the pad face during braking.

Vigilant Inspection: Spotting Pad Wear

A general rule of thumb for pad wear is: the less material you have remaining, the faster it will burn. Pads wear at an accelerated rate as they approach the end of their service life. A full-depth pad, with its greater mass and volume, can absorb more heat than a thinner pad. For example, if you initially use 1mm of friction material per track session with new pads, you might find yourself losing 1.5-2.0mm per session when 80% of the material is gone. This acceleration of wear means you need to check your pads much more frequently as they get thinner.

For typical HPDE, time trial, or club race cars, inner pads tend to wear more quickly than outer pads. This is primarily due to reduced airflow to the inner pad area. Factory brake debris/splash shields, if left in place, can trap heat against the inner disc face and obstruct cooling air. Even when brake ducting is employed, it's often not optimally implemented due to packaging constraints in the car's front, where components like wiper washer bottles or oil coolers can block effective airflow. Therefore, it's imperative to monitor both inner and outer pads, as their wear rates will differ. Simply peeking through the wheel spokes at the outer pad is insufficient, especially when pads are getting low; you must inspect the inside of the caliper as well.

Tackling Pad Taper: An Unavoidable Reality

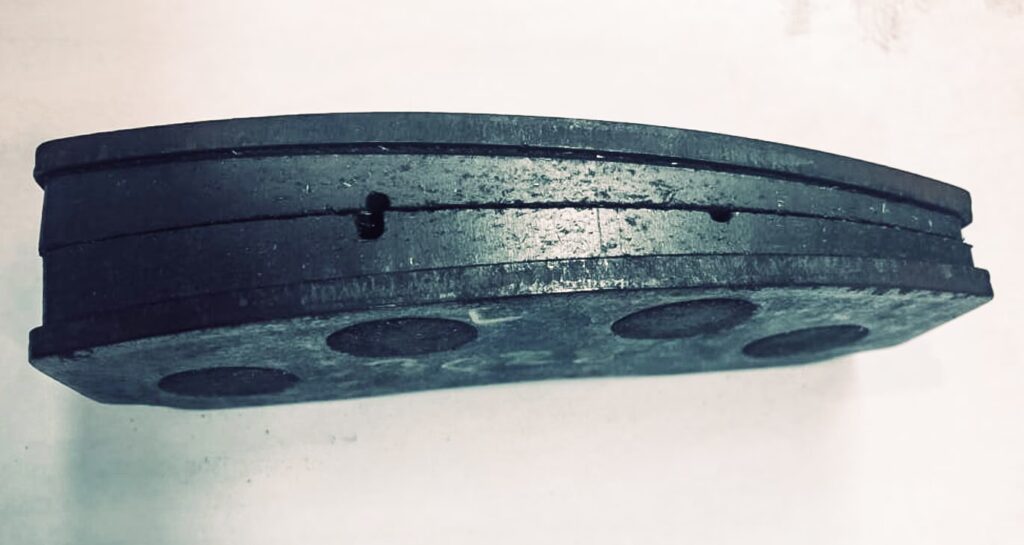

Some degree of pad taper is always present and completely normal; a few millimetres of taper is considered low. In racing, it's not uncommon to see as much as 10mm of taper, and it won't be uniform across all pads. This phenomenon is unavoidable, observed on every car, with every brake kit, from every manufacturer. Taper can occur radially (top-to-bottom) or longitudinally (end-to-end). We also frequently see slightly different wear characteristics between the left and right sides of a car, influenced by track configurations. This is prevalent across all levels of racing, including NASCAR Sprint Cup.

One primary reason for taper is uneven temperatures between the leading and trailing edges of the pad. The leading edge consistently runs hotter and wears faster than the trailing edge. The trailing edge, in effect, 'floats' slightly on pad material torn from the leading edge and pulled backwards. The longer the pad, the more pronounced the taper tends to be. For example, a longer six-piston pad will typically exhibit more taper than a shorter four-piston pad, all other factors being equal. Some advanced calipers, like AP Racing units, feature differential bore pistons (pistons of different sizes) designed to counteract this issue. A smaller piston on the leading edge applies less pressure, while a larger trailing piston applies more, helping to even out the wear. However, completely eliminating taper is virtually impossible.

A practical solution to achieve more even wear and extend pad life is to occasionally flip the pads in the calipers, swapping inner to outer, so that the previously leading edges now trail, and vice versa. This also provides an excellent opportunity to inspect the pads for thinning.

The Impact of Driver Aids on Pad Longevity

Modern high-performance sports cars are equipped with various driver aids, each with its own acronym (e.g., AYC, DSC, DPC, PTV, Active Handling, Drift Mode), all designed to keep the car on its intended path. If you use any of these systems – often referred to as 'nannies' – you will experience greater brake pad wear compared to driving with them disengaged. Why? Because these systems actively leverage your vehicle's brakes to adjust its direction. By using sensor arrays to measure parameters like steering angle, yaw-rate, individual wheel speeds, and lateral acceleration, the car selectively applies individual front or rear brakes to alter its trajectory. This can result in hyperactive braking, generating significant heat and accelerating brake wear.

The most common manifestation of this technology's impact is extreme pad wear on the inside rear brakes. 'Inside' here refers to the side of the car closest to the apex of a turn. For example, in a right-hand turn, the car might drag the passenger-side rear brake to help it pivot (yaw) through the corner. The more active or intrusive the system, the greater the resulting pad wear. This often leads to brake pads in one caliper wearing out much faster than those in the other three corners of the car.

For the least and most even pad and disc wear possible, it's highly recommended to learn to drive your car on track without these driver aids. While it might initially slow you down, it will ultimately make you a better driver, and your brakes will certainly thank you. If you choose to drive with aids engaged, be prepared for uneven brake wear on one or more corners of your car.

When to Replace: How Thin is Too Thin?

A practical rule of thumb for replacing track pads is when the friction material thickness equals, or is just slightly less than, the thickness of the backing plate. At this stage, extreme vigilance is required, as the pads will start to burn at an even faster rate. If your inner pads are wearing faster than your outer ones, or if significant pad taper is present, you risk shooting sparks as your hard steel backing plate makes direct contact with the softer iron brake disc. It's always a safe bet to have a spare set of pads on hand to avoid missing any valuable track sessions.

Cracks, Crumbling, and Fractures: What's Normal?

It's not uncommon to observe some edge crumbling on race pads. Small pieces of material breaking off from the pad edges are typically not a crisis and do not indicate a product failure. However, if large pieces are detaching, or if the pad material completely separates from the backing plate (delamination), then you have a serious problem requiring immediate attention. That said, once pads are worn down to just a few millimetres after repeated track thrashings, all bets are off. Crumbling and cracking can become more prevalent, as repeated heat cycles make them more fragile than when new. If your pads have reached this point, they've already fulfilled their design purpose. Expecting a refund from the manufacturer after ten track days is generally considered poor form, as brake pads are, like tyres and fuel, a consumable item.

Noise and Movement: The Nature of Race Pads

Track pads are not engineered for silence; their primary purpose is to generate immense friction at extremely high temperatures, so NVH (Noise, Vibration, Harshness) is not a design concern. If you desire silent braking, opt for a mild street compound and reserve your race pads for the track. For those regularly switching between track and street environments, exploring resources on managing pad noise during transitions can be helpful.

If your brake pads exhibit slight looseness within your aftermarket caliper, this is often by design. This clearance allows the pads space to expand when they reach searing track temperatures. A minor amount of rattle or pad movement with racing calipers is entirely normal. While some aftermarket caliper manufacturers incorporate spring retention systems to minimise pad movement and noise, others do not. Furthermore, when shifting between forward and reverse, you might hear a 'clunk' as the pads shift against the abutment plates within the caliper.

Handling Your Pads with Care

A final, yet crucial, note, particularly for those who frequently swap pads between track use and other activities like autocross: exercise caution when handling your pads, especially after they've been run on the track. It's not uncommon to see enthusiasts drop race pads on asphalt or use them as levers to push caliper pistons back into their bores. These pads are not indestructible. After repeated heat cycles on track, some of the binding agents, adhesives, and fillers within the pads begin to break down, making them more fragile. Always handle them carefully and never use them as tools.

Frequently Asked Questions About Racing Brake Pad Wear

Conclusion

These seemingly innocuous lumps of friction material can be a source of either profound frustration or immense joy on the track. Hopefully, this comprehensive guide has armed you with the essential knowledge to better manage your track brake pads. By understanding their construction, anticipating wear patterns, implementing proper inspection techniques, and being mindful of factors like driving aids and pad handling, you are now well-equipped to pursue the latter – great joy and optimal performance from your braking system.
