Split Pin vs Bolt: Understanding Caliper Fixings

When delving into the mechanics of bicycle brake calipers, particularly those found on disc brake systems, you'll often encounter two distinct methods for securing the brake pads: split pins (also known as cotter pins) and threaded pins (often referred to as bolts or grub screws). While both serve the fundamental purpose of retaining the brake pads within the caliper body, their design, implementation, and even their perceived sophistication can vary significantly. Understanding these differences is crucial for proper maintenance, troubleshooting, and even making informed purchasing decisions.

The Humble Split Pin: Simplicity and Security

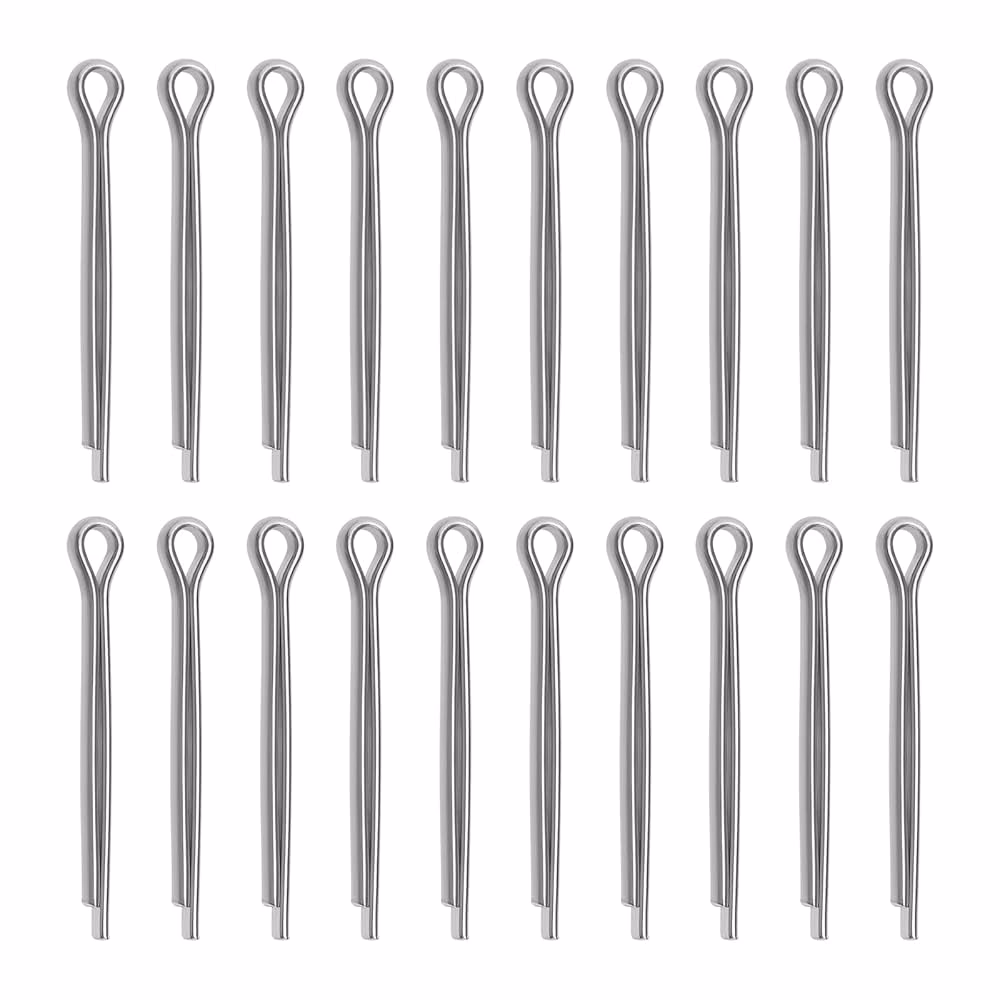

The split pin, or bent cotter pin as it's sometimes called, is a simple yet effective piece of hardware. Typically made from a length of stiff wire, it's bent in half to form a loop at one end, with the two free ends extending parallel to each other. In the context of brake calipers, the split pin is inserted through a hole that passes through the caliper body and the brake pad retention hole. Once in place, the two free ends of the pin are bent outwards, creating a secure lock that prevents the pin from vibrating loose and the pads from dislodging.

Key characteristics of split pins:

• Simplicity: Their design is straightforward, making them easy to understand and replace.
• Ease of Use: Installation and removal are generally quick, often requiring just a pair of pliers.
• Cost-Effective: They are typically inexpensive to manufacture and replace.
• Flexibility: While designed for a specific caliper, there can be some interchangeability between different models if the length and pin diameter are suitable.

Many caliper models, particularly those that are not at the absolute top of the price range, utilise this bent cotter pin style of retention. The brake pads themselves are designed with a corresponding hole to accept the pin. It's important to note that the split pin is not subjected to any braking loads; its sole function is to prevent the pads from falling out during periods when the brakes are not applied, such as when coasting or during wheel removal.

The Threaded Pin: Precision and a Premium Feel

In contrast, the threaded pin, often resembling a small bolt or grub screw, offers a more refined and often more secure method of pad retention. These pins feature external threads that engage with corresponding threaded holes within the caliper body. Once screwed in, they firmly hold the brake pads in place. This type of retention is often found on higher-end or more recent caliper designs.

Key characteristics of threaded pins:

• Precision Fit: The threaded engagement ensures a snug and secure fit.
• Aesthetic Appeal: They can contribute to a cleaner, more integrated look on the caliper.
• Durability: When made from quality materials and properly installed, they can be very durable.
• Specific Design: These pins are often designed for specific caliper models, meaning a direct replacement is usually required if lost or damaged.

It's widely observed that many road bike calipers, in particular, tend to favour the threaded pin system, though this can and does change with evolving designs. In most cases, the threaded pin is considered an integral part of the caliper and is intended to be reused. If one is lost or, as in some unfortunate cases, becomes damaged – perhaps through overtightening or corrosion – a specific replacement must be sourced. While there can be some overlap in dimensions between different Shimano calipers that use threaded pins, it's not a universal fit, and using an incorrect pin could lead to issues.

Can You Swap Them? The Substitution Question

A common question that arises is whether a split pin can be used in place of a lost or damaged threaded pin, or vice versa. The general consensus, and indeed a practical solution in many situations, is that a bent cotter type pin of the appropriate length can indeed be substituted for a threaded pin without issue. Since neither pin type bears any braking load – their function is purely retention – the method of securing them is largely inconsequential to the braking performance itself. The critical factor is that the pin securely holds the pads in place and does not interfere with the caliper's operation.

However, the reverse substitution (using a threaded pin where a split pin is designed) is less common and often not feasible due to the differing designs. If a split pin is lost, and the caliper is designed for a threaded pin, you would need to source the correct threaded replacement. Attempting to force a threaded pin into a split pin's mounting hole would likely damage the caliper or the pin itself.

The Role of Pads and Compatibility

It's worth noting that the shape of the brake pad itself does not necessarily dictate the type of retention system used by the caliper. You'll find that various pad shapes are compatible with calipers employing either threaded pins or split pins. When purchasing replacement brake pads, particularly from major manufacturers like Shimano, it's important to check for compatibility with your specific caliper model. Shimano, for instance, often includes the necessary replacement pins with their compatible pad sets, acknowledging that different calipers use different pin variations. This can include up to three different length/profile variations of bent pins across their range, ensuring you have the correct hardware for your specific setup.

Durability Concerns and Real-World Issues

While both systems are generally reliable, no mechanical component is immune to failure. The threaded pin system, while often perceived as more robust, can sometimes present its own set of problems. As evidenced by a real-world scenario, a threaded pin's head can strip out, making extraction difficult. This is often exacerbated by corrosion, which can seize the threads and make removal a painstaking process, sometimes requiring careful extraction techniques. This is not a common occurrence but serves as a reminder that even premium components can be susceptible to environmental factors and wear.

Conversely, split pins, due to their simpler nature, are less prone to stripping. However, they can occasionally bend or break if subjected to excessive force or if they become fatigued over time. The key takeaway is that regular inspection and proper maintenance are vital for both types of retention systems.

Comparative Table: Split Pin vs. Threaded Pin

Frequently Asked Questions

Q1: What is the primary function of the pin in a brake caliper?

A1: The pin's sole purpose is to retain the brake pads within the caliper body, preventing them from falling out when the brakes are not applied.

Q2: Do the pins affect braking performance?

A2: No, neither split pins nor threaded pins are subjected to braking loads. The braking forces are borne by the caliper body itself.

Q3: Can I use a generic split pin if I lose my original one?

A3: If your caliper uses a split pin, you can often use a generic one of the correct length and diameter. However, for optimal security, using a pin designed for your specific caliper is always best.

Q4: My threaded pin is seized. What should I do?

A4: If a threaded pin is seized due to corrosion, apply a penetrating oil and allow it to soak in. Use the correct size tool and apply firm, steady pressure. If it still won't budge, professional help might be required to avoid damaging the caliper.

Q5: Are there any advantages to one system over the other?

A5: Threaded pins often offer a more secure and aesthetically pleasing fit, and are less prone to accidental dislodging. Split pins are simpler, cheaper, and easier to replace in a pinch, and can sometimes be more forgiving in terms of interchangeability.

In conclusion, whether your calipers employ the tried-and-tested split pin or the more modern threaded pin, both systems are designed for one critical task: keeping your brake pads safely in place. Understanding their nuances, performing regular checks, and using the correct replacement parts will ensure your braking system remains reliable and effective, giving you the confidence to enjoy your ride.
