Hyundai i10 Brake Squeal: Common Causes

The braking system in your Hyundai i10 is a robust and essential component, designed to provide reliable stopping power mile after mile. However, like many parts of a vehicle, it can sometimes start to emit an audible signal that something isn't quite right. That tell-tale squeak from your brakes is often the first indicator that they require attention. While worn brake pads are the most frequent offender, a symphony of other issues can contribute to this irritating noise. The good news is that many of these potential problems, particularly brake pads, are relatively inexpensive to rectify. Let's delve into the common reasons why your i10's brakes might be singing an unwelcome tune.

How Your i10's Braking System Functions

To understand why your brakes might be squeaking, it's helpful to have a basic grasp of how they operate. At its core, the braking system leverages the force you apply to the brake pedal. This mechanical input is ingeniously converted into hydraulic pressure, which is then amplified by the engine's vacuum via the master cylinder. This amplified pressure is transmitted to the brake pads (or brake shoes in the case of drum brakes). As these components press against the rotating discs (rotors) or drums, friction is generated, slowing your i10 down. This process, as you can imagine, generates a significant amount of heat, and over time, the constant friction inevitably leads to wear on the braking components.

Hyundai i10 Squeaky Brakes: Unpacking the Causes

Several factors can contribute to the unnerving squeal of your Hyundai i10's brakes. Here are the most prevalent:

1. Worn Brake Pads: The Usual Suspect

Undoubtedly, the most common reason for squeaky brakes is simply that the brake pads have reached the end of their service life. Modern vehicles like your i10 are equipped with disc brakes on the front axle. Depending on the specific year and specifications of your i10, it may also feature drum brakes on the rear.

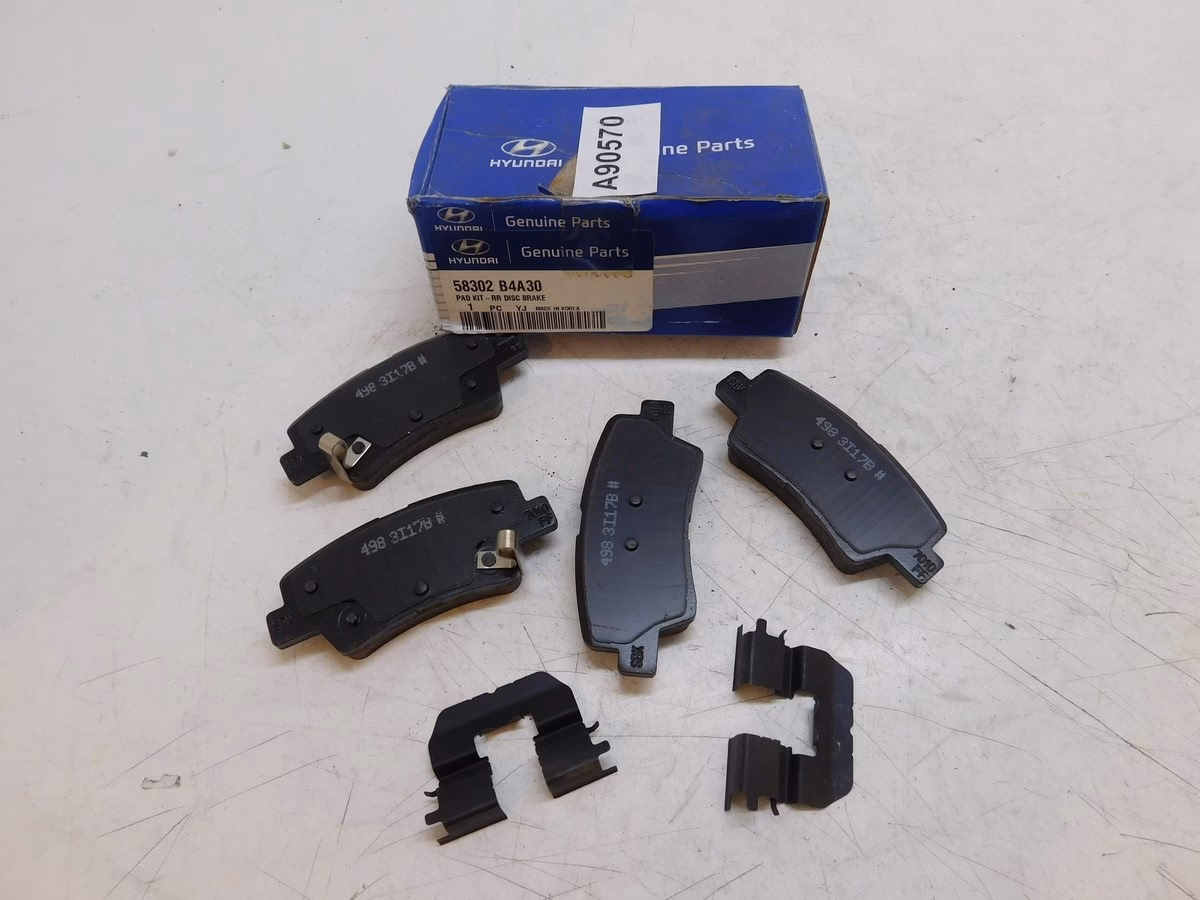

Brake pads are ingeniously designed with a small metal tab known as a 'squealer' or 'wear indicator'. When the friction material on the brake pad wears down to a critically low level, this metal squealer begins to make contact with the brake rotor. This contact is specifically engineered to produce an audible squeak, alerting you that a replacement is necessary. At this stage, your vehicle is still safe to drive, but it's crucial to arrange for the brake pads to be replaced as soon as possible. If this warning is ignored, the brake pads will continue to wear down, eventually leading to a metal-on-metal contact between the pad backing plate and the rotor. This scenario will no longer produce a squeak; instead, you'll be greeted with a much more alarming and destructive grinding sound.

In the case of drum brakes, which might be present on the rear of some i10 models, the braking mechanism uses brake shoes. These shoes press against the inside of a rotating drum to slow the vehicle. Similar to pads, the friction material on the shoes wears away over time. Once this material is completely depleted, metal-on-metal contact occurs, resulting in a metallic scraping or grinding noise. Detecting worn drum brake shoes before they reach this point can be more challenging than with disc brake pads.

2. The Role of Anti-Rattle Clips

Most contemporary vehicles, including your Hyundai i10, are fitted with anti-rattle clips. These small but vital components are designed to keep the brake pads snug within the brake caliper, preventing them from vibrating or bouncing against the rotor when the brakes are not applied. If these clips are damaged, corroded, or have been installed incorrectly, they can become a source of squealing.

In some instances, if the anti-rattle clips are entirely missing, you might initially hear a distinct "thunk" noise as the brake pads move freely. Over time, without the stabilizing effect of these clips, the pads can begin to wear unevenly and develop a glazed surface, leading to squeaking. The importance of these clips cannot be overstated. If you suspect that your anti-rattle clips are damaged or have gone missing, it's advisable to replace them promptly.

3. Glazing: The Hardening of Surfaces

Glazing is a phenomenon that occurs when brake components, including pads, shoes, rotors, or drums, are subjected to excessive heat over an extended period. This prolonged exposure to high temperatures causes the surface of the brake pads (or shoes) to harden and develop a smooth, polished appearance. This hardened surface significantly reduces the friction material's ability to grip the rotor effectively, leading to diminished braking performance. The squeaking noise is merely a by-product of this compromised contact. If your Hyundai i10's brake pads have become glazed, they will need to be replaced to restore optimal braking capability.

4. Pad Insulation: The Missing Shim

Between the brake pad and the caliper, there is typically a small metal or composite component known as a shim. This shim acts as an insulator, helping to dampen vibrations that can cause noise. Over time, these shims can become lost, damaged, or corroded. This is a problem that often becomes apparent shortly after a brake service has been performed, as the shims may not have been reinstalled correctly or might have been damaged during the process. A problem with the pad insulation or shims can certainly lead to squeaky brakes.

5. Rotor Condition: Uneven Surfaces and Wear

The brake rotors, the discs that your brake pads clamp onto, are also susceptible to issues that can cause noise. If your i10's rotors develop an uneven surface, become glazed, or are worn beyond their specified thickness, they can contribute to squeaking. A mechanic can often rectify minor surface imperfections by 'turning' the rotors, a process that involves machining a new, even surface onto them. However, if the rotors are excessively worn or damaged, replacement will be necessary.

Diagnosing Squeaky Brakes in Your Hyundai i10

Pinpointing the exact cause of squeaky brakes can sometimes be a challenge, as multiple factors can contribute to the noise. However, remember that your vehicle's ability to stop effectively is paramount to your safety. Never ignore a squeaking sound from your brakes. It's a clear indication that a problem exists and should be investigated.

Here's a quick summary of potential causes and what to look out for:

Frequently Asked Questions

Q1: Can I still drive my i10 if the brakes are squeaking?
Generally, yes, if the squeak is due to worn pads with the squealer activated, your brakes will still function. However, it's a warning sign that immediate attention is needed. Driving with severely worn brakes (metal on metal) is dangerous and can cause significant damage to other braking components.

Q2: How much does it typically cost to replace brake pads on a Hyundai i10?
Costs can vary depending on your location and whether you use a dealership or an independent garage. However, replacing front brake pads on a Hyundai i10 is generally considered an affordable repair, often ranging from £70 to £150 for parts and labour.

Q3: Is it possible for new brake pads to squeak?
Yes, it is possible for new brake pads to squeak, especially during the initial 'bedding-in' period. This is a normal process as the pads and rotors mate with each other. However, if the squealing persists after a few hundred miles, there might be an issue with the installation or the components themselves.

Q4: Should I replace the rotors when I replace the brake pads?
It's not always necessary to replace the rotors with the pads. If the rotors are still within their minimum thickness specification and have a smooth, even surface, they can often be 'resurfaced' or 'turned' by a mechanic. However, if the rotors are significantly worn, grooved, or warped, replacing them along with the pads is recommended for optimal braking performance and longevity.

Q5: Could something other than the brake pads be causing the squeak?
Absolutely. As discussed, issues with anti-rattle clips, pad shims, glazed surfaces, or the condition of the brake rotors themselves can all lead to squeaky brakes, even with relatively new pads.

In conclusion, while a squeaky brake on your Hyundai i10 can be an annoyance, it's a crucial signal that your braking system needs a check-up. By understanding the common causes, you can work with your mechanic to diagnose and rectify the issue, ensuring your i10 remains safe and reliable on the road. If you have any further insights or experiences to share regarding i10 brake squeaks, feel free to leave a comment below.
