Brake Shims: Your Silent Ride Savers

Ever noticed that unsettling squeal or groan emanating from your car's brakes? While many factors can contribute to brake noise, one of the unsung heroes in combating this nuisance is the humble brake shim. Often overlooked and rarely discussed, these small but mighty components play a pivotal role in the overall health and performance of your braking system. If you've ever wondered why your mechanic might mention them or what exactly they do, then you've come to the right place. This article will delve deep into the world of brake shims, explaining their purpose, the different types available, and why they are an indispensable part of your vehicle's safety and comfort.

What Exactly is a Brake Shim?

At its core, a brake shim is a thin, typically metal or composite plate that is fitted between the brake pad backing plate and the brake caliper piston or bracket. Think of it as a meticulously engineered buffer. Its primary function is to dampen vibrations that occur during the braking process. When you apply your brakes, immense friction is generated between the brake pad and the brake disc (rotor). This friction, while necessary for stopping, can also create high-frequency vibrations. These vibrations, if left unchecked, can travel through the braking system and manifest as audible noises, most commonly a high-pitched squeal.

The shim acts as an insulator, absorbing these vibrations and preventing them from resonating through the caliper and into the chassis of your car. Without shims, your braking experience could be significantly more unpleasant, with constant, irritating noises accompanying every deceleration.

The Science Behind Brake Noise and Shims

Brake noise, particularly the high-pitched squeal, is a complex phenomenon often attributed to a process called stick-slip. When the brake pad material and the brake disc material make contact, they don't always slide smoothly. Instead, they can momentarily "stick" together due to microscopic friction, then "slip" apart. This rapid cycle of sticking and slipping generates vibrations at specific frequencies. If these frequencies happen to match the natural resonant frequencies of the brake components, the vibrations are amplified, leading to audible noise.

Brake shims are designed to disrupt this stick-slip cycle by introducing a layer that can absorb or dissipate the energy generated by these micro-movements. They achieve this in a few ways:

• Damping: The material of the shim, often multi-layered with rubber or polymer cores, absorbs the vibrational energy, converting it into heat which is then dissipated.
• Insulation: They act as a physical barrier, preventing direct metal-to-metal contact and reducing the transmission of vibrations.
• Resilience: The flexible nature of some shims allows them to absorb and release energy more gradually, smoothing out the stick-slip motion.

Types of Brake Shims

Brake shims are not a one-size-fits-all solution. Manufacturers employ various designs and materials to suit different braking systems and performance requirements. The most common types include:

1. Steel Shims

These are typically single-layer, thin pieces of steel. While they offer a degree of damping, they are generally less effective at noise reduction compared to more advanced designs. They are often found in older or more basic braking systems. Their primary benefit is their durability and low cost.

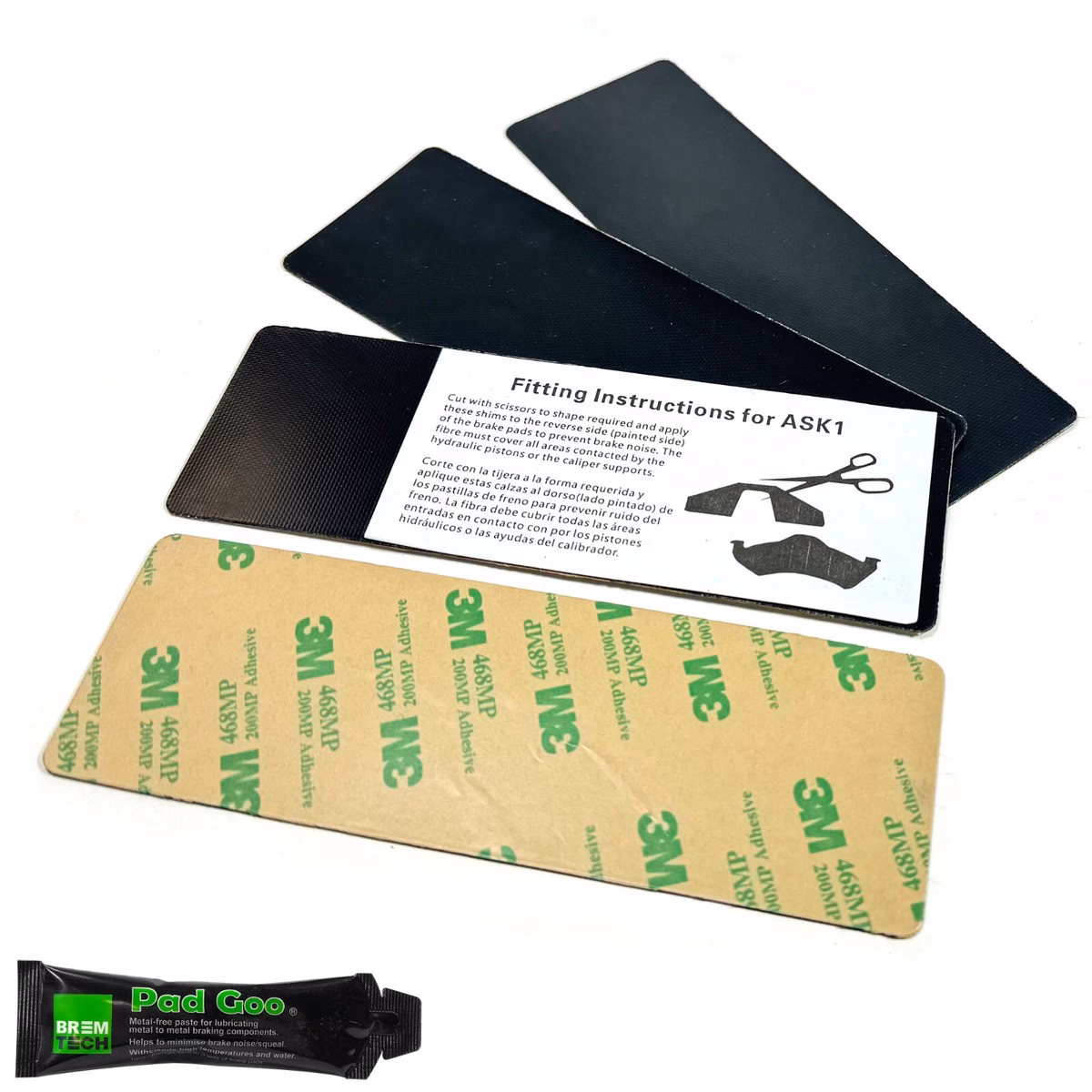

2. Coated Steel Shims

These are an improvement on basic steel shims. They feature a coating, often a special polymer or rubber layer, bonded to one or both sides of the steel. This coating significantly enhances their damping capabilities by absorbing vibrations more effectively. The steel provides structural integrity, while the coating handles the noise reduction.

3. Multi-Layered Shims (Constrained Layer Damping - CLD)

These are the most sophisticated and effective type of brake shim. They typically consist of three or more layers: a steel or stainless steel outer layer, a viscoelastic polymer core, and another steel or stainless steel inner layer. The polymer core is designed to shear under stress, dissipating vibrational energy as heat. This design offers superior damping and is highly effective at eliminating brake noise. You'll often find these on performance vehicles or in aftermarket brake pad kits aiming for a quieter experience.

4. Pad-Integrated Shims

In some modern vehicles, the shim is not a separate component but is permanently bonded to the back of the brake pad itself. This manufacturing technique ensures the shim is always present and correctly positioned, offering consistent noise reduction throughout the life of the brake pad.

Why Are Brake Shims Important?

While their primary role is noise reduction, brake shims offer several other benefits:

1. Noise Reduction

This is the most obvious and sought-after benefit. By damping vibrations, shims contribute significantly to a quieter and more comfortable driving experience. This is particularly important in luxury vehicles where refinement is paramount.

2. Improved Braking Feel

Excessive vibration can sometimes lead to a less precise or "spongy" brake pedal feel. By stabilising the brake components, shims can contribute to a firmer and more responsive pedal, giving the driver greater confidence.

3. Protection of Brake Components

While not their main function, the damping effect of shims can, to some extent, reduce the stress and wear on other brake system components, such as the caliper pistons and seals. By absorbing some of the shock, they can help prolong the life of these parts.

4. Meeting Manufacturer Specifications

Automotive manufacturers spend considerable time and resources engineering their braking systems to meet specific noise, vibration, and harshness (NVH) targets. The inclusion of specific types of brake shims is often a critical part of achieving these targets. Replacing brake pads without the correct shims can lead to the return of noise issues that were previously managed.

When Should You Consider Replacing Brake Shims?

Brake shims are generally considered wear-and-tear items, much like brake pads and discs. They can degrade over time, and their effectiveness can diminish.

• When Replacing Brake Pads: It is highly recommended to replace brake shims whenever you replace your brake pads. Even if the old shims appear intact, their damping properties may have degraded. Furthermore, the process of removing and replacing brake pads can sometimes damage or dislodge the shims.
• If You Experience Brake Noise: If you've started to notice new or worsening brake noise, and you've ruled out other common causes like worn pads or warped discs, inspecting and potentially replacing the shims is a logical next step.
• After Brake System Repairs: If any work has been done on the brake calipers or braking system, it's good practice to ensure the shims are correctly seated or replaced if they were removed.

Common Misconceptions About Brake Shims

There are a few common misunderstandings surrounding brake shims:

• They are the same as anti-squeal compounds: While both aim to reduce noise, shims are physical components that dampen vibrations, whereas anti-squeal compounds are lubricants or pastes applied to the back of the pad to reduce friction and noise. They often work in conjunction.
• You can just reuse the old ones: As mentioned, shims can degrade. Reusing old, flattened, or damaged shims will likely result in renewed noise problems and may not offer optimal performance.
• They are only for noisy brakes: While noise reduction is their primary benefit, shims also contribute to a better braking feel and can offer some protection to caliper components.

Table: Shim Types and Their Characteristics

Frequently Asked Questions (FAQs)

Q1: Can I drive without brake shims?

Technically, yes, your brakes will still function. However, you will likely experience increased noise, and the braking feel might be compromised. It's not recommended for long-term driving without them, especially if they were originally fitted by the manufacturer.

Q2: How do I know if my brake shims need replacing?

The best indicators are persistent brake noise (squealing, grinding) that doesn't improve after replacing brake pads, or a change in brake pedal feel. Visual inspection during brake pad replacement can also reveal damaged or degraded shims.

Q3: Do all brake pads come with shims?

Not all aftermarket brake pads come with shims included. Some manufacturers assume you will reuse the old ones (which is often not ideal), while others provide them as part of a premium kit. Always check the product description or consult with your parts supplier.

Q4: Can I install shims myself?

Yes, if you are comfortable performing basic brake maintenance. The process involves fitting the shim between the brake pad backing plate and the caliper piston/bracket. It's crucial to ensure they are correctly oriented and seated to be effective. If you are unsure, it's best left to a qualified mechanic.

Q5: Are brake shims the same as brake hardware clips?

No. Brake hardware clips, such as anti-rattle clips or guide pins, are also important for brake function and noise reduction but serve a different purpose. Shims specifically address pad-to-caliper vibrations, while hardware clips ensure proper pad movement and retention.

Conclusion

Brake shims might be small, but their impact on your driving experience is substantial. They are critical for silencing the irritating noises that can plague a braking system, contributing to a more pleasant and refined drive. By understanding their function, types, and the importance of their replacement, you can ensure your braking system remains quiet, efficient, and reliable. So, the next time your brakes are serviced, pay attention to these unassuming components – they are truly silent heroes working tirelessly to keep your ride smooth and quiet.
