Brake Pad Wear Sensors: Location & Wiring Guide

04/08/2019

Rating: 4.09 (3379 votes)

Ensuring your vehicle's braking system is in peak condition is paramount for safety on the road. A crucial, yet often overlooked, component in modern braking systems is the brake pad wear sensor. These clever little devices are designed to alert you when your brake pads have worn down to a critical level, prompting timely maintenance and preventing more significant, and often more costly, damage. But where exactly are these sensors located, and what do you need to know about their wiring, especially when faced with unexpected repairs?

Table

Understanding Brake Pad Wear Sensors

Brake pad wear sensors are essentially simple electrical circuits integrated into your brake pads. When the pad wears down sufficiently, a small part of the sensor comes into contact with the brake disc, completing or breaking a circuit (depending on the sensor type), which then triggers a warning light on your dashboard. This early warning system is invaluable, giving you ample time to arrange for pad replacement before metal-on-metal contact occurs, which can severely damage your brake discs and compromise braking performance.

What colour are the brake sensor wires?
The circuit diagram was used to identify the brake sensor wires colours: Yellow and Red. Note that I've seen comments that Audi is not always consistent in the actual colours used. I attached the socket to prongs on the hub and noted the position to splice.

Where Are Brake Pad Wear Sensors Located?

The placement of brake pad wear sensors isn't universal across all vehicles, but there are common trends, especially among European manufacturers. Typically, you'll find these sensors strategically placed on the inner brake pads. The reason for this specific placement is that inner pads often experience slightly more wear due to the design of the brake caliper and the way forces are distributed during braking.

  • Common Locations: While some high-end vehicles might have sensors on all four wheels, it's far more common to find them only on specific wheels. For many vehicles, particularly those from Audi, BMW, Mercedes-Benz, and Volkswagen, you'll frequently find a sensor on the front passenger side and often on the rear driver's side. This configuration covers the points of highest or most critical wear.
  • Why Not All Wheels? Manufacturers often limit the number of sensors to reduce complexity and cost. A single sensor on a critical wheel can generally provide a good indication of overall brake wear across an axle, as brake pads on the same axle tend to wear at a similar rate, assuming no underlying issues like seized calipers.
  • Visual Inspection: When you're inspecting your brakes, look for a small wire protruding from one of the brake pads, leading towards a connector on the vehicle's chassis or suspension component. This is your wear sensor.

Does Polarity Matter for Brake Pad Wear Sensor Wiring?

This is a common question, especially when you're faced with a situation like finding two wires taped together instead of a proper connector. For the vast majority of passive brake pad wear sensors – the type that simply complete or break a circuit – polarity does not matter. These sensors function as a simple switch or a resistor in a circuit. Imagine a light switch: it doesn't matter which way you wire the two wires to the switch; it will still turn the light on and off.

  • Why Keyed Connectors Then? If polarity doesn't matter, why do the harness connectors often fit the sensor connector in only one way (i.e., they are "keyed")? This is primarily for secure and reliable connection, not electrical polarity. Keyed connectors prevent incorrect mating, ensure a snug fit that resists vibration and moisture ingress, and simplify assembly on the production line. It ensures the connection is robust and less prone to coming loose or corroding.
  • When Polarity Might Matter (Rare): In extremely rare cases, or with more advanced active sensor systems (which are less common for simple pad wear detection and more for ABS/traction control systems), polarity could be a factor. However, for the standard two-wire brake pad wear sensor that triggers a dashboard warning, you can typically connect the two wires without concern for which goes to which, as long as the circuit is completed correctly.

Brake Sensor Wire Colours: A Varied Palette

As you've discovered, wire colours for brake pad wear sensors can be inconsistent, even within the same manufacturer or across different models. Your experience with black and brown wires, and then yellow and red wires, perfectly illustrates this variability. There is no universal standard for brake sensor wire colours across all car manufacturers, or even sometimes within a manufacturer's range.

Are auto connectors compatible with Volkswagen vehicles?
Auto Connectors specialise in providing high-quality connectors specifically designed to be compatible with Volkswagen vehicles. These connectors are meticulously engineered to adhere to the highest standards of performance and reliability. This focus on quality ensures a durable and dependable connection for the elect
  • Manufacturer Specificity: Each car manufacturer, and sometimes even different models or production years within the same brand, will use their own colour coding schemes. What might be yellow and red on one Audi model could be black and brown on another, or entirely different colours on a BMW or Ford.
  • Relying on Diagrams: The most reliable way to identify the correct wires and their function is to consult the vehicle's specific wiring diagrams or a comprehensive service manual. These diagrams will clearly show the circuit path, connector pinouts, and the intended wire colours for your exact make, model, and year. Without such a diagram, you're essentially guessing, which can lead to frustration or, worse, incorrect wiring that prevents the sensor from functioning.
  • Function Over Colour: Remember, the primary function of these two wires is to complete a simple circuit. As long as you're connecting the two wires from the sensor to the two corresponding wires from the vehicle's harness, the specific colours themselves are less critical than establishing a clean, secure electrical connection.

Extending Wires and Repairing Connectors: Best Practices

Finding cut wires and a missing connector, as you did, is certainly a nuisance. Repairing this correctly is crucial for the sensor to function reliably. Here are some suggestions for extending wires and ensuring a durable repair:

Wiring Do's and Don'ts for Brake Sensors
Do'sDon'ts
✅ Use high-quality, automotive-grade wire of the correct gauge.❌ Use household electrical tape for insulation – it degrades quickly.
✅ Solder connections for maximum durability and conductivity.❌ Twist wires together and leave them exposed.
✅ Insulate soldered joints thoroughly with heat-shrink tubing.❌ Use crimp connectors unless they are sealed and appropriate for automotive use.
✅ Ensure connections are waterproof/weatherproof.❌ Route wires where they can rub, chafe, or get snagged.
✅ Use cable ties to secure the extended wire neatly along existing harnesses.❌ Pull on the wires when installing – guide them gently.
✅ Test continuity after repair to ensure the circuit is complete.❌ Assume wire colours are universal.
  • Soldering is King: For extending wires, soldering provides the strongest and most reliable electrical connection. Twist the wires together, solder them, and then immediately cover the joint with heat-shrink tubing. Use dual-wall heat shrink for extra protection against moisture.
  • Proper Wire Gauge: Use wire that is the same or slightly thicker gauge than the original wires. Using too thin a wire can lead to resistance and potential issues.
  • Routing: This is critical, especially in the tight confines around the brake assembly. Mimic the original routing as closely as possible. Ensure the wire has enough slack to accommodate suspension travel and steering (if on a front wheel) but not so much that it can snag on moving parts or rub against the tyre. Use existing clips and mounting points wherever possible. Secure the wire with good quality automotive cable ties, ensuring they are not overtightened, which can damage the insulation.

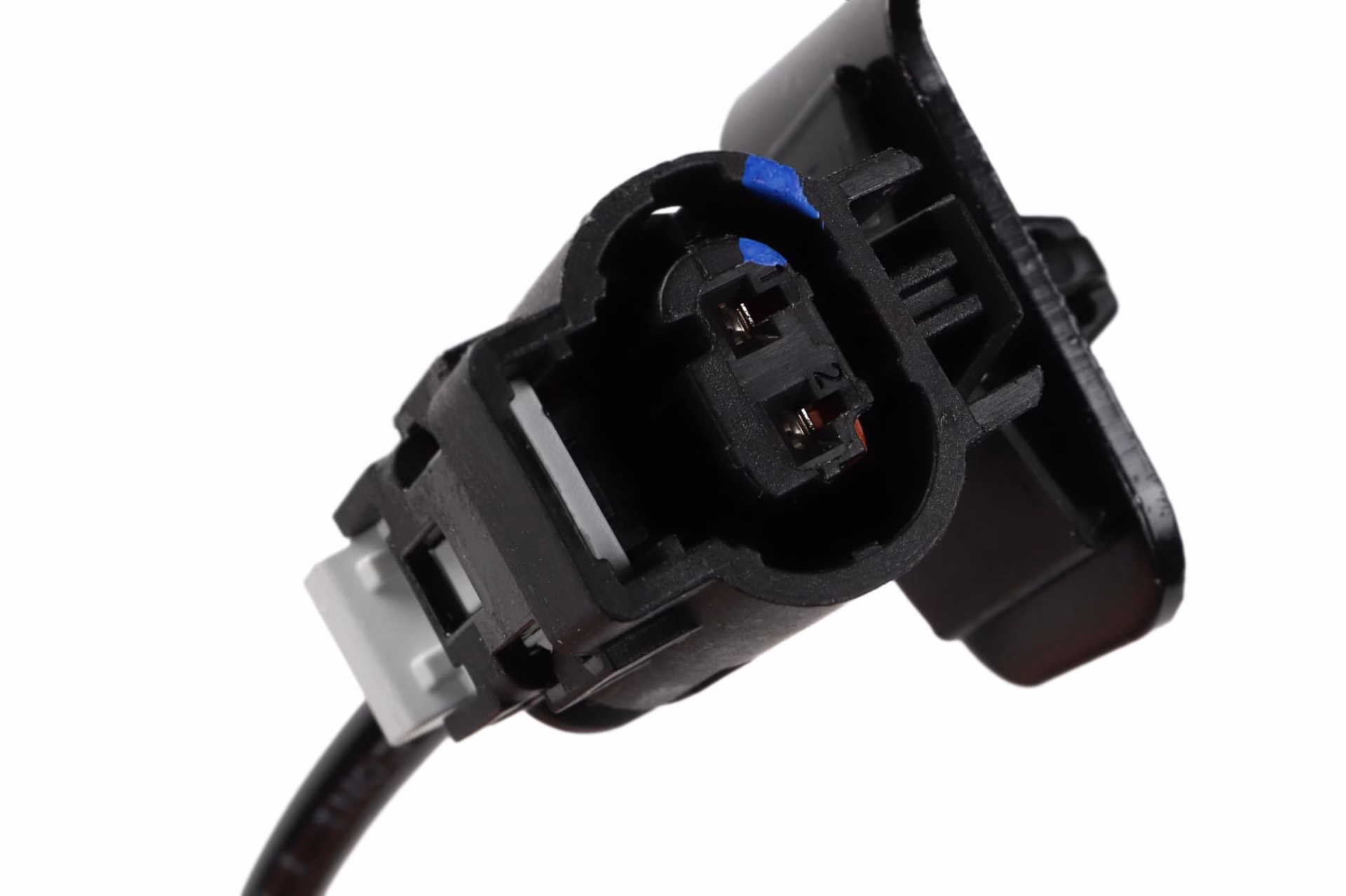

  • New Connector: You've already found the missing part – the new connector is vital. Make sure your extended wires are securely connected to the pins within this new connector according to the original pinout if known, or simply ensuring a solid connection if polarity is irrelevant for your sensor type.

Troubleshooting Common Brake Pad Wear Sensor Issues

Even with a perfectly installed sensor, issues can arise. Understanding common problems can save you time and frustration.

  • Dashboard Warning Light Stays On:
    • Worn Sensor: The most common reason. The sensor has done its job and worn through.
    • Damaged Wiring: As in your case, a break in the wire, a corroded connector, or poor repair can cause an open circuit, triggering the light.
    • Faulty Sensor: Occasionally, a new sensor might be defective.
    • Reset Procedure: Some vehicles require a manual or diagnostic tool reset after replacing the sensor and pads. Consult your vehicle's manual or a workshop manual for specific instructions.
  • Intermittent Warning Light: This often points to a loose connection, a wire that's occasionally making contact when it shouldn't, or a sensor that's just on the cusp of wearing through. Inspect the wiring and connections thoroughly.
  • No Warning Light When Pads Are Worn: This is a dangerous scenario. It usually means the sensor or its wiring circuit is completely open (e.g., disconnected or broken) before the pad has worn enough to trigger it. This needs immediate investigation.

Frequently Asked Questions About Brake Pad Wear Sensors

Q: Can I bypass the brake pad wear sensor?
A: While technically possible to bridge the two wires to complete the circuit and turn off the warning light, it is highly unrecommended and compromises a crucial safety feature. You would lose the early warning system, risking severe brake component damage and, more importantly, compromising your safety by not knowing when your pads are critically worn. Always replace the sensor when it's triggered.
Q: Do I need to replace the brake pad wear sensor every time I replace my brake pads?
A: Not necessarily every time, but it is strongly advised. Brake pad wear sensors are designed as wear items. Once they trigger the warning light, they have physically contacted the rotor and are worn through. Even if they haven't triggered the light, it's good practice to replace them during a pad change, especially if they show any signs of damage or age, as they are relatively inexpensive compared to the potential damage of metal-on-metal braking.
Q: What if my car doesn't have brake pad wear sensors?
A: Many older vehicles, or some more basic modern vehicles, do not come equipped with electronic wear sensors. In these cases, regular manual inspection of your brake pad thickness is absolutely essential. Many pads will have an audible wear indicator (a small metal tab that squeals when it touches the rotor) as an alternative warning, but visual inspection remains the primary method.
Q: Can a faulty sensor cause braking issues?
A: A faulty or disconnected wear sensor itself will not directly cause braking performance issues (like reduced stopping power). Its sole function is to provide a warning. However, if the warning light is on due to worn pads, then the worn pads will cause braking issues.

Dealing with brake pad wear sensors, especially when encountering unexpected wiring issues, can seem daunting. However, by understanding their location, the simplicity of their electrical operation, and applying best practices for wiring repairs, you can ensure your vehicle's braking system remains safe and effective. Always prioritise safety and consult vehicle-specific information for the most accurate guidance.
