Understanding Your Vehicle's Brake Pad Wear Sensor
Modern vehicles are equipped with an array of sophisticated systems designed to enhance safety and inform the driver about the vehicle's condition. Among these is the brake pad wear sensor, a small but crucial component that plays a vital role in alerting you when your brake pads are nearing the end of their service life. Ignoring these warnings can lead to compromised braking performance and potentially costly damage to other braking system components. This article delves into the intricacies of how these sensors function, their importance, and what to do when they signal that new brake pads are required.
The Crucial Role of Brake Pads
Before understanding the sensor, it's essential to appreciate the function of brake pads themselves. When you press the brake pedal, hydraulic pressure forces brake calipers to clamp down on the brake rotors. This friction is what slows and stops your vehicle. Brake pads are designed to wear down over time due to this constant friction. They are made from durable materials, but like any component subjected to such forces, they will eventually degrade.

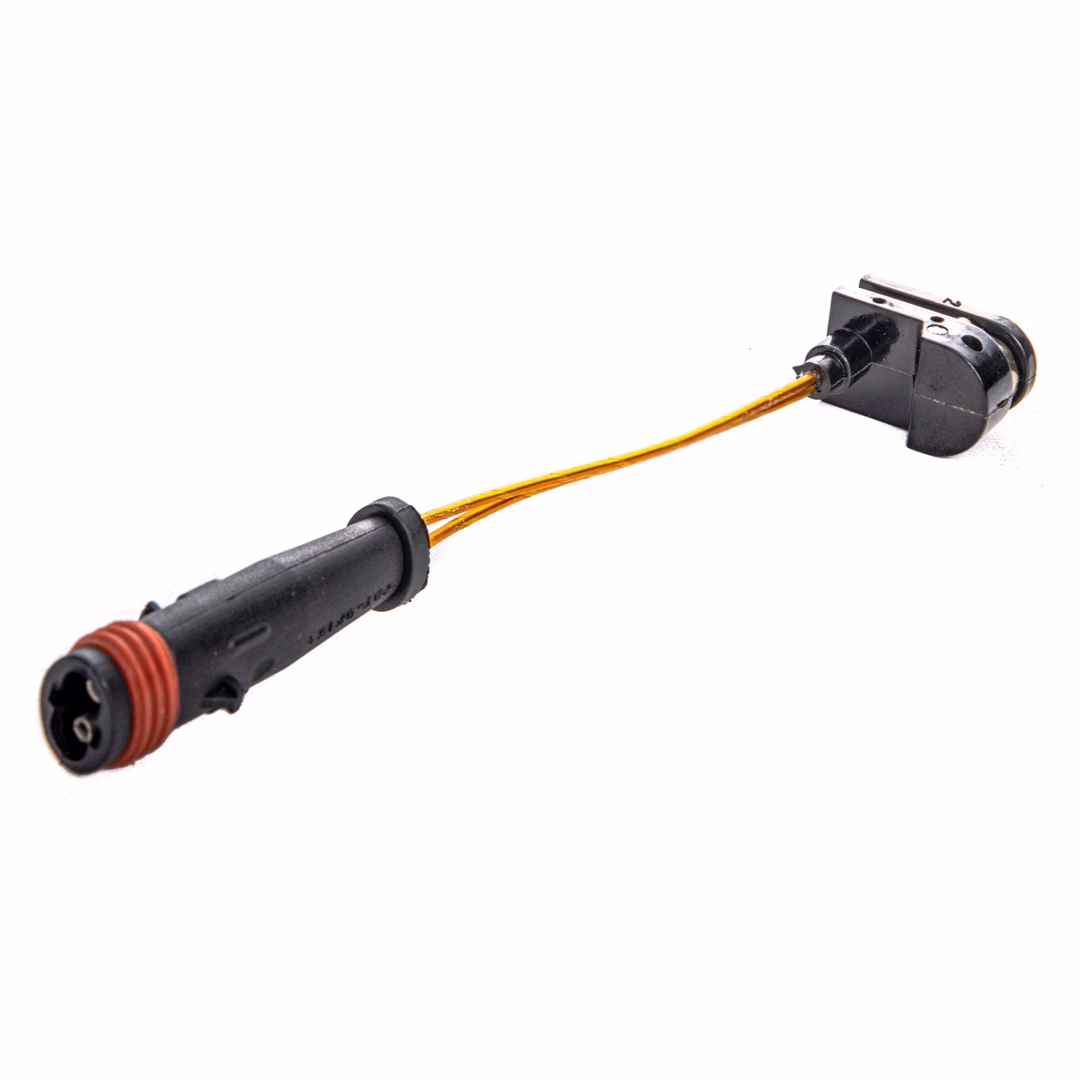

How Brake Pad Wear Sensors Work
Brake pad wear sensors are essentially simple electrical circuits designed to activate when a specific level of wear is reached on the brake pad. There are two primary types of wear sensors commonly found in vehicles:

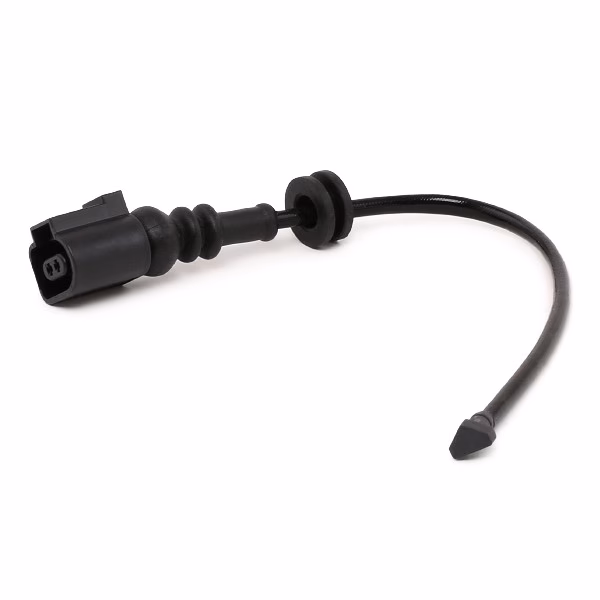

1. Mechanical (Contact) Sensors
This is the most prevalent type, particularly in many European vehicles like BMWs. These sensors are typically a small metal contact or a small metal nub attached to a wire. They are strategically placed on the brake pad, usually on the inner pad of a wheel, so that as the pad material wears away, it eventually comes into contact with the brake rotor.
Here's the breakdown of their operation:
- Placement: The sensor is usually integrated into the brake pad or clipped onto it. It protrudes slightly from the pad backing plate.
- Normal Operation: When the brake pads are new or have sufficient material, the sensor does not make contact with any rotating parts of the braking system (like the rotor). The electrical circuit remains open.
- Wear Indication: As the brake pad wears down, the friction material diminishes. Eventually, the sensor's protruding nub or contact point will touch the brake rotor.
- Circuit Completion: This contact causes the metal sensor to complete an electrical circuit.
- Dashboard Warning: The completed circuit sends a signal to the vehicle's Engine Control Unit (ECU) or a dedicated brake warning module. This module then illuminates a warning light on the dashboard, commonly a red brake symbol or a message indicating "Brake Pad Wear" or similar.
Important Note: The sensor itself is designed to be sacrificial. Once it makes contact and triggers the warning light, it will be rapidly worn away by the rotor. Therefore, when the warning light illuminates, not only do the brake pads need replacing, but the worn sensor also needs to be replaced.
2. Electronic (Resistive) Sensors
Less common, but found in some vehicles, are electronic sensors. These are typically a resistive wire embedded within the brake pad material itself.
- Embedded Wire: A wire with a specific electrical resistance is embedded within the pad material.
- Wear Detection: As the pad wears down, this wire is eventually severed or significantly abraded.
- Resistance Change: The severing of the wire causes a change in the electrical resistance of the circuit.
- Dashboard Warning: This change in resistance is detected by the vehicle's computer, triggering the brake warning light on the dashboard.
While less common, these sensors also serve the same purpose: to alert the driver to impending brake pad wear.
Why Are Brake Pad Wear Sensors Important?
The importance of functioning brake pad wear sensors cannot be overstated. They provide several critical benefits:
- Safety: Worn brake pads significantly reduce braking efficiency. The sensor's warning allows you to address the issue before your braking performance is dangerously compromised.
- Preventative Maintenance: The sensors encourage proactive maintenance. By replacing pads when indicated, you prevent further damage to more expensive components like rotors and calipers.
- Cost Savings: Ignoring the warning light can lead to metal-on-metal contact between the pad backing plate and the rotor. This will quickly damage the rotor, necessitating its replacement along with the pads, significantly increasing repair costs.
- Convenience: Instead of relying on visual inspection (which can be difficult without removing the wheel) or mileage estimates, the sensor provides a direct and timely alert.
When Does the Warning Light Come On?
Manufacturers specify a recommended wear limit for brake pads. The sensor is designed to trigger the warning light when the pad material has worn down to a point where it is approaching this limit. This typically allows for a grace period of driving, often cited as around 1,000 to 2,000 miles, before the pads become critically worn. However, this is a guideline, and driving style heavily influences the actual remaining life.
Common Issues and Troubleshooting
While generally reliable, brake pad wear sensors can sometimes present issues:
- False Warnings: Occasionally, a sensor might trigger a warning light erroneously. This can be due to a faulty sensor, a damaged wire, or even a loose connection. Sometimes, a particularly aggressive cornering manoeuvre can temporarily displace the sensor, causing a brief illumination.
- Sensor Damage During Installation: If new brake pads are installed without replacing the worn sensor, or if the new sensor is damaged during installation (e.g., bent wire, improper seating), it can lead to issues.
- Corrosion/Dirt: In some cases, dirt or corrosion can affect the sensor's connection or the contact point, leading to intermittent or false warnings.
- Wear Limit Exceeded: The most common "issue" is simply that the pads are genuinely worn out and the sensor is doing its job correctly.
Replacing Brake Pads and Sensors
When the brake wear indicator illuminates, it's time for new brake pads and, crucially, a new wear sensor. The process typically involves:
- Safety First: Ensure the vehicle is on a level surface and properly supported with jack stands.
- Wheel Removal: Remove the wheel to access the brake caliper.
- Sensor Disconnection: Locate the sensor's wiring harness, usually clipped to the suspension or brake line, and disconnect it.
- Calipers and Pads Removal: Remove the caliper bolts and carefully remove the caliper, then extract the old brake pads.
- Sensor Replacement: Remove the old sensor (if applicable, as some are integrated) and install the new one onto the new brake pad, ensuring it's positioned correctly to contact the rotor at the appropriate wear point.
- Installation: Install the new brake pads, reassemble the caliper, and ensure all bolts are torqued to specification.
- Reconnect Sensor: Reconnect the new sensor's wiring harness.
- Resetting the Light: In some vehicles, the brake warning light may need to be reset manually after the repair. This might be done through the car's onboard computer system or may require a diagnostic tool.
Frequently Asked Questions
Q: Can I drive with the brake pad wear sensor light on?
A: Yes, but it is strongly advised to replace the brake pads and sensor as soon as possible. Driving with worn pads significantly reduces braking effectiveness and can damage rotors.
Q: Do all cars have brake pad wear sensors?
A: No, not all vehicles are equipped with wear sensors. Some rely on visual inspection or are designed with pads that wear down more evenly without needing a dedicated sensor.
Q: If the sensor wire breaks, does the light come on?
A: Typically, yes. A broken wire usually results in an open circuit, which is interpreted by the vehicle's system as a wear condition, illuminating the warning light.
Q: How much does a brake pad wear sensor cost?
A: The cost of a sensor is relatively low, usually ranging from £10 to £30 depending on the vehicle make and model. It's a small price to pay for the safety and preventative maintenance it offers.
Conclusion
The brake pad wear sensor is a testament to the evolving safety features in modern automobiles. By providing an early warning of pad degradation, it empowers drivers to maintain their vehicles effectively, ensuring optimal braking performance and preventing potentially hazardous situations and more expensive repairs. When that familiar red light illuminates on your dashboard, heed its warning – your brakes, and your safety, depend on it.
