Essential Tools for Tractor Brake Repairs

Maintaining the braking system of your tractor is paramount for both safety and operational efficiency. Whether you're a seasoned agricultural professional, a dedicated DIY enthusiast, or a mechanic specialising in heavy machinery, understanding the correct tools and techniques for brake repairs is crucial. One of the most common and effective methods for attaching new brake linings to existing shoes or bands, particularly for a wide range of vintage and modern tractor models, involves riveting. This comprehensive guide will delve into the essential tools required for this precise task, focusing on specific rivet punches and riveting jigs that ensure a secure and reliable brake repair.

The integrity of your tractor's brakes directly impacts its performance and, more importantly, the safety of its operator and surroundings. Worn brake linings lead to reduced stopping power, increased stopping distances, and potential damage to other brake components. Replacing these brake linings is a routine maintenance task, and while some modern applications use bonded linings, many tractors, especially older or heavy-duty models, still rely on riveted linings for their durability and secure attachment. This article will equip you with the knowledge to select and effectively use the right tools for the job, ensuring your tractor's brakes are always in top condition.

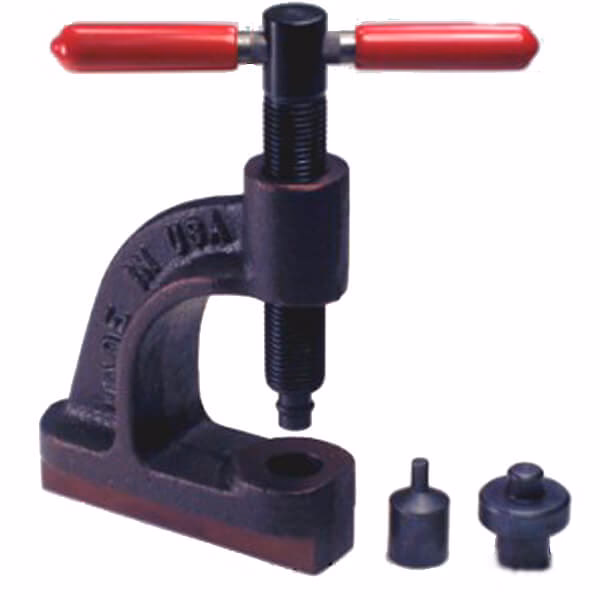

Understanding the Versatile Brake Riveting Rivet Tool

When it comes to re-lining tractor brakes, a dedicated brake riveting tool is an absolute game-changer. One such indispensable piece of equipment is designed to simplify the often-fiddly process of attaching new brake linings. This particular tool, cross-referenced as DJS ACR3538 or mis1131, is engineered for broad compatibility, making it a must-have for a vast array of tractor models.

Broad Compatibility for Agricultural Machinery

This remarkable brake riveting tool boasts impressive versatility, compatible with numerous popular tractor brands. It's designed to seamlessly work with models from:

• Allis Chalmers (including D10, D12, D14, D15, G models)
• Avery (Various models)
• Case (Various models)
• Cockshutt (Various models)
• Ford (Various models)
• International / Farmall (Various models)
• John Deere (Various models)
• Massey Ferguson (Various models)
• Massey Harris (Various models)
• Minneapolis Moline (Various models)
• Oliver (Various models)

This extensive list ensures that whether you're working on a classic farm tractor or a more contemporary machine, this tool is likely to be an invaluable addition to your workshop.

Key Specifications and Features

The design of this specific brake riveting tool is optimised for precision and ease of use. It features a 1-1/4" throat, which provides ample clearance for various brake shoe and band sizes, allowing you to manoeuvre the components effectively during the riveting process. Central to its function is the integrated 1/8" diameter rivet punch. This specific punch size is crucial for creating the perfect hole for the rivets, ensuring a snug and secure fit for the brake linings.

Beyond its core punching capability, this tool comes as a comprehensive kit, providing everything needed for a complete brake lining replacement job. The included accessories are designed to streamline each stage of the process:

• Tool to Drive Out Old Rivets: This essential accessory allows for the swift and efficient removal of existing, worn-out rivets. Attempting to remove old rivets without the correct tool can be time-consuming and potentially damage the brake shoe or band. This driver ensures a clean extraction, preparing the surface for new linings.
• Tool to Drill & Countersink the Linings: Precision is key when attaching new brake linings. This dual-purpose tool ensures that the new linings are not only drilled with the correct diameter holes but also accurately countersunk. Countersinking creates a tapered recess around the hole, allowing the rivet head to sit flush or slightly below the surface of the lining. This prevents the rivet head from making contact with the brake drum, which would cause uneven braking and premature wear.
• Tool to Peen the New Rivet: After the new rivet is inserted, it needs to be "peened" or flared to securely fasten the lining to the shoe or band. This tool is specifically designed to deform the end of the rivet, creating a strong, permanent bond. Proper peening is vital for the longevity and safety of the brake repair, preventing the lining from becoming loose during operation.

For added convenience and stability, this brake riveting tool is designed to be mounted securely into a vice. This feature frees up both your hands, allowing for precise positioning of the brake components and the application of necessary force during the riveting process. Furthermore, the inclusion of detailed instructions ensures that even those new to brake riveting can achieve professional-grade results.

Selecting the Right Rivet Punch Size: Understanding Your Options

The question of "What size rivet punch do I need?" is fundamental to successful brake lining replacement. As highlighted with the DJS ACR3538 tool, a 1/8" diameter rivet punch is provided, indicating that this tool is designed for rivets of that specific size. However, brake systems and their corresponding rivets can vary. This leads us to consider another crucial component in the riveting process: the riveting jig.

The Brake Riveting Jig (Part No: AT2600)

While the first tool provides a complete solution for a specific rivet size, a riveting jig like the AT2600 offers versatility in terms of punch and anvil sizes. This jig is designed to facilitate the actual riveting process, providing a stable platform and the necessary tooling to deform the rivet effectively. Understanding its components helps in selecting the correct punch for the job.

The AT2600 riveting jig contains a selection of punches and interchangeable anvils, allowing it to accommodate different rivet dimensions and types:

• 2 Roll Punches: These are cylindrical punches typically used for solid or semi-tubular rivets. The kit includes 8mm and 11mm diameter roll punches. These sizes are crucial for ensuring the rivet fits snugly into the pre-drilled holes in the lining and shoe.
• 1 Star Punch: An 11mm diameter star punch is also included. Star punches are often used for tubular rivets, or to create a particular type of flare on the rivet shank, spreading the material outward in a star-like pattern for a secure hold.
• 2 Interchangeable Anvils with Hex Keys: Anvils provide the solid surface against which the rivet is peened. The ability to interchange anvils ensures that the rivet head is properly supported and formed during the peening process, regardless of its specific shape or size. The hex keys are for securing these anvils into place.

The choice between a 1/8" (approximately 3.175mm) punch, or the 8mm and 11mm punches, depends entirely on the specifications of the brake rivets you are using for your particular tractor model. Always consult your tractor's service manual or the rivet manufacturer's specifications to determine the correct rivet diameter and type. Using an undersized punch will result in a loose rivet, while an oversized punch could damage the lining or shoe.

Step-by-Step: Using a Jig to Rivet a Brake Shoe

Combining the capabilities of a dedicated brake riveting tool and a versatile riveting jig ensures a professional and durable repair. Here's a detailed breakdown of the process:

Step 1: Preparation and Old Rivet Removal

1. Secure the Brake Shoe: Place the brake shoe or band firmly in a vice. Ensure it is stable and won't move during the process.
2. Drive Out Old Rivets: Utilise the specific tool provided (from the DJS ACR3538 kit) to drive out the old, worn-out rivets. Position the tool squarely over each rivet head and strike it with a hammer to push the rivet through the lining and shoe. Repeat for all rivets until the old lining is completely detached.
3. Clean the Shoe/Band: Thoroughly clean the surface of the brake shoe or band. Remove any old adhesive, rust, or debris. A clean surface ensures proper contact and adhesion for the new lining.

Step 2: Preparing the New Brake Lining

1. Position the New Lining: Align the new brake lining with the brake shoe or band. Ensure it sits perfectly, matching the contours and rivet holes.
2. Drill & Countersink: Use the drill and countersink tool (from the DJS ACR3538 kit) to prepare the new brake lining. If the lining doesn't have pre-drilled holes, or if they need to be re-sized, this tool is essential. The countersinking action creates the necessary recess for the rivet head, preventing it from protruding and scuffing the brake drum.

Step 3: Riveting the New Lining

1. Secure the Riveting Jig: Firmly secure the AT2600 riveting jig in your vice. Ensure it is stable and at a comfortable working height.
2. Select Correct Punch and Anvil: This is a critical step. Based on the diameter and type of your new rivets, select the appropriate roll punch (8mm or 11mm) or star punch (11mm) from the AT2600 kit. Also, choose the correct interchangeable anvil that matches the head of your rivet. Use the provided hex keys to secure the chosen anvil firmly in the jig.
3. Insert the Rivet: Place a new rivet through the prepared hole in the brake lining and the corresponding hole in the brake shoe. The rivet head should sit flush in the countersunk recess of the lining.
4. Position for Peening: Hold the brake shoe and lining in one hand, carefully positioning the rivet's tail end directly over the selected anvil in the jig. The punch should be aligned with the rivet's head.
5. Peen the Rivet: Using a hammer, strike the top of the selected punch. The force of the hammer striking the punch will deform the tail end of the rivet against the anvil, causing it to spread and securely fasten the lining to the shoe. The DJS ACR3538 kit also includes a specific peening tool, which can be used in conjunction with or instead of directly hammering the AT2600's punches, depending on preference and rivet type. Ensure the rivet is tightly secured but not over-peened, which could weaken the rivet or crack the lining.
6. Repeat: Move to the next rivet and repeat the process until all rivets are securely fastened. Inspect each rivet for a tight, flush fit.

Comparative Overview of Riveting Tools

While both tools discussed are invaluable for brake riveting, they serve slightly different primary functions and offer distinct advantages. Understanding their differences can help you decide which tool, or combination of tools, is best suited for your specific needs.

The DJS ACR3538 tool is a holistic solution for a specific rivet size, providing all the necessary steps from old rivet removal to final peening. The AT2600 jig, on the other hand, is a specialised riveting station, offering flexibility in terms of rivet punch and anvil sizes, making it ideal if you work with a variety of rivet dimensions or types. For comprehensive brake work on tractors, having both tools can provide maximum efficiency and versatility.

Important Considerations for Safe and Effective Riveting

Achieving a safe and lasting brake repair goes beyond just having the right tools. Several factors need careful attention:

• Rivet Material and Type: Ensure you are using the correct type and material of rivets specified for your brake linings and shoes. Rivets come in various materials (e.g., brass, copper, aluminium, steel) and types (solid, semi-tubular, tubular). Using the wrong type can lead to premature failure.
• Lining Material: Brake linings are made from various friction materials. Ensure the new linings are compatible with your tractor's specifications and intended use.
• Cleanliness: Any grease, oil, or debris on the brake shoe or lining surface can compromise the bond and affect braking performance. Always work in a clean environment.
• Proper Alignment: Misaligned linings can lead to uneven wear, noise, and reduced braking efficiency. Take your time to ensure perfect alignment before riveting.
• Adequate Peening: The rivet must be peened sufficiently to create a strong mechanical lock without over-stressing the rivet or cracking the lining. A properly peened rivet will have a neat, flared end that securely holds the lining.
• Safety Gear: Always wear appropriate personal protective equipment (PPE), including safety glasses, when using hammers and riveting tools to protect against flying debris.

Frequently Asked Questions (FAQs) About Brake Riveting

Q1: Why do some brake linings need to be riveted, while others are bonded?

Riveting is a traditional and highly durable method for attaching brake linings, especially prevalent in heavy-duty applications like tractors, commercial vehicles, and older machinery. It provides a strong mechanical bond that can withstand high temperatures and shear forces. Bonded linings, which are attached with high-strength adhesives, are common in modern passenger vehicles. While bonding offers a smoother contact surface and can be quicker for mass production, riveting is often preferred for its robustness and ease of replacement in specific applications, particularly where the brake shoe might be re-used multiple times.

Q2: Can I use these tractor brake riveting tools for car brakes?

While the fundamental principles of riveting are similar across different vehicles, these specific tools are designed with the dimensions and requirements of tractor brake shoes and linings in mind. The throat depth, punch sizes, and overall robust construction are geared towards the larger, heavier components found in agricultural machinery. While it might be possible for some very specific car applications, it's generally best to use tools specifically designed for automotive brake systems for cars, as their dimensions and rivet requirements can differ significantly.

Q3: How do I know the correct rivet size to use for my tractor?

The correct rivet size is dictated by the brake lining and shoe specifications for your particular tractor model. Always refer to your tractor's official service manual or parts catalogue. If you are replacing existing rivets, you can also measure the diameter of the old rivets or the holes in the new lining. The DJS ACR3538 tool comes with a 1/8" punch, implying its suitability for rivets of that diameter, while the AT2600 jig provides options for 8mm and 11mm rivets. Mismatched rivet sizes will lead to either loose linings or inability to fit the rivets.

Q4: What is the difference between a roll punch and a star punch?

A roll punch typically has a flat or slightly concave end and is used to deform the end of a solid or semi-tubular rivet by rolling or compressing the material outwards to create a secure head. A star punch, as its name suggests, has a star-shaped profile on its end. It's often used for tubular rivets or to create a specific type of flared end that spreads the rivet material in a star-like pattern, providing a wide and secure grip, particularly useful for certain types of hollow rivets or when a very wide spread is desired.

Q5: Why is the countersink tool important when preparing new brake linings?

The countersink tool is critically important because it creates a conical recess around the rivet hole on the friction material side of the brake lining. This recess allows the head of the rivet to sit flush with or slightly below the surface of the lining. If the rivet head protrudes, it will make direct contact with the brake drum during operation. This causes several problems: it can score or damage the brake drum, lead to uneven braking, generate excessive noise, and cause premature wear of both the rivet head and the brake drum. A properly countersunk rivet ensures smooth and efficient braking performance.

Q6: How can I ensure the rivets are securely fastened and won't come loose?

Ensuring rivet security involves several key practices:

1. Correct Rivet Size: Use rivets that fit snugly into the drilled holes.
2. Proper Countersinking: Ensure the rivet head sits flush.
3. Adequate Peening Force: Apply enough force to deform the rivet shank fully without deforming the rivet head or cracking the lining. The tail should be flared out to securely grip the shoe.
4. Even Peening: Distribute the peening force evenly around the rivet. The specific peening tool or the action of the punches in the jig helps achieve this.
5. Visual Inspection: After peening, visually inspect each rivet. It should appear tightly formed and flush. A gentle tug on the lining can also confirm its secure attachment.
6. Test Fit: If possible, test fit the re-lined shoe into the brake drum to ensure there's no interference from the rivets.

Conclusion

Replacing brake linings on your tractor is a vital maintenance task that directly impacts the safety and functionality of your machinery. By understanding the specific tools available, such as the comprehensive DJS ACR3538 / mis1131 brake riveting tool with its 1/8" punch and essential accessories, and the versatile AT2600 brake riveting jig with its range of rivet punch sizes (8mm and 11mm roll, 11mm star), you are well-equipped to perform this job with precision. Remember the importance of selecting the correct punch and anvil, adhering to a meticulous step-by-step process, and always prioritising safety. Investing in the right equipment and mastering these techniques will ensure your tractor's brakes are reliable, long-lasting, and ready for any task on the farm or beyond. Don't compromise on the stopping power of your valuable machinery; choose the right tools for a professional finish every time.
