Motorcycle Brake Caliper Seal Replacement

The braking system on your motorcycle is arguably its most critical component, and keeping it in tip-top condition is paramount for safety. While we recently covered the overhaul of a brake master cylinder, this article delves into the often-overlooked but equally vital task of replacing the caliper seals. Unlike the master cylinder, caliper seals endure a considerably tougher existence, constantly battling grit, dirt, corrosion, and water. These tiny rubber rings are the guardians of your brake fluid, and their integrity is essential for reliable stopping power. Over time, and especially after a harsh winter, these seals can degrade, leading to sticky pistons and compromised braking. This guide will walk you through the process of renewing these crucial components.

Understanding Caliper Seals

Each piston within a brake caliper is equipped with two seals. The outer seal acts as a primary defence against external contaminants, aiming to keep dirt and debris at bay. The inner seal, however, has a dual role. Firstly, it's responsible for retaining the brake fluid within the caliper. Secondly, and perhaps more subtly, it plays a crucial part in the retraction of the piston. When you apply the brake lever, hydraulic pressure forces the piston outwards, clamping the brake pads against the disc. Upon release of the lever, the inner seal, which has been slightly distorted by the piston's outward movement, gently pulls the piston back a fraction. This small retraction is vital to prevent the brake pads from dragging on the disc, ensuring free-rolling when brakes aren't applied. As brake pads wear down, this seal also allows the piston to gradually extend further out of the caliper body, maintaining the correct pad-to-disc clearance. If your brakes feel sticky, or if the bike pulls to one side, it could well be a sign that these seals are old, contaminated, or have lost their flexibility, preventing proper piston retraction.

Step-by-Step Caliper Seal Replacement

1. Preparation and Piston Removal

For this procedure, we'll be working on a typical two-piston sliding caliper, though the fundamental principles apply to most caliper designs. The initial hurdle is often extracting the pistons from the caliper body. Begin by removing the caliper assembly from the motorcycle, but crucially, keep it connected to the brake hose. Next, remove the brake pads and any associated sliding hardware or pins. Now, carefully and incrementally operate the brake lever. This will gradually push the pistons out of their bores. If one piston starts to emerge significantly further than the others, you can use a piece of wood, or even the old brake pads, to gently hold it in place while you continue to pump the lever. The aim is to encourage both pistons to move out evenly. Once a piston is nearly fully extended, you'll lose hydraulic pressure, making it difficult to push the remaining piston(s) out. At this stage, you may need to manually work the more reluctant piston the rest of the way out. Once one piston is completely free, the hydraulic pressure is lost, and you'll need to repeat the process for any remaining pistons.

For calipers with more pistons, such as four or six-piston units, this process can be more intricate. Patience and a steady hand are key. If you encounter significant resistance, specialist brake piston pliers can be a lifesaver. These tools grip the piston internally, providing the leverage needed for extraction. Some calipers are of a two-part construction, meaning you'll need to unbolt the halves to access the pistons. If this is the case, ensure you have replacement seals for the fluid transfer ports between the two halves before reassembly.

2. Seal Extraction and Cleaning

With the pistons successfully removed, you'll clearly see the old seals nestled within their respective grooves inside the caliper bore. A small, pointed tool, such as a pick or a small flat-bladed screwdriver, can be used to carefully hook out the old seals. Take your time and be gentle to avoid scratching the delicate surfaces of the caliper bore. Once the seals are out, the real cleaning can begin. Generously spray the seal recesses and the piston bores with a good quality brake cleaner. Use your pick and some lint-free cloths to meticulously clean out all traces of grime, old seal residue, corrosion, and any other contaminants. The goal is to achieve a pristine surface, ensuring the new seals can seat correctly and function without obstruction.

3. Inspecting Pistons and Replacing Seals

Before fitting the new seals, it's imperative to thoroughly inspect the pistons themselves. Look for any signs of corrosion, pitting, or significant wear on their surfaces. The pistons in our example weren't in perfect condition, but a gentle scrub with a Scotchbrite pad was sufficient to remove minor imperfections and prepare them for reinstallation. However, if you discover deep rust pits or noticeable wear that could compromise the new seals, it's highly advisable to replace the pistons. New pistons are not prohibitively expensive and represent a worthwhile investment in the longevity and performance of your braking system.

Now, take your new caliper seals. It's essential to lubricate them with a small amount of fresh, clean brake fluid before installation. This not only aids in the fitting process but also helps the seals perform their retraction function correctly. Carefully insert the new seals into their respective grooves. This might seem fiddly at first, but by starting with one section of the seal and gradually working it around the groove, you'll find they often 'pop' into place quite easily once aligned. Ensure they are seated fully and evenly around the piston bore.

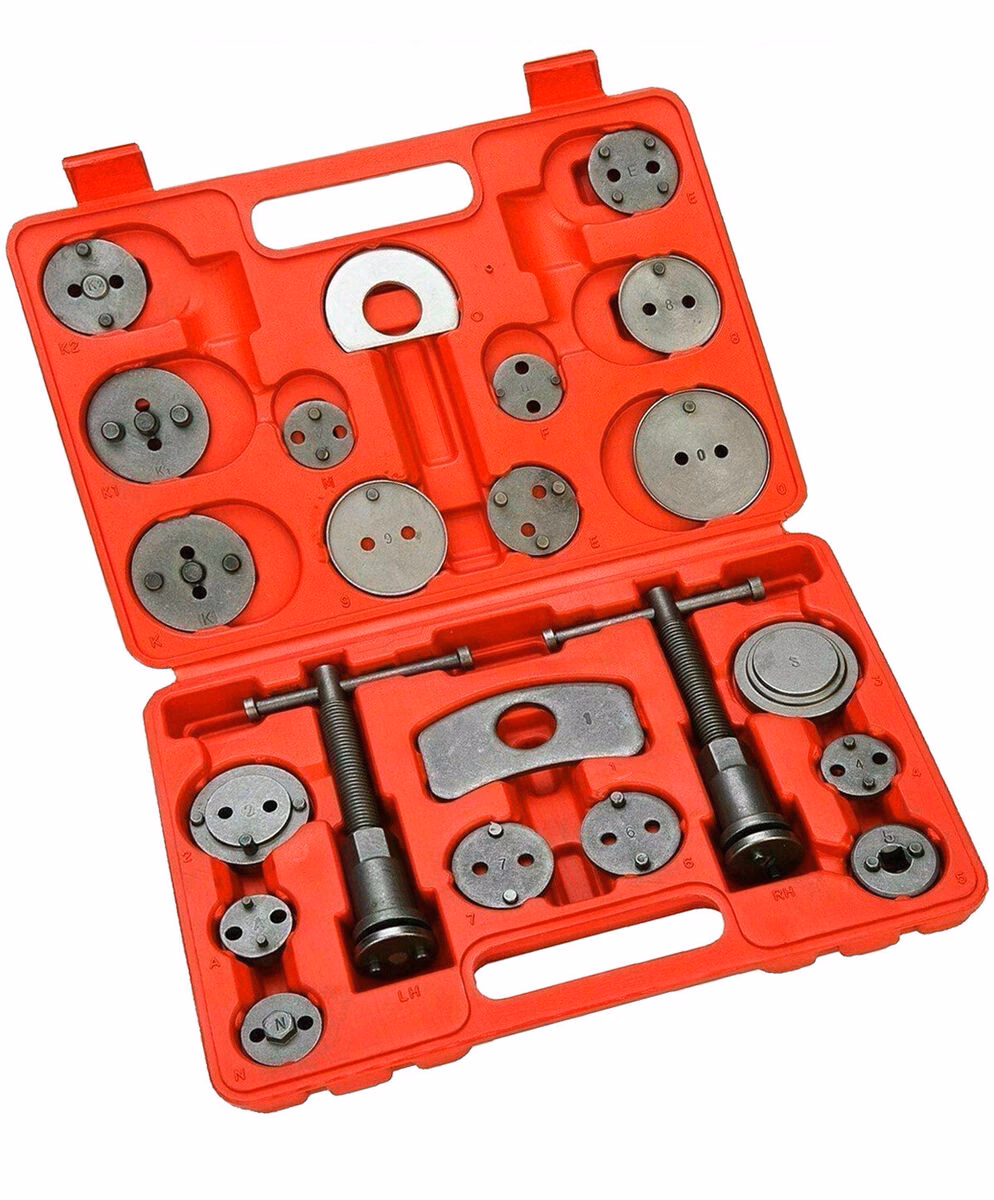

With the new seals in place, apply a light coating of brake fluid to the cleaned pistons and carefully slide them back into their bores. Pay attention to the orientation of the piston; the 'closed' side of the seal should face into the caliper cavity. Some calipers, like the one featured on the Burgman 650 for its parking brake function, may incorporate a one-way screw mechanism on one piston, requiring you to screw it in rather than push it. While this is common on car rear brakes, it's less frequent on motorcycles. Always check your specific model's requirements.

4. Reassembly and Bleeding

Once the pistons are reinstalled, reassemble the caliper, ensuring any sliding components are properly greased with a suitable brake lubricant. Refit the caliper to the motorcycle, install new brake pads if necessary, and ensure all bolts are torqued to the manufacturer's specifications. The final, crucial step is to bleed the braking system thoroughly. This process removes any air that may have entered during the seal replacement and ensures the brake lever feels firm and responsive. Follow the correct bleeding procedure for your motorcycle, typically involving opening the bleed nipple and operating the brake lever until fresh fluid flows without air bubbles.

Common Issues and Troubleshooting

Sticky Brakes: As mentioned, degraded or contaminated caliper seals are a primary cause of brakes binding or sticking. The worn or dirty seals fail to retract the pistons fully, leading to constant friction between the pads and the disc.

Leaking Caliper: Damaged seals can also lead to brake fluid leaks around the piston or at the caliper body. If you notice fluid seepage, it's a clear indication that the seals need immediate replacement.

Spongy Brake Lever: While often associated with air in the system, severely worn or improperly seated seals can also contribute to a spongy brake lever feel, as they may not be creating a perfect seal against the piston.

Essential Tools and Supplies

To successfully undertake this task, you will need:

Frequently Asked Questions (FAQs)

Q1: How often should I replace my motorcycle caliper seals?

A1: There's no fixed interval, as it depends heavily on riding conditions and exposure to elements. However, it's good practice to inspect them during routine brake maintenance, typically annually or every 10,000-15,000 miles. If you notice any sticking, leaks, or a spongy lever, replace them sooner.

Q2: Can I just replace the brake pads without changing the seals?

A2: You can, but if your seals are old or contaminated, you might find new pads don't solve the underlying issue of sticky pistons. It's often best practice to replace the seals when replacing pads, especially if the bike has high mileage or has seen harsh conditions.

Q3: What type of brake fluid should I use?

A3: Always refer to your motorcycle's owner's manual. The most common types are DOT 3, DOT 4, and DOT 5.1. Never mix different DOT fluid types unless explicitly stated as compatible.

Q4: Is it difficult to get the pistons out?

A4: It can sometimes be challenging, especially if the pistons haven't been moved for a long time or if there's corrosion. Using the brake lever to pump them out is the safest method. If they're very stubborn, specialized tools or even gentle heat (avoiding direct flame) can sometimes help, but proceed with extreme caution.

Q5: What are the consequences of not replacing worn caliper seals?

A5: Worn seals can lead to reduced braking performance, uneven braking, sticky or dragging brakes, premature wear of brake pads and discs, and potentially a complete failure of the braking system. Regular maintenance is key to rider safety.

By following these steps and understanding the importance of caliper seals, you can ensure your motorcycle's braking system remains in optimal condition, providing the stopping power you need when you need it most.
