The Essential Guide to Brake Anti-Rattle Clips

Few things are more irritating on a drive than an incessant squeal or rattle emanating from your vehicle's brakes. It's not just an annoyance; it can also be a sign of underlying issues. While many components contribute to a quiet and effective braking system, one often-overlooked hero is the humble brake anti-rattle clip. These small, seemingly insignificant metal springs play a pivotal role in maintaining the integrity and silence of your braking system, ensuring a smooth and confident stop every time. Understanding their function, identifying when they need replacing, and knowing how to install them correctly is crucial for any car owner or DIY enthusiast.

This comprehensive guide delves deep into the world of brake anti-rattle clips, explaining their purpose, their interaction with other braking components, and providing a clear, step-by-step installation process. By the end, you'll appreciate the vital contribution these small parts make to your vehicle's overall performance and safety.

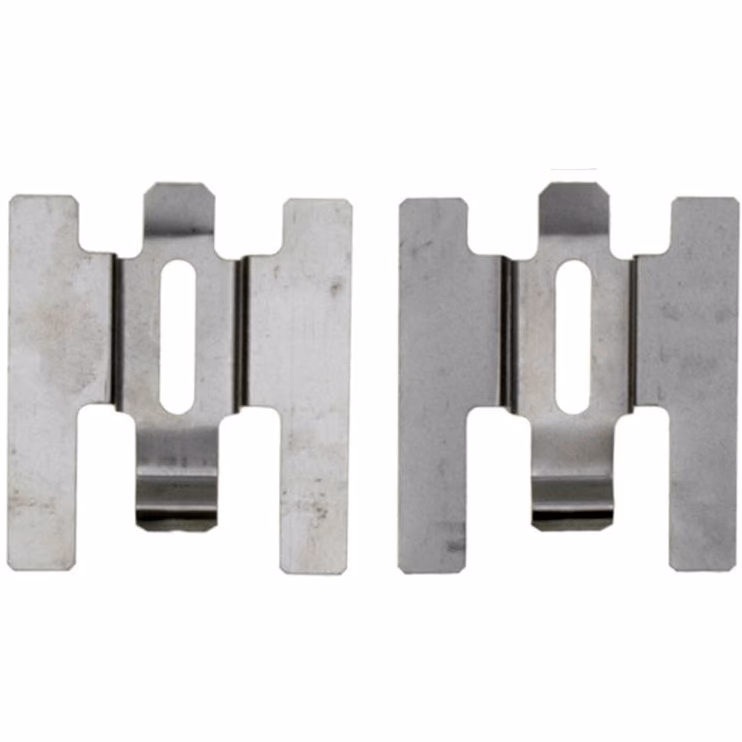

Understanding the Unsung Heroes: What Are Brake Anti-Rattle Clips?

At their core, brake anti-rattle clips, often referred to as anti-rattle springs or retaining clips, are designed to prevent excessive movement of your brake pads within the caliper assembly. When you're driving, especially over bumps or during light braking, brake pads can shift slightly within their housing. Without these clips, this slight movement can lead to an irritating and persistent rattling or squealing noise. Imagine a loose coin in a tin; that's essentially what happens with brake pads without proper retention.

The primary function of an anti-rattle clip is to apply consistent, gentle pressure against the brake pads, holding them snugly against the caliper bracket. This constant tension eliminates the minuscule gaps that would otherwise allow the pads to vibrate or shift, thus preventing unwanted sounds. While simple in design, typically made from a sturdy, heat-resistant metal, their impact on driving comfort and the longevity of your braking components is profound. They are particularly essential when fitting new brake pads, as these often come with specific requirements for clip placement to ensure optimal performance from the outset.

Beyond the Clip: Other Vital Components for Brake Stability

While anti-rattle clips are crucial, they are part of a larger system designed to keep your brakes quiet and efficient. Understanding how they interact with other components provides a holistic view of proper brake maintenance.

Caliper Guide Pins

Your brake caliper isn't rigidly fixed; it needs to move or 'float' to apply even pressure across the brake disc. This movement is facilitated by caliper guide pins, sometimes called slider pins. These lubricated metal pins allow the caliper to slide smoothly back and forth as the brake pads wear down and as pressure is applied and released.

If these guide pins become bent, corroded, or seize due to a lack of lubrication or damaged seals, the caliper can bind. This binding prevents the caliper from moving freely, leading to uneven pad wear, reduced braking efficiency, and, you guessed it, more noise. Proper lubrication of these pins during a brake service is paramount to ensuring the caliper functions as intended, distributing braking force evenly and preventing premature wear.

Abutment Clips

Most vehicles also feature abutment clips, which are positioned on the caliper bracket 'lands' – the points where the brake pads rest. These clips serve several important purposes. Firstly, they provide a smooth, uniform surface for the brake pads to slide against, minimising friction and ensuring consistent pad movement. Secondly, some modern abutment clips are designed with small 'fingers' or spring features that subtly push the brake pads away from the rotor when the brakes are disengaged. This slight retraction helps to reduce brake drag, which not only improves fuel economy but also reduces wear on both the brake pads and rotors.

Abutment clips are considered consumable brake system components. They are constantly exposed to extreme heat and friction, which can lead to rust, wear, and metal fatigue. Even if they appear visually intact, their anti-rattle or pad-retraction features can weaken over time. Therefore, it is strongly recommended to replace these clips every time new brake pads are installed, ensuring the entire system operates optimally and quietly.

The Synergy of Components

The anti-rattle clips, caliper guide pins, and abutment clips work in concert. The guide pins ensure the caliper moves correctly, the abutment clips provide a stable, low-friction surface for the pads, and the anti-rattle clips keep the pads snug against that surface. When any one of these components is compromised, the entire system can suffer, leading to brake noise, premature wear, and diminished braking performance. Neglecting these small parts can lead to bigger, more expensive problems down the line.

Why Are Anti-Rattle Clips Indispensable? The Necessity Explained

The question often arises: "Are anti-rattle clips truly necessary?" The unequivocal answer is yes. While they might seem like minor components, their absence or degradation can lead to a host of issues that impact both your driving experience and the safety of your vehicle.

Here's why these small devices are so important:

• Eliminating Unwanted Noise: This is their most obvious benefit. By keeping the pads firmly in place, they prevent the annoying squeals, rattles, and clunks that occur when pads vibrate or shift within the caliper. This contributes significantly to a quieter, more pleasant driving experience.
• Reducing Vibrations: Beyond audible noise, loose pads can create subtle vibrations that transfer through the braking system and even into the steering wheel or pedal. Anti-rattle clips dampen these vibrations, leading to a smoother feel when braking.
• Ensuring Consistent Pad Contact: By holding the pads securely, the clips help ensure that the entire pad surface makes even contact with the brake rotor. This promotes uniform wear across the pad, extending its life and preventing the development of grooves or uneven surfaces on the rotor.
• Improving Fuel Economy: While seemingly minor, if brake pads are allowed to drag against the rotor due to a lack of proper retraction (often aided by abutment clips and overall proper pad positioning), it creates unnecessary friction. Minimising this drag, partly facilitated by correctly installed clips, can lead to a marginal but noticeable improvement in fuel efficiency.
• Extending Pad and Rotor Lifespan: When pads are held firmly and wear evenly, their lifespan is maximised. Similarly, rotors are less prone to developing hot spots, warping, or uneven wear patterns if the pads are consistently applied and retracted.
• Enhancing Braking Safety: Ultimately, proper pad positioning contributes to braking efficiency. While a missing clip won't cause immediate brake failure, it can lead to inconsistent braking feel, premature wear, and a less predictable stopping distance over time, subtly compromising your vehicle's safety.

The heating and cooling cycles that brakes endure during normal operation cause the metal in anti-rattle clips to weaken over time. This fatigue reduces their spring tension, meaning they can no longer hold the pads as effectively. Therefore, even if they don't look broken, their functionality can be severely compromised, making replacement a crucial part of any thorough brake job.

A Step-by-Step Guide: Installing Your Brake Anti-Rattle Clips

Installing anti-rattle clips is typically done as part of a larger brake pad replacement. While it can seem daunting, with the right tools and a careful approach, it's a manageable DIY task for many car owners. Always consult your vehicle's specific service manual for precise torque specifications and any unique procedures.

Here's a general guide on how to install anti-rattle clips on brake pads:

1. Prepare the Vehicle: Safely jack up your vehicle and support it with axle stands. Remove the wheel to gain access to the brake assembly.
2. Remove the Caliper: Using an appropriate socket wrench, carefully loosen and remove the bolts that secure the brake caliper to its mounting bracket. Once unbolted, gently slide the caliper off the brake disc. Do not let the caliper hang by its brake hose; support it with a bungee cord or wire from the suspension component to prevent damage to the hose.
3. Remove Old Pads and Pins: Turn the caliper over to access the brake pads. Depending on your caliper design, you may need to remove retaining pins (often held by small clips or bolts) or simply slide the pads out. Remove the old brake pads and discard them. This is also the ideal time to remove and inspect the old anti-rattle clips and abutment clips. They should always be replaced with new ones that come with your new brake pads.
4. Prepare New Pads and Clips: Take your new brake pads and the new anti-rattle clip. Place the anti-rattle clip between the new brake pads, ensuring it's oriented correctly (refer to the instructions supplied with your pads or note how the old one was fitted). Align the holes on the metal backing plates of the brake pads with the loops or features of the anti-rattle clip. The clip should sit snugly between the pads, holding them together slightly.
5. Retract Caliper Pistons: Before installing the new, thicker brake pads, you'll need to push the brake caliper pistons back into the caliper housing to create enough space. This can be done using a flat-head screwdriver (for simple push-back pistons), a C-clamp, or a dedicated brake caliper piston tool. Ensure the brake fluid reservoir cap is loosened or removed to allow fluid to return to the reservoir as the pistons are retracted. Do this slowly and carefully to avoid damaging the piston seals.
6. Install Pads and Clip into Caliper: With the pistons retracted, carefully slide the assembled new brake pads and anti-rattle clip into the caliper housing. Ensure the pads are correctly oriented (inner pad vs. outer pad, if applicable) and that the anti-rattle clip loops are parallel to the brake pad holes, ready to receive the retaining pins.
7. Insert Retaining Pins: Place the retaining pins through the anti-rattle clip loops, through the brake caliper, and through the brake pads. Wiggle the pads slightly if needed to align the holes perfectly. Once the pins are through, secure them with any small clips or bolts as per your caliper design. Use a screwdriver to tighten these pins if they are threaded.
8. Reinstall Caliper: Carefully slide the brake caliper back over the brake disc, aligning it with its mounting points. Reinstall the caliper bolts and tighten them to the manufacturer's specified torque settings using your socket wrench. This is a critical step for safety, so ensure they are torqued correctly.
9. Final Checks: Reinstall the wheel and lower the vehicle. Before driving, pump the brake pedal several times to push the caliper pistons back out and seat the new pads against the rotor. You should feel the pedal firm up. Check the brake fluid level and top up if necessary, then replace the reservoir cap.

Note: If your caliper bolts are located on the rear of the rotor, your wear indicator (if present on the pad itself) will typically be on the bottom inner pad, as this is often the first to wear due to rotational forces and caliper design.

Frequently Asked Questions About Brake Clips and Shims

Even with detailed instructions, questions often arise regarding the nuances of brake components. Here are some common queries addressed:

Where exactly do anti-rattle clips fit?

Anti-rattle clips are typically found between the brake pad and the caliper bracket, or sometimes integrated directly into the pad's backing plate. Their design ensures they apply pressure to the ends or sides of the brake pads, holding them firmly against the caliper assembly and preventing movement that leads to noise. Some also contain small tabs that act as wear indicators, making contact with the rotor when the pad material is running low, alerting you to the need for replacement.

What's the difference between anti-rattle clips and abutment clips?

While both contribute to quiet and efficient braking, they have distinct roles. Anti-rattle clips primarily apply spring tension directly to the brake pads to prevent them from vibrating or rattling within the caliper. Abutment clips, on the other hand, sit on the caliper bracket and provide a smooth, clean surface for the brake pads to slide on. On some vehicles, abutment clips also feature spring-like elements that help push the pads slightly away from the rotor when the brakes are disengaged, reducing drag. Both are crucial for a complete brake job and should be replaced.

Are brake pad retaining clips necessary?

Absolutely, yes. Brake pad retaining clips are essentially another term for anti-rattle clips or springs. They are indispensable for several reasons: they eliminate brake noise, help improve fuel economy by reducing drag, keep brakes cooler by allowing proper pad retraction, and increase pad life by ensuring even wear. While sometimes challenging to install due to their spring tension, their importance cannot be overstated.

Do I really need to replace these clips during a brake job?

Yes, it is highly recommended to replace all clips (anti-rattle and abutment) whenever you change your brake pads. These clips are constantly exposed to extreme heat and cooling cycles, which can cause metal fatigue and weaken their spring tension. Even if a clip appears visually intact, its anti-rattle properties might be compromised. Reusing old clips is a common reason for brake noise to return shortly after a brake service, leading to premature wear on new pads and rotors.

Can installing brake pads backward damage anything?

While it's less common with modern brake pads, which are often designed to be installed only one way (e.g., specific inner and outer pads), it is theoretically possible. Installing a pad backward could lead to incorrect contact with the rotor, uneven wear, excessive noise, or even reduced braking performance. Modern pads typically have different backing plate designs or wear indicators that make incorrect installation difficult. Always double-check the orientation and ensure the pad sits flush and correctly within the caliper.

What about brake pad shims? Are they necessary?

Brake pad shims are thin layers, often made of rubber or metal, that sit between the brake pad's metal backing plate and the caliper piston. Their primary purpose is to dampen vibrations and reduce brake squeal. Unlike anti-rattle clips, not all brake pads require shims, and many modern pads have noise-dampening materials integrated into their design. If your new pads come with shims, or if your vehicle originally had them, they should be installed. Some manufacturers, like EBC (as mentioned in the provided text), may offer shims separately for specific pad types if noise is an issue. A light coating of brake lubricant on the shim or backing plate where it contacts the caliper is often recommended to further reduce noise, but never on the friction material itself.

Do I need to open the brake fluid reservoir cap when changing brake pads?

Yes, it is generally recommended to remove or at least loosen the brake fluid reservoir cap before you begin pushing the caliper pistons back into their housing. As you retract the pistons, brake fluid is forced back up the lines into the reservoir. If the cap is on tightly, you'll be fighting against the pressure of the fluid, making the job harder and potentially risking damage to the brake system components or even causing a fluid leak. Remember to re-secure the cap once the job is complete and the fluid level has been checked.

What's the best practice for brake component lubrication?

Proper lubrication is key to quiet and efficient brakes. Use a high-temperature, synthetic brake lubricant specifically designed for brake components. Apply a thin, even coat to:

• Caliper guide pins (after cleaning them thoroughly).
• The areas where the brake pads' metal backing plates slide against the caliper bracket and abutment clips.
• The contact points between the brake pad shims and the caliper piston.

Crucially, never apply lubricant to the brake pad friction material or the brake disc surface. This will severely compromise braking performance and create a dangerous situation.

Conclusion

The brake anti-rattle clip, though small and often overlooked, is a truly essential component in your vehicle's braking system. It plays a vital role in preventing annoying noise and vibrations, ensuring smooth and consistent brake pad operation, and ultimately contributing to the overall safety and comfort of your drive. Neglecting these clips during a brake service is a false economy that can lead to premature wear, reduced braking efficiency, and the return of those frustrating squeals and rattles.

By understanding their function, recognising their importance, and ensuring they are correctly replaced with every brake pad change, you're not just investing in quieter journeys; you're investing in the longevity and reliability of one of your car's most critical safety systems. So, the next time you're tackling a brake job, remember the unsung hero – the anti-rattle clip – and give it the attention it deserves.
