Brake Pressure Testing: A Comprehensive Guide

Maintaining the health of your vehicle's braking system is paramount for safety and performance. At the heart of this system lies hydraulic pressure, the force that translates your foot's effort into stopping power. When issues arise within this intricate network, a specialised tool is often required for accurate diagnosis. This is where a universal brake pressure test kit comes into play, offering a comprehensive solution for identifying and rectifying faults within both anti-lock (ABS) and conventional braking systems. By understanding what these kits do and how they work, you can ensure your vehicle's brakes are always in optimal condition.

Understanding Hydraulic Brake Systems

Before delving into the specifics of pressure testing, it's crucial to grasp the fundamentals of a hydraulic braking system. When you press the brake pedal, a master cylinder generates hydraulic pressure. This pressure is transmitted through brake lines filled with brake fluid to the brake calipers (on disc brakes) or wheel cylinders (on drum brakes). These components then force brake pads or shoes against the rotors or drums, creating friction and slowing the vehicle. The integrity of this fluid-filled system is vital; even small leaks or blockages can significantly impair braking effectiveness. Modern vehicles, especially those with ABS, incorporate complex electronic controls that further manage this hydraulic pressure, adding another layer to potential diagnostic challenges.

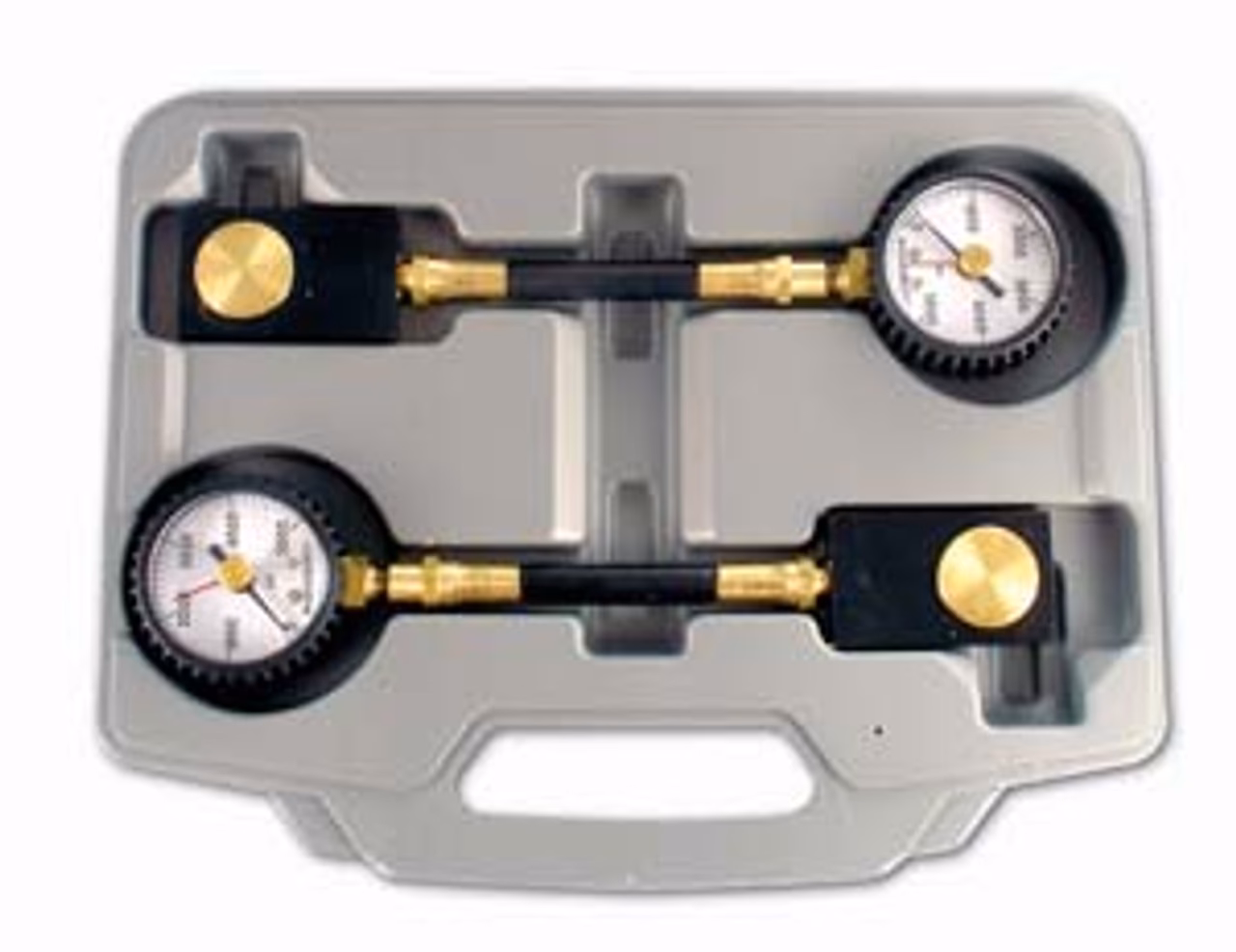

What is a Universal Brake Pressure Test Kit?

A universal brake pressure test kit is a diagnostic tool designed to measure and assess the hydraulic pressure within a vehicle's braking system. Its primary purpose is to identify problems such as leaks, restrictions, and inconsistencies in pressure distribution. These kits are 'universal' because they are equipped with a wide array of adapters and fittings, allowing them to connect to a vast range of vehicle makes and models, including those with different braking system architectures like Teves and Bosch, as well as both ABS and non-ABS configurations. The kit typically includes one or more high-pressure gauges, often capable of reading up to 3000 PSI (200 Bar), along with various hoses, couplings, and specialised adaptors to ensure compatibility.

Key Components and How They Work

A typical universal brake pressure test kit will comprise the following essential components:

• Pressure Gauges: These are the core of the kit, providing accurate readings of the hydraulic pressure. Most kits will feature at least two gauges, allowing for comparative testing at different points in the system. The high PSI rating ensures they can handle the pressures generated by even demanding braking systems.
• Hoses and Fittings: Durable, high-pressure hoses connect the gauges to the braking system. A variety of fittings and adaptors are included to ensure a secure and leak-free connection to different brake line ports, master cylinders, and caliper bleed screws.
• Adaptation System: This is what makes the kit 'universal'. It includes a comprehensive collection of specialised adaptors designed to interface with the unique connection points found on various braking systems, including ABS, non-ABS, Teves, and Bosch systems.
• Master Cylinder Bleeder Adapters: These allow direct connection to the master cylinder, enabling pressure tests at the source of hydraulic generation.
• Caliper/Wheel Cylinder Adapters: These connect to the bleed screws on brake calipers or wheel cylinders, allowing for pressure checks at the point of actuation.

The process generally involves connecting the gauges to specific points in the hydraulic system using the appropriate adaptors. With the system pressurised (either by a test pump or by operating the brake pedal), the gauges will display the current pressure. Technicians can then analyse these readings to identify any anomalies. For instance, a significant pressure drop across a section of the system might indicate a restriction or a leak. Comparing pressures at the master cylinder versus at the calipers can help pinpoint the location of the fault.

Diagnosing Common Brake System Faults

The versatility of a universal brake pressure test kit makes it invaluable for diagnosing a range of common braking issues:

Leaks

Hydraulic leaks are a serious safety concern. Even a small leak can lead to a gradual loss of brake fluid and, consequently, a spongy brake pedal or complete brake failure. Pressure testing can help identify the exact location of a leak by revealing where pressure is not being maintained within the system.

Restrictions

Blockages or restrictions within brake lines, hoses, or proportioning valves can impede the flow of brake fluid. This can result in uneven braking, with one or more wheels not applying sufficient stopping power. Testing pressure before and after a suspected restriction can confirm its presence.

ABS System Malfunctions

Anti-lock braking systems are incredibly complex, involving hydraulic modulators, solenoids, and intricate control modules. While a pressure test kit won't diagnose electronic faults within the ABS control module itself, it can effectively test the hydraulic integrity of the ABS unit. Issues like sticky valves or internal leaks within the ABS hydraulic unit can be detected by observing pressure readings during specific test procedures.

Master Cylinder Performance

The master cylinder is the heart of the hydraulic system. If it's worn or faulty, it may not be able to generate or hold sufficient pressure. Testing pressure directly at the master cylinder outlets can reveal if it's performing within specifications.

Spongy Brake Pedal

A spongy brake pedal often indicates the presence of air in the hydraulic lines. While bleeding the brakes is the primary solution, pressure testing can sometimes help confirm that the master cylinder is not the cause of the spongy feel by ensuring it's producing adequate pressure.

ABS vs. Non-ABS Systems: A Comparative Look

The fundamental principles of hydraulic pressure testing apply to both ABS and non-ABS systems. However, diagnosing ABS systems requires a more nuanced approach due to the added complexity:

A universal kit's ability to cater to both systems with its comprehensive adaptors is a significant advantage for mechanics working on a diverse fleet of vehicles. The inclusion of adaptors for specific systems like Teves and Bosch further enhances its utility, as these are common manufacturers of ABS components.

The Role of Diagnostic Devices like the ARTIDIAG600S

While a universal brake pressure test kit excels at assessing the hydraulic aspect of the braking system, modern vehicle diagnostics often involve more. Devices like the ARTIDIAG600S represent a step up in comprehensive vehicle troubleshooting. These advanced diagnostic tools are compatible with a vast number of vehicle brands and can perform a wide array of functions, including:

• ECU Analysis: Reading and interpreting data from the vehicle's various Electronic Control Units (ECUs).
• Code Reading and Clearing: Identifying diagnostic trouble codes (DTCs) and clearing them after repairs.
• System Diagnosis: Specifically diagnosing systems like ABS, BMS (Battery Management System), SAS (Steering Angle Sensor), and crucially, the brakes system.
• Data Graphing: Visualising live sensor data to better understand system behaviour.

For ABS systems, an advanced diagnostic tool like the ARTIDIAG600S is often essential. It can command the ABS hydraulic unit to cycle its valves, allowing a technician to perform pressure tests under specific, controlled conditions that are not possible with a simple pressure gauge kit alone. This synergy between hydraulic pressure testing and electronic diagnostic tools provides the most thorough approach to diagnosing complex brake issues, particularly those related to ABS.

FAQs About Brake Pressure Testing

Q1: How often should I test my brake pressure?

Brake pressure testing is not a routine maintenance item. It is typically performed when specific symptoms are present, such as a spongy pedal, uneven braking, or if a diagnostic trouble code related to the braking system is present. It's a diagnostic procedure, not a preventative one.

Q2: Can I perform brake pressure testing myself?

While some experienced DIY mechanics might use a brake pressure test kit, it requires a good understanding of hydraulic systems and the specific vehicle's braking setup. Incorrect connection or interpretation of readings can lead to misdiagnosis or even damage. It's generally recommended to have this performed by a qualified technician.

Q3: What is considered a 'good' pressure reading?

Pressure specifications vary significantly between vehicle manufacturers and models. A technician will typically refer to the vehicle's service manual for the correct pressure ranges and test procedures. The key is often consistency and the ability to hold pressure, rather than a specific absolute number without context.

Q4: Does a pressure test kit help diagnose ABS warning lights?

A brake pressure test kit can help diagnose hydraulic issues that might contribute to an ABS warning light. For example, if the ABS light is on due to low hydraulic pressure or a leak within the ABS modulator, a pressure test can help identify this. However, it cannot diagnose electrical faults within the ABS sensors, control module, or wiring, which often require a dedicated diagnostic scanner.

Q5: What are the limitations of a universal brake pressure test kit?

The primary limitation is that these kits primarily assess the hydraulic side of the braking system. They cannot diagnose electronic control issues, sensor failures, or software glitches within modern ABS or stability control systems. For such issues, an advanced diagnostic scan tool is necessary.

Conclusion

The universal brake pressure test kit is an indispensable tool for any mechanic or workshop aiming to provide accurate and efficient diagnoses of hydraulic braking system faults. Its comprehensive adaptation system ensures compatibility across a wide spectrum of vehicles, enabling technicians to pinpoint leaks, restrictions, and performance issues in both conventional and advanced ABS systems. While advanced diagnostic tools like the ARTIDIAG600S are crucial for a complete vehicle health check, particularly for electronic systems, the fundamental role of a brake pressure test kit in verifying the integrity of the hydraulic foundation cannot be overstated. Ensuring the health of your braking system through proper testing and maintenance is a critical investment in your vehicle's safety and your peace of mind on the road.
