That high-pitched, ear-splitting squeal emanating from your car's brakes can be more than just annoying; it can be a sign of underlying issues or simply an unwelcome soundtrack to your daily commute. Many drivers wonder about the purpose of various brake components, and one often-overlooked hero in the fight against noise is the brake shim. But do shims really reduce brake squeal, and if so, how do they work?
To truly understand the role of brake shims, we first need to delve into the fascinating, albeit irritating, phenomenon of brake squeal itself. Brake squeal is, at its core, a form of high-frequency vibration. It occurs when two surfaces, in this case, the brake pad and the brake rotor, rub against each other under specific conditions, leading to a 'stick-slip' phenomenon. Imagine running your finger across a wet glass; the resulting sound is similar. When the brake pad grips the rotor, it momentarily sticks, then slips, sticks, then slips again, creating rapid, microscopic vibrations. If these vibrations fall within the audible range and are amplified by other components of the braking system, you get that familiar, unwelcome squeal.
The Primary Role of Brake Shims: Vibration Damping

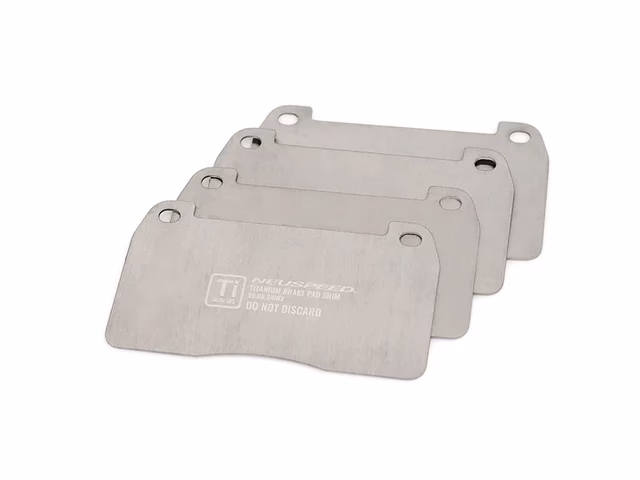

The primary and most crucial function of brake shims is to act as a vibration damper. They are typically thin plates, often made of multiple layers of different materials, placed between the back of the brake pad and the caliper piston or caliper bracket. Their design is specifically engineered to absorb and dissipate the high-frequency vibrations generated during braking, preventing them from resonating and creating noise.
Think of a shim as a small, highly effective shock absorber for your brake pads. When the pad vibrates against the rotor, the shim compresses and expands ever so slightly, converting the vibrational energy into heat (albeit a tiny amount, not enough to significantly impact overall brake temperature) and effectively dampening the sound. Without shims, these vibrations would transfer directly through the brake pad backing plate to the caliper piston and then to the entire caliper assembly, turning your braking system into a giant tuning fork.
How Shims Dampen Noise: The Multi-Layer Approach
Modern brake shims are sophisticated components. Many are constructed using a multi-layer design, often consisting of a steel core sandwiched between layers of rubber, adhesive, or other viscoelastic materials. This layered construction is key to their effectiveness:
- Steel Layer: Provides structural integrity and a stable platform.
- Rubber/Viscoelastic Layers: These are the crucial damping elements. When vibrations occur, these layers flex and deform, absorbing the energy. The internal friction within these materials converts vibrational energy into minor heat, effectively deadening the noise.
- Adhesive Layers: Help bond the shim to the brake pad and/or caliper, ensuring intimate contact for optimal vibration transfer and absorption.
The precise combination and thickness of these layers are meticulously engineered by manufacturers to target specific frequency ranges where brake squeal is most likely to occur. This is why using high-quality, OE (Original Equipment) equivalent or better shims is vital for noise reduction.
The Heat Transfer Debate: A Secondary Consideration
The original query touched upon the role of shims in heat transfer. While it's true that any material placed between two surfaces can influence heat flow, the primary design purpose of brake shims is not to significantly reduce or dissipate heat from the brake pads or calipers. The main components responsible for heat management in a braking system are the brake rotor (through its mass and ventilation) and the brake fluid (which transfers heat away from the caliper). Caliper design, including hollow pistons, also plays a role in isolating heat from the brake fluid.
As the discussion in the prompt highlighted, some argue that shims, by having a larger surface area than the direct contact patch, might aid in dissipating heat. However, this effect is generally considered negligible compared to their primary role in vibration damping. Brake pads operate at extremely high temperatures, and the thin layers of a shim would contribute minimally to overall heat dissipation. Therefore, while heat is a byproduct of vibration damping, shims are not designed as primary heat sinks. Their value lies overwhelmingly in their ability to combat resonance and eliminate squeal.
Other Causes of Brake Squeal and Troubleshooting
While shims are excellent for preventing noise, they aren't a magic bullet for all brake squeal. Many factors can contribute to brake noise, and it's essential to diagnose the root cause. Here's a table outlining common causes and potential solutions:
| Cause of Squeal | Description | Potential Solution |
|---|---|---|
| Worn Brake Pads | Pads worn to the wear indicator, which scratches the rotor. | Replace brake pads and inspect rotors. |
| Contaminated Pads/Rotors | Oil, grease, brake fluid, or road grime on friction surfaces. | Clean rotors and pads (if lightly contaminated). Replace if heavily contaminated. |
| Glazed Pads/Rotors | Hardened, shiny surface due to overheating or improper bedding-in. | Lightly sand pads or replace. Resurface or replace rotors. |
| Improper Pad Bedding-in | Pads not properly 'broken in' to the rotors, leading to uneven material transfer. | Perform proper bedding-in procedure. |
| Loose Caliper Components | Worn caliper pins, bushings, or mounting hardware allowing excessive movement. | Inspect and replace worn hardware; lubricate caliper pins. |
| Rotor Run-out/Warping | Uneven rotor thickness or lateral run-out causing inconsistent pad contact. | Resurface rotors (if within tolerance) or replace. |
| Cheap or Low-Quality Pads | Pads with poor friction material composition more prone to noise. | Upgrade to higher-quality brake pads. |
| Lack of Lubrication | Dry contact points between pad backing plate and caliper, or caliper pins. | Apply high-temperature brake grease to contact points (not friction surfaces). |
Installation and Maintenance Tips for Shims
Proper installation of brake shims is just as important as their quality. Here are some key considerations:
- Cleanliness is Key: Before installing new shims, thoroughly clean the back of the brake pad and the caliper piston/bracket where the shim will sit. Any dirt or rust can compromise the shim's effectiveness.
- Correct Orientation: Shims often have a specific orientation. Ensure they are fitted correctly according to the manufacturer's instructions.
- Adhesive Backing: Many shims come with an adhesive backing. Peel off the protective film and press firmly to ensure good contact.
- Lubrication (Specific Areas): While shims themselves don't require lubrication on their damping surfaces, applying a thin, high-temperature ceramic or silicone-based brake grease to the contact points between the brake pad backing plate (where the shim sits) and the caliper assembly is crucial. This further aids in reducing vibration and ensures smooth movement. Do NOT apply grease to the friction surface of the pad or rotor!
- Replace Old Shims: Always replace old shims when installing new brake pads. They are designed to work optimally with new pads and can degrade over time.
Frequently Asked Questions About Brake Shims and Squeal
Q1: Are brake shims always necessary?
A1: While some brake pads are designed with noise-reducing features integrated into their backing plates, for most conventional brake pad designs, shims are essential for optimal noise suppression. Many premium brake pads come with shims already attached or included in the box. Skipping them can significantly increase the likelihood of brake squeal.
Q2: Can I reuse my old brake shims?
A2: It is highly recommended to replace brake shims whenever you replace your brake pads. Over time, the damping materials in shims can degrade, lose their effectiveness, or become damaged. New shims are designed to work with new pads for peak performance and noise reduction.
Q3: My brakes still squeal after installing new pads and shims. What could be wrong?
A3: If squealing persists, it's crucial to investigate other potential causes. This could include improper bedding-in of the new pads, contaminated brake surfaces, worn caliper hardware, or issues with the brake rotors (e.g., run-out or glazing). Re-check all components, ensure proper lubrication of caliper pins, and confirm the pads have been correctly bedded-in.
Q4: Do all brake pads come with shims?
A4: No, not all brake pads come with shims. Some premium pads have integrated anti-noise features, while others expect shims to be purchased separately or reused (though reuse is not recommended). Always check what's included when purchasing brake pads.
Q5: Is brake squeal dangerous?
A5: Not always, but it can be a warning sign. Minor squeal, especially in damp conditions or after extended periods of inactivity, might be harmless surface rust. However, persistent, loud squeal often indicates a problem that needs addressing, such as worn pads (wear indicator), improper installation, or other mechanical issues. It's always best to have it inspected to ensure your braking system is safe and performing optimally.
Conclusion
In conclusion, brake shims are indispensable components in the modern braking system, primarily serving as highly effective squeal suppressors. Their multi-layered construction is specifically engineered to absorb and dissipate the high-frequency vibrations that lead to brake noise, ensuring a quieter and more pleasant driving experience. While their contribution to heat transfer is minimal, their role in noise reduction is paramount. For anyone seeking to eliminate that irritating brake squeal, understanding and correctly utilising quality brake shims is a crucial step towards achieving a silent and efficient braking system. Always remember to use high-quality components and follow proper installation procedures for the best results.
