Understanding Brake Shims: Function and Types

When it comes to the complex world of automotive mechanics, many components work in harmony to ensure your vehicle operates safely and efficiently. While the prominent parts like the engine, gearbox, and suspension often grab the spotlight, smaller yet equally crucial elements play a significant role. Among these is the humble brake shim, a component that, despite its unassuming appearance, is fundamental to the performance and longevity of your braking system. Often overlooked by the average car owner, understanding what a brake shim is and what it does can provide valuable insight into maintaining your vehicle and preventing common issues.

What is a Brake Shim and What is its Function?

At its core, a brake shim, also frequently referred to as a brake insulator, is a thin piece of material that is strategically placed between the brake pad and the caliper bracket or piston. Its primary purpose is to act as a buffer and an insulator, managing the forces and temperatures generated during the braking process. When you apply the brakes, friction between the brake pad and the rotor creates heat and vibrations. These vibrations, if not managed, can be transmitted through the braking system and into the vehicle's cabin, resulting in an audible and often irritating noise known as brake squeal or judder. The shim is designed to absorb these vibrations and dissipate heat, thereby mitigating these unwanted side effects.

The functionality of a brake shim is multi-faceted. Firstly, it serves as a vibration dampener. The shim's material composition and design allow it to absorb the high-frequency vibrations produced during braking. This absorption prevents these vibrations from resonating through the brake assembly and into the chassis of the car. Secondly, it acts as a thermal barrier. The significant heat generated by friction during braking can be detrimental to other brake components, such as the caliper piston seals. The shim helps to insulate the caliper from this extreme heat, protecting these sensitive parts and contributing to the overall durability of the braking system.

The Science Behind Brake Shims: Reducing Noise and Enhancing Performance

The effectiveness of a brake shim lies in its ability to manage reaction forces and maintain consistent temperatures. By incorporating elastomer interface coatings on its surface, the shim creates a more compliant interface between the brake pad and the braking hardware. This elastomeric layer is key to its damping capabilities, effectively 'cushioning' the impact and reducing the transmission of unwanted noise. Furthermore, by acting as a thermal barrier, the shim helps to keep the temperature of the brake pad more uniform across its entire surface. This consistent temperature distribution is crucial for ensuring consistent brake torque, meaning the braking force applied is more predictable and reliable.

Consider the process: when the brake pedal is pressed, hydraulic pressure forces the caliper piston against the back of the brake pad. The pad then presses against the rotor. This contact generates immense friction, leading to heat and minute vibrations. Without a shim, these vibrations can easily propagate. The shim, typically made of materials like steel, composite, or a combination thereof, with specific coatings or layers, absorbs a significant portion of this vibrational energy. This absorption directly translates to a quieter braking experience for the driver and occupants.

Types of Brake Shims

Brake shims are not a one-size-fits-all component. They come in various forms, each designed to cater to specific braking systems and performance requirements. The primary differentiating factors are the materials used and their construction:

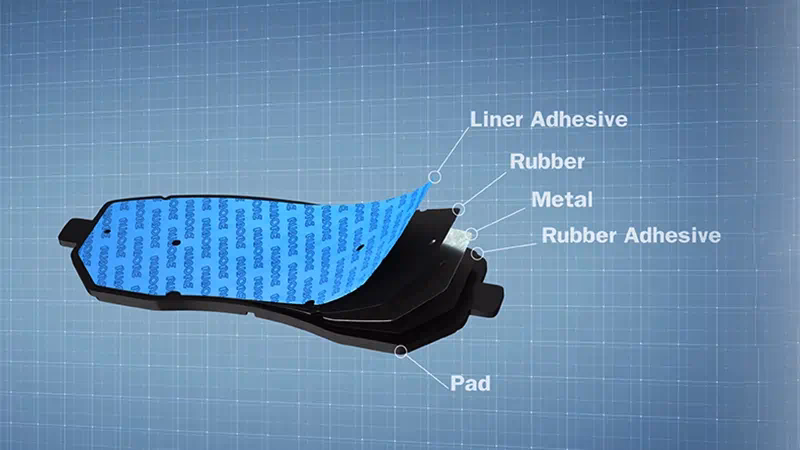

• Coated Shims: These are perhaps the most common type. They typically consist of a thin steel plate with a coating, often made of a rubber-like elastomer or a specialized adhesive. This coating is applied to one or both sides of the steel layer and is crucial for its noise-dampening properties. The steel provides structural integrity, while the coating absorbs vibrations.
• Multi-Layered Shims: These shims are more complex in their construction, often featuring multiple layers of different materials. This could include alternating layers of steel and damping materials, or a layered composite. The strategic arrangement of these layers is designed to provide superior vibration dampening and thermal insulation compared to simpler coated shims.
• Electronic Shims: While less common in standard passenger vehicles, some high-performance or specialized braking systems might incorporate electronic shims. These are more advanced and can actively adjust their damping characteristics based on sensor input, offering a highly tailored and responsive braking experience.
• Spring Clips/Anti-Rattle Clips: While not strictly a 'shim' in the traditional sense, these small metal clips often serve a similar purpose of preventing movement and rattling within the brake assembly. They apply a light, constant pressure to the brake pad, keeping it snug within the caliper bracket and reducing the potential for noise.

Material Considerations for Brake Shims

The materials used in brake shims are critical to their performance. Steel is a common base material due to its strength and ability to withstand the high pressures and temperatures involved. However, steel alone is not an effective insulator or dampener. This is where coatings and composite materials come into play. Elastomers, such as synthetic rubbers, are frequently used for their excellent vibration-absorbing qualities. Other composite materials might be engineered to offer a balance of thermal resistance, durability, and damping effectiveness.

Why are Brake Shims Important?

The importance of brake shims cannot be overstated. Their primary contribution is to significantly reduce or eliminate brake noise, particularly the high-pitched squeal that many drivers experience. This not only enhances driver and passenger comfort but also indicates a healthier braking system. Beyond noise reduction, shims contribute to the longevity of brake components. By insulating the caliper from excessive heat, they protect seals and other sensitive parts from premature degradation. This can lead to fewer premature replacements of brake calipers and other associated parts, saving money in the long run.

Furthermore, by ensuring more consistent brake torque, shims contribute to more predictable and reliable braking performance. This is especially critical in emergency situations where consistent stopping power can make a significant difference. A well-functioning braking system, aided by properly installed and maintained shims, offers greater confidence and safety on the road.

Common Issues Related to Brake Shims

While brake shims are designed for durability, they are not immune to wear and tear or improper installation. Some common issues include:

• Wear and Tear: Over time, the damping materials on shims can degrade, especially under extreme heat cycles. This can reduce their effectiveness in preventing noise and transmitting heat.
• Corrosion: The steel component of shims can corrode, particularly in areas with exposure to road salt and moisture. This corrosion can weaken the shim and compromise its structural integrity.
• Improper Installation: Shims must be installed correctly and in the right orientation. If they are fitted incorrectly, they can cause uneven pad wear, reduced braking efficiency, or even exacerbate noise issues. Many modern brake pads come with integrated shims to simplify installation and ensure correct placement.
• Damage: Shims can become bent or damaged during brake pad replacement if care is not taken. A damaged shim will not function correctly.

When to Consider Replacing Brake Shims

Brake shims are typically replaced whenever the brake pads are replaced. This is because they are often bonded to the brake pads or are easily damaged during the removal of old pads. Even if they appear to be in good condition, replacing them with new ones ensures optimal performance and noise reduction. If you notice persistent brake squeal or judder that doesn't resolve after replacing brake pads, it might indicate a problem with the shims or their installation. In such cases, a mechanic should inspect the entire braking system, including the shims, for wear or damage.

Frequently Asked Questions (FAQs)

Q1: What is the primary function of a brake shim?

A1: The primary function of a brake shim is to dampen vibrations and insulate the brake caliper from heat, thereby reducing brake noise and protecting brake components.

Q2: Can brake shims be reused?

A2: It is generally recommended to replace brake shims whenever you replace brake pads. They are often bonded to the pads and can be damaged or lose their effectiveness over time.

Q3: What are brake shims made of?

A3: Brake shims are typically made of steel, often with a coating of elastomer (a rubber-like material) or other composite damping materials.

Q4: How do shims prevent brake squeal?

A4: Shims absorb the high-frequency vibrations generated during braking that would otherwise be transmitted through the brake assembly, causing noise.

Q5: Do all brake pads come with shims?

A5: Many aftermarket brake pads come with integrated shims. However, some original equipment (OE) pads may not have them, or they may be a separate component that needs to be installed.

Conclusion

The brake shim, though small and often overlooked, is a vital component in ensuring a quiet, comfortable, and reliable braking experience. By understanding its role in managing vibrations and heat, vehicle owners can better appreciate the engineering that goes into their car's braking system. Regular inspection and timely replacement of brake pads, along with their accompanying shims, are essential for maintaining optimal braking performance and extending the life of your brake system components. If you're experiencing brake noise, don't ignore it; it could be a sign that your brake shims need attention.
