Understanding Your Car's Brake System

When it comes to the safety of your vehicle, few systems are as critical as the brakes. They are the primary means by which you control your car's speed and bring it to a complete stop. While many drivers take their brakes for granted, understanding how they work can empower you to identify potential issues and ensure they are always in optimal condition. The most common type of braking system found in modern vehicles is the hydraulic brake system, a marvel of engineering that uses the principles of fluid mechanics to generate immense stopping power.

The Heart of the System: Hydraulic Power

At its core, a hydraulic brake system operates on Pascal's Principle, which states that a pressure change at any point in a confined incompressible fluid is transmitted equally throughout the fluid. In simpler terms, when you press the brake pedal, that force is amplified and transferred through brake fluid to the wheels, activating the braking mechanism.

Key Components of a Hydraulic Brake System

To appreciate how this system functions, it's essential to understand its individual components and their roles:

1. Brake Pedal

This is your primary interface with the braking system. When you depress the brake pedal, you initiate the entire braking process. The force you apply here is the starting point for hydraulic pressure generation.

2. Master Cylinder

The master cylinder is the 'brain' of the hydraulic system. It houses one or more pistons that are pushed by a pushrod connected to the brake pedal. As these pistons move, they displace brake fluid from the reservoir into the brake lines, creating hydraulic pressure. Most modern vehicles use a tandem master cylinder, which has two separate hydraulic circuits for redundancy. If one circuit fails, the other can still provide some braking ability.

3. Brake Fluid Reservoir

This is a small tank, usually attached to the master cylinder, that holds the brake fluid. It's crucial to keep the fluid level topped up, as it's the medium through which force is transmitted. The reservoir also has a compensating port that allows fluid to flow back into the master cylinder as the brake pads wear down.

4. Brake Lines (Hoses and Pipes)

These are the conduits that carry the pressurised brake fluid from the master cylinder to the braking mechanisms at each wheel. They are typically made of strong steel or reinforced rubber hoses to withstand the high pressures involved. Flexible hoses are used near the wheels to accommodate suspension movement.

5. Wheel Cylinders and Calipers

This is where the hydraulic pressure is converted back into mechanical force to apply the brakes. There are two main types:

• Drum Brakes: Found on the rear wheels of some vehicles or older models, drum brakes utilise a wheel cylinder. When pressure is applied, the wheel cylinder pushes two brake shoes outwards against the rotating brake drum.
• Disc Brakes: More common on front wheels and increasingly on rear wheels, disc brakes use a caliper. The caliper houses one or more pistons. When brake fluid pressure is applied, these pistons push the brake pads against a rotating brake disc (rotor).

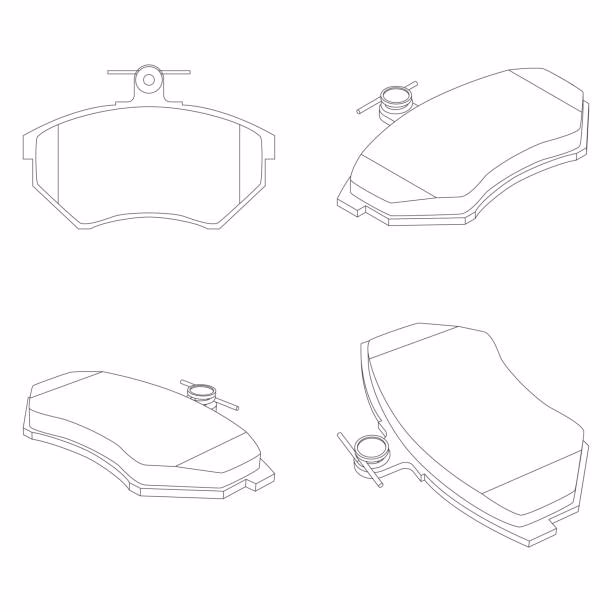

6. Brake Pads and Shoes

These are the friction materials that come into direct contact with the brake disc or drum. When pressure is applied, they create the friction necessary to slow and stop the rotation of the wheels. Brake pads are typically made of composite materials designed for high friction and durability. Brake shoes are curved pads used in drum brake systems.

7. Brake Discs (Rotors) and Drums

These are the rotating components attached to the wheel hubs. Disc brakes use a flat, circular disc, while drum brakes use a hollow cylinder. The brake pads or shoes press against these surfaces to create the braking effect.

How the Hydraulic System Works in Action

Let's walk through the process when you step on the brake pedal:

1. Pedal Application: You press the brake pedal.
2. Master Cylinder Activation: The pushrod forces the piston(s) in the master cylinder forward.
3. Fluid Displacement: The moving piston(s) push brake fluid from the reservoir through the compensating port and into the brake lines.
4. Pressure Transmission: According to Pascal's Principle, this pressure is transmitted equally and undiminished through the brake lines to all four wheels.
5. Actuation at the Wheels:
   • Disc Brakes: The hydraulic pressure forces the caliper pistons to move, pushing the brake pads against the rotating brake disc.
   • Drum Brakes: The hydraulic pressure forces the pistons in the wheel cylinder to move outwards, pushing the brake shoes against the rotating brake drum.
6. Friction and Deceleration: The friction between the pads/shoes and the discs/drums converts the kinetic energy of the moving vehicle into heat, slowing the wheels down and thus the vehicle.
7. Release: When you release the brake pedal, the pressure in the system is released. Seals in the master cylinder and calipers/wheel cylinders retract the pistons, pulling the pads/shoes away from the discs/drums, allowing the wheels to rotate freely again.

The Importance of Brake Fluid

Brake fluid is a vital, often overlooked, component. It's a non-compressible fluid with a high boiling point. This is crucial because the braking process generates significant heat, and if the fluid were to boil, it would turn into vapour. Vapour is compressible, meaning the brake pedal would feel spongy, and braking effectiveness would be drastically reduced – a dangerous situation known as 'brake fade'.

Over time, brake fluid can absorb moisture from the atmosphere, lowering its boiling point and potentially causing corrosion within the braking system. This is why regular inspection and replacement of brake fluid, as recommended by your vehicle manufacturer, are essential for maintaining optimal braking performance and system longevity.

Common Brake System Issues and Maintenance

Understanding the system also helps in recognising potential problems:

• Spongy Brake Pedal: Often indicates air in the brake lines or a failing master cylinder.
• Squealing or Grinding Noises: Usually a sign of worn brake pads or shoes. Many pads have wear indicators that emit a high-pitched squeal when they need replacing. Grinding often means the pads are worn down to the metal backing plate, which can damage the discs/drums.
• Vibrations or Pulsations: Can be caused by warped brake discs (rotors) due to excessive heat.
• Car Pulling to One Side: May indicate a problem with a caliper or brake line on one side of the vehicle, or uneven wear.
• Leaking Brake Fluid: A serious issue that requires immediate attention. Check for leaks around the master cylinder, brake lines, calipers, and wheel cylinders.

Recommended Maintenance Schedule

While specific intervals vary by vehicle manufacturer, general guidelines include:

• Brake Fluid Check: Inspect fluid level and condition during every service. Replace fluid every 2-3 years or as per the owner's manual.
• Brake Pad/Shoe Inspection: Check thickness at every oil change or service. Replace when they reach the minimum thickness specified by the manufacturer.
• Brake Disc/Drum Inspection: Check for wear, scoring, and warping when replacing pads/shoes.
• Brake Line Inspection: Check for cracks, leaks, or damage periodically.

Conclusion: Your Safety Depends on It

The hydraulic brake system is a sophisticated yet robust mechanism designed to keep you safe. By understanding its components and how they interact, you can be more vigilant about its maintenance. Regular checks and prompt attention to any unusual symptoms are crucial. Don't underestimate the importance of well-maintained brakes; they are your most important safety feature. If you suspect any issues with your braking system, it's always best to consult a qualified mechanic.

Frequently Asked Questions

Q1: What is the most common cause of brake failure?

The most common causes include low brake fluid, air in the brake lines, worn-out brake pads or shoes, and a malfunctioning master cylinder. Leaks in the brake lines can also lead to a rapid loss of fluid and pressure.

Q2: How often should I replace my brake fluid?

It is generally recommended to replace brake fluid every 2 to 3 years, or according to your vehicle's owner's manual. This is because brake fluid can absorb moisture over time, which lowers its boiling point and can lead to corrosion.

Q3: What does it mean if my brake pedal feels spongy?

A spongy brake pedal typically indicates the presence of air in the hydraulic system, or a problem with the master cylinder. Air is compressible, unlike brake fluid, leading to that 'spongy' sensation when you press the pedal.

Q4: Can I drive with worn brake pads?

While you might be able to drive, it is highly inadvisable and dangerous. Worn brake pads significantly reduce your stopping power, increase stopping distances, and can cause further damage to the brake discs or drums, leading to more expensive repairs.

Q5: What's the difference between brake pads and brake shoes?

Brake pads are used in disc brake systems and are clamped against a rotating disc (rotor). Brake shoes are used in drum brake systems and are pushed outwards against the inside of a rotating drum.
