Brake Pad & Tyre Tread Gauges Explained

Ensuring your vehicle is in tip-top condition is paramount for both safety and efficiency. While many drivers are familiar with the importance of regular servicing, understanding the specific tools used to assess critical components can be incredibly beneficial. Today, we're going to delve into the world of automotive measurement tools, specifically focusing on the humble yet vital brake pad gauge and its equally important counterpart, the tyre tread depth gauge. These aren't just for the professional mechanic; understanding and even using them yourself can empower you to make informed decisions about your vehicle's upkeep and prevent costly repairs or, worse, dangerous roadside incidents.

The Crucial Role of Brake Pads

Brake pads are the unsung heroes of your braking system. They are the friction material that presses against your brake discs (rotors) when you apply the brakes, converting kinetic energy into heat through friction, thus slowing down or stopping your vehicle. Over time, this friction material wears down. Driving with excessively worn brake pads is not only detrimental to the braking system as a whole, potentially damaging the discs, but it also significantly compromises your ability to stop safely. This is where a brake pad gauge comes into play.

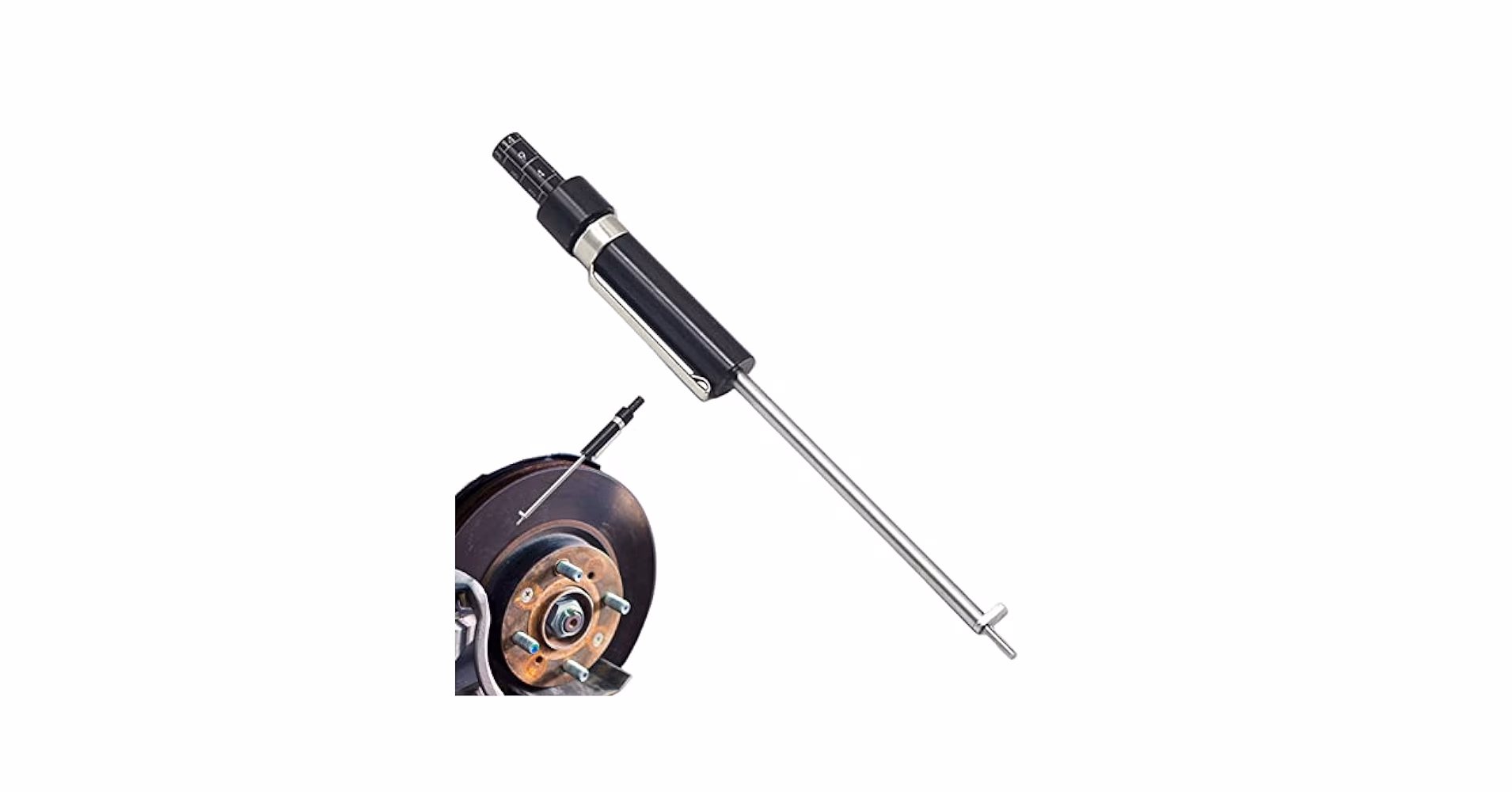

What is a Brake Pad Gauge?

A brake pad gauge is a specialised tool designed to measure the remaining thickness of your brake pads. These gauges typically have a pointed or notched end that is inserted into the brake caliper to measure the distance between the brake disc and the back of the brake pad's metal backing plate. Essentially, it measures the amount of friction material left.

Different types of brake pad gauges exist:

• Visual Inspection Gauges: These are often simple, U-shaped tools with markings or specific slots that you visually compare against the brake pad. They offer a quick, albeit less precise, estimation.
• Dial Caliper Gauges: More sophisticated gauges that use a dial indicator to provide a precise measurement of the pad thickness. These are generally more accurate.
• Digital Caliper Gauges: Similar to dial caliper gauges but with a digital display for even easier and more precise readings.

The critical measurement to look for is the thickness of the friction material itself. Most manufacturers recommend replacing brake pads when the friction material reaches a thickness of around 3mm (approximately 1/8 inch). However, it's always best to consult your vehicle's owner's manual or a reputable mechanic for the specific minimum thickness for your car model. A good quality brake pad will have a significant amount of friction material when new, and a gauge helps you track its gradual depletion.

Why Measure Brake Pads?

Regularly checking your brake pad thickness offers several advantages:

• Safety: Worn brake pads can lead to longer stopping distances, increasing the risk of accidents.
• Cost Savings: Catching worn pads early can prevent damage to the brake discs, which are significantly more expensive to replace than pads.
• Preventative Maintenance: Knowing when to replace your pads allows you to schedule maintenance proactively, avoiding unexpected failures.
• Performance: Properly functioning brakes ensure optimal performance and confidence when driving.

As Steve Cross, a Drop Forge Operator with 40 years of experience, proudly states, "I'M PROUD OF THE OTC BRAND. I'M MAKING A BRAND THAT'S BEEN AROUND A LONG TIME. ANY GUY THAT'S WORKED ON A CAR HAS HEARD OF THE OTC BRAND, AND THEY PROBABLY HAVE USED IT." This sentiment highlights the trust and reliability associated with quality tools like those used for brake inspection, ensuring that when you use a good gauge, you're using a tool that professionals rely on.

The Importance of Tyre Tread Depth

Moving from stopping power to maintaining grip, we come to your tyres. The tread on your tyres is the key to their ability to grip the road surface, especially in wet or slippery conditions. It provides the channels for water to escape, preventing aquaplaning, and offers the necessary grip for acceleration, braking, and cornering. Worn tyre tread is a significant safety hazard.

What is a Tyre Tread Depth Gauge?

A tyre tread depth gauge is a tool used to measure the depth of the grooves in your tyre's tread. These gauges are designed to be inserted into the deepest part of the tyre's tread pattern. As the provided information states, "This portable tyre tread depth gauge can provide you with readings in millimeters or 1/32nds, depending on your personal preferences. The depth gauge can be used regardless of external weather conditions, so you’ll always be prepared to deal with wear and tear."

There are several types of tread depth gauges:

• Analogue (Dial) Gauges: Similar to dial caliper gauges for brakes, these have a sliding pin that retracts into the body of the gauge as it's pushed into the tread, displaying the depth on a dial.
• Digital Gauges: These offer a clear digital readout of the tread depth, often with the ability to switch between metric and imperial measurements.
• Pocket/Pen Gauges: Smaller, simpler versions that are very portable and easy to use for quick checks.
• Tyre Wear Indicators (TWIs): These are small raised bars built into the main grooves of the tyre. When the tread wears down to the level of these bars, the tyre is considered legally worn out. While not a gauge themselves, they are a visual indicator of wear.

The legal limit for tyre tread depth in the UK is 1.6mm across the central three-quarters of the tyre's breadth. However, for optimal safety, especially in wet conditions, many experts recommend replacing tyres when the tread depth reaches 3mm. The gauge helps you determine if your tyres are approaching this critical limit.

Why Measure Tyre Tread Depth?

Measuring your tyre tread depth is essential for:

• Road Safety: Adequate tread depth is crucial for maintaining grip, especially in adverse weather. Underinflated tyres with worn tread are a major cause of accidents.
• Legal Compliance: Driving with tyres that have less than the legal minimum tread depth can result in hefty fines and penalty points on your driving licence.
• Fuel Efficiency: Properly inflated tyres with good tread depth contribute to better fuel economy.
• Tyre Longevity: Monitoring tread depth can help identify uneven wear patterns, which might indicate issues with wheel alignment or tyre balancing, allowing for timely adjustments.

Comparing Brake Pad and Tyre Tread Gauges

While both tools measure wear and are critical for safety, they serve distinct purposes:

How to Use Them Effectively

Using these gauges is straightforward, but attention to detail is key:

Using a Brake Pad Gauge:

1. Ensure the vehicle is safely parked with the handbrake applied and the engine off. If possible, chock the wheels.
2. You may need to remove the wheel to get a clear view and access to the brake caliper.
3. Locate the brake caliper, which encloses the brake disc and pads.
4. Carefully insert the gauge's measuring tip into the caliper to measure the thickness of the friction material. Aim for the thickest part of the pad.
5. Record the measurement and repeat for all brake pads. It's common for front pads to wear faster than rear pads.
6. Compare your readings to the recommended minimum thickness for your vehicle.

Using a Tyre Tread Depth Gauge:

1. Ensure the vehicle is parked safely.
2. Take measurements in several places around the circumference of each tyre, and across its width (inner, middle, and outer edges).
3. Insert the gauge's probe into the deepest groove of the tread.
4. Read the measurement from the dial, digital display, or compare it to the gauge's markings.
5. Check all four tyres, and don't forget the spare if you have one!
6. Pay attention to any significant differences in tread depth between different parts of the same tyre or between tyres on the same axle. This could indicate a need for wheel alignment or balancing.

Frequently Asked Questions

Q1: How often should I check my brake pads and tyre tread?

A1: It's recommended to check your brake pads at least once a year or every 10,000 miles, and your tyre tread depth every time you check your tyre pressures, or at least monthly. More frequent checks are advisable if you drive frequently or in demanding conditions.

Q2: Can I check my brake pads without a gauge?

A2: You can sometimes get a visual estimate by looking through the spokes of the wheel, but this is often inaccurate. A gauge provides a precise measurement, which is crucial for safety and preventing damage.

Q3: My tyre tread is unevenly worn. What does this mean?

A3: Uneven tyre wear often points to underlying issues such as incorrect wheel alignment, unbalanced wheels, or improper tyre pressure. It's important to address the cause to prevent premature tyre wear and ensure safe handling.

Q4: What is the difference between the legal minimum tread depth and the recommended safe tread depth?

A4: The legal minimum in the UK is 1.6mm. However, this is the absolute bare minimum for legal road use. For optimal grip and safety, particularly in wet conditions, it's highly recommended to replace tyres when the tread depth reaches around 3mm.

Q5: Where can I buy these gauges?

A5: Brake pad gauges and tyre tread depth gauges are readily available from most good motor factors, online automotive retailers, and some larger DIY or tool stores.

Conclusion

In summary, a brake pad gauge and a tyre tread depth gauge are invaluable tools for any car owner or driver. They empower you with the knowledge to maintain your vehicle's critical safety systems effectively. By understanding how to use them and regularly checking your brake pads and tyre tread, you not only ensure your own safety and the safety of others on the road but also protect your wallet from unnecessary repair costs. Don't wait until you hear that tell-tale grinding noise or experience a loss of grip; invest in these simple tools and take proactive control of your vehicle's maintenance.
