How Brake Calipers Work: A Deep Dive

In the intricate ballet of automotive safety, few components play as pivotal a role as the humble brake caliper. Often overlooked, these vital assemblies are at the very heart of your vehicle's ability to stop reliably and efficiently. Understanding how they function isn't just a matter of technical curiosity; it's fundamental to appreciating the sophisticated engineering that keeps you safe on the road. Without properly functioning brake calipers, the powerful engine in your car would be rendered useless in an emergency, highlighting their indispensable nature in modern vehicles.

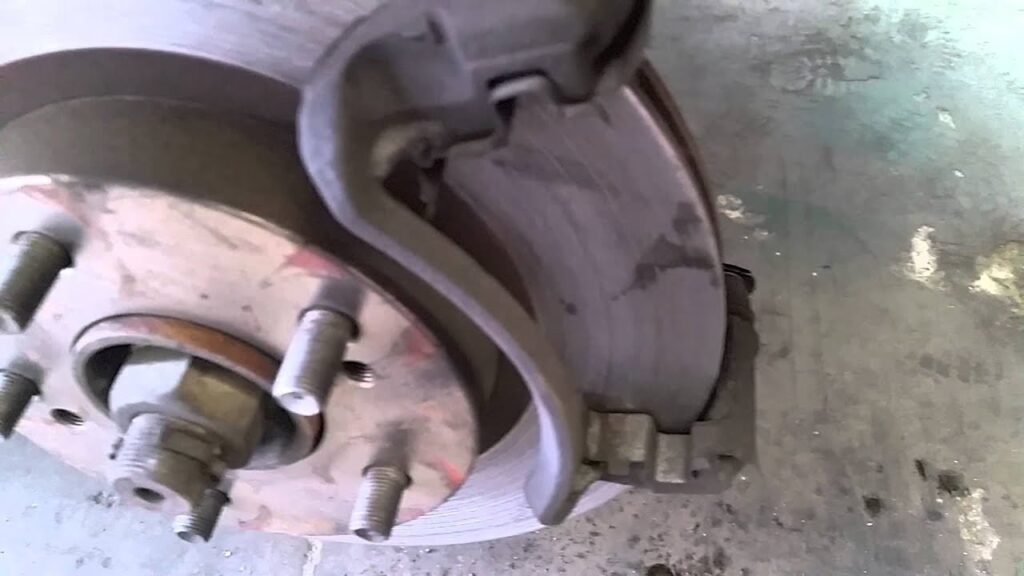

At its core, a brake caliper is a clamping device, designed to house the brake pads and press them against the spinning brake rotor. This action generates the crucial friction required to convert your vehicle's kinetic energy into heat, ultimately bringing it to a halt. The magic behind this powerful clamping force lies in the principles of hydraulics, a system where incompressible fluids transmit force, allowing a small input from your foot on the brake pedal to generate immense stopping power at the wheels.

The Core Principle: Hydraulic Power in Action

The journey of braking begins when you depress the brake pedal. This seemingly simple action initiates a complex sequence within the vehicle's hydraulic braking system. Your foot's pressure is amplified by the brake pedal's leverage and then transferred to the master cylinder. Inside the master cylinder, a piston forces brake fluid through rigid metal lines and flexible rubber hoses, directing it towards each wheel's brake caliper.

Brake fluid, by its nature, is virtually incompressible. This property is key to the system's efficiency. As the fluid enters the caliper, it pushes against one or more pistons housed within the caliper body. These pistons, in turn, exert force directly onto the brake pads. This entire process is a brilliant application of Pascal's Principle, which states that pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and the walls of its container. Thus, the relatively small force you apply to the pedal is multiplied into the massive clamping force required to stop a moving vehicle.

Two Main Types of Brake Calipers: Fixed vs. Floating

While all brake calipers perform the same fundamental task, they come in two primary designs, each with its own characteristics, advantages, and disadvantages. Understanding these differences helps to appreciate the engineering choices made for various vehicle types and performance requirements.

Floating (or Sliding) Calipers

The floating caliper is the most common type found on the vast majority of passenger cars and light commercial vehicles. Its design is relatively simple and cost-effective to manufacture. A floating caliper typically has one or two pistons located on only one side of the brake rotor. When hydraulic pressure is applied, these pistons push the inner brake pad against the rotor.

What makes it "floating" is its ability to slide. The entire caliper assembly is mounted on guide pins (or guide bolts), which allow it to move laterally across the rotor. As the inner pad makes contact and exerts force, the caliper body itself is pulled inwards along these guide pins. This inward movement brings the outer brake pad (which is fixed to the caliper body) into contact with the other side of the rotor. In essence, the caliper "floats" or slides to clamp both sides of the rotor simultaneously. This design is efficient for everyday driving, offering reliable stopping power for standard road conditions.

Fixed Calipers

In contrast, fixed calipers are rigidly mounted directly to the vehicle's suspension component (e.g., the steering knuckle). They do not move or slide. Instead, they feature multiple pistons – often two, four, six, or even more – distributed on both sides of the brake rotor. When hydraulic pressure is applied, all these pistons extend simultaneously, pushing both the inner and outer brake pads directly against the rotor.

Fixed calipers are typically found on high-performance cars, sports cars, and heavy-duty vehicles where superior braking power, feel, and heat management are paramount. Their design allows for more even pressure distribution across the brake pads, leading to more consistent and powerful braking. The increased number of pistons and the rigid mounting also contribute to better brake pedal feel and improved heat dissipation, which is crucial during aggressive or prolonged braking.

Key Components That Make a Caliper Work

Beyond the fundamental design, several intricate components work in harmony within the caliper to ensure its efficient operation:

• Pistons: These are the cylindrical plungers responsible for pushing the brake pads. They can be made from various materials, including steel, aluminium, or even phenolic resin, each chosen for its specific properties related to heat transfer and durability.
• Piston Seals: Crucial for maintaining the hydraulic pressure, these rubber seals prevent brake fluid from leaking out of the caliper. They also play a secondary, yet vital, role in retracting the piston slightly away from the brake pad when the brake pedal is released, ensuring the pads don't continuously drag on the rotor.
• Dust Boots (Dust Seals): These accordion-like rubber boots protect the piston and the piston seal from contaminants like dirt, moisture, and road debris. Damage to these boots can lead to corrosion and ultimately piston seizure.
• Caliper Body: The main housing of the caliper, typically cast from iron or aluminium. It contains the fluid passages and chambers for the pistons.
• Guide Pins (for floating calipers): These precision-machined steel pins allow the floating caliper to slide smoothly. They require regular lubrication to prevent seizing.
• Bleeder Screw: A small valve located at the highest point of the caliper. It's used to release trapped air from the hydraulic system during brake fluid flushes or after component replacement.
• Brake Pads: While not strictly part of the caliper, the caliper's sole purpose is to actuate these friction materials against the rotor.
• Mounting Bracket: This component securely fastens the caliper assembly to the vehicle's suspension system.

The Step-by-Step Braking Sequence

Let's summarise the entire process from pedal to stop:

1. Pedal Depression & Master Cylinder Activation: The driver presses the brake pedal, which actuates the master cylinder, pressurising the brake fluid.
2. Fluid Transmission: This pressurised fluid travels through the brake lines to the calipers at each wheel.
3. Piston Extension: Inside the caliper, the hydraulic pressure forces the piston(s) to extend outwards.
4. Pad-to-Rotor Contact: The extending piston(s) push the inner brake pad firmly against the spinning brake rotor.
5. Caliper Movement (Floating Calipers Only): For floating calipers, as the inner pad engages, the entire caliper body slides inwards on its guide pins, bringing the outer brake pad into contact with the other side of the rotor. For fixed calipers, pistons on both sides simply extend.
6. Friction Generation: With both pads clamping the rotor, intense friction is generated, converting the rotational energy of the wheels into heat, which slows the vehicle.
7. Heat Dissipation: The design of the rotor (often vented) and the caliper itself helps to dissipate this generated heat into the surrounding air, preventing brake fade.
8. Pedal Release & Retraction: When the driver releases the brake pedal, the hydraulic pressure drops. The elasticity of the piston seals, along with a slight vacuum, causes the pistons to retract slightly, pulling the brake pads a minuscule distance away from the rotor, allowing the wheel to spin freely again.

The Crucial Role of Brake Fluid

While the caliper is the mechanical workhorse, the unsung hero of the braking system is the brake fluid itself. Its non-compressible nature is absolutely fundamental to the entire hydraulic operation. Any contamination, particularly water absorption (as brake fluid is hygroscopic), or the presence of air bubbles within the fluid, can severely compromise the caliper's effectiveness. Water in the fluid can boil under intense braking heat, creating compressible steam, leading to a "spongy" pedal feel and drastically reduced braking power. Air bubbles, being compressible, will also absorb pedal pressure instead of transmitting it efficiently to the pistons, leading to a similar loss of braking efficacy. Regular brake fluid flushes are therefore a critical part of brake maintenance.

Common Caliper Issues and Their Impact on Function

Despite their robust design, brake calipers are subject to wear and tear and can develop issues that impair their function:

• Seized Pistons: Over time, corrosion can build up on the piston's surface, or the piston seals can degrade, causing the piston to stick within the caliper bore. A seized piston prevents the brake pad from engaging or retracting properly, leading to the brake dragging (causing excessive heat and wear) or uneven braking.
• Leaking Seals: Damaged or worn piston seals and dust boots can lead to brake fluid leaks. This loss of fluid reduces hydraulic pressure, resulting in a soft or "spongy" brake pedal and, in severe cases, complete brake failure.
• Corroded Guide Pins (Floating Calipers): If the guide pins on floating calipers are not properly lubricated or become corroded, the caliper loses its ability to slide freely. This can cause uneven brake pad wear (one pad wears significantly more than the other) and can lead to the vehicle pulling to one side when braking.
• Air in the System: As mentioned, air bubbles in the brake fluid compromise hydraulic pressure, leading to a spongy pedal and reduced braking effectiveness. This often requires bleeding the brakes to remove the air.
• Caliper Contamination: Dirt, rust, or debris can enter the caliper, particularly if dust boots are damaged, leading to internal damage or sticking components.

Comparative Table: Floating vs. Fixed Calipers

To further illustrate the differences and applications:

Frequently Asked Questions About Brake Calipers

Q: How often should I have my brake calipers inspected?

A: Brake calipers should be inspected as part of your routine vehicle service, typically annually or whenever you have your brake pads and rotors checked. This allows mechanics to identify early signs of wear, corrosion, or sticking components before they lead to more significant issues.

Q: What are the common signs of a failing brake caliper?

A: Several symptoms can indicate a problem with your brake caliper. These include: your vehicle pulling significantly to one side when braking (suggesting uneven braking force), a spongy or unusually hard brake pedal, unusual noises like grinding or squealing that don't go away after brake pad replacement, a burning smell (indicating a dragging brake), or visible brake fluid leaks around the wheel.

Q: Can I replace a brake caliper myself?

A: While mechanically inclined individuals might attempt a caliper replacement, it's a job that involves critical safety components and requires specific tools and knowledge. Crucially, replacing a caliper necessitates opening the hydraulic system, which means you'll need to bleed the brakes thoroughly afterwards to remove any air. Improper bleeding can lead to a dangerously soft pedal and compromised braking. For these reasons, it's often recommended to have brake caliper replacement and bleeding performed by a qualified mechanic.

Q: Why would my brake caliper be sticking?

A: A sticking brake caliper is a common issue. The primary culprits are usually corrosion build-up on the caliper piston (preventing it from moving freely within its bore), degraded or torn piston seals or dust boots allowing moisture and debris in, or corroded guide pins (in floating calipers) preventing the caliper from sliding smoothly. Contaminated or old brake fluid can also contribute to internal corrosion.

Q: Do brake calipers require lubrication?

A: Yes, certain parts of the brake caliper system do require lubrication. Specifically, the guide pins on floating calipers need to be lubricated with a high-temperature, silicone-based brake grease to ensure the caliper can slide freely. Additionally, the contact points between the brake pads and the caliper bracket, as well as the back of the brake pads where they meet the piston, should be lightly lubricated to prevent noise and ensure smooth operation. The internal piston and seals are lubricated by the brake fluid itself, but their external dust boots should always be intact to prevent contamination.

In conclusion, brake calipers are far more than just metal clamps; they are precision-engineered components that are absolutely essential for your vehicle's safety. Their complex interplay of hydraulics and mechanics allows you to command the immense power of stopping with just the touch of a pedal. Regular inspection and timely maintenance are paramount to ensuring these critical components continue to function flawlessly, providing you with the confidence and safety you need on every journey. Never underestimate the importance of your braking system; it's the ultimate safeguard on the road.
