Epoxy Resin: The Future of UK Brake Pads?

For decades, asbestos was the material of choice for brake pads, prized for its excellent heat resistance and friction properties. However, the severe health risks associated with asbestos exposure, including asbestosis and mesothelioma, led to its widespread ban and a global search for safer alternatives. The automotive industry has been tirelessly pursuing materials that can match asbestos's performance without the associated dangers. Recent breakthroughs in material science are now pointing towards a promising solution: epoxy resin, especially when combined with innovative fillers.

The quest for a safe and effective replacement has been a significant challenge for engineers and scientists worldwide. Traditional alternatives often struggled to match the durability, heat dissipation, and consistent friction performance that asbestos provided. This ongoing research is not just about finding a substitute; it's about developing a superior, environmentally responsible, and economically viable solution for the next generation of vehicles. The focus has shifted towards composite materials that can offer a multi-faceted improvement over their predecessors.

The Hazardous Legacy of Asbestos in Braking

Asbestos, a naturally occurring fibrous mineral, was once a cornerstone in various industrial applications, particularly in the automotive sector for brake linings and clutch facings. Its high tensile strength, flexibility, and exceptional resistance to heat and chemicals made it an ideal material for components exposed to extreme conditions. In brake pads, asbestos fibres were embedded within a binding matrix to create a durable, friction-generating material that could withstand the intense heat generated during braking without significant wear or fade.

However, the widespread use of asbestos came at a terrible cost. When asbestos-containing materials are disturbed, such as during brake pad wear or maintenance, microscopic fibres can become airborne. Inhalation of these fibres can lead to severe and often fatal respiratory diseases, including asbestosis (a chronic lung disease), lung cancer, and mesothelioma (a rare and aggressive cancer affecting the lining of the lungs or abdomen). The long latency period of these diseases, sometimes decades after exposure, meant that the full impact of asbestos use only became apparent much later, leading to its eventual ban in many countries, including the UK, by the end of the 20th century. This ban created an urgent need for alternatives that could perform just as well without posing a threat to mechanics, manufacturers, or the public.

Epoxy Resin: A Promising New Binder for Brake Pads

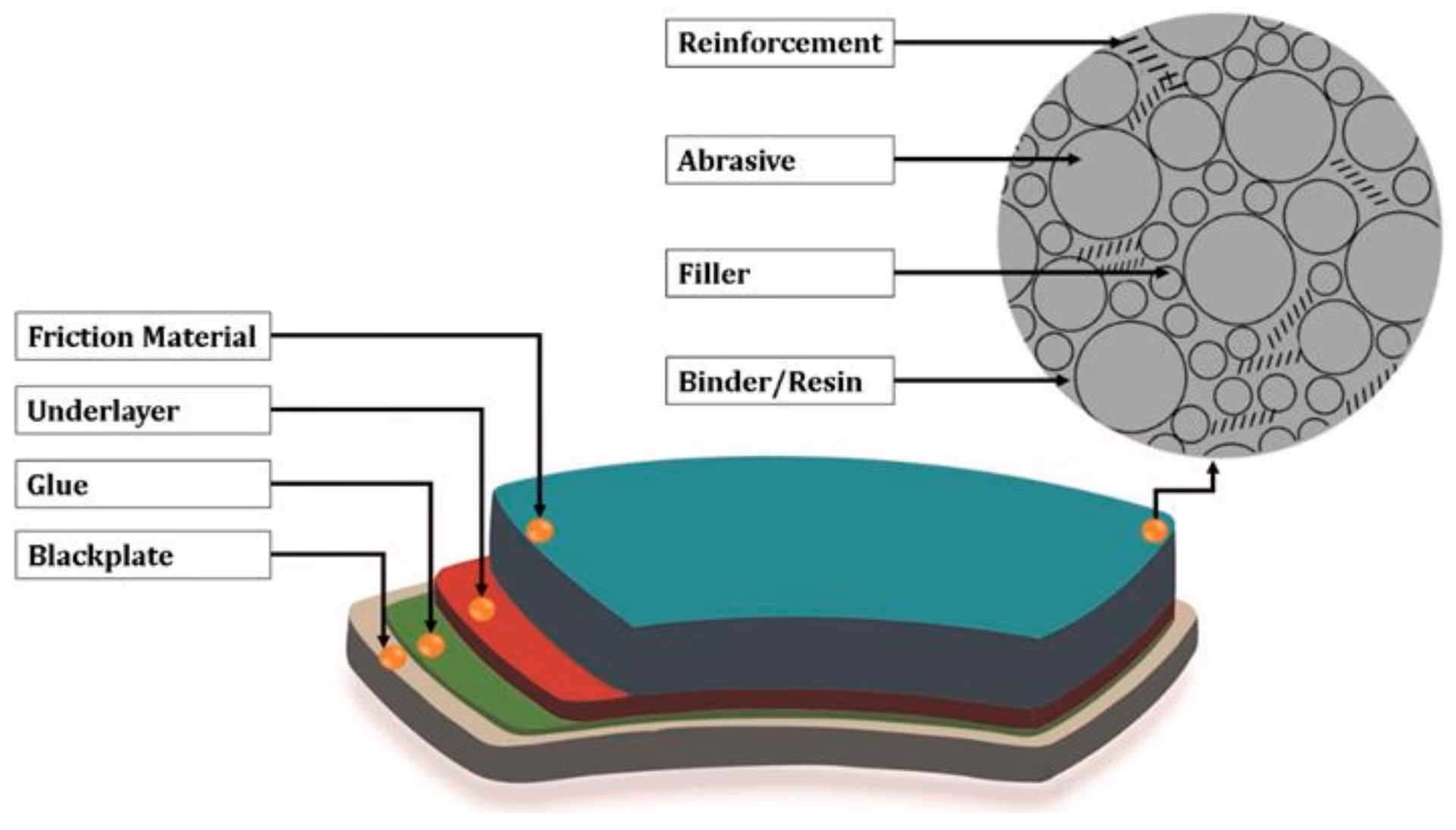

Epoxy resins are a class of thermosetting polymers known for their excellent adhesive properties, high strength, chemical resistance, and good thermal stability once cured. These properties make them highly attractive for various demanding applications, from aerospace to construction. In the context of brake pads, epoxy resin's ability to act as a robust binder is particularly significant. A binder is crucial in a composite material like a brake pad, as it holds together all the other components, such as friction modifiers, fillers, and reinforcing fibres, ensuring the pad maintains its structural integrity under intense pressure and heat.

Recent findings have indicated that specific materials, such as Palm Kernel Fibre (PKF), are particularly suitable for use with epoxy resin as a binder in brake pad formulations. While the exact mechanisms are complex, the compatibility suggests that epoxy resin can effectively encapsulate and bond these fibres, creating a stable and high-performance composite. This represents a significant step forward, moving away from hazardous materials while potentially enhancing the overall performance characteristics of the brake pad. The strength and durability that epoxy resin imparts to the composite structure are vital for resisting the shear forces and thermal stresses experienced during repeated braking cycles.

Innovative Fillers: Palm Slag, CaCO3, and Dolomite

The performance of a brake pad is not solely dependent on its binder; the choice of filler materials plays an equally critical role. Fillers contribute to the friction coefficient, wear resistance, noise reduction, and thermal conductivity of the brake pad. Furthermore, the drive towards more sustainable manufacturing practices has led researchers to explore the use of waste materials as potential fillers.

One notable study by C.M. Ruzaidi et al. highlighted the incorporation of palm slag as a filler material. Palm slag is a by-product of the palm oil industry, which is abundant in many parts of the world. Utilising such a waste material offers significant environmental benefits by reducing industrial waste and promoting a circular economy. In addition to palm slag, calcium carbonate (CaCO3) was also incorporated into the brake pad composition. CaCO3 is a naturally occurring mineral, often used as a filler in various industries due to its availability and cost-effectiveness. The combination of these materials with epoxy resin as a binder demonstrates a holistic approach to developing new brake pads that are not only safer but also more environmentally friendly.

Crucially, the research also found that adding dolomite to the brake pad composition could significantly enhance the performance-to-cost ratio. Dolomite is a common rock-forming mineral, a double carbonate of calcium and magnesium. Its inclusion suggests that it contributes positively to the mechanical and thermal properties of the brake pad, potentially improving its friction stability and wear resistance, while also being an economically viable additive. This aspect is vital for the widespread adoption of new materials in the automotive industry, where cost-effectiveness is a major consideration alongside performance and safety.

Advantages of Epoxy-Based Brake Pads

The development of epoxy-based brake pads, particularly those incorporating innovative fillers, brings forth a multitude of advantages that could redefine automotive braking:

• Enhanced Safety: The most immediate and significant benefit is the complete elimination of asbestos, removing the associated health risks for manufacturing workers, mechanics, and the general public. This alone represents a monumental leap forward in occupational and public safety.
• Environmental Responsibility: The utilisation of waste materials like palm slag transforms an industrial by-product into a valuable resource. This reduces landfill waste, conserves natural resources, and lowers the carbon footprint associated with brake pad production, aligning with global sustainability goals.
• Optimised Performance-to-Cost Ratio: The strategic inclusion of materials like dolomite, which enhances performance while remaining cost-effective, ensures that these new brake pads are not just technically superior but also economically competitive. This makes them a viable option for mass production and widespread adoption across various vehicle segments.
• Potential for Improved Braking Characteristics: While specific performance metrics would require extensive testing, the inherent properties of epoxy resin as a binder and the careful selection of fillers like PKF, palm slag, and dolomite suggest the potential for excellent friction stability, reduced noise, and improved wear characteristics, leading to a more reliable and comfortable braking experience.

Comparative Analysis: Asbestos vs. Emerging Epoxy-Based Brake Pads

To better understand the paradigm shift, let's compare the key characteristics:

The Road Ahead: Challenges and Future Prospects

While the research into epoxy-based brake pads shows immense promise, the journey from laboratory findings to widespread automotive application involves several crucial steps. Rigorous testing is paramount to ensure these new materials meet or exceed existing safety and performance standards under all driving conditions, from extreme heat to sub-zero temperatures, and across millions of braking cycles. This includes evaluating wear rates, friction stability, noise levels, and resistance to fade.

Regulatory approval is another significant hurdle. New materials must pass stringent certifications by automotive bodies to be deemed roadworthy. This often involves extensive data collection and validation. Furthermore, scaling up production from laboratory batches to industrial quantities requires significant investment and the development of efficient manufacturing processes. Ensuring consistent quality and performance across large-scale production runs is a complex undertaking.

Despite these challenges, the future of epoxy-based brake pads appears bright. The clear advantages in terms of safety, environmental impact, and potentially superior performance-to-cost ratio make them a highly attractive alternative for the automotive industry. Continued research and development in this area could lead to even further innovations, potentially incorporating other sustainable materials and advanced manufacturing techniques. As the automotive world pushes towards greener and safer technologies, epoxy resin brake pads could very well become a standard component in vehicles worldwide, offering a cleaner, healthier, and more efficient braking solution for everyone.

Frequently Asked Questions (FAQs)

Q1: Why is there a need for new brake pad materials?
A1: The primary reason is the health hazard posed by asbestos, which was widely used in older brake pads. New materials aim to be asbestos-free, safer for both people and the environment, while maintaining or improving braking performance.

Q2: What role does epoxy resin play in these new brake pads?
A2: Epoxy resin acts as the primary binder, effectively holding together all the other components (like fibres and fillers) within the brake pad. Its strong adhesive properties and durability are crucial for the pad's structural integrity under braking conditions.

Q3: How do these new brake pads contribute to environmental sustainability?
A3: They contribute by eliminating hazardous asbestos and by incorporating waste materials like palm slag, which reduces industrial waste and promotes a more circular economy in manufacturing.

Q4: What is the significance of adding dolomite to the composition?
A4: Dolomite is added to improve the performance-to-cost ratio of the brake pads. This means it helps enhance the pad's performance characteristics (like friction stability and wear) while keeping production costs competitive, making the technology more viable for mass production.

Q5: Are these epoxy-based brake pads currently available for my car?
A5: While the research shows great promise and suitability, the information provided focuses on the research findings. New automotive components typically undergo extensive testing and regulatory approval processes before becoming widely available on the market. It's a promising area of ongoing development.
