17/11/2021
The braking system is arguably the most critical safety feature in any vehicle. It's the silent guardian that ensures you can slow down or stop precisely when needed, preventing countless accidents. At the heart of this system are your brake pads, components designed to generate friction against the brake discs (or rotors) to convert kinetic energy into heat, bringing your vehicle to a halt. For decades, copper has been a key ingredient in many brake pad formulations, prized for its excellent thermal conductivity and friction properties. However, a growing awareness of environmental impacts has brought copper brake pads under scrutiny, leading to significant legislative changes. So, should your copper brake pads be replaced, and what do these new laws mean for you?
The Role of Copper in Brake Pads
Copper has long been a go-to material in semi-metallic and low-metallic brake pad compounds for several compelling reasons:
- Heat Dissipation: Copper is an excellent conductor of heat. When brakes are applied, immense heat is generated. Copper helps to efficiently dissipate this heat away from the friction surface, preventing brake fade and ensuring consistent stopping power, even under demanding conditions.
- Friction Stability: It contributes to a stable friction coefficient across a wide range of temperatures, meaning your brakes perform predictably whether they're cold or hot.
- Wear Resistance: Copper enhances the durability and wear resistance of the brake pad material, contributing to a longer lifespan for the pads.
- Noise Reduction: In certain formulations, copper can help to reduce brake noise and vibration, leading to a smoother, quieter braking experience.
These properties have made copper an invaluable component, contributing to the performance and reliability that drivers expect from their braking systems.
The Environmental Conundrum: Why the Change?
Despite its benefits, copper presents an environmental challenge. As brake pads wear down through friction, microscopic particles of copper dust are released into the atmosphere. These particles are then washed off roads by rain, entering storm drains and eventually making their way into rivers, lakes, and oceans. Once in aquatic ecosystems, copper can be toxic to marine life, particularly fish and invertebrates, even at very low concentrations. It can impair their growth, reproduction, and overall survival. This environmental concern prompted legislative action, primarily in the United States, to reduce the amount of copper in brake pads.
Brake Pad Legislation: A Phased Approach
The push to reduce copper in brake pads began in the US, with California and Washington leading the way. In 2010, both states passed laws mandating a reduction in the amount of copper used in automotive brake pads. These laws established a phased approach to give manufacturers time to research, develop, and implement new, environmentally friendlier formulations without compromising vehicle safety or performance.
- Phase 1 (2014): Brake pads sold in California and Washington were required to contain no more than 5% copper by weight.

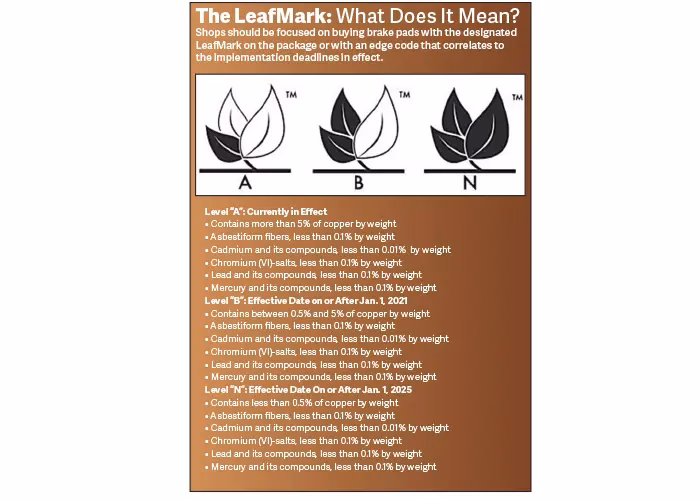

- Phase 2 (2021): This marked a significant step, requiring brake pads to contain less than 0.5% copper by weight. This near-total elimination of copper is often referred to as 'copper-free' and is marked by a distinctive 'leaf' symbol on the packaging and sometimes on the brake pad itself.
While these laws originated in the US, their influence extends globally. Many international manufacturers supply brake pads to the US market, meaning they must develop formulations that comply with these regulations. Consequently, 'copper-free' or low-copper brake pads are becoming the new standard worldwide, even in regions without specific mandates.
The Copper Development Association (CDA) has supported the auto industry's position throughout this transition, emphasising the paramount importance of not compromising vehicle performance or customer safety. Their stance underscores the need for thorough research and testing of alternative materials to ensure that new brake pad formulations meet or exceed the rigorous safety standards set for braking systems.
Alternatives to Copper in Brake Pads
With the legislative drive to reduce copper, manufacturers have invested heavily in developing alternative materials that can replicate or improve upon copper's performance without the environmental drawbacks. The primary types of brake pads you'll find on the market today, including those designed to be low-copper or copper-free, include:
- Ceramic Brake Pads: These pads are made from a dense ceramic material infused with copper fibres (in older formulations) or other non-metallic materials and bonding agents. They are known for being very quiet, producing minimal dust, and offering excellent performance in a wide range of temperatures. They are often a premium option.
- Low-Metallic/Semi-Metallic Brake Pads: These pads typically contain 10-30% metallic materials (steel, iron, copper, etc.) mixed with organic compounds. Modern low-metallic pads are specifically formulated to meet the new copper reduction standards, using alternative metals or fibres to maintain friction and heat dissipation. They offer good stopping power and are generally more durable but can be noisier and produce more dust than ceramic pads.
- Organic Non-Asbestos (NAO) Brake Pads: Made from organic materials like glass, rubber, carbon, and Kevlar, bonded together with resins. NAO pads are very quiet and gentle on brake discs, making them suitable for everyday driving. However, they generally have a lower friction coefficient and tend to wear out faster than metallic or ceramic pads, and may not perform as well under heavy braking or extreme temperatures.
The industry is continuously researching new composite materials and friction modifiers to create brake pads that are both high-performing and environmentally friendly.
Impact on Performance and Safety
A critical concern during this transition has been ensuring that the removal of copper does not negatively impact braking performance or, more importantly, driver safety. Rest assured, manufacturers are subjecting new, low-copper and copper-free brake pad formulations to extremely rigorous testing. These tests cover various conditions, including extreme temperatures, wet conditions, high speeds, and repeated heavy braking, to ensure the pads meet or exceed original equipment (OE) performance and safety standards. The goal is to maintain or even improve braking efficiency and reliability, ensuring that consumers receive products that are just as safe and effective as their copper-containing predecessors.
When to Replace Your Brake Pads
Given the legislation, a common question arises: "Should I immediately replace my existing copper brake pads?" The simple answer is no. The legislation primarily affects the *manufacture and sale* of new brake pads, not a mandate for the premature replacement of those already installed on vehicles. You should continue to replace your brake pads based on their wear and performance, regardless of their copper content. Here are the key indicators that it's time for replacement:
- Audible Warnings: A high-pitched squealing sound when you apply the brakes often indicates that the wear indicator (a small metal tab) is touching the rotor. A grinding sound means the pads are severely worn, and metal is rubbing on metal, which can damage your brake discs.
- Visual Inspection: Most brake pads have a minimum thickness recommendation, typically around 3mm. If your pads appear thin when visually inspected through the wheel spokes, it's time for a professional check.
- Dashboard Warning Light: Many modern vehicles have electronic wear sensors that will illuminate a warning light on your dashboard when the pads are worn down.
- Reduced Braking Performance: If your brakes feel spongy, you have to press the pedal further, or your stopping distances increase, it could indicate worn pads or another issue with the braking system.
- Vibration or Pulsation: While often a sign of warped brake discs, vibrations when braking can also sometimes be linked to unevenly worn pads.
It is crucial to have your brake pads inspected regularly by a qualified mechanic, typically during your vehicle's service intervals. They can accurately assess the wear and advise on timely replacement. Always prioritise safety by ensuring your braking system is in optimal condition.
Brake Pad Types Comparison
Here's a comparison of common brake pad types, including how they relate to the copper discussion:
| Brake Pad Type | Pros | Cons | Environmental Impact (Copper) |
|---|---|---|---|
| Traditional Semi-Metallic (Higher Copper) | Excellent stopping power, good heat dissipation, durable. | Can be noisy, produce significant dust, harsher on discs. | High (traditional formulations). |
| Modern Low-Metallic (Low/No Copper) | Good stopping power, often durable, designed for compliance. | Can still be noisy and produce dust compared to ceramic. | Low to virtually none. |
| Ceramic | Very quiet, low dust, smooth braking, good in various temperatures. | Generally higher cost, may not perform as well in extreme cold, less aggressive initial bite. | Low to virtually none (modern formulations). |
| Organic Non-Asbestos (NAO) | Very quiet, gentle on brake discs, comfortable pedal feel. | Softer, wear faster, lower friction coefficient, less effective in heavy use. | Low to virtually none. |
Frequently Asked Questions (FAQs)
Q: Do I need to replace my existing copper brake pads immediately?
A: No, you do not. The legislation applies to the manufacture and sale of new brake pads. You should replace your brake pads when they are worn out, regardless of their copper content.
Q: Are copper-free brake pads as safe and effective as copper ones?
A: Yes. Manufacturers have invested heavily in research and development to ensure that new low-copper and copper-free formulations meet or exceed the performance and safety standards of traditional copper pads. They undergo rigorous testing.
Q: How can I tell if my new brake pads are copper-free or low-copper?
A: Look for the 'leaf mark' symbol on the brake pad packaging and sometimes directly on the brake pad itself. This symbol indicates compliance with the copper reduction legislation.
Q: What happens to the copper from brake pads in the environment?
A: As brake pads wear, copper dust is released. This dust is washed off roads by rain, entering storm drains and eventually waterways, where it can be toxic to aquatic life, particularly fish.
Q: Is this copper brake pad legislation global?
A: While the initial laws were passed in California and Washington in the US, their influence has spurred a global shift in brake pad manufacturing. Many international manufacturers are producing low-copper or copper-free pads to meet these standards, making them increasingly common worldwide.
Q: Will copper-free brake pads cost more?
A: Initially, new technologies and materials can sometimes lead to slightly higher costs. However, as production scales and alternative materials become more widespread, costs tend to normalise. The price difference, if any, is typically minor compared to the overall cost of brake maintenance.
Conclusion
The shift away from copper in brake pads represents a significant step forward in automotive environmental responsibility. While copper has served its purpose well for decades, the industry is successfully navigating the transition to more sustainable materials without compromising the crucial safety aspect of vehicle braking. For vehicle owners in the UK, the takeaway is clear: you don't need to rush to replace your existing copper brake pads. Instead, focus on regular maintenance and replace them when they show signs of wear, just as you always would. When it is time for new pads, you can be confident that the low-copper or copper-free options available will provide the same, if not better, stopping power and reliability, contributing to both your safety and a healthier environment.
