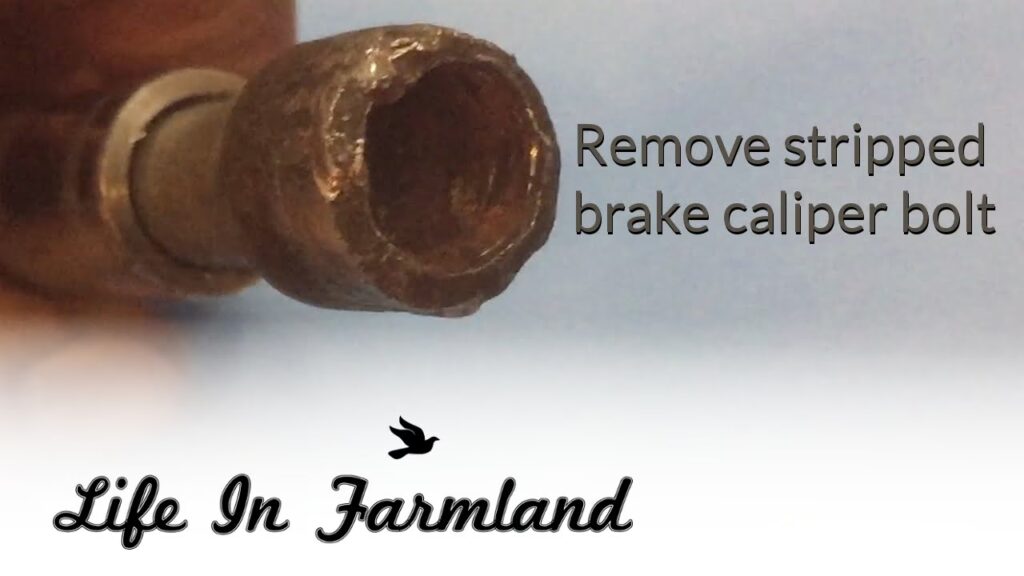

Stripped Brake Caliper Bolt Removal: A UK Guide

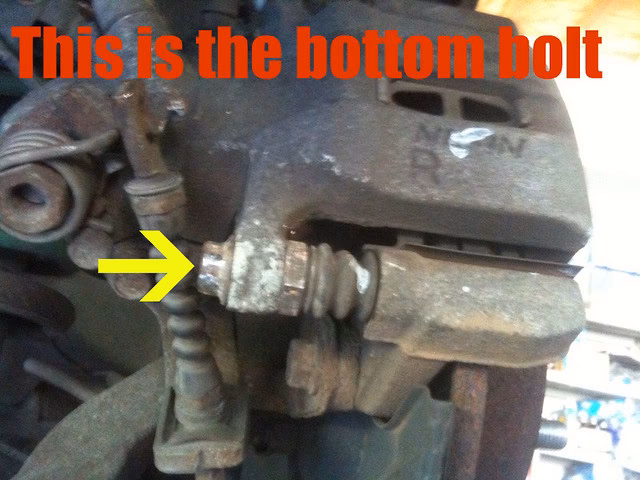

When it comes to vehicle maintenance, few things are as frustrating as encountering a stripped bolt on your brake caliper. Not only does it halt your progress, but it also poses the risk of damaging essential parts of your braking system if not handled properly. Whether you’re a seasoned mechanic or an intrepid DIYer, extracting a stripped bolt without further damage requires patience and the right techniques. In today’s post, we’ll guide you through the effective steps to successfully remove a stripped bolt from a brake caliper, ensuring you can complete your repairs and get back on the road safely.

Understanding the stakes before we delve into the removal process, it’s crucial to understand the importance of the brake caliper in your vehicle’s braking system. The caliper plays a vital role by housing the brake pads and pistons. Its primary function is to create friction with the brake rotors, helping your vehicle to stop. A stripped bolt can compromise the structural integrity of the caliper assembly, leading to potential brake failure. This isn't merely an inconvenience; it's a significant safety hazard. A loose or improperly secured caliper bolt can lead to uneven braking, excessive wear on pads and rotors, or, in the worst-case scenario, the caliper detaching from its mounting, resulting in a complete loss of braking ability on that wheel. Therefore, addressing a stripped bolt is not just about fixing a minor issue; it's about ensuring the fundamental safety and reliability of your vehicle's braking system.

Prevention: Avoiding Stripped Bolts in the First Place

While this guide focuses on removal, it’s worth understanding how these frustrating situations arise, as prevention is always better than cure. Stripped bolts often result from improper technique during installation or removal. Common culprits include:

• Incorrect Torque: Overtightening is a primary cause. Bolts are designed to be tightened to a specific torque specification. Exceeding this can stretch and weaken the bolt, or damage the threads in the caliper, leading to stripping.
• Improper Tool Usage: Using the wrong size wrench or a worn-out socket can round off the bolt head, making it difficult to grip.
• Corrosion: Rust and corrosion can seize bolts, making them incredibly difficult to turn. Applying excessive force to a seized bolt can easily strip the head or shear the shaft.
• Lack of Lubrication: While some bolts require thread locker, others benefit from a light coat of anti-seize compound on the threads to prevent corrosion and ensure smooth removal in the future. Always check your vehicle's service manual for specific recommendations.
• Cross-Threading: Starting a bolt at an angle can cause the threads to misalign and bind, damaging both the bolt and the female threads in the caliper. Always ensure bolts are started by hand and turn smoothly before using a wrench.

By being mindful of these points, using the correct tools, and adhering to manufacturer torque specifications, you can significantly reduce the likelihood of encountering a stripped brake caliper bolt in the future.

Step-by-Step Guide to Removing a Stripped Bolt from a Brake Caliper

Step 1: Gather the Necessary Tools

Removing a stripped bolt can become a relatively straightforward task with the correct tools in hand. Rushing into the job without proper preparation can lead to further damage and increased frustration. Here are some essential items you will need, along with some considerations:

• A Set of Quality Screw Extractors: Often called 'easy-outs', these come in various sizes and designs (spiral flute or straight flute). A good set will have multiple sizes to match different bolt diameters.
• A Hammer: Essential for tapping the extractor firmly into the bolt head to ensure a secure grip.
• Penetrating Oil: Such as WD-40, PlusGas, or PB Blaster. This is crucial for loosening seized threads.
• A Wrench Set or Ratchet and Socket Set: To turn the screw extractor or apply force to the bolt if a grip can be found. Ensure you have both metric and imperial sizes if unsure of the bolt type.
• A Drill and Metal Drill Bits: Specifically, good quality HSS (High-Speed Steel) or cobalt drill bits. A set of left-hand drill bits is highly recommended for this particular task.
• Safety Glasses and Gloves: Always prioritise personal safety. Metal shavings and chemical splashes are a risk.
• Wire Brush: For cleaning around the bolt head before applying penetrating oil.
• Torque Wrench: For proper reinstallation of the new bolt.
• Replacement Bolt: Crucial! Have a new, correct-size brake caliper bolt ready before you even start the removal process. Never reuse a damaged bolt.

Ensure that your tools are accessible and in good condition before proceeding to avoid any interruptions during the process. Having everything laid out will save time and reduce stress.

Step 2: Prepare the Area and Apply Penetrating Oil

Before you begin, ensure your vehicle is securely lifted and supported on jack stands. Remove the wheel to gain full access to the brake caliper. Use a wire brush to clean around the stripped bolt head, removing any dirt, rust, or debris. This allows the penetrating oil to work more effectively.

Apply penetrating oil liberally to the stripped bolt and the threads where it enters the caliper. This will help to loosen any corrosion and make the removal process easier. The oil works by capillary action, seeping into the microscopic gaps between the seized threads. Allow the oil to sit for at least 15-30 minutes, or even overnight if the bolt is severely corroded or has been stripped for a long time. Reapply the oil periodically to keep the area saturated. Patience here is key; do not rush this step.

Step 3: Attempt with a Screw Extractor (Easy-Out)

This is often the first and most successful method for a stripped bolt with some head remaining. Choose an appropriate-sized screw extractor that fits snugly into the stripped bolt head. For spiral extractors, you may need to drill a pilot hole into the centre of the bolt first, as specified by the extractor manufacturer. For square-headed extractors, they are usually hammered directly into the rounded bolt head.

Firmly tap the extractor into the bolt head with a hammer. The goal is for the extractor to get a good, secure grip on the interior or exterior of the stripped bolt. Once the extractor is set, attach a wrench (or tap wrench for square extractors) to the extractor and slowly turn it counterclockwise. Apply steady, consistent pressure. The idea is to back the bolt out without applying so much force that you shear the extractor itself or further damage the bolt. If it feels like the extractor is slipping, remove it, clean the area, and re-tap it more firmly, or try the next size up if appropriate.

Step 4: Utilise a Left-Hand Drill Bit

If the screw extractor doesn’t do the trick, or if the bolt head is completely rounded off or sheared flush with the caliper, drilling may be necessary. A left-hand drill bit is invaluable here. These bits are designed to rotate counterclockwise, meaning as you drill into the bolt, there’s a chance the bit will bite and begin to unscrew the bolt. This can save a lot of hassle.

• Selecting the Bit: Start with a small left-hand drill bit (e.g., 2-3mm), ensuring it's smaller than the bolt's core diameter.
• Drilling: Centre the drill bit as accurately as possible on the bolt. Use a slow drill speed and apply firm, steady pressure. Keep the drill bit cool with cutting fluid or by periodically withdrawing it.
• Observation: Watch closely. If the bolt begins to turn, stop drilling immediately. You can then try to grip the bolt with pliers or mole grips, or use a screw extractor in the newly drilled hole.
• Increasing Size: If the small bit doesn't work, progressively increase the drill bit size, always aiming to drill just shy of the bolt's thread diameter. Be cautious not to drill too far and damage the caliper's threads.

Step 5: Heat the Area (Optional, but Effective)

In extreme cases where the bolt will not budge, applying heat to the area around the bolt can expand the metal of the caliper, helping to break the bond of corrosion and loosen the seized threads. This method should be used with extreme caution due to the proximity of rubber seals, brake fluid, and other heat-sensitive components.

• Heat Source: A small propane torch or an induction heater is ideal. Avoid using excessively hot flames or prolonged heating that could damage the caliper's integrity or surrounding components.
• Application: Apply heat directly to the metal surrounding the bolt, not the bolt itself. Heat the caliper material around the bolt for 30-60 seconds, then immediately try to turn the bolt with an extractor or wrench. The rapid cooling of the bolt relative to the caliper can help break the bond.
• Safety: Have a fire extinguisher or bucket of sand nearby. Be very careful to avoid overheating, as this can damage the caliper's internal seals, rubber boots, or even boil the brake fluid, which is highly dangerous. Allow components to cool sufficiently before touching.

Step 6: Alternative Methods for Stubborn Bolts

If the above methods fail, or if the bolt has sheared flush with the caliper, you might need to resort to more aggressive techniques:

• Mole Grips (Vice Grips): If there's even a tiny bit of the bolt head remaining, or if the left-hand drill bit has created enough of a protrusion, mole grips can sometimes get enough purchase to turn the bolt.
• Chisel and Hammer: For a bolt sheared flush, you can try to create a small notch on the edge of the bolt using a sharp chisel and hammer. Then, angle the chisel to catch the notch and tap it counterclockwise to rotate the bolt out. This requires precision to avoid damaging the caliper threads.
• Nut Welder (Professional Method): In severe cases, a professional mechanic might weld a nut onto the end of the stripped bolt. The heat from welding helps loosen the bolt, and the new nut provides a solid point for a wrench. This is a last resort and requires welding expertise.

Step 7: Clean Up and Inspect

After successfully removing the stripped bolt, clean the area thoroughly. Use a wire brush and brake cleaner to remove any debris, rust, or old penetrating oil. Crucially, check for any damage to the threads in the caliper that may have occurred during the removal process. Run a tap (the correct size for the bolt) through the threads to clean and potentially repair them.

If the threads are significantly damaged, you will need to repair them before installing a new bolt. Common thread repair solutions include:

• Helicoil Insert: This involves drilling out the damaged threads, tapping a larger hole, and then screwing in a helical wire insert that restores the original thread size. It's a durable and reliable repair.
• Time-Sert: Similar to Helicoil but uses a solid bushing insert, often considered even stronger.

Always use a new, high-quality brake caliper bolt for reinstallation. Apply a small amount of anti-seize compound to the threads (unless specified otherwise by the manufacturer) and tighten the bolt to the manufacturer's specified torque using a torque wrench. This prevents future stripping and ensures the caliper is securely mounted.

Comparative Overview of Bolt Removal Techniques

Frequently Asked Questions (FAQs)

Q: Can I just leave a stripped bolt on my brake caliper?

A: Absolutely not. A stripped bolt means the caliper is not securely fastened, which is a critical safety issue. It can lead to brake failure, uneven braking, and increased wear on components. It must be addressed immediately.

Q: What if the bolt shears off flush with the caliper?

A: If the bolt shears flush, your primary options are using a left-hand drill bit to attempt removal, carefully chiselling a notch to turn it, or, as a last resort, professional intervention for welding a nut onto the stub.

Q: Is it safe to use a regular drill bit if I don't have a left-hand one?

A: While you can drill out a bolt with a regular (right-hand) drill bit, it won't help unscrew the bolt. You'll essentially be drilling out the entire bolt shaft, then carefully picking out the remaining threads. This is much more challenging and carries a higher risk of damaging the caliper threads. A left-hand drill bit is always preferred.

Q: How can I prevent stripping bolts in the future?

A: Always use the correct size wrench or socket, ensure it's fully seated on the bolt head, and apply smooth, steady force. Use a torque wrench to tighten bolts to manufacturer specifications, and consider applying anti-seize compound to threads where appropriate.

Q: What if I damage the threads in the caliper during removal?

A: If the threads in the caliper are damaged, you will need to repair them. Common methods include using a Helicoil or Time-Sert kit. These kits allow you to drill out the damaged threads and install a new, stronger thread insert. If unsure, consult a professional mechanic.

Q: How long does it typically take to remove a stripped bolt?

A: It can vary wildly. A lightly stripped bolt with penetrating oil and an extractor might take 30 minutes. A severely seized and sheared bolt requiring drilling and thread repair could take several hours, or even require professional help. Patience is key.

Conclusion

A stripped bolt on a brake caliper can be a challenging hurdle, but with the right approach and tools, it’s a problem that can be surmounted with relative ease. By following the outlined steps and utilising best practices, you can ensure a safe and successful bolt removal process. Remember, the integrity of your braking system is paramount for your safety and the safety of others on the road. Do not compromise on quality tools or rush through the process. If you’re ever in doubt, or if the bolt proves incredibly stubborn despite your best efforts, remember that seeking professional assistance is never a sign of defeat – it’s a wise decision to ensure the safety and reliability of your vehicle’s brake system. Proper maintenance is key to enjoying a smooth and worry-free driving experience. Stay safe, and happy wrenching!
