Understanding Brake Self-Adjuster Repair Kits

When it comes to your vehicle's safety, few components are as critical as the braking system. While disc brakes are prevalent on modern front axles, many vehicles, particularly older models or those with lighter applications, still rely on drum brakes for the rear wheels. A vital, yet often overlooked, part of a functional drum brake system is the self-adjusting mechanism. This clever component ensures that your brake shoes remain at the optimal distance from the drum, compensating for natural wear and tear. But what happens when this mechanism itself starts to falter? That's where a brake self-adjuster repair kit becomes indispensable.

What Exactly Is a Brake Self-Adjuster Repair Kit?

At its core, a brake self-adjuster repair kit is a comprehensive set of components designed to replace the worn or damaged parts of your vehicle's drum brake self-adjusting mechanism. Over time, constant movement, exposure to heat, dust, and moisture can cause these intricate parts to wear out, rust, or even break. When this happens, the self-adjuster can no longer perform its crucial function, leading to a noticeable degradation in braking performance.

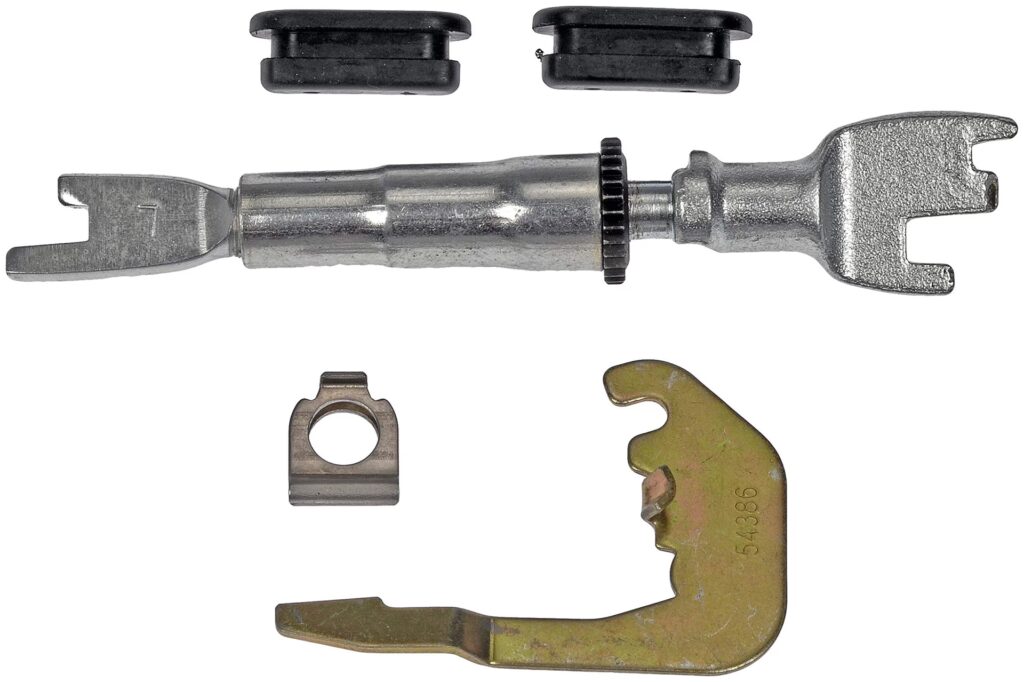

These kits typically include a collection of small, yet vital, pieces such as various springs, levers, and the adjuster itself – often referred to as a 'star wheel' or 'snail cam' adjuster, depending on the design. The purpose of these kits is to restore the self-adjusting mechanism to its original, fully operational state, ensuring that your drum brake system continues to function properly and, most importantly, safely.

The Unsung Hero: Purpose of the Self-Adjusting Mechanism

The primary purpose of the self-adjusting mechanism in drum brakes is to automatically compensate for the wear of the brake shoes. As you use your brakes, the friction material on the shoes gradually wears down. Without a self-adjuster, this wear would lead to an increasing gap between the shoes and the drum, resulting in a longer brake pedal travel and reduced braking efficiency. Imagine having to push your brake pedal nearly to the floor just to get a response – that's what happens when self-adjustment fails.

The self-adjuster works by detecting this increased gap. Typically, when the brake pedal is pressed, the brake shoes move outwards. If the gap is too large, the self-adjuster's lever or pawl will engage a notched wheel (the star wheel) and turn it slightly. This action extends the adjuster assembly, pushing the brake shoes closer to the drum. When the pedal is released, the shoes retract, but the adjuster maintains its new, slightly extended length. This process is repeated incrementally as the shoes wear, ensuring a consistent brake pedal feel and optimal braking performance throughout the life of the brake shoes.

How Drum Brake Self-Adjusters Operate

While designs can vary between vehicle manufacturers, the fundamental principle of drum brake self-adjustment remains largely consistent. Most systems utilise a 'star wheel' adjuster located at the bottom of the brake shoe assembly, connecting the two shoes. A lever or pawl, often connected to the parking brake cable or a specific brake shoe, is designed to interact with the notches on this star wheel.

When the brakes are applied and the shoes move outwards, if the shoes travel beyond a certain point (indicating wear), the lever catches a tooth on the star wheel. Upon release of the brake pedal, as the shoes retract, the lever pulls the star wheel, turning it by one notch. This slight turn lengthens the adjuster assembly, effectively pushing the brake shoes further apart and closer to the drum. This ensures that the shoes are always just shy of touching the drum, ready for immediate and effective braking when needed. This ingenious, incremental adjustment is what maintains your braking system's responsiveness.

When Do You Need a Self-Adjuster Repair Kit?

Recognising the symptoms of a failing brake self-adjuster is crucial for timely repair and maintaining your vehicle's safety. Here are some common indicators:

• Excessive Brake Pedal Travel: If you find yourself having to push the brake pedal much further down than usual before the brakes engage, it's a strong sign that the self-adjusters aren't compensating for shoe wear.
• Spongy or Soft Brake Pedal: A brake pedal that feels 'mushy' or lacks firmness can indicate that the shoes are too far from the drums, requiring more fluid displacement to bring them into contact.
• Reduced Braking Performance: Longer stopping distances or a general feeling that your brakes aren't as effective as they once were can be attributed to poorly adjusted drum brakes.
• Uneven Braking: If one side of the vehicle brakes more effectively than the other, it could point to a self-adjuster failure on one side, leading to uneven shoe-to-drum clearance.
• Grinding or Scraping Noises: While often indicative of completely worn-out shoes, these noises can sometimes be exacerbated by a malfunctioning self-adjuster allowing excessive shoe movement.
• Parking Brake Issues: As the parking brake often utilises the same drum brake shoes, a failing self-adjuster can also lead to a parking brake handle that pulls up too high without adequately holding the vehicle.

Components of a Typical Brake Self-Adjuster Repair Kit

While the exact contents can vary slightly, a standard brake self-adjuster repair kit for drum brakes typically includes:

Manual Adjustment vs. Self-Adjustment: A Key Distinction

It's important to understand the relationship between a brake's self-adjusting mechanism and the possibility of manual adjustment. While modern drum brakes are designed to self-adjust, there are specific instances where manual adjustment is necessary or beneficial:

• Initial Setup/After Shoe Replacement: When new brake shoes are installed, they are typically set to their minimum adjustment. A preliminary manual adjustment (often by turning the star wheel via an access hole in the backing plate) is usually required to bring the shoes close enough to the drum for the self-adjuster to begin its work effectively.
• Troubleshooting: If the self-adjuster mechanism is seized or faulty, a manual adjustment might be temporarily performed to improve braking, though this is not a permanent fix for a broken adjuster.
• Pre-MOT Inspection: Ensuring optimal brake adjustment can be part of routine maintenance checks before an MOT.

The process of manual adjustment involves carefully turning the notched wheel of the adjuster. Typically, this is done with the brake drum removed for clear access, or through a small slot in the backing plate using a brake spoon tool. Turning the wheel one way tightens the brakes (expands the shoes), and the other way loosens them. The goal is to adjust until there's a slight drag when the drum is reinstalled, then back off slightly until the drum spins freely with minimal drag. After adjustment, cycling the brakes a few times (applying and releasing them) helps to centre the brake shoes within the drum and allows the self-adjuster to 'settle' into its new starting position.

However, if you find yourself needing to manually adjust your drum brakes frequently, it's a strong indicator that the self-adjusting mechanism itself is faulty and requires attention, likely through the installation of a repair kit.

The Parking Brake Adjuster: A Separate Consideration

While the main drum brake self-adjuster deals with the regular service brakes, the parking brake system also requires its own form of compensation for wear. The information provided notes that the purpose of the parking brake adjuster is to ensure the travel of the parking brake handle does not increase as the brake pads (or shoes, in the case of drum-based parking brakes) wear. Unlike the service brake self-adjuster, some parking brake adjusters, particularly those integrated into disc brake calipers or specific mechanisms, may not have readily serviceable parts, as the information implies. They are often designed as a sealed unit.

However, in vehicles where the parking brake operates via the rear drum brakes (or a small drum-in-hat brake inside a rear disc), the primary drum brake self-adjuster often plays a significant role in maintaining the correct parking brake tension. If the drum brake shoes are not properly adjusted, the parking brake cable will have to pull further to engage them, leading to excessive handle travel. Therefore, ensuring the service brake self-adjusters are functioning correctly is often the first step in addressing parking brake cable slack.

Haldex Automatic Brake Adjusters: A Different Realm

It's worth noting that the term "automatic brake adjuster" can also refer to systems found on heavy commercial vehicles, such as those made by Haldex. These are sophisticated adjusters used on air brake systems and operate on a different principle than the mechanical self-adjusters found in passenger car drum brakes. Haldex adjusters are designed for much heavier loads and different operating environments, automatically compensating for lining wear in air brake chambers. While they share the goal of automatic adjustment, they are distinct from the smaller, mechanical self-adjusters discussed here for light vehicles and are generally not relevant to a standard brake self-adjuster repair kit for passenger cars.

DIY vs. Professional Installation

Replacing a brake self-adjuster repair kit, while seemingly a small task, is part of a larger brake service. It requires disassembling the drum brake system, which involves removing the wheel, the brake drum, and often several springs and pins. It's a job that demands a good understanding of the drum brake assembly, patience, and the right tools (such as brake spring pliers and a brake spoon).

For the mechanically inclined DIY enthusiast, armed with a repair manual for their specific vehicle, this can be a manageable task. However, given that it directly impacts your vehicle's braking efficiency and safety, if you are unsure or lack experience, it is always advisable to have the work performed by a qualified mechanic. Incorrect installation can lead to ineffective brakes, uneven braking, or even premature wear of other brake components.

Troubleshooting Common Self-Adjuster Issues

If you've installed a new repair kit but still experience issues, consider these points:

• Improper Installation: Double-check that all springs are correctly tensioned and connected, and that the adjuster lever engages the star wheel properly.
• Seized Cables: A stiff or rusted parking brake cable can prevent the self-adjuster from operating correctly, as the lever often relies on cable movement.
• Worn Brake Shoes: Even with a new adjuster, if the brake shoes themselves are excessively worn or contaminated, braking performance will suffer.
• Contamination: Grease, oil, or excessive brake dust can foul the adjuster mechanism, preventing it from turning freely. A thorough cleaning is essential during assembly.
• Incorrect Parts: Ensure the repair kit is specifically designed for your vehicle's make, model, and year.

Frequently Asked Questions About Brake Self-Adjuster Repair Kits

Q1: How often should I check my brake self-adjusters?

It's recommended to inspect your drum brake self-adjusters every time you have your wheels off for tyre rotation or during routine brake inspections, typically every 12,000 to 20,000 miles, or annually. Look for signs of corrosion, wear, or sticking.

Q2: Can I drive with a faulty brake self-adjuster?

While you might be able to drive, it is highly inadvisable. A faulty self-adjuster compromises your braking performance, leading to longer stopping distances, a spongy pedal, and potentially uneven braking. This significantly increases the risk of an accident. It's a critical safety component that should be repaired promptly.

Q3: Are all brake self-adjuster repair kits the same?

No, self-adjuster designs vary significantly between vehicle manufacturers and even between different models from the same manufacturer. Always ensure you purchase a repair kit specifically designed for your car's make, model, and year to ensure compatibility and correct fitment.

Q4: What tools are typically needed to replace a brake self-adjuster repair kit?

You'll generally need a jack and jack stands, a wheel nut wrench, pliers (especially brake spring pliers), screwdrivers, a brake spoon (for manual adjustment), and potentially a wire brush for cleaning. A repair manual for your specific vehicle is also invaluable.

Q5: Can a faulty self-adjuster affect the MOT test?

Absolutely. If your drum brakes are not correctly adjusted due to a faulty self-adjuster, it will likely result in a failure during the MOT test due to insufficient braking effort or imbalance between the wheels. Ensuring your brakes are in top condition is paramount for passing the MOT.

In conclusion, the brake self-adjuster repair kit is a small but mighty player in maintaining your vehicle's overall braking system integrity. Understanding its function, recognising the signs of failure, and addressing issues promptly with a quality repair kit are essential steps for any responsible vehicle owner. Prioritising brake maintenance ensures not only your safety but also the safety of others on the road.
