Brake Caliper Wear: Unravelling the Mystery

Experiencing excessive wear on your brake pads, particularly on one side, can be a perplexing issue. While many drivers associate brake wear primarily with the pads and rotors, the often-overlooked brake caliper carrier, also known as the caliper mounting bracket, plays a pivotal role in the health and longevity of your entire braking system. This seemingly simple metal component is the unsung hero that anchors your brake caliper, the critical part that houses the pistons and brake pads responsible for bringing your vehicle to a halt. When this carrier is compromised, it can lead to a cascade of problems, from uneven wear to outright brake failure. Let's delve into the world of brake caliper carriers and understand why your brakes might be wearing out prematurely.

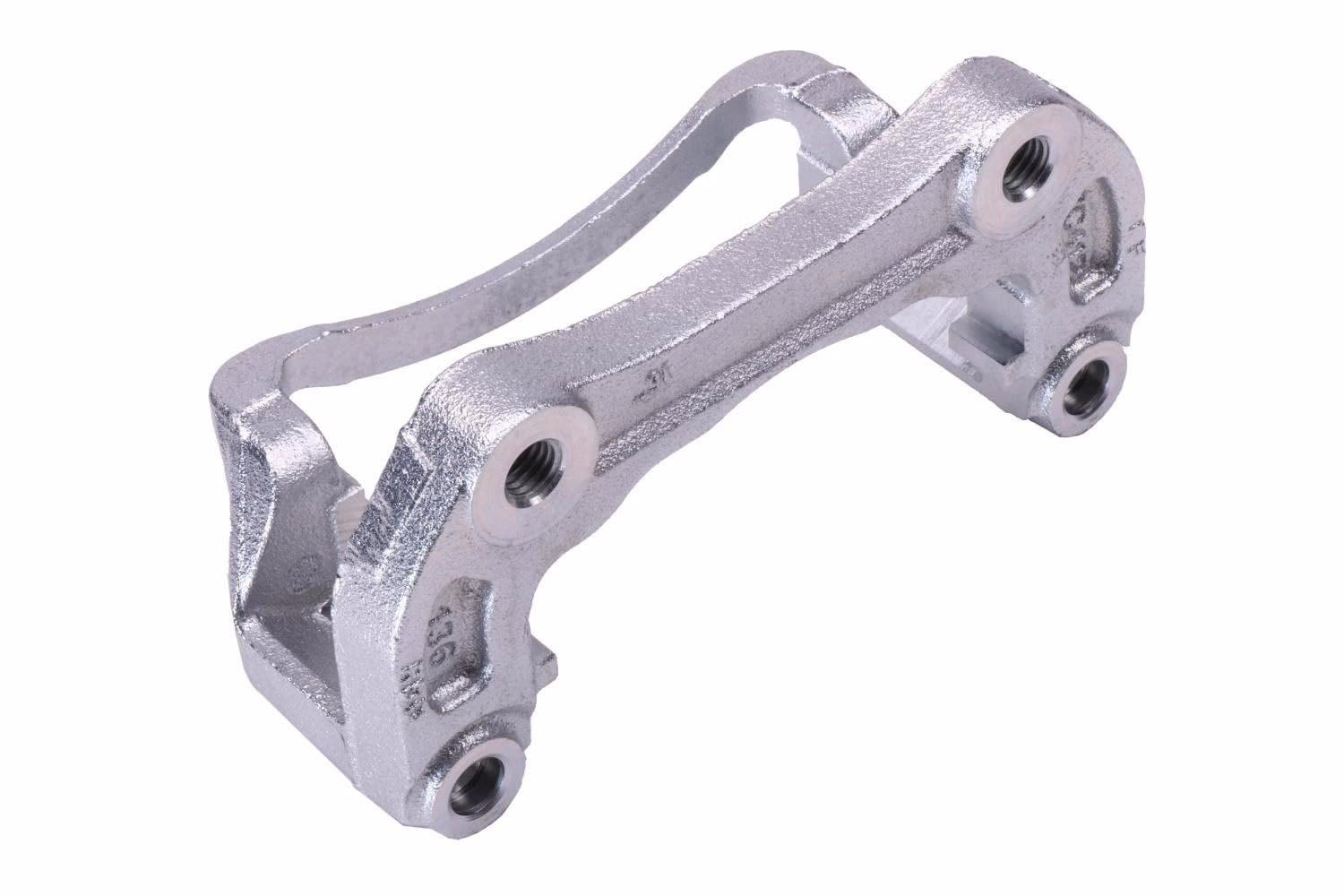

The brake caliper carrier is far more than just a bracket; it's an integral part of the hydraulic braking mechanism. Its primary duty is to securely mount the brake caliper onto the vehicle's suspension or axle. This stable platform is essential, as it must withstand the immense forces generated during braking. Imagine the sheer pressure required to stop a moving vehicle – the carrier must resist flexing or shifting, ensuring that the caliper remains perfectly aligned with the brake disc (rotor). Beyond its mounting and structural roles, the carrier also contributes to heat dissipation, helping to draw heat away from the caliper and prevent overheating. Furthermore, it acts as a shield, protecting the delicate caliper from the harsh realities of the road: dirt, water, and impact from debris.

The Crucial Functions of a Brake Caliper Carrier

To truly appreciate the importance of the caliper carrier, it's vital to understand its specific functions:

• Mounting the Brake Caliper: This is its most evident role. The carrier provides a robust and precisely positioned anchor point for the brake caliper. Correct alignment is paramount for the caliper pistons to push the brake pads evenly against the rotor.
• Resisting Brake Forces: During braking, significant lateral and rotational forces are exerted. The carrier must be strong enough to absorb and resist these forces without deforming, which could lead to a loss of braking efficiency or uneven pad contact.
• Distributing Heat: The friction between brake pads and rotors generates considerable heat. While the rotor is designed to dissipate this, the carrier also plays a role, helping to conduct some of this heat away from the caliper, preventing brake fade and premature wear of seals and fluid.
• Protecting the Brake Caliper: It acts as a physical barrier, safeguarding the caliper body, pistons, and seals from road grit, salt, water ingress, and minor impacts that could otherwise damage these vital components.

Understanding the Different Types of Caliper Carriers

Brake caliper carriers are not one-size-fits-all. Their design is dictated by the type of braking system employed by the manufacturer. The two main categories are:

Fixed Caliper Carriers

In a fixed caliper system, the caliper itself is rigidly attached to the suspension or axle via the carrier. The pistons within the caliper directly press the brake pads onto the rotor. There is no sliding mechanism for the caliper itself. These are often found in higher-performance vehicles due to their direct feel and responsiveness, but they can be heavier and more complex.

Floating Caliper Carriers

Floating caliper systems, also known as sliding caliper systems, are more common. Here, the caliper is mounted to the carrier via sliding pins or a bracket. When the brake pedal is pressed, one or more pistons push the inner brake pad against the rotor. This action pushes the entire caliper assembly sideways along the sliding pins, forcing the outer brake pad against the other side of the rotor. This design is generally lighter, simpler, and more forgiving of minor manufacturing tolerances.

Within these broad categories, you might also encounter variations like radial mount carriers, where the caliper bolts directly to the suspension upright in a radial fashion, often for increased rigidity and improved heat management.

Materials Matter: What Are Caliper Carriers Made Of?

The demanding environment of a braking system requires robust materials. Caliper carriers are typically manufactured from materials chosen for their strength, durability, and resistance to corrosion:

• Cast Iron: A traditional and widely used material, cast iron offers excellent strength, good wear resistance, and cost-effectiveness. However, it can be heavier than other options and is susceptible to rust if the protective coating is compromised.
• Aluminum Alloys: Increasingly popular, especially in modern vehicles, aluminum alloys offer a significant weight saving. They also possess excellent corrosion resistance. While generally strong, some aluminum carriers may be paired with steel inserts in high-wear areas to enhance durability.
• Steel: High-strength steel is also used, particularly in applications demanding maximum rigidity and load-bearing capacity. Steel offers excellent tensile strength but can be prone to rust if not properly treated and maintained.

Spotting the Signs of a Failing Caliper Carrier

A compromised caliper carrier won't always announce its failure with a dramatic event. Often, the symptoms are subtle at first, but they are critical indicators that require attention:

Uneven Brake Pad Wear

This is perhaps the most common and telling sign. If one brake pad is wearing significantly faster than the other on the same axle, it strongly suggests that the caliper is not moving or retracting correctly. In a floating caliper system, this could mean the sliding pins are seized or the carrier itself is warped or damaged, preventing the caliper from self-centring. In a fixed caliper system, it could indicate a carrier that has shifted or distorted, causing uneven pressure.

Brake Caliper Sticking

A caliper that 'sticks' means it doesn't release the brake pads fully from the rotor when the brake pedal is released. This can be caused by seized slider pins (often due to lack of lubrication or corrosion) or, critically, by a damaged or distorted caliper carrier that is binding the caliper's movement. A sticking caliper can lead to constant friction, overheating, premature pad and rotor wear, and a noticeable pulling sensation when driving.

Excessive Noise During Braking

While brake noise can stem from various sources (worn pads, glazed rotors), a faulty caliper carrier can contribute to unusual sounds. Grinding noises might indicate that the caliper is not properly aligned, causing metal-on-metal contact. Squealing or high-pitched noises could be a result of the caliper not retracting properly, leading to constant slight contact between the pad and rotor. A damaged carrier might also allow for excessive movement or vibration within the caliper assembly.

Brake Fluid Leakage

While less common directly from the carrier itself, significant damage to a caliper carrier, such as a crack or severe deformation, could potentially compromise the integrity of the brake lines or the caliper body itself, leading to brake fluid leaks. A leak is always a critical issue that needs immediate professional attention.

Maintenance and Replacement: Keeping Your Carriers in Check

Preventative maintenance is key to avoiding premature caliper carrier failure and ensuring your brakes perform optimally:

• Regular Visual Inspections: During routine brake checks, visually inspect the caliper carriers for any signs of damage. Look for cracks, significant corrosion, or any deformation. Check the condition of the slider pins and their boots on floating caliper systems.
• Cleaning and Lubrication: When replacing brake pads, it's good practice to remove the caliper, clean the mounting points and sliding pins (if applicable), and apply a thin layer of high-temperature brake grease to the pins. This ensures smooth movement and prevents seizing. Ensure the carrier itself is free from dirt and debris.
• Timely Replacement: If you notice any of the aforementioned symptoms, or if a carrier is found to be damaged, corroded, or significantly worn during inspection, it must be replaced. Ignoring a faulty carrier can lead to accelerated wear of other, more expensive brake components, and more importantly, compromise your vehicle's safety.

Don't underestimate the importance of clean and lubricated slider pins on floating calipers. These are often the first point of failure, leading to uneven pad wear and potential caliper damage.

The Undeniable Importance of a Healthy Caliper Carrier

A properly functioning brake caliper carrier is not just about preventing noise or uneven wear; it's fundamental to your vehicle's safety and performance:

• Safe and Effective Braking: Ensures the caliper applies consistent and even pressure to the brake pads, maximising stopping power and providing predictable braking feel.
• Reduced Brake Component Wear: By maintaining correct alignment, it prevents premature and uneven wear on brake pads and rotors, saving you money on replacements in the long run.
• Enhanced Vehicle Stability: A rigid and well-aligned carrier minimises unwanted caliper movement during braking, contributing to a more stable and controlled deceleration.
• Protection of Other Brake System Components: A failing carrier can put undue stress on the caliper pistons, seals, and brake lines, potentially leading to more extensive and costly repairs.

Maintaining your braking system goes beyond just replacing pads and rotors; the caliper carrier is a vital, albeit often overlooked, component.

Frequently Asked Questions

1. What are the most common symptoms of a faulty brake caliper carrier?

The most prevalent signs include uneven brake pad wear (one pad wearing much faster than the other), a brake caliper that sticks and doesn't release properly, excessive or unusual noises like grinding or squealing during braking, and in severe cases, potential brake fluid leaks.

2. How often should I have my brake caliper carriers inspected?

It's advisable to have your brake caliper carriers inspected during every routine brake maintenance service. This typically aligns with brake pad and rotor replacements, or roughly every 15,000 to 20,000 miles, depending on your driving conditions and vehicle manufacturer's recommendations.

3. Can I replace a brake caliper carrier myself?

While some experienced DIY mechanics might consider this task, replacing a brake caliper carrier is generally recommended to be carried out by a qualified mechanic. The braking system is critical for safety, and proper installation, torque specifications, and bleeding procedures are essential. Incorrect installation can lead to brake failure.

4. What are the benefits of a properly functioning brake caliper carrier?

A well-functioning carrier ensures optimal braking performance, leading to shorter stopping distances and a more responsive pedal feel. It promotes even wear of brake pads and rotors, extending their lifespan and saving on replacement costs. It also contributes to overall vehicle stability during deceleration and protects other vital brake system components from premature failure.

5. If my caliper carrier is worn, do I need to replace the entire caliper?

Not necessarily. In many cases, the caliper carrier (mounting bracket) is a separate component that can be replaced independently of the brake caliper itself. However, if the carrier has caused damage to the caliper body or its sliding mechanisms, then replacing the entire caliper assembly might be necessary.
