The Shimano GRX BR-RX810 hydraulic disc brake caliper is a cornerstone for any gravel or all-road cyclist seeking reliable and powerful stopping performance, regardless of the terrain or weather. Designed with the rigours of off-road riding in mind, this caliper offers a blend of advanced technology and robust construction that translates into confidence-inspiring braking. From dusty trails to muddy tracks, the GRX BR-RX810 is engineered to perform. Let's delve into what makes this caliper a standout choice.
Understanding the Core Technology
At its heart, the BR-RX810 is a hydraulic disc brake caliper. This means it uses fluid to transmit the braking force from the lever to the caliper, which then actuates the brake pads against the rotor. This hydraulic system offers several advantages over cable-actuated systems, including greater power, smoother modulation, and greater resistance to contamination.
Key Features and Their Benefits
Hydraulic Braking Power
The hydraulic system is crucial for the GRX BR-RX810's performance. When you pull the brake lever, it pushes a small piston within the master cylinder. This action pressurizes the mineral oil (Shimano's preferred fluid) that fills the brake line. This pressurized fluid then travels through the hose to the caliper. Inside the caliper, the fluid pushes on the pistons, which in turn press the brake pads against the disc rotor. This direct and efficient transfer of force results in consistent and powerful braking, allowing for precise control even on steep descents or in unpredictable conditions.
Ice Tech for Superior Heat Management
One of the most significant technologies employed by the GRX BR-RX810 is Shimano's proprietary Ice Tech. Disc brakes, especially under heavy use, can generate a considerable amount of heat. Excessive heat can lead to brake fade, where the braking performance diminishes significantly. Ice Tech addresses this by employing a sandwich structure in the brake pads and rotors. While the caliper itself doesn't have the full Ice Tech rotor construction, it is designed to work seamlessly with Ice Tech rotors. The caliper's design, coupled with the heat-dissipating properties of compatible Ice Tech rotors and the presence of ceramic pistons, ensures that heat is managed effectively. This means you can rely on consistent braking power, even during long descents or prolonged braking events, preventing the dreaded brake fade.
Dual Ceramic Pistons
The BR-RX810 caliper features two pistons, and crucially, these are made from ceramic. Ceramic is an excellent material for pistons due to its lightweight nature, high thermal resistance, and low thermal conductivity. Unlike metal pistons, ceramic pistons do not transfer heat as readily to the brake fluid. This further aids in preventing brake fluid overheating and the subsequent brake fade. The two-piston design provides a balanced and even application of force to the brake pads, ensuring a smooth and predictable braking feel. This setup is ideal for gravel riding where precise modulation is often more important than outright brute force.
Flat Mount System
The GRX BR-RX810 utilizes the Flat Mount standard. This mounting system is specifically designed for road and gravel bikes, offering a cleaner, more aerodynamic, and often lighter integration of the disc brake caliper directly onto the frame or fork. Unlike the older Post Mount system, Flat Mount calipers attach to special bosses integrated into the frame and fork. This results in a more streamlined profile, reducing the risk of snagging on obstacles and contributing to a tidier aesthetic. The direct mounting also contributes to a stiffer connection, potentially leading to more direct braking feel.
How It All Comes Together: The Braking Process
When you squeeze the brake lever on your GRX shifters:
- The lever actuates the master cylinder, pushing mineral oil into the brake line.
- The pressurized fluid travels through the hydraulic hose to the BR-RX810 caliper.
- The fluid pushes the two ceramic pistons outwards.
- The ceramic pistons force the brake pads into contact with the disc rotor.
- Friction between the pads and rotor slows the wheel's rotation.
The Ice Tech technology, working in conjunction with compatible rotors and the ceramic pistons, ensures that heat generated during this process is dissipated effectively, maintaining optimal braking performance.
Advantages of the GRX BR-RX810
The GRX BR-RX810 caliper brings a host of benefits to the gravel and all-road cycling experience:
- Reliability: Hydraulic systems are inherently more reliable and require less maintenance than cable systems.
- Stopping Power: Delivers strong and consistent stopping power for confident control.
- Modulation: Offers excellent control over braking force, allowing for fine adjustments.
- Heat Dissipation: Ice Tech and ceramic pistons work together to prevent brake fade.
- Durability: Built to withstand the rigours of off-road riding.
- Clean Aesthetics: The Flat Mount system provides a sleek and integrated look.
- Versatility: Ideal for gravel, cyclocross, and even some road applications.
Compatibility Considerations
It's important to ensure compatibility when installing the GRX BR-RX810 caliper. It is designed to work with Shimano's GRX shifters and levers, specifically those in the RX810 and RX600 series, as well as other Shimano hydraulic road levers. For optimal performance and heat management, it is highly recommended to use it with Shimano's Ice Tech compatible rotors. The caliper is designed for the Flat Mount standard, so your frame and fork must be equipped with Flat Mount bosses. The required adapter may vary depending on the rotor size you intend to use (e.g., 140mm or 160mm).
Maintenance and Care
Like all hydraulic disc brakes, the GRX BR-RX810 requires some basic maintenance to ensure peak performance:

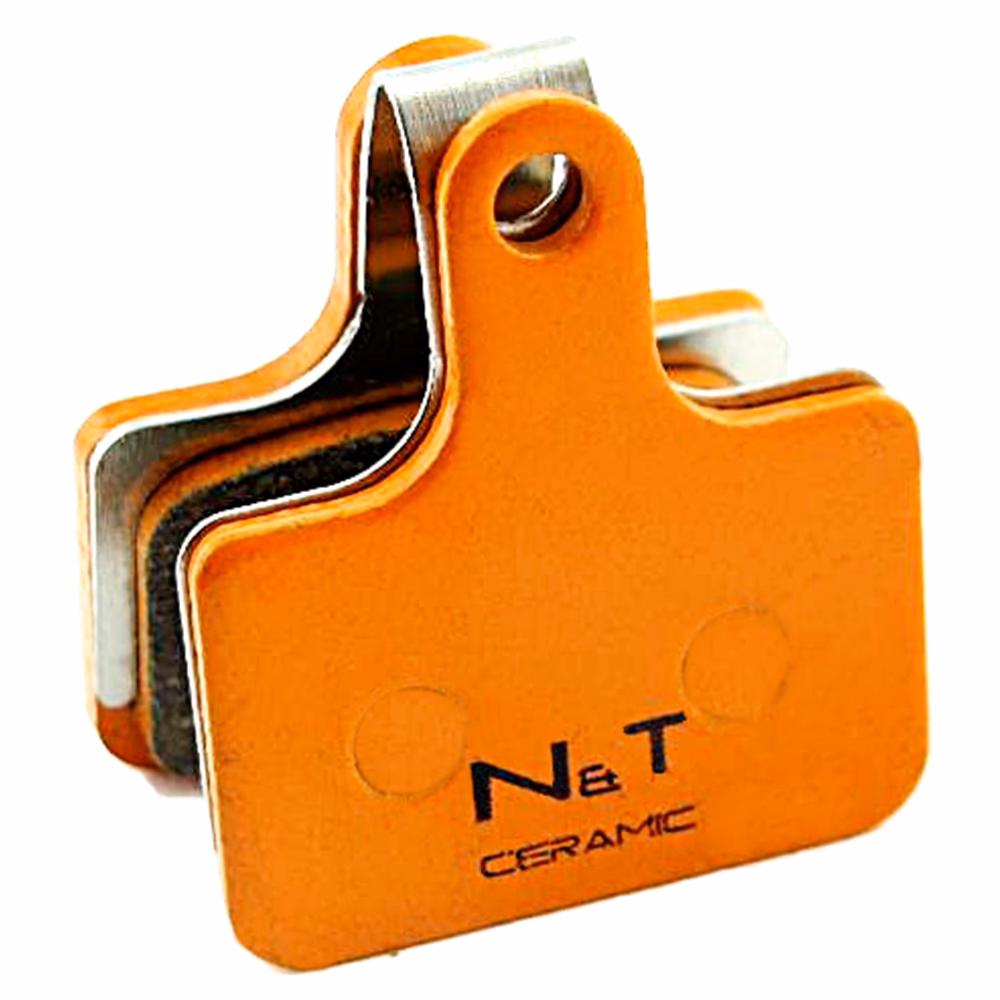

- Pad Wear: Regularly check the thickness of your brake pads. Replace them when they reach the wear indicator lines or if they appear excessively worn.
- Rotor Cleaning: Keep your rotors clean. Avoid touching the braking surface with your fingers, as oil can contaminate it and reduce braking performance. Clean with isopropyl alcohol if necessary.
- Bleeding: Over time, air can enter the hydraulic system, leading to a spongy lever feel. Shimano recommends bleeding the brakes periodically (typically once a year or as needed) to remove air and ensure optimal fluid levels.
- Fluid Type: Always use Shimano genuine mineral oil for bleeding and topping up. Never use DOT fluid, as it is incompatible and will damage the seals.
Frequently Asked Questions
Q1: Can I use the GRX BR-RX810 caliper with non-Shimano rotors?
A1: While it might physically fit, using non-Shimano rotors, especially those without heat-dissipating technology, could compromise braking performance and increase the risk of brake fade. For best results, use Shimano Ice Tech compatible rotors.
Q2: What is the difference between the BR-RX810 and other Shimano hydraulic calipers?
A2: The BR-RX810 is part of the GRX gravel-specific groupset, featuring the Flat Mount design and optimized for gravel riding conditions. While other Shimano calipers share hydraulic technology, the GRX calipers are tuned for the unique demands of off-road and mixed-terrain cycling.
Q3: How do I know if my frame is compatible with Flat Mount calipers?
A3: Your frame and fork will need to have integrated Flat Mount bosses. If you are unsure, consult your bike manufacturer or a qualified bicycle mechanic.
Q4: What is the maximum rotor size I can use with the BR-RX810?
A4: The BR-RX810 is typically used with 140mm or 160mm rotors. Compatibility with larger rotors may require specific adapters and frame/fork clearance, but 160mm is the most common maximum for this caliper in gravel applications.
Conclusion
The Shimano GRX BR-RX810 hydraulic disc brake caliper is a meticulously engineered component that brings a high level of performance, reliability, and control to gravel and all-road cycling. Its combination of hydraulic power, advanced Ice Tech heat management, dual ceramic pistons, and the sleek Flat Mount design makes it an excellent choice for riders who demand the best from their braking systems. By understanding how these technologies work together, cyclists can appreciate the confidence and capability the BR-RX810 provides on any adventure.
