20/09/2022
When it comes to cycling, few components are as critical as your brakes. They are your primary safeguard, responsible for precise speed control and, ultimately, your safety. For many road and gravel cyclists, the Shimano RS405 hydraulic disc brake system offers reliable and consistent stopping power. However, like all braking systems, they face a common enemy: heat. As you descend long hills or engage in sustained braking, heat builds up, which can lead to a phenomenon known as brake fade, compromising performance and confidence. This is where Shimano's innovative ICE Technologies come into play, promising a cooler, more consistent braking experience. But the burning question for many RS405 owners is: are these advanced ICE Technology pads compatible with my brakes?
Understanding Shimano RS405 Hydraulic Disc Brakes
The Shimano RS405, often found on entry to mid-range road and gravel bikes, represents a significant step up from traditional rim brakes. As a hydraulic disc brake system, it offers superior modulation, power, and consistent performance in a variety of weather conditions. Unlike mechanical systems, hydraulic brakes use fluid to transmit force from the lever to the caliper, providing a smoother, more responsive feel. The RS405 calipers are designed to be robust and reliable, utilising a two-piston design to clamp down on the rotor, generating the necessary friction for stopping.
While effective, the RS405, like any disc brake, generates considerable heat during braking. This heat needs to be managed to prevent issues such as brake fade, which occurs when the brake pads or rotor become excessively hot, leading to a noticeable reduction in braking power and an increase in lever travel. Prolonged heat can also accelerate wear on your pads and rotors, leading to more frequent replacements and higher maintenance costs. Therefore, any technology that can effectively dissipate this heat is a welcome advancement for cyclists.
Delving into ICE Technologies: The Cooling Revolution
Shimano's ICE Technologies are specifically engineered to combat the detrimental effects of heat build-up in disc brake systems. The core principle behind ICE Technologies is enhanced heat dissipation, applied to both the disc brake rotor and the brake pads themselves. This innovative approach aims to maintain consistent braking performance, even under demanding conditions.
The key components of ICE Technologies include:
- Clad Disc Brake Rotors: These rotors feature a unique three-layer sandwich structure, typically consisting of an aluminium core sandwiched between two layers of stainless steel. Aluminium is an excellent conductor of heat, allowing it to dissipate heat away from the braking surface much more effectively than solid stainless steel rotors. This design significantly reduces rotor temperature during heavy braking.
- Radiator Fin Pads: Many ICE Technology brake pads incorporate a small, metallic fin, often made from aluminium, attached to the backplate of the pad. These fins act like miniature radiators, increasing the surface area available for heat transfer. As air flows over these fins, heat is drawn away from the pad material and caliper, further reducing operating temperatures.
The combined effect of these innovations leads to several tangible benefits for the rider:
- Reduced Brake Fade: By keeping temperatures lower, ICE Technologies ensure that braking power remains consistent, even during long descents or repeated hard braking. This means less worrying about losing your stopping power when you need it most.
- Extended Pad Life: High temperatures accelerate the degradation of brake pad material. By dissipating heat more effectively, ICE Technology pads experience less thermal stress, leading to a significantly longer lifespan. This translates to fewer replacements and better value for money.
- Less Noise: Excessive heat can cause brake pads to glaze over or rotors to warp slightly, leading to annoying squealing or grinding noises. Cooler operation often results in quieter braking.
- Consistent Performance: The overall result is a more predictable and reliable braking experience, allowing for greater confidence and control on the bike.
The Crucial Question: RS405 and ICE Tech Pad Compatibility
The definitive answer to whether Shimano RS405 hydraulic disc brakes work with ICE Technology pads is a resounding yes. Shimano designs its components with a degree of cross-compatibility within their respective categories, and the RS405 caliper is no exception when it comes to pad types.

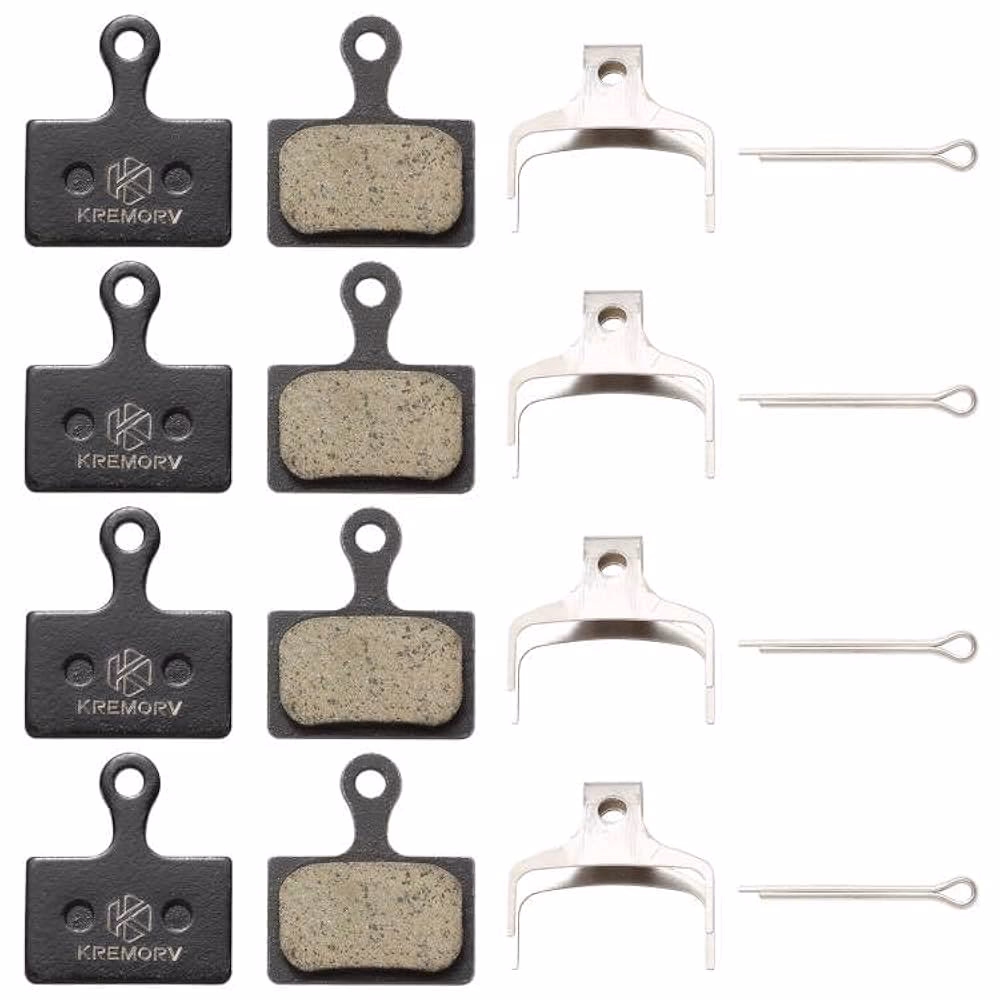

The RS405 caliper uses what Shimano refers to as 'L-type' brake pads. These are a common pad shape across many of Shimano's road and flat-bar hydraulic disc brake calipers. When you look for replacement pads for your RS405 system, you will find various options, including those featuring ICE Technology.
Common Shimano L-type brake pads that incorporate ICE Technology fins include:
- Shimano L03A Resin Pads with Fin: These are resin (organic) compound pads that offer excellent initial bite and quieter operation. The integrated cooling fins effectively dissipate heat.
- Shimano L04C Metal Pads with Fin: These are metallic (sintered) compound pads, known for their durability and consistent performance in wet and muddy conditions. They also feature cooling fins for enhanced heat management.
Therefore, if you own an RS405 system, you can directly upgrade to or replace your existing pads with either the L03A or L04C ICE Technology pads, depending on your preference for pad compound (resin for quietness and initial bite, metal for durability and wet performance). These pads will fit perfectly into your RS405 calipers, allowing you to benefit from the advanced cooling properties of ICE Technologies.
Benefits of Upgrading to ICE Tech Pads for Your RS405
Even if your RS405 system came with standard pads, upgrading to ICE Technology pads can significantly enhance your braking experience. Here’s why it’s a worthwhile consideration:
- Enhanced Braking Consistency: On long descents or during spirited riding, standard pads can heat up quickly, leading to a spongy lever feel and reduced stopping power. ICE Tech pads maintain their performance much better, giving you reliable braking from top to bottom.
- Increased Pad Longevity: Heat is a major factor in pad wear. By keeping the pads cooler, ICE Technologies reduce the rate at which the pad material degrades, meaning you won't have to replace them as often. This is particularly beneficial for high-mileage riders or those who frequently ride in hilly terrain.
- Reduced Noise: Overheating pads can often lead to annoying squealing noises. While not a guarantee, cooler operating temperatures often contribute to quieter braking, making your ride more enjoyable.
- Greater Confidence: Knowing that your brakes will perform consistently, even under stress, instils greater confidence on the bike. This allows you to push harder, descend faster, and enjoy your rides more fully.
Choosing the Right Pad Compound: Resin vs. Metal
When selecting your ICE Technology pads, you’ll encounter two primary compound types: resin (organic) and metallic (sintered). Each has distinct characteristics:
| Feature | Resin (Organic) Pads (e.g., L03A) | Metallic (Sintered) Pads (e.g., L04C) |
|---|---|---|
| Initial Bite | Strong, immediate | More gradual, requiring more pressure |
| Noise Level | Generally quieter | Can be noisier, especially in wet conditions |
| Durability | Less durable, wears faster | Highly durable, longer lasting |
| Performance in Wet/Mud | Can decrease significantly | Excellent, consistent performance |
| Heat Tolerance | Good, improved with ICE Tech | Very high, excellent with ICE Tech |
| Rotor Wear | Less abrasive on rotors | More abrasive on rotors |
| Typical Use | Road cycling, dry conditions, quietness preferred | MTB, wet/muddy conditions, heavy braking, durability needed |
For most road and gravel applications with RS405 brakes, the L03A resin pads with ICE Technology fins are an excellent choice, offering a great balance of quietness, modulation, and improved heat management. If you frequently ride in very wet or muddy conditions, or demand the absolute longest pad life, the L04C metallic pads with fins might be a better fit, though they can be noisier.
Beyond Pads: A Holistic Approach to Braking Performance
While ICE Technology pads significantly contribute to better braking, they are just one piece of the puzzle. For optimal performance from your RS405 system, consider these other factors:
- Rotor Condition: Ensure your rotors are clean, true (not warped), and free from excessive wear. While RS405 works with standard rotors, pairing them with ICE Technology rotors (e.g., SM-RT70, SM-RT800) will provide the ultimate heat dissipation benefits.
- Brake Bleeding: Over time, air can enter your hydraulic system, or the fluid can degrade. Regularly bleeding your brakes ensures that the hydraulic fluid is fresh and free of air bubbles, providing a firm, consistent lever feel.
- Proper Pad Bedding-In: New pads require a bedding-in process to achieve full braking power. This involves a series of moderate to hard stops to transfer a layer of pad material onto the rotor, optimising friction.
- Cleanliness: Keep your calipers, pads, and rotors free from dirt, oil, and grime. Contaminants can severely reduce braking performance and cause noise.
- Rotor Size: Larger rotors (e.g., 160mm instead of 140mm) inherently offer more surface area for heat dissipation and greater leverage, leading to more powerful braking. If your frame and fork allow, upgrading to larger rotors can be a significant improvement.
Maintaining Your Hydraulic Disc Brakes
Regular maintenance is key to longevity and performance:
- Inspect Pads Regularly: Check the thickness of your brake pads. Replace them before the pad material wears down to the backing plate.
- Clean Rotors: Use a dedicated disc brake cleaner and a clean cloth to remove any contaminants. Avoid touching the braking surface with your bare hands.
- Check for Leaks: Periodically inspect the brake lines and calipers for any signs of fluid leaks.
- Bleed Annually: For optimal performance, consider bleeding your hydraulic brakes at least once a year, or more frequently if you notice a spongy lever.
Frequently Asked Questions
- Q: Do I need special tools to change my RS405 brake pads?
- A: You'll typically need a hex key (usually 3mm or 4mm, depending on the retaining bolt) to remove the pad retaining pin. A flat-bladed screwdriver or a dedicated piston press tool can be helpful for pushing the pistons back into the caliper when installing new, thicker pads.
- Q: Can I use ICE Technology pads with non-ICE Technology rotors?
- A: Yes, absolutely. While using ICE Technology pads with ICE Technology rotors provides the maximum cooling benefit, the pads will still fit and function perfectly well with standard Shimano rotors. The fins on the pads will still contribute to heat dissipation independently.
- Q: How do I know if my existing pads are ICE Technology?
- A: Look closely at the back of your brake pads. If they are ICE Technology pads, they will have distinct metallic cooling fins extending beyond the main body of the pad, typically visible once removed from the caliper.
- Q: What are the signs that my brake pads need replacing?
- A: Key signs include reduced braking power, excessive noise (squealing, grinding), a spongy lever feel, or if the pad material is worn down to less than 0.5mm in thickness.
- Q: Can I mix and match different brands of brake pads?
- A: While some aftermarket pads are compatible, it's generally recommended to stick with Shimano pads for Shimano brakes to ensure optimal performance, fit, and safety. Aftermarket pads may not offer the same performance or longevity, and their compound might not be ideally suited to Shimano rotors.
- Q: Is it worth upgrading to ICE Technology rotors as well?
- A: If you frequently experience brake fade, especially on long or steep descents, upgrading to ICE Technology rotors in addition to the pads will provide the most significant improvement in heat management. The combination offers superior heat dissipation, leading to truly consistent and powerful braking.
Conclusion
The Shimano RS405 hydraulic disc brake system is a capable and reliable component for many cyclists. The good news is that it is fully compatible with Shimano's advanced ICE Technology brake pads. By choosing L-type pads like the L03A (resin with fin) or L04C (metallic with fin), RS405 users can significantly enhance their braking performance, reduce fade, extend pad life, and enjoy quieter, more consistent stops. This simple upgrade or replacement choice can make a considerable difference to your riding experience, providing greater confidence and control, especially when the roads demand the very best from your braking system. Remember, a well-maintained and efficiently cooled braking system is paramount for both performance and safety on every ride.
