The Shimano Deore BR-M6120 brake caliper is a popular choice for many mountain bikers looking for reliable and powerful braking performance without breaking the bank. As part of Shimano's Deore M6100 groupset, it offers a significant upgrade over older or lower-tier offerings, bringing advanced technology to a more accessible price point. This four-piston caliper is designed to handle the demands of trail riding, enduro, and even downhill, providing confidence-inspiring stopping power and control on varied terrain.
Understanding the Shimano Deore BR-M6120
At its core, the BR-M6120 is a hydraulic disc brake caliper. It's designed to work with Shimano's own range of brake levers and hoses, forming part of a complete braking system. The key differentiator for this caliper is its four-piston design. Unlike the more common two-piston calipers found on many entry-level and mid-range bikes, four pistons provide a larger pad contact area and distribute braking force more evenly across the rotor. This translates directly into increased stopping power and better modulation.
Key Features and Benefits
- Four-Piston Design: This is the standout feature, offering superior power and control compared to two-piston calipers. It allows for shorter braking distances and easier modulation, meaning you can precisely control the amount of braking force applied.
- Shimano's ICE TECHNOLOGIES Compatibility: While not always built-in, the BR-M6120 is designed to work seamlessly with Shimano's ICE TECHNOLOGIES rotors and pads. These technologies help to dissipate heat effectively, reducing the risk of brake fade during long descents or heavy braking situations.
- Durable Construction: Built with Shimano's reputation for quality, the BR-M6120 is constructed from robust materials designed to withstand the rigours of off-road riding.
- SERVO WAVE Action (Lever Dependent): While the caliper itself doesn't have SERVO WAVE, the levers it's designed to be paired with (like the BL-M6100) often feature this technology. SERVO WAVE provides a quicker bite point and increased lever throw, meaning less lever movement is needed to achieve full braking power.
- Shimano's Reliable Bleed System: Shimano's hydraulic brake systems are known for their relatively straightforward bleeding process, ensuring you can maintain optimal performance.
- Easy Pad Replacement: The caliper is designed for user-friendly pad replacement, minimising downtime when your brake pads eventually wear out.
Performance and Application
The BR-M6120 caliper excels in situations where significant stopping power is required. For aggressive trail riding, downhill, or even just for heavier riders, the increased power offered by the four-piston design is a noticeable advantage. The improved modulation allows for finer control, which can be crucial when navigating technical descents or tight corners, enabling riders to scrub speed precisely without locking up the wheels.
When is the BR-M6120 a Good Choice?
- If you're upgrading from a two-piston caliper and want more stopping power.
- If you ride trails that require frequent and hard braking.
- If you're a heavier rider who needs more braking force.
- If you're building a bike for enduro or downhill riding.
- If you're looking for a balance of performance and value.
Installation and Maintenance
Installing and maintaining the BR-M6120 caliper, like most Shimano hydraulic brakes, involves a few key steps. It's crucial to ensure that the caliper is correctly aligned with the rotor to prevent rubbing and ensure optimal performance. The bleeding process, when required, involves using Shimano's specific bleed kit and mineral oil. Regular checks of pad wear and rotor condition are also recommended.
Bleeding the BR-M6120 Caliper
A common question regarding hydraulic brakes is whether they come pre-bled. Typically, when purchased as part of a complete brake set (lever, hose, and caliper), Shimano brakes arrive fully bled and ready for installation. However, if you purchase the caliper separately, or if you've had to disconnect the hose for any reason, you will need to bleed the system. The process generally involves:
- Attaching the bleed cup to the lever.
- Connecting the syringe filled with mineral oil to the caliper bleed port.
- Gently pushing oil through the system to purge air.
- Operating the lever to move air towards the bleed cup.
- Repeating until no air bubbles are visible.
- Closing the bleed port and removing the bleed cup.
It's advisable to consult Shimano's official service manual or a qualified bike mechanic if you are unsure about the bleeding process. Using the correct mineral oil is paramount; never use anything else, as it can damage the seals.
Comparison with Other Shimano Calipers
To put the BR-M6120 into perspective, let's compare it briefly with other Shimano calipers:
| Feature | Shimano BR-MT200 (2-Piston) | Shimano BR-M6120 (4-Piston) | Shimano BR-M8120 (XT 4-Piston) |
|---|---|---|---|
| Piston Count | 2 | 4 | 4 |
| Target Rider | Entry-level, recreational | Trail, Enduro | Performance Trail, Enduro, Downhill |
| Stopping Power | Moderate | High | Very High |
| Modulation | Good | Excellent | Excellent |
| Weight | Lighter | Slightly heavier | Similar to BR-M6120 |
| Price Point | Lower | Mid-range | Higher |
| ICE TECHNOLOGIES Pad/Rotor Support | Standard | Optimised | Highly Optimised |
As you can see, the BR-M6120 sits comfortably in the mid-range, offering a significant step up in power and modulation from entry-level options like the MT200, while providing a more budget-friendly alternative to the higher-tier XT (M8120) or Saint/Zee calipers.
Frequently Asked Questions
Is the Shimano Deore BR-M6120 a four-piston caliper?
Yes, the Shimano Deore BR-M6120 is a four-piston hydraulic disc brake caliper.
Does the BR-M6120 come fully bled?
When purchased as part of a complete brake system (lever, hose, caliper), the BR-M6120 typically comes fully bled. If purchased as a standalone caliper or if the hose has been disconnected, it will require bleeding.
What brake levers are compatible with the BR-M6120?
The BR-M6120 is designed to be used with Shimano's I-SPEC EV compatible levers, such as the BL-M6100 (Deore) or higher-end levers like the BL-M8100 (XT) or BL-M7100 (SLX). You can also use it with standard bar-mount levers if you're not using the I-SPEC EV mounting system.
What rotors should I use with the BR-M6120?
Shimano recommends using their SM-RT64, SM-RT66, or SM-RT70 series rotors for optimal performance. Rotors with Shimano's ICE TECHNOLOGIES are particularly beneficial for heat dissipation.

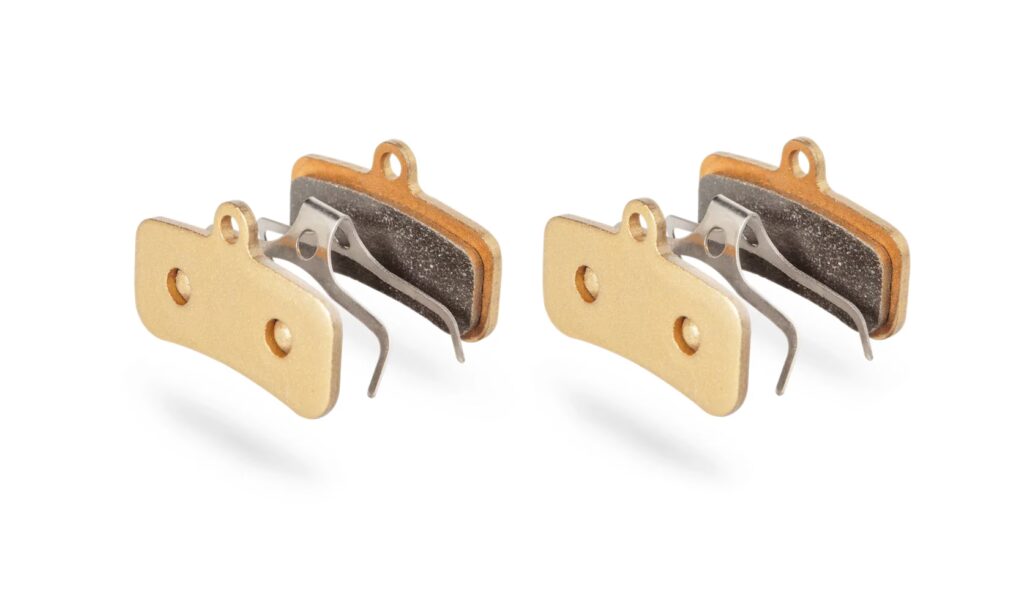

Can I use organic or metallic brake pads with the BR-M6120?
Yes, the BR-M6120 is compatible with both Shimano's G03S (resin/organic) and J03A (metal/metallic) brake pads, as well as other third-party pads designed for Shimano 4-piston calipers.
Conclusion
The Shimano Deore BR-M6120 caliper represents excellent value for mountain bikers seeking enhanced braking performance. Its four-piston design delivers substantial stopping power and improved modulation, making it suitable for a wide range of riding disciplines. When paired with compatible levers and rotors, it forms a robust and reliable braking system that can instill confidence on the trail. Understanding its features, maintenance requirements, and compatibility will help you get the most out of this capable component.
