Unravelling the Mono Jetronic System: A Deep Dive

In the intricate world of automotive engineering, certain systems stand out as pivotal steps in technological evolution. One such system, often found nestled within the engine bays of 4-cylinder vehicles from a bygone era, is the Mono Jetronic. It represents a fascinating bridge between the mechanical simplicity of carburettors and the electronic precision of modern multi-point fuel injection. For many enthusiasts and mechanics alike, understanding this system is key to maintaining the smooth operation of their vehicles.

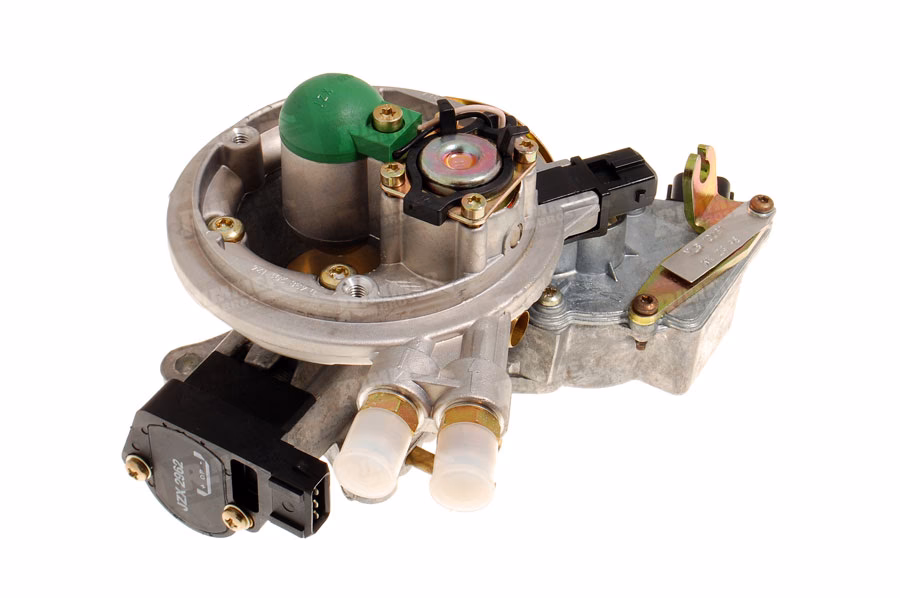

At its heart, the Mono Jetronic system is an electronically controlled, low-pressure, single-point injection system specifically designed for 4-cylinder engines. Unlike the multi-point systems that deliver fuel to each cylinder individually, the Mono Jetronic employs a single, centrally mounted, solenoid-controlled injector. This solitary injector is responsible for delivering all the fuel required by the entire engine, much like a modernised carburettor, but with the added intelligence of electronic control. A sophisticated array of sensors continuously monitors various aspects of engine operation, relaying this crucial data to the Electronic Control Unit (ECU) for optimal mixture control. This blend of simplicity and electronic management makes the Mono Jetronic a remarkable piece of engineering history.

What Makes Mono Jetronic Tick? The Core Principles

The fundamental design philosophy behind the Mono Jetronic system was to mimic the operation of a twin-choke carburettor but with greater precision and efficiency, particularly in terms of emissions control. This wasn't about reinventing the wheel, but rather refining an existing concept with the then-emerging capabilities of electronic management. The system operates by injecting fuel into a central throttle body, where it then mixes with air before being drawn into the cylinders.

The quantity of fuel injected at any given moment is not a static value; instead, it's dynamically determined by the ECU based on a variety of critical inputs from sensors positioned throughout the engine. These inputs are the eyes and ears of the ECU, providing the real-time data needed to calculate the perfect air-fuel mixture. Without these sensors, the system would be blind, unable to adapt to changing driving conditions.

Key Factors Influencing Fuel Delivery

The ECU's calculation for fuel quantity is a complex interplay of several factors:

• Throttle Position: The throttle position sensor, often a potentiometer, provides crucial information about the driver's demand for power. Interestingly, it typically features two tracks – one for the initial opening of the throttle and a second that comes into play once the throttle is partially open. This dual-track design allows for more nuanced control, effectively mimicking the progressive opening of a twin-choke carburettor.
• Engine Speed: Revolutions per minute (RPM) is a fundamental parameter. Higher engine speeds generally demand more fuel, and the ECU uses this data to ensure adequate fuel delivery for combustion.
• Inlet Air Temperature: The density of air changes with temperature. Colder air is denser, meaning more oxygen is available for combustion, thus requiring more fuel for the ideal mixture. Conversely, hotter air is less dense. The inlet air temperature sensor helps the ECU compensate for these variations.
• Coolant Temperature: When an engine is cold, it requires a richer fuel mixture to start and run smoothly. The coolant temperature sensor (CTS) informs the ECU of the engine's thermal state, enabling it to provide this richer mixture during warm-up.
• Lambda Sensor Voltage: Once the engine has reached its operating temperature, the oxygen (lambda) sensor, located in the exhaust stream, becomes incredibly important. It measures the oxygen content in the exhaust gases, providing feedback to the ECU about the richness or leanness of the air-fuel mixture. The ECU then uses this voltage signal to make fine-tuned corrections, striving to maintain the stoichiometric (ideal) ratio for efficient combustion and effective catalytic converter operation.

Automatic Idle Speed Control

One of the notable advancements over traditional carburettors is the Mono Jetronic's ability to automatically adjust the idle speed. This is achieved through a stepper motor connected to the butterfly valve within the throttle body. Under the precise control of the ECU, this stepper motor can slightly open or close the throttle valve to maintain a stable and optimal idle speed, compensating for varying loads (like air conditioning) or engine conditions.

You might even notice this system at work during a cold start. When you turn the ignition key, just before cranking, you might hear the stepper motor briefly whirring as it opens the throttle a bit. If your throttle cable is tight, you might even observe the accelerator pedal move slightly. This pre-opening ensures a slightly higher idle speed for a cold engine, aiding in faster warm-up and preventing stalling.

The ECU's Role: A Continuous Balancing Act

The ECU's primary function is to constantly process all these sensor inputs and make an educated 'guess' at the amount of fuel to inject. When the engine is warm and the lambda sensor is actively switching (indicating it's in closed-loop operation), the ECU uses this feedback to correct its initial guess, ensuring the air-fuel mixture remains as close to ideal as possible for the catalytic converter. This continuous correction ensures optimal emissions and fuel economy.

During cold operation, when the inlet air temperature sensor (ATS) and coolant temperature sensor (CTS) indicate the engine is cold, and the lambda sensor isn't yet active (open-loop operation), the ECU operates differently. It will juggle the throttle position via the stepper motor and the fuel injection quantity to provide a slightly faster tickover. This higher idle speed helps the engine warm up more quickly and prevents rough running or stalling when cold.

Ignition System: A Separate Entity

It's crucial to understand that on the Mono Jetronic system, the ignition timing is entirely separate from the fuel injection system. This means there's no Manifold Absolute Pressure (MAP) sensor feeding data directly to the ECU for ignition timing adjustments, as would be common in more integrated engine management systems. Instead, the ignition system often relies on more traditional methods, such as a distributor.

A key component of this separate ignition system, particularly on older vehicles, is the vacuum advance mechanism on the distributor. This mechanism advances the spark timing under light throttle conditions, improving fuel economy and engine response. However, this component is also a common point of failure. If the advance cartridge fails, you'll likely experience very flat performance and poor fuel economy, as the ignition timing won't be optimised for efficiency.

Maintenance and Troubleshooting Essentials

Maintaining a Mono Jetronic system, while seemingly straightforward, requires attention to detail. Since there isn't anything you can manually 'set' or adjust on the system itself – its operation is entirely dictated by the ECU and its sensors – the emphasis shifts to ensuring all components are functioning correctly.

Key Maintenance Practices:

• Injector Cleaner: Given that a single injector serves the entire engine, its cleanliness is paramount. A regular, heavy dose of a good quality injector cleaner can prevent deposits from building up, ensuring the injector sprays fuel in an optimal pattern. Blocked or partially blocked injectors can lead to rough running, poor performance, and increased emissions.
• Filter Replacement: A full set of clean filters is essential for any engine, but particularly for a fuel injection system. This includes the air filter, which ensures clean air for combustion, and critically, the fuel filter. A clogged fuel filter can restrict fuel flow, leading to low fuel pressure at the injector, causing lean running, hesitation, and general poor performance. Regular replacement, as per the manufacturer's schedule, is a must.
• Sensor Integrity: As the ECU relies entirely on sensor data, ensuring these sensors are clean and functioning correctly is vital. While you can't adjust them, you can inspect their wiring for damage and, if performance issues arise, test their outputs to ensure they are within specification. Faulty lambda, coolant temperature, or throttle position sensors are common culprits for poor running.
• Vacuum System Checks: With the separate ignition system and its vacuum advance, it's important to regularly check all vacuum lines for cracks, leaks, or disconnections. A vacuum leak can throw off the engine's air-fuel mixture and affect ignition timing, leading to a myriad of performance problems.
• Advance Cartridge Inspection: As mentioned, the vacuum advance cartridge on the distributor is a known weak point. If you're experiencing a lack of power, especially under acceleration, or surprisingly poor fuel economy, this component should be high on your list for inspection or replacement. It's often overlooked but can have a significant impact on drivability.

Mono Jetronic vs. Carburettors: A Comparison

To truly appreciate the Mono Jetronic, it's useful to compare it with the carburettor systems it largely superseded.

The table highlights Mono Jetronic's clear advantages in terms of control, adaptability, and environmental performance. While it might lack the granular control of multi-point injection, it was a significant leap forward for its time.

Advantages and Disadvantages of Mono Jetronic

Advantages:

• Improved Fuel Economy: Compared to carburettors, the electronic control allows for a much more precise air-fuel mixture, leading to better fuel consumption.
• Reduced Emissions: The ability to maintain an optimal air-fuel ratio, especially with lambda sensor feedback, significantly lowers harmful exhaust emissions, making it compatible with catalytic converters.
• Better Drivability: Automatic cold starting, stable idle control, and smoother power delivery contribute to a more pleasant driving experience.
• Simplicity: While electronic, having only one injector simplifies the fuel delivery hardware compared to multi-point systems.
• Reliability (when maintained): When all sensors and components are functioning, the system can be remarkably reliable.

Disadvantages:

• Limited Precision: A single injector cannot offer the same level of precise fuel delivery to individual cylinders as a multi-point system, which can sometimes lead to slight variations in cylinder performance.
• Age-Related Issues: As these systems are now decades old, components like sensors, wiring harnesses, and the ECU itself can degrade or fail, leading to challenging diagnostic and repair work.
• Diagnostic Tools: Early ECUs often had limited diagnostic capabilities compared to modern systems, making troubleshooting more reliant on manual testing.
• Vulnerability to Sensor Failure: The entire system's performance hinges on accurate sensor data. A single faulty sensor can severely impact engine operation.

Frequently Asked Questions About Mono Jetronic

Q: Can I manually adjust the Mono Jetronic system?

A: No, largely. Unlike carburettors, there are virtually no manual adjustments you can make to the Mono Jetronic system's fuel delivery. Its operation is entirely controlled by the ECU based on sensor inputs. If you're experiencing issues, the focus should be on diagnosing and replacing faulty components, not adjusting them.

Q: What are the most common failure points?

A: Common failure points include the lambda sensor (leading to poor fuel economy and emissions), the coolant temperature sensor (affecting cold starts and warm-up), the throttle position sensor (causing erratic idling or hesitation), the fuel pump (for low fuel pressure), and the aforementioned vacuum advance cartridge on the distributor.

Q: Is Mono Jetronic difficult to diagnose without specialised tools?

A: It can be. While basic checks like vacuum leaks and visual inspection of wiring are possible, accurately diagnosing sensor faults often requires a multimeter and knowledge of expected sensor values. Early diagnostic scan tools for these systems were basic, so a good understanding of the system's operation is invaluable.

Q: Can I upgrade my Mono Jetronic system?

A: While some aftermarket solutions exist for specific models, a direct 'upgrade' to a modern multi-point injection system is typically a complex and costly endeavour, often requiring significant modifications to the engine and wiring loom. For most owners, maintaining the existing system in top condition is the most practical approach.

Q: Why does my car run poorly when cold but fine when warm?

A: This is often a classic symptom of a faulty coolant temperature sensor (CTS) or issues with the lambda sensor not coming online correctly. If the ECU doesn't accurately know the engine's temperature, it won't apply the correct fuel enrichment for cold starts, leading to rough running, stalling, or excessive fuel consumption until the engine warms up.

Conclusion

The Mono Jetronic system, despite its age, remains a testament to the continuous innovation in automotive technology. It successfully brought electronic precision to a widespread segment of 4-cylinder engines, offering significant improvements over carburettors in terms of efficiency, emissions, and drivability. While it requires diligent maintenance and a solid understanding of its operational principles, a well-maintained Mono Jetronic system can provide reliable and economical service for many years. For owners of vehicles equipped with this system, understanding its intricacies is not just about keeping the car on the road, but also appreciating a vital chapter in the evolution of engine management.
