Bosch K Jetronic: A Comprehensive Guide

The Bosch K Jetronic system, often simply referred to as K-Jet, was a pioneering continuous fuel injection system developed by Bosch. First introduced in the early 1970s, it was a significant advancement over carburettor technology, offering improved fuel efficiency, better emissions control, and more consistent engine performance. Found in a vast array of European vehicles from manufacturers like Volkswagen, Porsche, Mercedes-Benz, and Volvo, K-Jetronic became synonymous with performance and reliability for decades. Understanding its workings is crucial for any enthusiast looking to maintain or restore a classic car equipped with this sophisticated, yet relatively simple, mechanical system.

The Core Components of K-Jetronic

At its heart, K-Jetronic is a purely mechanical system, meaning it doesn't rely on electronic control units (ECUs) to manage fuel delivery. Instead, it uses the physical properties of fuel pressure and airflow to precisely meter the correct amount of fuel to each cylinder. The key components work in harmony to achieve this:

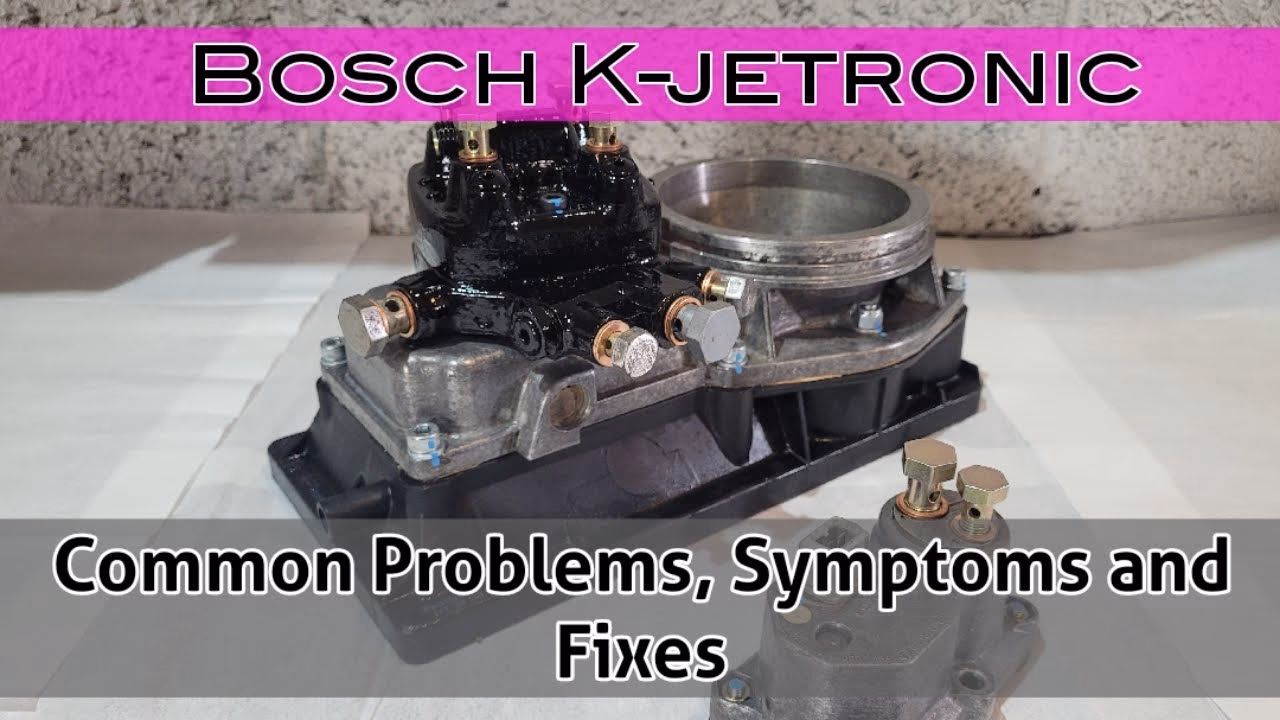

1. Air Flow Meter (AFM) / Air Flow Sensor (AFS)

This is arguably the most distinctive component of the K-Jetronic system. It consists of a housing with a spring-loaded flap or plate that is positioned in the path of incoming air. As the engine draws in air, the flap is pushed open by the airflow. The degree to which the flap opens is directly proportional to the volume of air entering the engine. Attached to this flap is a control pressure regulator (also known as a warm-up regulator) or a fuel distributor, which translates the flap's position into a mechanical signal to adjust fuel flow. The AFM is critical for determining how much fuel is injected, ensuring the correct air-fuel ratio.

2. Fuel Distributor

This component is the central metering device. It receives fuel from the fuel pump and, based on the input from the air flow meter's flap, distributes the correct amount of fuel to each injector. The fuel distributor has several outlets, each connected to an injector. Inside, it features a central plunger or piston that moves up and down in response to the air flow meter's lever. The position of this plunger dictates how much fuel is allowed to pass through to the injectors.

3. Fuel Injectors

Unlike modern electronically controlled injectors, K-Jetronic injectors are typically mechanically operated. They are held closed by spring pressure and open when the fuel pressure from the fuel distributor reaches a certain threshold. When they open, they atomise the fuel and spray it into the intake manifold or directly into the cylinder (depending on the specific application).

4. Fuel Pump

A robust, high-pressure fuel pump is essential to supply the K-Jetronic system with the necessary fuel volume and pressure. These pumps are typically electric and designed to maintain a consistent pressure throughout the system.

5. Fuel Filter

A clean fuel filter is paramount. As mentioned in the provided information, a blocked fuel filter is a common culprit for K-Jetronic system failures. It prevents debris and contaminants from reaching the sensitive metering components, ensuring smooth operation. Older vehicles with steel fuel tanks are particularly prone to rust, which can quickly clog the filter.

6. System Pressure Regulator (SPR) / Pressure Control Valve (PCV)

This valve maintains the correct system operating pressure. It ensures that the fuel distributor receives fuel at a consistent and adequate pressure, allowing for accurate fuel metering.

7. Control Pressure Regulator (CPR) / Warm-Up Regulator (WUR)

This is a crucial, yet sometimes misunderstood, component. The WUR's primary function is to adjust the fuel pressure based on engine temperature. When the engine is cold, it increases the control pressure, enriching the mixture for easier starting and smoother running. As the engine warms up, the WUR reduces the control pressure, leaning out the mixture for optimal performance and emissions. This temperature-dependent pressure adjustment is key to K-Jetronic's drivability.

How K-Jetronic Works: A Step-by-Step

1. Ignition On: The fuel pump activates, pressurising the system. 2. Air Intake: The engine draws air, causing the air flow meter's flap to open. 3. Fuel Metering: The flap's position is mechanically linked to the fuel distributor's plunger. As the flap moves, the plunger adjusts, controlling the amount of fuel that can flow through the distributor. 4. Fuel Distribution: The fuel distributor directs the metered fuel to the appropriate injector. 5. Injection: When the fuel pressure in the distributor reaches the injector's opening pressure, the injector sprays atomised fuel into the intake manifold or cylinder. 6. Mixture Control: The WUR modifies the control pressure within the fuel distributor based on engine temperature, enriching or leaning the mixture as needed.

Troubleshooting Common K-Jetronic Issues

K-Jetronic systems, while robust, can develop faults. Understanding these common problems can save you time and money:

1. Failed Flow Test: What It Means

As highlighted, a failed flow test in a K-Jetronic system typically points to a restriction in the fuel delivery. The most common culprits are:

• Blocked Fuel Filter: This is the primary suspect, especially in older vehicles with potential rust in the fuel tank. A clogged filter starves the system of fuel.
• Weak Fuel Pump: If the pump is not delivering sufficient pressure or volume, the flow test will fail.
• Restricted Fuel Lines: Kinks or blockages in the fuel lines can also impede flow.
• Faulty Fuel Distributor: While less common, internal blockages or damage to the fuel distributor can cause flow issues.

Diagnosis often involves checking fuel pressure, inspecting the fuel filter, and, if necessary, testing the fuel pump. A systematic approach is key.

2. Poor Engine Performance

Symptoms can include rough idling, hesitation, lack of power, or stalling. These can be caused by:

• Vacuum Leaks: Any unmetered air entering the system after the air flow meter will disrupt the air-fuel ratio.
• Faulty WUR: An improperly functioning WUR can lead to a mixture that is too rich or too lean, especially during warm-up.
• Dirty or Clogged Injectors: Uneven fuel spray patterns can cause misfires and performance issues.
• Sticking Air Flow Meter Flap: If the flap is not moving freely, it will send incorrect signals to the fuel distributor.

3. Starting Problems

Difficult starting, especially when cold, can often be traced back to the WUR. If the WUR isn't enriching the mixture sufficiently when cold, the engine will struggle to fire up. Conversely, if it's stuck in the "rich" position, it can cause flooding.

Essential K-Jetronic Maintenance

Regular maintenance is key to ensuring the longevity and optimal performance of your K-Jetronic system:

1. Fuel Filter Replacement

This is arguably the most critical and straightforward maintenance task. Replace the fuel filter at the recommended intervals, or more frequently if you suspect fuel quality issues or have an older vehicle. A clean filter is your first line of defence against system contamination.

2. Air Flow Meter Cleaning and Inspection

The air flow meter flap can become sticky or obstructed by dirt and debris. Gently clean the flap and its housing with a suitable cleaner (avoiding harsh solvents that could damage components). Ensure the flap moves freely without binding. Inspect the AFM for any physical damage.

3. Checking for Vacuum Leaks

Regularly inspect all vacuum hoses and intake manifold gaskets for cracks or loose connections. Even small leaks can significantly impact engine performance and fuel economy.

4. Fuel Pressure Testing

Periodically checking system fuel pressure and control pressure (at various temperatures) is a good diagnostic practice. This requires a specialised fuel pressure gauge set for K-Jetronic systems. Maintaining correct pressures is vital for accurate fuel delivery.

5. Injector Servicing

If you suspect uneven fuel delivery, injectors can be removed and tested. Sometimes, simply cleaning them can restore proper spray patterns.

6. WUR Testing and Adjustment

Testing the WUR's resistance and its ability to regulate pressure based on temperature is more complex and often requires specialised knowledge and equipment. In some cases, WURs can be rebuilt or adjusted, but replacement is often the most reliable solution if they are faulty.

K-Jetronic vs. Modern EFI

While K-Jetronic was a marvel of its time, it's important to contrast it with modern Electronic Fuel Injection (EFI) systems:

Frequently Asked Questions (FAQs)

Q1: Is K-Jetronic a reliable system?

A1: Yes, K-Jetronic is generally very reliable when properly maintained. Its mechanical nature means fewer electronic components to fail, but the mechanical components themselves can wear over time.

Q2: Can K-Jetronic be converted to EFI?

A2: Yes, it is possible to convert a K-Jetronic system to a modern EFI system. This is a complex modification often undertaken by enthusiasts seeking to improve performance, fuel economy, or ease of diagnostics.

Q3: What is the typical fuel pressure for K-Jetronic?

A3: System pressure is typically around 5 bar (72.5 psi), while control pressure varies from around 1.5 bar (21.7 psi) when cold to 3.6 bar (52.2 psi) when hot, depending on the specific application and WUR.

Q4: How do I know if my WUR is failing?

A4: Symptoms of a failing WUR include hard starting (especially when cold), poor idle, rich or lean running conditions, and hesitation. Testing involves checking control pressures at different engine temperatures.

Q5: Where is the fuel filter located on a K-Jetronic system?

A5: The fuel filter is typically located in the fuel line between the fuel pump and the fuel distributor. Its exact location can vary by vehicle model.

Conclusion

The Bosch K-Jetronic system represents a significant chapter in automotive fuel injection history. While it may seem rudimentary compared to today's sophisticated electronic systems, its mechanical ingenuity delivered reliable and efficient performance for millions of vehicles. By understanding its core components, common issues, and essential maintenance practices, owners can ensure their K-Jetronic-equipped classics continue to run beautifully for years to come. Remember, a clean fuel filter and a well-functioning WUR are often the keys to a happy K-Jetronic engine.
