Mastering Bosch L-Jetronic Fuel Injection

In the vast tapestry of automotive engineering, few innovations have had as profound an impact as the shift from carburettors to fuel injection. Among the pioneers of this revolution stands the Bosch L-Jetronic system, an electronic fuel injection (EFI) marvel that brought unprecedented precision and efficiency to internal combustion engines. Introduced in the 1970s, L-Jetronic represented a significant leap forward, moving beyond purely mechanical systems to embrace the burgeoning world of automotive electronics. This system didn't just deliver fuel; it measured, calculated, and meticulously controlled the air-fuel mixture, paving the way for the sophisticated engine management systems we see today. For enthusiasts and mechanics alike, understanding the intricacies of the L-Jetronic is key to appreciating a pivotal moment in vehicle development.

The Dawn of Electronic Control: What is L-Jetronic?

The Bosch L-Jetronic system is an electronic fuel injection system designed to precisely control the amount of fuel delivered to each cylinder of an internal combustion engine. Unlike its mechanical predecessors, L-Jetronic relies on an Electronic Control Unit (ECU) to make critical decisions. The 'L' in L-Jetronic stands for 'Luft,' the German word for air, signifying its primary method of operation: measuring the volume of air drawn into the engine. This air volume measurement is then used as a fundamental input for the ECU to calculate the appropriate amount of fuel required for optimal combustion. This electronic approach allowed for far greater adaptability to varying engine conditions, leading to improved fuel economy, reduced emissions, and enhanced drivability compared to the older carburettor setups.

The Brains of the Operation: The Electronic Control Unit (ECU)

At the heart of the L-Jetronic system is the Electronic Control Unit (ECU). This sophisticated module, often referred to as the 'brain' of the engine, receives signals from various sensors strategically placed around the engine. Its primary function is to interpret these signals and, based on pre-programmed maps and algorithms, determine the precise duration for which the fuel injectors should be opened. The ECU processes information about engine speed, load, temperature, and crucially, the volume of incoming air. It then calculates the ideal fuel pulse width – how long each injector stays open – to achieve the stoichiometric air-fuel ratio (ideally 14.7 parts air to 1 part fuel by mass) for complete combustion. This continuous calculation and adjustment ensure the engine receives the optimal fuel mixture for prevailing conditions, whether it's cold starting, accelerating, or cruising.

Breathing Easy: The Air Flow Meter (AFM)

A cornerstone of the L-Jetronic system, and central to its nomenclature, is the Air Flow Meter (AFM). This component is responsible for measuring the exact volume of air entering the engine's intake manifold. Typically, L-Jetronic systems utilise a 'flap-type' or 'vane-type' AFM. As air is drawn into the engine, it pushes against a spring-loaded flap (or vane) inside the AFM housing. The degree to which this flap is deflected is directly proportional to the volume of air flowing past it. A potentiometer connected to the flap's pivot translates this mechanical movement into an electrical voltage signal, which is then sent to the ECU. The greater the air volume, the more the flap opens, and the higher the voltage signal. This precise measurement allows the ECU to accurately determine the engine's air intake, which is critical for calculating the correct fuel delivery.

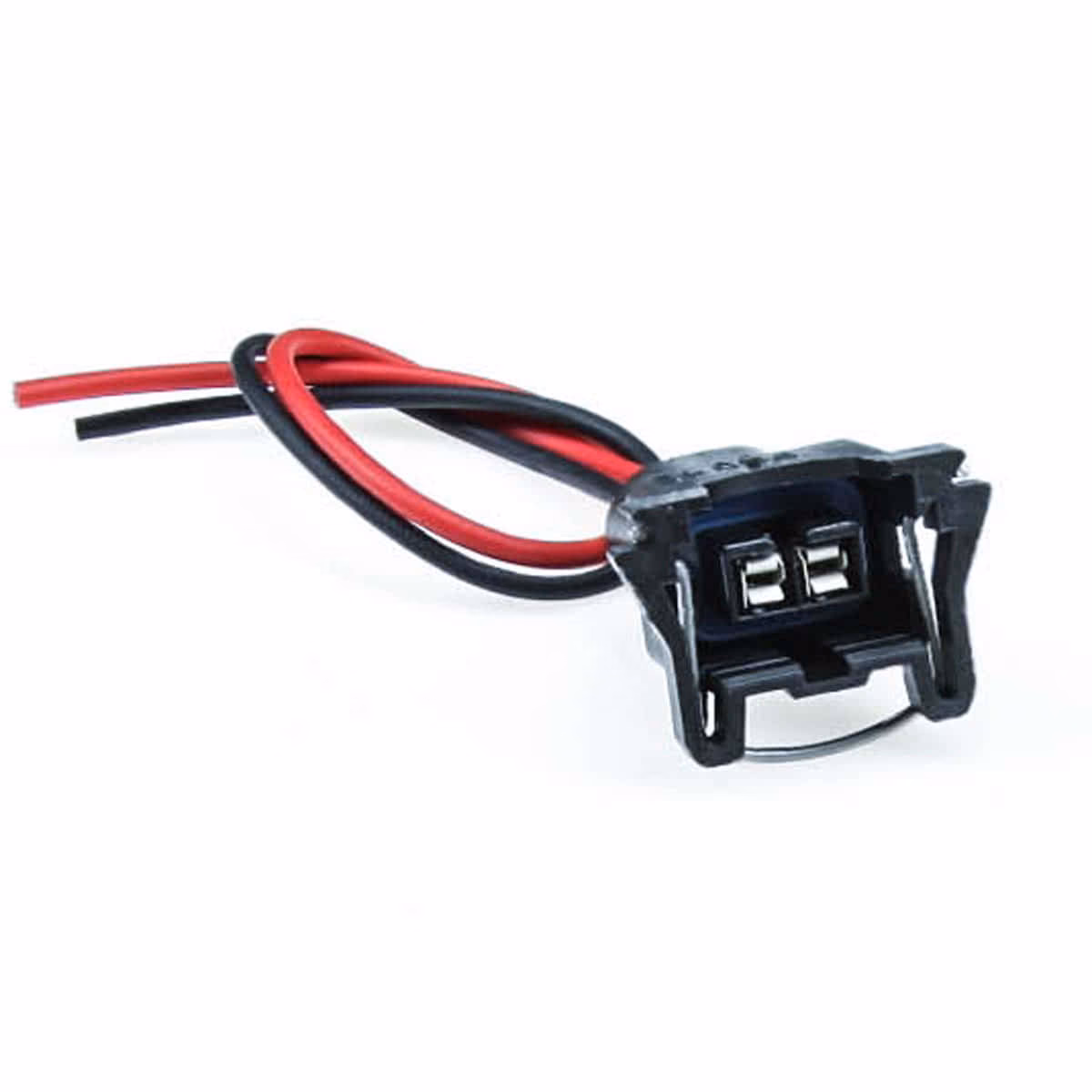

Precision Delivery: The Fuel Injectors

One of the key advancements of L-Jetronic was its approach to fuel delivery: each cylinder has its own independent fuel injector. Unlike earlier systems that might have a single point of injection, L-Jetronic's multi-point injection ensures that fuel is delivered directly into the intake manifold runner just before the intake valve of each cylinder. These are solenoid-operated valves that, when energised by a signal from the ECU, open to spray a fine mist of fuel into the air stream. The duration of this opening, known as the 'pulse width,' is precisely controlled by the ECU. Short pulses deliver less fuel, while longer pulses deliver more. This individualised and pulsed injection allows for much finer control over fuel delivery, leading to better atomisation, more even fuel distribution among cylinders, and consequently, improved combustion efficiency and reduced emissions.

Fuel Supply System: Pump and Pressure Regulator

For the injectors to function correctly, a consistent supply of fuel at a precise pressure is essential. The L-Jetronic system incorporates an electric fuel pump, typically located in or near the fuel tank, which delivers fuel under high pressure to the fuel rail. Connected to the fuel rail is a fuel pressure regulator. This device maintains a constant pressure differential between the fuel in the rail and the manifold vacuum (or atmospheric pressure for some designs). Any excess fuel not used by the injectors is returned to the fuel tank via a return line. This closed-loop fuel supply system ensures that the injectors always receive fuel at the correct pressure, regardless of engine speed or load, which is crucial for accurate fuel metering.

Adapting to Conditions: Key Sensors

Beyond the AFM, the ECU relies on a network of sensors to gather vital information about the engine's operating conditions:

• Throttle Position Sensor (TPS): Mounted on the throttle body, the TPS monitors the position of the throttle butterfly valve. This tells the ECU about the driver's demand for power (acceleration, deceleration, idle). For instance, a rapid opening of the throttle signals the need for immediate fuel enrichment.
• Engine Coolant Temperature (ECT) Sensor: This sensor measures the temperature of the engine coolant. Cold engines require a richer air-fuel mixture to start and run smoothly, as fuel atomises less effectively in cold conditions. The ECU uses this input to provide additional fuel enrichment during cold starts and warm-up phases.
• Intake Air Temperature (IAT) Sensor: Located in the intake manifold or air cleaner housing, the IAT sensor measures the temperature of the incoming air. Denser, colder air requires more fuel for the same volume, while warmer, less dense air requires less. This sensor helps the ECU compensate for changes in air density.
• Lambda Sensor (Oxygen Sensor): While not present on all early L-Jetronic systems, later iterations and those designed for stricter emissions regulations often incorporated a Lambda Sensor (also known as an oxygen sensor). Located in the exhaust system, this sensor measures the oxygen content in the exhaust gases. This information provides feedback to the ECU, allowing it to fine-tune the air-fuel mixture in a 'closed-loop' system, striving for the ideal stoichiometric ratio and ensuring optimal catalytic converter efficiency.

Cold Start and Warm-Up: The Auxiliary Air Valve (AAV)

One of the challenges for any fuel system is providing stable operation during cold starts and warm-up. The L-Jetronic system addresses this with an additional air slide-valve, commonly known as the Auxiliary Air Valve (AAV) or idle air control valve. This valve bypasses the main throttle butterfly stub pipe, allowing an additional volume of air to enter the engine when it is cold. When the engine is cold, the AAV is open, increasing the idle speed to compensate for increased friction, higher viscosity oil, and poor fuel atomisation. As the engine warms up, the AAV gradually closes, often controlled by a bimetallic strip heated by engine coolant or an electrical element. This controlled reduction in bypass air ensures a smooth transition to normal idle speed as the engine reaches its operating temperature, preventing stalling and maintaining a consistent idle quality.

How L-Jetronic Works: A Step-by-Step Flow

Understanding the L-Jetronic system is best achieved by following the flow of air and information:

1. Air Intake and Measurement: Air is drawn into the engine through the air filter and then passes through the Air Flow Meter (AFM). The AFM measures the volume of incoming air and sends a corresponding voltage signal to the ECU.
2. Sensor Inputs: Simultaneously, other sensors – the Engine Coolant Temperature (ECT) sensor, Intake Air Temperature (IAT) sensor, Throttle Position Sensor (TPS), and potentially the Lambda Sensor – send their respective signals to the ECU, providing crucial data about engine conditions and driver demand.
3. ECU Calculation: The ECU receives all these inputs. Using its pre-programmed fuel maps and algorithms, it calculates the precise amount of fuel required for each combustion cycle. This calculation determines the 'pulse width' for the injectors. For cold starts, the Auxiliary Air Valve (AAV) also allows extra air, and the ECU provides additional fuel enrichment based on ECT sensor input.
4. Pulsed Fuel Injection: The ECU sends electrical pulses to the individual fuel injectors for each cylinder. The injectors open for the calculated duration, spraying a fine mist of fuel into the intake runners, where it mixes with the air.
5. Combustion: The air-fuel mixture enters the combustion chambers, is compressed, and ignited by the spark plugs.
6. Feedback Loop (if applicable): If a Lambda Sensor is present, it monitors the oxygen content in the exhaust gases. This feedback is sent back to the ECU, allowing it to make real-time, fine adjustments to the fuel pulse width, ensuring the air-fuel ratio remains as close to ideal as possible for optimal emissions and performance.

Advantages of L-Jetronic

The introduction of L-Jetronic brought numerous benefits to the automotive world:

• Improved Fuel Economy: Precise fuel metering reduced waste compared to carburettors.
• Better Emissions Control: More accurate air-fuel ratios allowed for more effective catalytic converter operation and reduced harmful exhaust gases.
• Smoother Idle and Throttle Response: Electronic control provided consistent and immediate adjustments to fuel delivery.
• Consistent Performance: The system compensated for changes in temperature, altitude, and load, maintaining optimal engine operation across varying conditions.
• Enhanced Drivability: Easier cold starting and smoother acceleration compared to older systems.

Common Issues and Troubleshooting

While robust, L-Jetronic systems can develop issues over time, often due to the age of components:

• Air Flow Meter (AFM) Wear: The potentiometer track or the flap mechanism itself can wear, leading to erratic voltage signals and poor running.
• Injector Clogging/Failure: Fuel residue can clog injectors, causing misfires or poor spray patterns. Electrical failures can also occur.
• Sensor Malfunctions: Faulty ECT, IAT, TPS, or Lambda sensors can send incorrect signals to the ECU, leading to incorrect fuel calculations.
• Wiring Issues: Deteriorated or corroded wiring harnesses can cause intermittent signals or complete system failure.
• Fuel Pump/Regulator Problems: A weak fuel pump or a faulty pressure regulator can lead to insufficient fuel pressure, causing lean running.
• Auxiliary Air Valve (AAV) Sticking: If the AAV sticks open or closed, it can lead to high idle (when hot) or stalling (when cold).

Troubleshooting often involves checking sensor resistances, voltage outputs, and fuel pressure, alongside visual inspection of wiring and vacuum lines.

L-Jetronic vs. K-Jetronic: A Comparative Look

It's common to confuse Bosch's L-Jetronic with its contemporary, the K-Jetronic system. While both were fuel injection systems, their fundamental operating principles differed significantly:

Frequently Asked Questions (FAQs)

Can I upgrade my L-Jetronic system to a more modern EFI?

While technically possible to convert to a more modern, fully programmable EFI system, it's a significant undertaking. Many classic car owners prefer to maintain the original L-Jetronic for authenticity, reliability, and the challenge of keeping period-correct systems running. Parts availability can be a factor, but many components are still available or can be refurbished.

What are the common signs of a faulty L-Jetronic system?

Symptoms often include rough idle, stalling, poor fuel economy, lack of power, hesitation during acceleration, difficult cold starts, or excessive exhaust emissions. These signs often point to a sensor failure, a faulty AFM, or clogged/leaking injectors.

Is L-Jetronic still relevant today?

Absolutely. While superseded by more advanced systems like Motronic, L-Jetronic remains relevant for countless classic cars from the 1970s and 80s. Understanding and maintaining these systems is crucial for preserving automotive heritage and keeping these cherished vehicles on the road.

How often should L-Jetronic components be serviced?

There isn't a strict service interval for the entire system, but regular maintenance is key. Fuel filters should be replaced periodically (every 1-2 years or 20,000 miles). Injectors can benefit from cleaning every few years. Air filters should be checked regularly. Inspecting vacuum lines and electrical connections for cracks or corrosion is also good practice.

Maintaining Your L-Jetronic System

Keeping an L-Jetronic system in top condition requires attention to a few key areas. Firstly, maintaining a clean fuel system is paramount. Regular replacement of the fuel filter prevents contaminants from reaching and clogging the delicate injectors. Using high-quality fuel can also help mitigate fuel system issues. Secondly, regular inspection of all vacuum lines and hoses is crucial; even small leaks can significantly disrupt the air-fuel mixture, as the system relies heavily on accurate air measurement. Thirdly, electrical connections should be kept clean and corrosion-free, as sensor signals are critical for the ECU's calculations. Finally, paying attention to the engine's behaviour and addressing any symptoms promptly can prevent minor issues from escalating into major repairs. A well-maintained L-Jetronic system is remarkably reliable and can provide many years of faithful service.

Conclusion

The Bosch L-Jetronic fuel injection system stands as a landmark in automotive engineering. It bridged the gap between rudimentary carburettors and the complex, microprocessor-driven systems of today. By introducing electronic control and precise air volume measurement, L-Jetronic revolutionised how engines were fuelled, leading to significant advancements in performance, efficiency, and emissions control. For many classic cars, it remains the heart of their powertrain, a testament to its robust design and innovative principles. Understanding its operation, from the precise measurement of air by the Air Flow Meter to the meticulous control exerted by the Electronic Control Unit over each independent Fuel Injector, provides invaluable insight into the evolution of the motor car. The L-Jetronic system is more than just a collection of parts; it's a pivotal chapter in the ongoing story of making vehicles run cleaner, smoother, and more efficiently.
