Decoding Bosch Part & Repair IDs: Your Essential Guide

In the intricate world of automotive maintenance and repair, precision is paramount. Every component, no matter how small, plays a vital role in your vehicle's performance and reliability. When it comes to critical systems like fuel injection, Bosch stands as a global leader, supplying parts that are integral to millions of vehicles worldwide. However, navigating the myriad of Bosch components can often feel like deciphering a secret code, particularly when confronted with their extensive system of part numbers and repair IDs. Understanding these identifiers is not just for professional mechanics; it's a fundamental skill for anyone serious about maintaining their vehicle correctly, ensuring compatibility, and avoiding costly errors.

This comprehensive guide aims to demystify Bosch's identification systems, providing you with the knowledge needed to confidently identify, source, and understand the crucial components that keep your engine running smoothly. From the traditional 10-digit part numbers to the more complex common rail repair IDs, we'll break down everything you need to know to make informed decisions about your vehicle's Bosch-supplied parts.

Understanding Bosch Part Numbers: The Foundation of Identification

The automotive industry is constantly evolving, and with it, the systems used to identify parts. Bosch, a cornerstone of automotive technology, has developed a robust numbering system to categorise its vast range of components. Traditionally, a standard Bosch part number is a 10-digit sequence, typically commencing with "04". This format has been a long-standing standard, signifying a brand-new, original equipment part supplied directly by Bosch.

However, the landscape isn't entirely uniform. As technology advances and supply chains diversify, Bosch has introduced variations to accommodate different product types and origins. For instance, if you encounter a Bosch part number that begins with "09", it indicates that the component is a Bosch factory remanufactured part. These parts undergo a rigorous refurbishment process, often to the same stringent standards as new components, offering a cost-effective yet reliable alternative. Furthermore, for later model common rail components, you might see part numbers starting with "F0". These prefixes are crucial indicators of the part's nature and origin, providing immediate insight into what you're dealing with.

Where to Locate Bosch Part Numbers

Finding the correct Bosch part number on a component is essential for accurate identification and replacement. Bosch typically places these numbers directly on the component itself, ensuring they are accessible for technicians and enthusiasts alike. You'll usually find them in one of three primary locations:

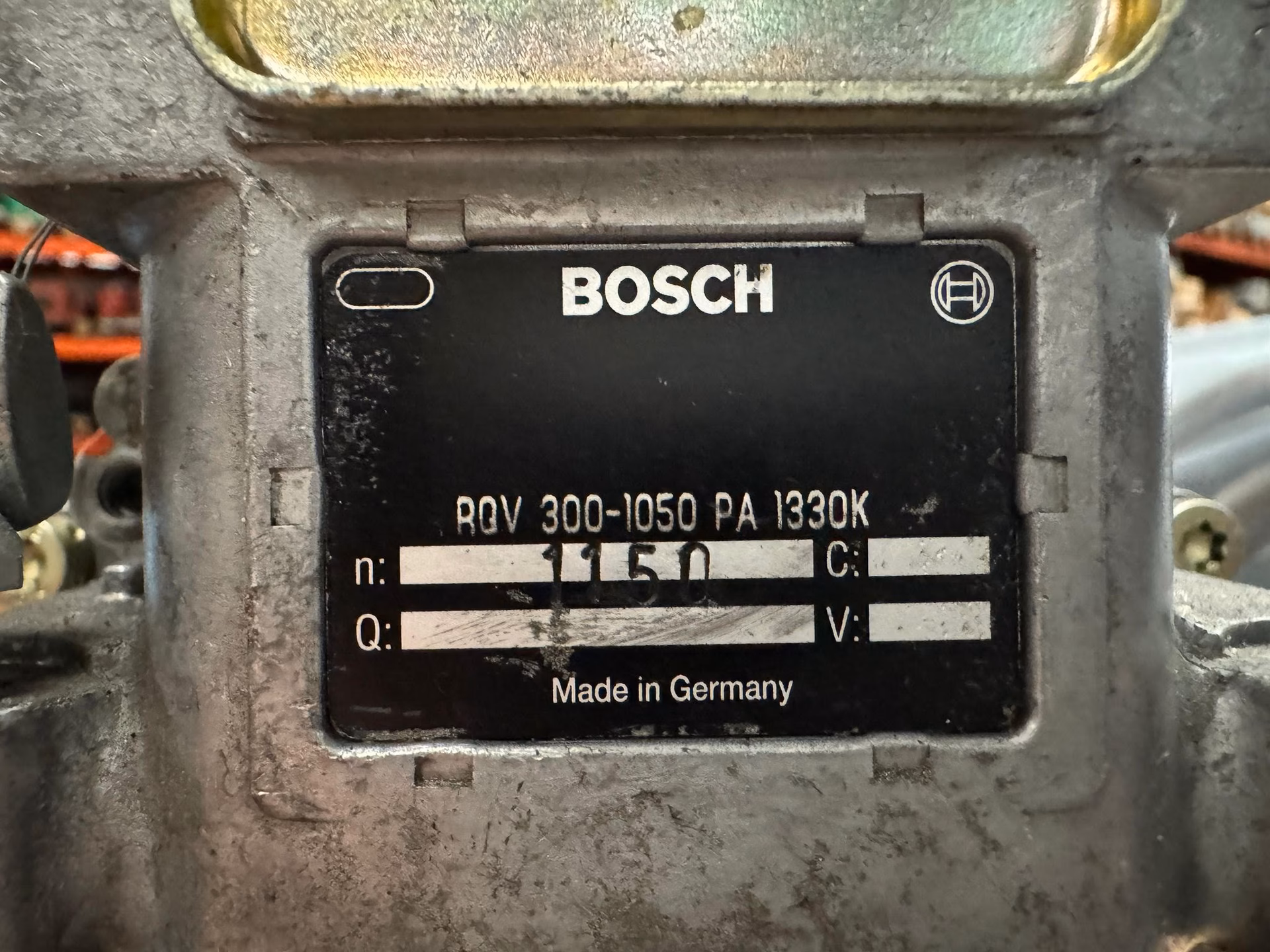

• On a Parts ID Tag: Many larger components, especially pumps and some injectors, will have a small metal or plastic tag riveted directly to the housing. This tag will clearly display the Bosch part number, along with other relevant manufacturing information.
• On a Parts Sticker: Smaller components or those with less space for a riveted tag might feature a durable sticker. These stickers are designed to withstand the harsh automotive environment and contain the necessary identification numbers.
• Printed onto the Plastic Moulding: For components with plastic housings or covers, the part number may be directly moulded or printed onto the plastic itself. This method is common for sensors, connectors, and certain electronic modules.

Always ensure the area is clean and well-lit when searching for these numbers, as they can sometimes be obscured by grime or wear.

OEM vs. Aftermarket: The Dual Part Number Phenomenon

One aspect that can often cause confusion, particularly with common rail components such as fuel injectors, high-pressure pumps, and rail assemblies, is the existence of two distinct Bosch part numbers for what appears to be the same component. This phenomenon arises from the different supply channels Bosch uses:

1. OEM (Original Equipment Manufacturer) Supply: Bosch manufactures and supplies components directly to vehicle manufacturers (OEMs) for installation in new vehicles on the production line. These parts will carry a specific Bosch part number designated for the OEM.
2. Aftermarket Network Supply: Bosch also supplies components to its global aftermarket network for service and repair purposes. These parts, while functionally identical and manufactured to the same exacting standards, often carry a slightly different Bosch part number.

This distinction, while seemingly minor, is crucial when sourcing replacement parts. While both parts are genuine Bosch, the difference in numbering helps Bosch manage its supply chain and warranty processes. It's not uncommon for a vehicle manufacturer to also assign their own unique part number to a Bosch component, further adding to the complexity. Always cross-reference thoroughly.

Comparative Table: Bosch OEM vs. Aftermarket Part Numbers

As seen in the Nissan Patrol example, sometimes the OEM and Aftermarket Bosch part numbers can be identical, simplifying the process. However, the Holden Captiva example clearly demonstrates the potential for variation, highlighting the importance of careful checking.

Diving into Bosch Repair IDs: Beyond the Basic Part Number

While Bosch part numbers identify the type of component, Bosch Repair IDs delve deeper, providing granular detail crucial for diagnostics, calibration, and precise servicing of common rail systems. These IDs are particularly relevant for common rail injectors (CRI/CRIN) and high-pressure pumps (CP), as they contain specific information about the component's unique characteristics and manufacturing data.

What is a Bosch Repair ID and Where to Find It?

A Bosch Repair ID is a collection of specific numbers and codes that provide detailed information about an individual common rail component. This information is vital for ensuring correct calibration and optimal engine performance, especially after repair or replacement. For common rail injectors (CRI/CRIN), this information is typically located on a plastic collar at the top end of the injector. For common rail pumps (CP), you'll usually find it on the type label affixed to the pump body.

The Repair ID typically comprises three key pieces of information:

1. Type-Part Number: This is a 10-digit number, often starting with "0 445", similar to the general Bosch part numbers but specifically identifying the type of common rail injector or pump. Note that some CRIN injectors may not always display these numbers directly on the collar.
2. Date of Production: This indicates when the component was manufactured. It's usually a 5 or 6-digit number, sometimes hyphenated, representing the year, month, and possibly day of production. This is crucial for tracking service life and warranty.
3. Serial Number: A unique identifier for that specific component, typically a 4-digit number. This ensures individual traceability and helps in identifying any particular unit within a production batch.

While this description applies to most Bosch injection components, it's worth noting that the presentation of this information can vary slightly across different models and production runs. Always refer to official Bosch documentation or professional diagnostic software for the most accurate interpretation.

Detailed Breakdown of Common Rail Components

Bosch Common-Rail Injectors (CRI/CRIN)

These are highly sophisticated components requiring precise identification for proper function. The plastic collar on top of the injector is your primary source of information.

• CRI 0 445 110 xxx series:
  • IMA code of the injection valve: A critical code that represents the injector's individual flow characteristics. This code is essential for engine control unit (ECU) calibration to ensure accurate fuel delivery.
  • Type-part number: The 10-digit number identifying the specific injector type (e.g., 0 445 110 xxx).
  • Serial number: The unique 4-digit identifier for that specific injector.
• CRIN 0 445 120 xxx series:
  • IMA code of the injection valve: Again, crucial for ECU calibration.
  • Type-part number: The 10-digit number identifying the specific CRIN type (e.g., 0 445 120 xxx).
  • Serial number: The unique 4-digit identifier for that specific CRIN.

Bosch Common-Rail Pumps (CP)

High-pressure pumps are the heart of the common rail system, and their identification is equally vital.

• CP1H 0 445 010 xxx series:
  • Bosch type designation: A specific code identifying the pump variant.
  • Type-part number: The 10-digit number for the pump (e.g., 0 445 010 xxx).
• CP1K 0 445 010 xxx series:
  • Bosch type designation: Specific code for this pump variant.
  • Type-part number: The 10-digit number for the pump (e.g., 0 445 010 xxx).
• CP1S 0 445 010 xxx series:
  • Type-part number: The 10-digit number for the pump.
  • Sense of rotation (L = left, R = right): Indicates the direction the pump shaft rotates, critical for correct installation.
  • Pump type (S = Standard, K = compact): Identifies the physical configuration of the pump.
  • Engine cylinders: Indicates the number of cylinders the pump is designed to serve.
  • Bosch type designation: Specific code for this pump variant.
• CP3 0 445 010 xxx series: These pumps also carry similar identification information, though the specific breakdown might vary.

The precision encoded within these repair IDs is what allows modern common rail systems to operate with such efficiency and low emissions. Any mismatch or incorrect entry of these codes into the ECU can lead to severe running issues, reduced performance, and even engine damage.

The Crucial Role of These Identifiers in Automotive Maintenance

Understanding and correctly interpreting Bosch part numbers and repair IDs goes far beyond mere academic interest; it has profound practical implications for anyone involved in vehicle maintenance. These identifiers are the keys to ensuring the longevity, performance, and safety of your vehicle.

Accuracy in Sourcing: Avoiding Costly Mistakes

The most immediate benefit of accurate identification is the ability to source the correct replacement part. Modern vehicles are incredibly complex, with manufacturers often using multiple variants of seemingly similar components across different models or even within the same model year. A difference of just one digit in a part number can mean the difference between a perfectly fitting, functional component and one that is entirely incompatible. Installing an incorrect part can lead to:

• Performance issues: The engine might run poorly, suffer from reduced power, or experience increased fuel consumption.
• Further damage: An incompatible part can put undue stress on other engine components, leading to a cascade of failures.
• Wasted time and money: Sourcing and installing the wrong part means paying for a component you can't use and spending extra labour hours on re-diagnosis and re-installation.

By meticulously checking Bosch part numbers, you ensure that the component you purchase is precisely what your vehicle requires.

Ensuring Compatibility and Optimal Performance

Beyond physical fitment, part numbers and repair IDs guarantee functional compatibility. For instance, an injector's IMA code is not just a random string of characters; it's a calibration value that tells the engine control unit (ECU) exactly how that specific injector sprays fuel. If an injector with an incorrect or uncalibrated IMA code is installed, the ECU will not be able to precisely control fuel delivery, leading to:

• Uneven combustion.
• Increased emissions.
• Rough idling or stuttering.
• Reduced engine power.
• Potential for long-term engine damage due to incorrect air-fuel mixtures.

The correct identification ensures that all components work harmoniously, maintaining the vehicle's original design specifications and delivering optimal performance.

Facilitating Diagnostics and Repairs

When a fault occurs, technicians rely heavily on part numbers and repair IDs for accurate diagnostics. These numbers can help:

• Identify known issues: Specific batches of parts might have known vulnerabilities, and the serial number can pinpoint if a component falls within an affected range.
• Track service history: If a component has been previously replaced or serviced, its unique identifiers can provide a historical record.
• Access specific repair procedures: Diagnostic software often uses part numbers to pull up exact wiring diagrams, test values, and repair instructions for that specific component.

Without this information, diagnostics become a much more difficult, time-consuming, and potentially error-prone process.

Maintaining Vehicle Longevity and Safety

Ultimately, the careful use of Bosch identifiers contributes significantly to your vehicle's overall longevity and safety. Using genuine, correctly identified Bosch parts ensures that your vehicle continues to operate as intended by the manufacturer. This prevents premature wear, reduces the risk of breakdowns, and maintains critical safety systems. Compromising on part identification can lead to unreliable vehicle operation, which in turn can pose safety risks on the road.

Practical Tips for Locating and Verifying Bosch Numbers

While the concept of Bosch part and repair IDs might seem straightforward, the practical application often presents challenges. Here are some tips to help you accurately locate and verify these crucial numbers:

• Clean the Component Thoroughly: Before attempting to read any numbers, ensure the component surface is free from dirt, oil, and grime. A clean rag and appropriate degreaser can make a world of difference.
• Use Adequate Lighting: Numbers can be stamped, etched, or printed in small fonts. Use a bright torch or headlamp to illuminate the area, and consider a magnifying glass if the print is particularly small or worn.
• Take Photos: Modern smartphone cameras are excellent tools. Take clear, well-lit photos of the numbers from multiple angles. This provides a digital record and allows you to zoom in without having to constantly peer at the component.
• Double-Check Everything: Never assume. Always verify every digit and letter of the part number and any associated repair IDs. A single digit error can lead to ordering the wrong part.
• Consult Vehicle Documentation: Your vehicle's service manual or parts catalogue might list the original Bosch part numbers for key components. While these are useful, always try to verify against the actual component if possible, especially if parts might have been replaced previously.
• Use Professional Resources: Automotive workshops often have access to manufacturer-specific parts catalogues and diagnostic software (like Bosch's own professional tools). These resources are invaluable for cross-referencing and confirming part numbers. If you're unsure, consulting a qualified mechanic with access to these tools is always the safest bet.
• Be Wary of "Universal" Parts: While some components might claim to be universal, critical Bosch parts, especially in fuel injection systems, are highly specific. Always prioritise parts that match your vehicle's exact Bosch part numbers.

Frequently Asked Questions About Bosch Identifiers

Q1: My Bosch part number doesn't start with "04", "09" or "F0". What could it be?

While "04", "09", and "F0" are common prefixes for core Bosch automotive parts, Bosch manufactures a vast array of products. The number you're seeing might belong to a different product line (e.g., electrical components, braking systems, or non-automotive industrial parts) which follow different numbering conventions. It could also be an internal Bosch production code rather than a customer-facing part number. In such cases, it's best to consult a Bosch parts catalogue or a professional mechanic with access to comprehensive databases.

Q2: Can I use an OEM part number if I only have the aftermarket one, or vice-versa?

In many cases, yes. As discussed, the OEM and aftermarket Bosch part numbers often refer to functionally identical components, with the difference primarily being for supply chain management. However, it's crucial to verify. If the part numbers are different, it's highly recommended to consult a Bosch parts specialist or a professional mechanic who can cross-reference the numbers accurately to confirm interchangeability. While the core component is the same, there might be minor kit differences (e.g., seals, washers) included with one but not the other.

Q3: What is an IMA code on a common rail injector and why is it important?

IMA stands for "Injector Minimum Amount" or "Individual Measuring Adjustment". It's a unique alpha-numeric code generated during the manufacturing and testing of each common rail injector. This code represents the injector's specific flow characteristics and any tiny deviations from the ideal. When a new or reconditioned injector is installed, its IMA code must be entered into the vehicle's engine control unit (ECU). The ECU then uses this code to precisely adjust the fuel injection timing and quantity for that specific injector, ensuring optimal combustion, smooth engine running, and correct emissions. Failing to enter or entering an incorrect IMA code can lead to rough idling, poor performance, increased fuel consumption, and diagnostic trouble codes.

Q4: Why is the date of production important for a Bosch repair ID?

The date of production provides valuable information for several reasons. Firstly, it helps in tracking the age and potential service life of a component. Secondly, it can be crucial for warranty claims, establishing when the part was manufactured. Thirdly, in rare instances where a specific production batch might have a known issue or recall, the production date allows for easy identification of affected components. It's an important piece of information for comprehensive vehicle history and maintenance.

Q5: I can't find any numbers on my Bosch component, what should I do?

If you've thoroughly cleaned the component and used good lighting but still can't find any discernible numbers, there are a few possibilities. The numbers might be severely worn off, located in a less obvious spot, or perhaps the component isn't a Bosch-branded part, or is part of a larger assembly. In this situation, your best course of action is to consult a professional mechanic. They have access to specialised parts catalogues, diagnostic tools, and experience that can help identify the component based on its physical characteristics, application, or by cross-referencing with your vehicle's VIN (Vehicle Identification Number).

Conclusion

Navigating the world of Bosch part numbers and repair IDs might initially seem daunting, but with a clear understanding of their structure, location, and significance, it becomes a powerful tool in your automotive arsenal. These identifiers are much more than mere sequences of digits; they are the blueprint for your vehicle's critical systems, ensuring that every component functions in perfect harmony. By taking the time to accurately identify and verify Bosch parts, you are investing in the authenticity, performance, and long-term health of your vehicle. Whether you're a seasoned mechanic or a dedicated DIY enthusiast, mastering these identification systems is a fundamental step towards precise maintenance and confident repairs.
