Bosch CP3 Fuel Pump Seal Kit Explained

The Bosch CP3 fuel pump is a cornerstone of modern diesel engine technology, renowned for its robust design and ability to deliver fuel at incredibly high pressures. However, like any precision mechanical component, it is susceptible to wear and tear over time. A common point of failure within these high-performance pumps lies in their internal seals, gaskets, and O-rings. When these vital components degrade, it can lead to a cascade of issues, ranging from minor fuel leaks to more significant performance problems, and crucially, an MOT failure. This is where a comprehensive Bosch CP3 fuel pump seal kit becomes an indispensable item for any diligent vehicle owner or mechanic.

Understanding the Bosch CP3 Fuel Pump

Before delving into the specifics of seal kits, it's important to appreciate the role of the CP3 pump. This is a high-pressure, three-piston axial pump, typically driven by the engine's camshaft or timing belt. Its primary function is to draw fuel from the tank and pressurise it to levels required by the common rail system, often exceeding 1600 bar (23,200 psi). This extreme pressure is necessary for efficient atomisation of fuel into the combustion chamber, leading to better performance, fuel economy, and reduced emissions. The precision engineering required to maintain these pressures means that even the slightest compromise in sealing integrity can have serious repercussions.

Why Do CP3 Pump Seals Fail?

Several factors contribute to the deterioration of seals within a Bosch CP3 fuel pump:

• Age and Mileage: Like all rubber and synthetic materials, seals degrade over time due to exposure to heat, pressure, and the constant flow of diesel fuel. As a vehicle accumulates mileage, the seals naturally become less pliable and more prone to cracking or collapsing.
• Fuel Quality: The quality of diesel fuel can significantly impact the longevity of seals. Fuels with high sulphur content (though less common now due to regulations) or those containing contaminants can accelerate the degradation process. Water in the fuel, often due to condensation in the tank, is also a major enemy of seals and internal pump components.
• Heat Soak: Diesel pumps, especially those located near the engine, are subjected to significant heat. Prolonged idling or driving in hot conditions can lead to heat soak, which can harden and embritture seals over time.
• Contamination: Ingress of dirt, debris, or metallic particles into the fuel system can cause abrasion and damage to the delicate internal surfaces of the pump and the seals themselves.
• High Operating Pressures: The very nature of the CP3 pump's operation at extreme pressures puts constant stress on its sealing elements.

Symptoms of Failing CP3 Pump Seals

Recognising the signs of failing seals is crucial for timely intervention. Common symptoms include:

• Fuel Leaks: This is the most obvious and critical symptom. Leaks may appear around the pump housing, drive shaft seal, or banjo bolt connections. Leaking fuel is not only a fire hazard but also a guaranteed MOT failure.
• Difficulty Starting: If seals have failed to the extent that the pump cannot maintain pressure when the engine is off, it can lead to hard starting, particularly when the engine is cold.
• Engine Stalling or Cutting Out: A loss of fuel pressure due to seal failure can cause the engine to stall unexpectedly, often at idle or under load.
• Loss of Power: Inadequate fuel delivery due to internal leaks can manifest as a noticeable reduction in engine power and acceleration.
• Rough Idling or Misfiring: Inconsistent fuel pressure can lead to uneven combustion, resulting in a rough idle or misfires.
• Fuel in the Oil: In some cases, a failure in the drive shaft seal can allow fuel to leak into the engine's lubrication system, which is extremely detrimental and can lead to catastrophic engine damage.

The Bosch CP3 Fuel Pump Seal Kit: A Comprehensive Solution

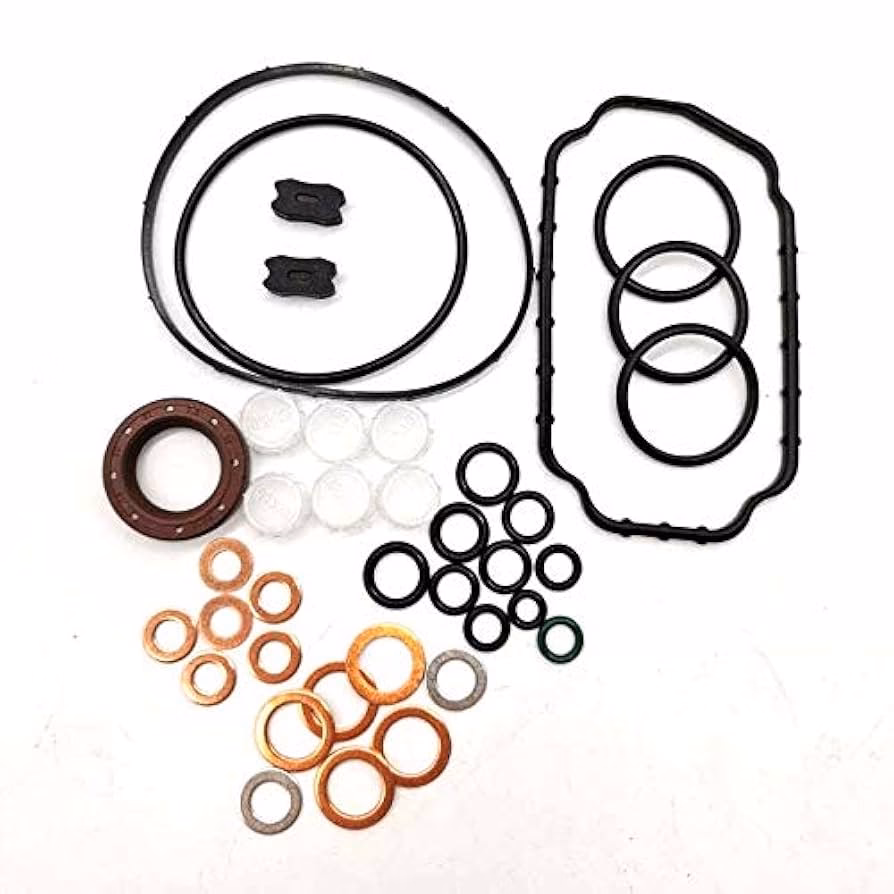

A quality Bosch CP3 fuel pump seal kit is designed to address the common failure points within the pump. These kits typically contain a range of seals, gaskets, and O-rings, often including:

• Drive Shaft Seals: These are critical for preventing leaks from the point where the pump's drive shaft enters the housing.
• Transfer Pump Seals: The transfer pump section within the CP3 also relies on seals to maintain its internal pressures.
• Delivery Valve Seals: These seals ensure tight closure of the delivery valves, preventing backflow and maintaining rail pressure.
• Pressure Regulator Seals: The fuel pressure regulator also utilises seals to maintain its functionality.
• Cover Gaskets and O-rings: Various other seals are used for the pump's internal and external housings.

The advantage of a comprehensive kit is that it provides all the necessary seals, even if you are unsure of the exact pump variant or the specific seal that has failed. This is particularly useful for mechanics or DIY enthusiasts who may not have the detailed diagnostic equipment to pinpoint the exact failed seal. While these kits might contain more parts than strictly necessary for a specific repair, they offer peace of mind and the assurance that the correct replacement part is available.

Why Choose a Seal Kit Over a New Pump?

Replacing a Bosch CP3 fuel pump can be an expensive undertaking. These pumps are precision-engineered units and can cost hundreds, if not thousands, of pounds. A seal kit, on the other hand, represents a significantly more cost-effective solution. By replacing only the worn or degraded seals, you can restore the pump's functionality and eliminate leaks for a fraction of the cost of a complete pump replacement. This makes a seal kit a smart and economical choice for extending the life of your existing fuel system.

Installation Considerations

While a seal kit offers a cost-effective repair, it's important to note that replacing seals within a high-pressure fuel pump is a task that requires precision, cleanliness, and a good understanding of mechanical systems. The internal components of a CP3 pump are extremely sensitive to contamination. Therefore, it is essential to:

• Work in a clean environment: Ensure your workspace and tools are free from dirt and debris.
• Handle components with care: Avoid dropping or damaging any internal parts.
• Lubricate new seals: Use a suitable lubricant (often diesel fuel itself) to ease the installation of new seals and prevent them from being damaged during fitting.
• Follow manufacturer specifications: Adhere to torque settings and assembly procedures recommended by Bosch or the vehicle manufacturer.
• Consider professional help: If you are not confident in your mechanical abilities, it is advisable to entrust this job to a qualified diesel mechanic. Improper installation can lead to further damage or premature failure.

Compatibility: The Importance of the Pump Number

Bosch manufactures a vast number of CP3 pump variants, each with specific part numbers. The provided list includes a wide array of these numbers, such as 0445010012, 0445020049, and many others. While a comprehensive kit aims to cover most bases, it's always best practice to identify the specific part number on your existing fuel pump. This ensures you are purchasing the correct kit, or if opting for a more specific, cheaper kit, that it precisely matches your pump. The part number is usually stamped directly onto the pump's housing.

Comparison: Comprehensive vs. Specific Kits

As mentioned, comprehensive kits contain a wider array of seals. Here's a brief comparison:

Frequently Asked Questions (FAQs)

Q1: How do I find the part number on my Bosch CP3 pump?
The Bosch part number is typically stamped directly onto the metal housing of the fuel pump. It often starts with "0445" or "0986" followed by a series of digits.

Q2: Can I replace the seals myself?
While it's possible for experienced DIY mechanics, working on high-pressure fuel systems requires extreme cleanliness and precision. If you are not confident, it's best to seek professional assistance to avoid further damage.

Q3: What are the main consequences of a leaking CP3 pump?
The primary risks are a significant fire hazard due to leaking fuel, a guaranteed MOT failure, and potential engine damage if the leak leads to fuel starvation or contamination of the engine oil.

Q4: Will a seal kit fix all CP3 pump problems?
A seal kit is designed to fix leaks caused by degraded seals. It will not rectify issues related to internal wear of the pump's pistons, plungers, or bearings, which would require a pump rebuild or replacement.

Q5: How long should a new seal last?
With proper installation and good quality fuel, new seals should provide reliable service for many thousands of miles, often restoring the pump to its original operational integrity.

Conclusion

The Bosch CP3 fuel pump is a vital and high-performance component. When its seals begin to fail, it presents a clear danger and a significant inconvenience, often leading to costly repairs or an inability to pass the MOT. A Bosch CP3 fuel pump seal kit offers a practical, cost-effective, and efficient solution to common leaks and pressure loss issues. By understanding the causes of seal failure and the benefits of using a quality seal kit, vehicle owners can ensure the continued reliability and safety of their diesel engines.
