BMW Fuel Pump Relay Guide

Understanding the Vital Role of Your BMW's Fuel Pump Relay

The fuel pump relay is a small but incredibly important component in your BMW's ignition system. It acts as an electronic switch, controlling the flow of electrical current to the fuel pump. When you turn the ignition key, the relay receives a signal, which in turn powers the fuel pump, delivering fuel from the tank to the engine. Without a functioning fuel pump relay, your engine simply won't start, or if it does, it will likely stall due to a lack of fuel. This article aims to clarify which BMW models are compatible with the Bosch 0 332 514 121 fuel pump relay, a common part used across various automotive manufacturers.

The Bosch 0 332 514 121 Relay: Specifications and Applications

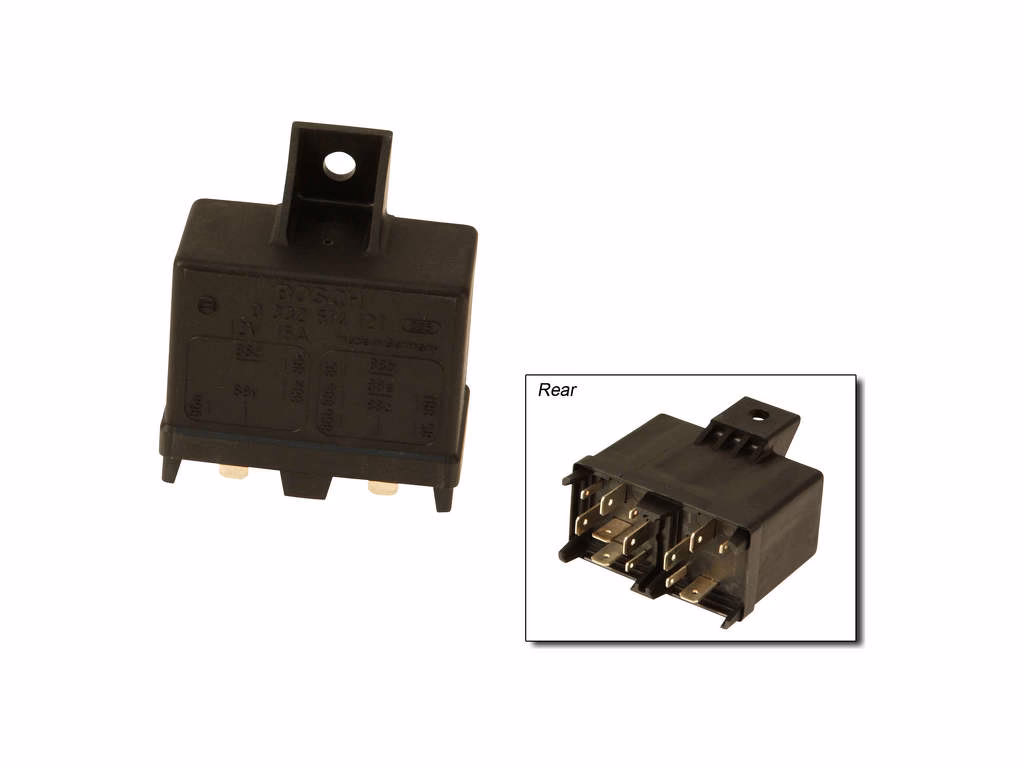

The Bosch 0 332 514 121 relay is a standard automotive relay, often found in a wide array of vehicles, including many BMW models. It's a robust component designed to handle the electrical demands of a fuel pump. Its typical specifications include a 12-volt operating voltage and a current rating that is suitable for most fuel pump applications. However, pinpointing exact compatibility requires cross-referencing with specific BMW part numbers and vehicle service manuals.

Identifying the Correct Fuel Pump Relay for Your BMW

The automotive industry, and BMW in particular, often uses proprietary part numbers. While the Bosch 0 332 514 121 may be a common aftermarket or OEM equivalent, it's crucial to verify its suitability for your specific BMW model and year. The best way to ensure you have the correct part is to:

• Check your BMW's owner's manual: This often lists critical part numbers.
• Inspect the existing relay: The part number is usually printed directly on the relay itself. You might need to remove it to see it clearly.
• Consult a BMW dealership or a reputable mechanic: They have access to comprehensive parts databases and can confirm the exact part needed for your vehicle.
• Use online BMW parts finders: Many websites allow you to input your VIN (Vehicle Identification Number) to find compatible parts.

Common BMW Models Potentially Using the 0 332 514 121 Relay

While definitive compatibility must be confirmed for each vehicle, the Bosch 0 332 514 121 relay has been known to be used in a range of BMW models. This is not an exhaustive list, and always verify before purchasing:

BMW 3 Series (E30, E36, E46)

The 3 Series is one of BMW's most popular lines. Earlier generations like the E30 and E36, as well as the widely produced E46, have been known to utilise this type of relay for their fuel pump systems. These models span from the early 1980s to the mid-2000s. The fuel pump relay is a common point of failure in older vehicles, so understanding its function is key for owners of these classic BMWs.

BMW 5 Series (E28, E34, E39)

Similarly, the 5 Series, from the E28 through the E39 generations, have also been reported to use relays with similar specifications. These models represent the executive saloon segment for BMW, and maintaining their performance relies on a consistent fuel supply, managed by the relay.

BMW 7 Series (E23, E32, E38)

The flagship 7 Series, in its older generations (E23, E32, E38), would also likely employ a relay of this specification. These luxury vehicles require reliable operation, and the fuel pump relay is a fundamental part of that.

Other BMW Models

It's also possible that the 0 332 514 121 relay could be found in other BMW models such as the 1 Series, 6 Series, 8 Series, Z models, and various X models, particularly those from the 1980s through the early 2000s. However, BMW often updates its parts and systems, so newer models might use different relays.

Symptoms of a Failing Fuel Pump Relay

Recognising the signs of a faulty fuel pump relay can save you from unexpected breakdowns. Common symptoms include:

• Engine cranks but won't start: This is the most classic symptom. The starter motor turns the engine over, but there's no fuel being delivered.
• Intermittent stalling: The engine might start and run for a while before cutting out. This can happen if the relay is failing and not consistently powering the fuel pump.
• Hesitation or poor performance: If the relay is intermittently failing, the fuel pump might not receive enough power, leading to a lean fuel mixture, causing hesitation, misfires, and a general lack of power.
• Clicking sound from the fuel pump area: When you turn the ignition to the 'on' position (without starting the engine), you should typically hear the fuel pump prime itself for a few seconds. If you don't hear this, it could indicate a relay issue.

Troubleshooting and Replacement

Replacing a fuel pump relay is generally a straightforward process for a DIY mechanic. The relay is usually located in the fuse box, often under the dashboard or in the engine bay. Consult your BMW's service manual for the exact location. Before replacing it, you can often test the existing relay:

Relay Testing (General Method):

You can test a relay using a multimeter and a 12V power source. The relay has four or five pins:

• Two larger pins (85 and 86) are the coil terminals.
• Two smaller pins (30 and 87) are the switch contacts.

Apply 12V to pins 85 and 86. You should hear a click as the internal switch activates. Then, use your multimeter to check for continuity between pins 30 and 87. If there's continuity when voltage is applied to the coil and no continuity when voltage is removed, the relay is likely functioning correctly. If not, it needs replacement.

Where to Purchase the 0 332 514 121 Relay

You can typically find the Bosch 0 332 514 121 relay from:

• Reputable automotive parts suppliers (online and physical stores).
• BMW dealerships (though they may supply an equivalent BMW-branded part).
• Specialist BMW parts retailers.

When purchasing, always double-check the part number and ensure it matches your vehicle's requirements. Buying from a trusted source will also help if you encounter any issues with the part.

Frequently Asked Questions

Q1: Can any fuel pump relay fit my BMW?

A1: No, it's crucial to use a relay with the correct voltage and current specifications, and one that is designed for your specific BMW model. Using an incorrect relay can damage your fuel pump or other electrical components.

Q2: Where is the fuel pump relay located in my BMW?

A2: The location varies by model. It's commonly found in the main fuse box, which could be under the driver's side dashboard, in the engine bay, or sometimes in the boot. Always refer to your owner's manual or a service manual for the precise location.

Q3: How do I know if my fuel pump relay has failed?

A3: Common symptoms include the engine cranking but not starting, intermittent stalling, or a lack of the usual priming sound from the fuel pump when the ignition is turned on.

Q4: Is the Bosch 0 332 514 121 a direct replacement for all BMW fuel pump relays?

A4: While it is a common relay used in many BMWs, it is not a universal replacement. BMW uses various relays across its model range and production years. Always verify the part number against your vehicle's specific requirements.

Conclusion

The Bosch 0 332 514 121 fuel pump relay is a component that has seen use in a variety of BMW vehicles. However, the complexity of automotive electrical systems means that verification is paramount. By understanding the symptoms of a failing relay and knowing how to confirm compatibility, you can ensure your BMW's fuel system operates reliably. Always prioritise checking your vehicle's specific part numbers and consulting with professionals if you are unsure.
