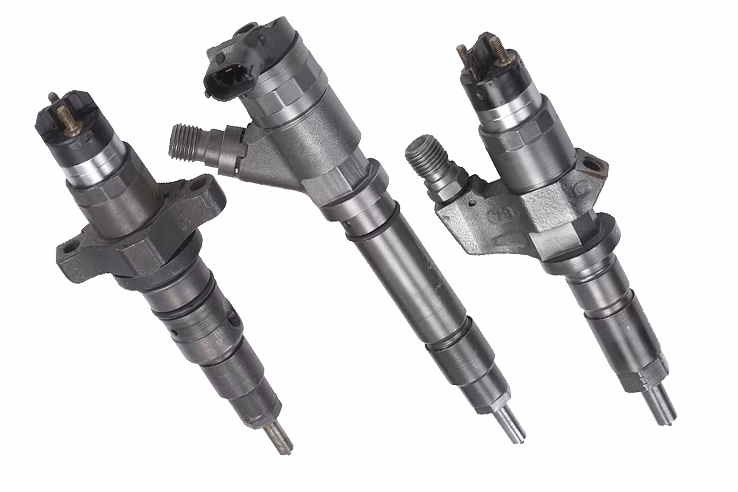

The Heart of Modern Diesel Engines: Understanding Bosch Injectors
Bosch diesel injectors are the precision instruments that form the backbone of contemporary diesel engine technology. Their role is crucial: to atomise and inject fuel into the combustion chamber at precisely the right moment and in the correct quantity, ensuring optimal power, efficiency, and emissions control. For automotive repair specialists and diesel enthusiasts alike, a thorough understanding of these components is not just beneficial, it's essential for maintaining and diagnosing diesel engines.
Bosch, a leading name in automotive technology, offers a wide array of diesel injectors, broadly categorised by their intended applications: those designed for passenger cars and light-duty diesel engines, and those engineered for the more demanding requirements of heavy-duty diesel engines. This distinction is vital, as the operating pressures, flow rates, and durability needs vary significantly between these two sectors.
Whether you are a seasoned mechanic looking to deepen your knowledge or a vehicle owner seeking to understand your diesel engine better, this guide will delve into the intricacies of Bosch common rail diesel injectors, exploring their various types, key features, and the factors influencing their longevity.
Categorising Bosch Diesel Injectors: Passenger Car vs. Heavy-Duty
Bosch's comprehensive range of diesel injectors can be broadly segmented into two primary categories:
Injectors for Passenger Cars and Light-Duty Diesel Engines
These injectors are designed to meet the performance and emissions standards of modern passenger cars, SUVs, and light commercial vehicles. They often operate within the common rail system, a sophisticated fuel injection technology that maintains high fuel pressure throughout the system. Bosch's series for these applications typically include designations such as CRI (Common Rail Injector) followed by a number indicating the series and a further number denoting specific design parameters.
Injectors for Heavy-Duty Diesel Engines
Engineered for the rigorous demands of trucks, buses, agricultural machinery, and industrial equipment, these injectors are built for higher volumes, greater durability, and often operate at even higher pressures than their light-duty counterparts. The Bosch designation for these is typically CRIN (Common Rail Injector Nozzle Holder), followed by numbers that specify their characteristics.
A Closer Look at Bosch Injector Technologies and Series
Bosch has developed several generations of common rail injectors, each building upon the last with advancements in precision, efficiency, and emissions control. Here's a breakdown of some key series:
CRI 1-Series (CRI 1-13, CRI 1-14, CRI 1-16)
These early generation common rail injectors are characterised by their robust design, featuring a standard pilot valve with an anti-bounce element. This element helps to ensure stable and accurate fuel delivery by preventing oscillations in the valve operation. Key internal components that contribute to their precise function include:
| Component | Function |
|---|---|
| Shim for adjusting valve spring force | Allows for precise tuning of the spring that controls the pilot valve's return. |
| Anchor bolt | Secures critical internal components. |
| Retaining ring | Holds various parts in place. |
| Anchor plate | Provides a stable mounting point for the armature. |
| Shim for residual clearance adjustment | Fine-tunes the gap for optimal valve seating. |
| Valve clamping screw | Ensures the secure fixing of the valve assembly. |
| Armature disc | Part of the electromagnetic actuation system. |
| Shim for armature stroke adjustment | Controls the travel distance of the armature for precise injection timing. |
CRI 2-Series (e.g., CRI 2.1, CRI 2-14, CRI 2-16, CRI 2-18, CRI 2-20, CRI 2-25)
The CRI 2-series represents an evolution, often featuring electromagnetic injectors with a standard pilot valve. Some variants, like the CRI 2.1, may not include an anti-bounce device. These injectors incorporate shims for adjusting residual clearance, valve spring force, and armature stroke, allowing for sophisticated calibration. The CRI 2-18, for instance, uses a pressure-balancing pilot valve and has an armature stroke typically between 26-32 μm, contributing to improved injection accuracy.
The CRI 2-25 is notable for its solid nozzle needle and a control valve that is welded in two critical locations: near the needle itself and near the valve stem. This design enhances durability and sealing. Some CRI 2-series injectors may also be equipped with an NCC (Nozzle Closing Control) sensor for even finer control over the injection process.
The mention of CRI 2-22 and its relation to Euro 4 and Euro 5 engines (e.g., 1.3 Multijet, 1.6 Fiat, 2.3 Fiat) highlights how injector designs are continually updated to meet stricter emissions regulations.
CRI 3-Series (e.g., CRI 3-16, CRI 3-18, CRI 3-20, CRI 3-27)
This series showcases advancements, particularly with the introduction of piezoelectric technology in injectors like the CRI 3-16. These Piezoelectric Indirect-Acting Injectors utilise the deformation of a piezo element to actuate the pilot valve. A hydraulic amplifier, termed the communication module, translates the small displacement of the piezo stack into the necessary movement of the pilot valve. This technology allows for extremely rapid response times, enabling multiple injections per combustion cycle, which is key for reducing emissions and improving fuel economy. When the injector is de-energised, fuel pressure naturally closes the pilot valve, minimising static fuel leakage. A bypass channel further aids in the rapid filling of the control chamber, reducing the nozzle closing delay (NCD) and enhancing the injector's ability to perform precise, multi-event injections.
CRIN-Series (Heavy-Duty) (e.g., CRIN1, CRIN2, CRIN3, CRIN4)
Designed for heavy-duty applications, the CRIN series are typically robust solenoid injectors. A significant advancement seen in some of these, such as the CRIN4-21, is a two-stage high-pressure system. The initial high-pressure pump delivers fuel to the rail at pressures up to 1200 bar, and a booster integrated within the injector further increases this pressure to an impressive 2100–2500 bar. These systems often employ two solenoid valves: one controlling the needle and another managing the pressure booster. This dual-solenoid design allows for faster injection events and superior atomisation of the fuel, leading to more efficient combustion.
The Importance of Genuine Bosch Parts
As an authorised distributor for Robert Bosch GmbH, Merlin Diesel (as mentioned in the provided text) highlights the significance of stocking genuine Bosch common rail diesel injectors. Using OE (Original Equipment) rated or genuine Bosch parts is paramount for several reasons:
- Precision Engineering: Bosch injectors are manufactured to exacting standards, ensuring they perform precisely as the engine manufacturer intended.
- Durability: Genuine parts are built with high-quality materials to withstand the extreme pressures and temperatures within a diesel engine's fuel system.
- Performance: Using the correct, genuine injectors ensures optimal fuel atomisation, combustion efficiency, power output, and fuel economy.
- Emissions Compliance: Modern emissions standards are stringent. Genuine injectors are designed to meet these requirements accurately.
Common Causes of Injector Failure
Even the most robust components can fail if not properly maintained or if subjected to adverse conditions. The primary culprits behind Bosch diesel injector failures are consistently:
- Poor Fuel Filtration: Inadequate or damaged fuel filters allow contaminants to reach the injectors, causing wear and blockages.
- Fuel Contamination: This is arguably the most significant factor. Contaminants can include:
- Water: Corrosion from excessive water in the fuel can damage internal components. Water ingress can occur through the delivery system or the tank's breathing system.
- Dirt and Debris: Micro-fine particles can cause abrasive wear on the highly precise moving parts within the injector.
- Improper Fuel Storage: Poor storage practices can lead to condensation and water accumulation in fuel tanks.
- Incorrect Installation: Improper fitting, overtightening, or cross-threading can damage the injector or its sealing surfaces, leading to leaks or performance issues.
Always adhering to the engine manufacturer's recommended maintenance procedures, especially regarding fuel quality and filter replacement intervals, is crucial for extending the life of your Bosch diesel injectors.
Bosch Injector Part Numbers and Identification
Identifying the correct Bosch injector for a specific vehicle is vital. Bosch injectors are marked with unique part numbers, often starting with '0445' for common rail injectors. For instance, '0445110002' corresponds to a CRI 1-13 injector, while '0445120085' is a CRIN1 injector. The extensive list provided in the initial information showcases the sheer breadth of Bosch's injector offerings, each tailored for specific engine applications and performance characteristics.
Frequently Asked Questions (FAQ)
Q1: Are Bosch injectors OE rated?
Yes, Bosch is a major Original Equipment Manufacturer (OEM) for diesel fuel injection systems. Many Bosch injectors are designed and manufactured to meet or exceed the specifications set by vehicle manufacturers for their original parts. Therefore, they are considered OE or equivalent quality.
Q2: What is the most common cause of diesel injector failure?
The most common cause of diesel injector failure is fuel contamination, particularly the presence of water and abrasive particles in the fuel. Poor filtration and incorrect installation also contribute significantly.
Q3: Can I service or repair Bosch common rail injectors myself?
Due to the extreme precision and complexity of common rail injectors, self-repair is generally not recommended unless you have specialised training and equipment. It is best to have them serviced or replaced by qualified professionals or reputable diesel specialists.
Q4: How do piezoelectric injectors differ from solenoid injectors?
Piezoelectric injectors use the piezoelectric effect (expansion/contraction of a crystal under electrical voltage) to actuate the fuel injection process, allowing for much faster response times and finer control over multiple injections compared to solenoid injectors, which use an electromagnetic coil.
Q5: Where can I find genuine Bosch diesel injectors?
Genuine Bosch diesel injectors can be sourced from authorised Bosch diesel service centres, reputable automotive parts suppliers, and specialist diesel fuel injection component distributors like DieselStart.com or Merlin Diesel.
In conclusion, Bosch diesel injectors are sophisticated, high-performance components critical to the operation of modern diesel engines. Understanding their different types, technologies, and the importance of maintaining fuel quality is key to ensuring their longevity and the optimal performance of your vehicle.
