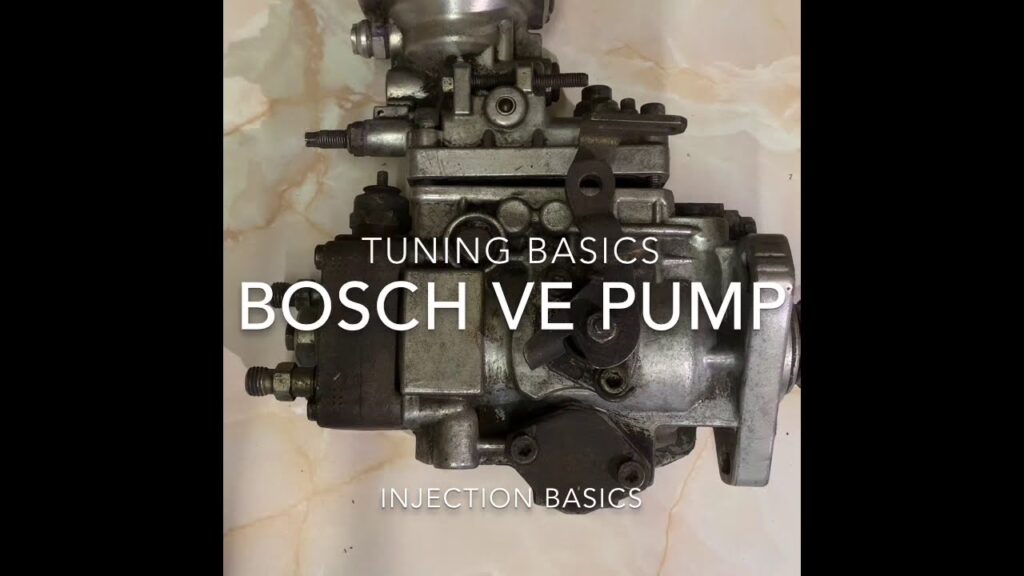

Understanding the Bosch VE Injection Pump and its Boost Compensator
The Bosch VE (Verteiler Einspritzpumpe) rotary injection pump is a workhorse found in a vast array of diesel engines, particularly those from the late 20th and early 21st centuries. Known for its robust design and relative simplicity, it's a popular choice for tuning and modification. A key feature, especially on turbocharged variants like those found in Land Rover 200Tdi and non-EDC1 300Tdi engines, is the boost compensator. This crucial component allows the pump to dynamically adjust fuel delivery in direct response to the pressure generated by the turbocharger, ensuring optimal performance and preventing excessive smoke under boost. Without it, tuning turbocharged engines would be significantly more limited.
This guide delves into the function of the boost compensator and provides a basic understanding of tuning these pumps. We'll cover essential adjustments, the importance of injector pressure, and how these elements work in harmony. Please note, this is a fundamental guide, and for complex or safety-critical adjustments, consulting a qualified diesel specialist is always recommended.
What is a Boost Compensator?
In turbocharged diesel engines, the amount of air entering the combustion chamber varies significantly depending on whether the turbocharger is actively boosting or not. A boost compensator, also known as a manifold-pressure compensator or 'aneroid', is a mechanical device integrated into the injection pump designed to manage this variability. It works by sensing the boost pressure from the turbocharger's air outlet. This pressure acts upon an internal diaphragm within the compensator. This diaphragm, in turn, influences the fuel delivery mechanism within the pump, typically by pushing on the 'fuel pin'. The result is an increase in the amount of fuel injected as the boost pressure rises, ensuring that the fuel-to-air ratio remains within a desirable range across different operating conditions.
The benefit of this system is twofold: it allows for more power when the engine is under boost and helps to prevent the black smoke often associated with over-fuelling when boost is present but not adequately compensated for. For owners of vehicles like the Nissan Patrol TD42 and Toyota Landcruiser 1HDT, understanding and potentially adjusting the boost compensator is key to unlocking the full potential of their turbocharged engines.
Injector Pressure: The Foundation of Combustion
Before diving deeper into pump adjustments, it's vital to understand injector pressure. Each diesel injector has a 'crack pressure' – the specific pressure at which the internal spring is overcome, forcing the needle or pintle off its seat and allowing fuel to spray into the combustion chamber. This pressure is primarily determined by the tension of the spring acting on the pintle. Adjusting this tension, often by changing the thickness of the shim beneath the spring, directly alters the crack pressure.
Adjusting Injector Pressure
Reducing the crack pressure effectively advances the timing of the injector's firing sequence, as it opens earlier under a given pump pressure. Conversely, increasing the crack pressure retards the timing, requiring higher pump pressure to initiate injection.
Key Components of an Injector:
| Part | Function |
| Body | Houses the internal components. |
| Nozzle | The tip through which fuel is sprayed. |
| Pintle | A needle that seals the nozzle opening. |
| Spring | Provides tension to keep the pintle seated. |
| Shim | Used to adjust the spring tension. |
It's important to note that injector springs can lose tension over time. For this reason, it's recommended to have injector pressures checked and reset approximately every 90,000km to 100,000km. When having injectors reconditioned, discuss the recommended opening pressures with your diesel specialist, as different engines are calibrated for specific pressures.
How Timing Works on a Non-Electric Pump
The timing of fuel injection is critical for efficient combustion. In mechanical injection pumps, timing is influenced by the pump's rotational position relative to the engine's crankshaft. As the pump builds pressure within its internal elements, it eventually reaches the injector's crack pressure, causing the injector to fire. If the pump is rotated slightly forward (advanced), pressure builds earlier in the pumping stroke, leading to earlier injection. Conversely, rotating the pump backward (retarded) causes pressure to build later in the stroke, resulting in delayed injection.
This highlights a crucial point: there are two primary timing adjustments to consider on these engines: pump timing and injector timing (via crack pressure). Both must be synchronised. For instance, increasing injector opening pressure (retarding injector timing) requires advancing the pump timing to ensure fuel delivery occurs at the optimal moment in the combustion cycle.
Boost Compensator Adjustments: Fine-Tuning for Turbocharged Power
For turbocharged engines, the boost compensator is where much of the performance tuning potential lies. It allows for a three-dimensional adjustment of fuel delivery, responding to varying boost levels. The compensator's diaphragm is pushed by boost pressure, influencing the fuel pin's position and thereby the quantity of fuel delivered.
Types of Adjustments on a Compensated VE Pump
VE pumps with boost compensation typically offer several adjustment points:
- Fuel Screw / Main Metering Screw: This controls the overall fuel delivery across the engine's operating range. Adjusting this screw affects fuelling from idle to maximum RPM.
- Compensator No Boost Screw: This specifically adjusts the fuel delivered when the engine is *off boost*. It can significantly improve throttle response and off-boost drivability.
- Compensator Pin Spring Tension: The tension of the spring acting on the compensator pin dictates how much boost pressure is required to move the pin a certain amount. Lower spring tension means more fuel for a given boost pressure; higher tension means less fuel.
- Compensator Pin Shims / Max Travel Shim: Shims placed beneath the compensator pin control the maximum travel of the pin under full boost conditions. Adding shims reduces maximum boost fuelling, while removing them increases it.
- Fuel Pin Rotation (Eccentric Pins Only): Many fuel pins are not symmetrical; they have a steeper taper on one side and a shallower taper on the other. Rotating the pin changes the rate at which fuel delivery increases with boost. A steeper taper generally results in more aggressive fuelling under boost.
The Fuel Screw: An Overview
The fuel screw is the most basic adjustment and is present on both compensated and non-compensated pumps. It directly impacts the total amount of fuel injected. On a non-compensated pump, this is the *only* adjustment available. While it can increase power, it has limitations on turbocharged engines. If you simply increase the fuel screw setting to match a larger turbo or intercooler, you might get more smoke off-boost and potentially uncontrolled fuelling when boost arrives. Therefore, it's often best to set the fuel screw to a baseline and use the compensator adjustments to fine-tune fuelling under boost.
No Boost Fuel Adjustment
The 'no boost fuel' screw is dedicated to enriching the mixture when the engine is operating below the turbocharger's boost threshold. Adjusting this can make a significant difference to how the vehicle feels when pulling away from a standstill or accelerating at lower RPMs. It's typically only adjusted if substantial airflow improvements have been made that require more fuel in these off-boost scenarios.
Spring Tension Adjustment
This adjustment directly influences how the compensator pin reacts to boost pressure. A softer spring (lower tension) will allow the pin to be pushed further down by a given amount of boost, delivering more fuel. A stiffer spring (higher tension) requires more boost pressure to achieve the same pin movement, resulting in less fuel at that specific boost level. This is a critical control for managing the rate of fuel increase relative to boost pressure.
Overall Pin Travel / Shim Packs
The shims beneath the compensator pin dictate the maximum amount of fuel the pump can deliver when the pin is fully depressed by boost pressure. More shims effectively limit the pin's travel, reducing the maximum fuelling under full boost. Conversely, fewer shims allow the pin to travel further, increasing the potential for maximum fuelling at peak boost. This adjustment is crucial for setting the upper limit of your fuelling strategy.
Fuel Pin Rotation
As mentioned, many fuel pins are eccentric. This means their profile is not uniform. By rotating the fuel pin within its housing, you change the ramp it presents to the roller. One orientation might provide a rapid increase in fuel with minimal boost, while another might offer a more gradual increase. Understanding the profile of your specific fuel pin and experimenting with its rotation allows for precise control over how fuel delivery ramps up with increasing boost pressure across the entire RPM range.
Tuning Guide for TD42 with Electronic Timing Control (Cautionary Note)
For engines like the TD42 that incorporate electronic timing control, it is vital to exercise extreme caution. Tampering with the pump's base timing can interfere with the engine's computer control, leading to negative consequences. The throttle position sensor (TPS) also plays a critical role in these systems and must be set correctly (often around 0.65 Volts at idle) for the electronic timing system to function as intended.
Similarly, adjustments to the maximum speed governor should only be undertaken by those with a thorough understanding of the system and the specific reasons for doing so. Incorrect governor settings can lead to severe engine damage.
Frequently Asked Questions
Q1: Does my Bosch VE pump have a boost compensator?
A: If your vehicle is a turbocharged diesel model, particularly a Land Rover 200Tdi or a non-EDC1 300Tdi, it is highly likely to have a boost compensator. Naturally aspirated engines typically do not.
Q2: How do I adjust my injector pressure?
A: Adjusting injector pressure involves disassembling the injectors to change the shims beneath the spring. This is a task best left to a qualified diesel specialist unless you have the correct tools, knowledge, and a proper injector testing setup.
Q3: What happens if I over-fuel my turbocharged engine?
A: Over-fuelling can lead to excessive exhaust smoke (black smoke), increased exhaust gas temperatures (EGTs), potential turbocharger damage, and in severe cases, engine damage due to detonation or piston overheating.
Q4: Can I just turn up the fuel screw for more power?
A: While turning up the fuel screw will increase overall fuelling, on a turbocharged engine, it's not the most sophisticated approach. For optimal results, especially after upgrades, use the fuel screw for baseline fuelling and the boost compensator adjustments to manage fuelling under boost.
Q5: Where can I find specific tuning components?
A: For compensator tuning components, specialist suppliers like Tillix (https://www.tillix.com.au/product-category/fuel-pump-components/) offer a range of parts designed for these pumps.
Safety First!
Modifying diesel injection systems can have significant impacts on engine performance, emissions, and longevity. Always use the correct tools and equipment for any adjustments. If you are unsure about any procedure, it is strongly advised to consult with a reputable diesel tuning specialist. They possess the expertise and equipment to ensure modifications are carried out safely and effectively.
