DIY Guide: Replacing Your Mazda Bongo Fuel Pump

The Mazda Bongo, a beloved multi-purpose vehicle, is renowned for its versatility and enduring spirit. However, like any vehicle, it's susceptible to wear and tear, and a faulty fuel pump can quickly bring your adventures to a halt. While replacing a fuel pump might seem like a daunting task, especially given its location within the Bongo's engine bay, it is an achievable DIY project for the mechanically inclined. This guide aims to demystify the process, providing a detailed walkthrough inspired by experienced Bongo enthusiasts, empowering you to tackle this essential repair with confidence and precision.

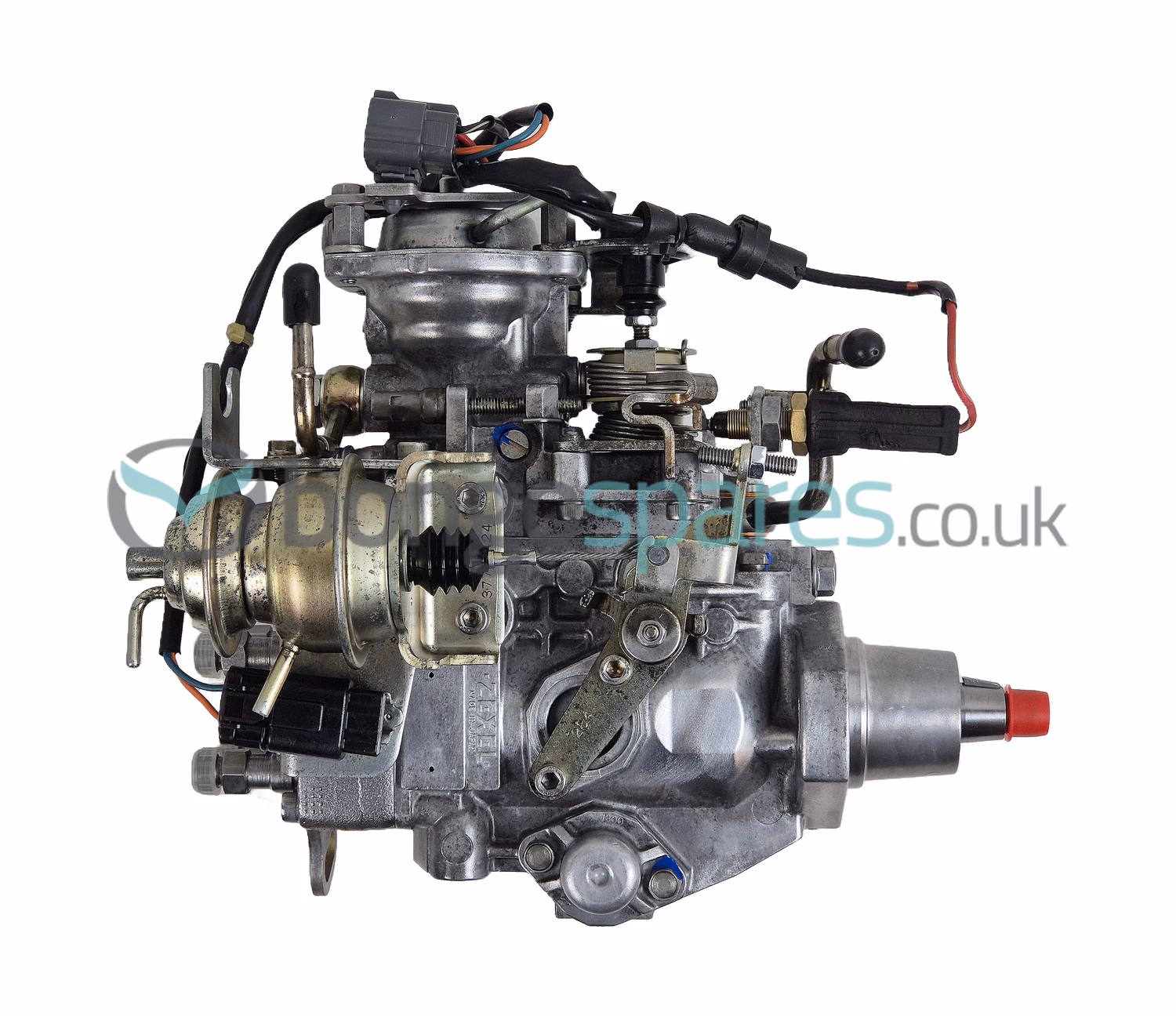

Understanding Your Bongo's Fuel Pump and Its Importance

The fuel pump is a critical component in your Bongo's fuel system. Its primary role is to draw fuel from the tank and deliver it under pressure to the engine's fuel injectors or carburettor, ensuring a consistent supply for combustion. A malfunctioning fuel pump can lead to a myriad of issues, including difficulty starting, engine misfires, reduced power, or even complete engine failure. Given its vital function, understanding its location and the process of replacement is key to maintaining your Bongo's reliability.

Essential Tools and Safety Precautions

Before embarking on any automotive repair, especially one involving fuel and intricate engine components, gathering the right tools and prioritising safety are paramount. Ensure you have a well-lit, ventilated workspace and that your vehicle is securely parked on a level surface with the parking brake engaged. Disconnecting the battery's negative terminal is a crucial first step to prevent accidental electrical issues. Always wear appropriate personal protective equipment, including safety glasses and gloves.

Required Tools:

• 10mm Socket/Wrench
• 12mm Socket/Wrench
• 8mm Socket/Wrench
• 17mm Socket/Wrench
• 19mm Socket/Wrench
• 38mm Socket (for crank locking)
• Ratchet and Extension Bars
• Torque Wrench (for reassembly, if precise torque specs are available)
• Long Pin Punch (for pump release, if not using a puller)
• Puller/Pusher tool (optional, but highly recommended for pump release)
• Pliers
• Screwdrivers (flathead and Phillips)
• Drain pan or rags (for fuel spillage)
• Flashlight or Headlamp

Step-by-Step Fuel Pump Removal

The following steps outline the removal process, detailing each stage to ensure clarity. Take your time, and if unsure, double-check your work.

1. Disassembly of Inlet Manifold and EGR Elbow

Your first task is to gain access to the fuel pump, which is often obscured by other engine components. Using 10mm and 12mm sockets or wrenches, carefully remove the inlet manifold and the Exhaust Gas Recirculation (EGR) elbow. These components are positioned to direct air into the engine, and their removal provides crucial space to work. Keep track of all bolts and components, ideally organising them to simplify reassembly.

2. Addressing the Vacuum Valve Block (Old vs. New Shape Bongos)

This step varies depending on whether you have an older or newer shape Bongo.

• Old Shape Bongo: Locate the vacuum valve block. It's typically secured by two 12mm nuts. Carefully undo these nuts. Then, disconnect all plugs and piping connected to the valves and, importantly, from the fuel pump itself. Once disconnected, gently pull the block up slightly and bend it forward. This manoeuvre should put a slight curve in the metal pipes running downwards, allowing the entire assembly to slide out of the way.
• New Shape Bongo: If your Bongo is a newer model, you can generally ignore this step as the design allows for access without its removal.

3. Disconnecting Fuel Lines

Fuel lines carry pressurised fuel, so extreme caution is advised. Have rags or a drain pan ready to catch any residual fuel. Use 8mm nuts to remove the fuel line clamps. Then, with a 17mm wrench, undo the four nuts at each end of the fuel lines. It's often easier to start with the fuel pump end first to relieve pressure and manage spillage more effectively. Once disconnected, cap or plug the lines to prevent debris from entering.

4. Removing the Centre Console Panel

While some argue this step can be skipped, removing the metal centre plate significantly eases access. From the driver's side, pull out the lower small console panel. You'll find a 12mm bolt there. Additionally, remove the two bolts holding the gear selector in place. Disconnect all electrical connections attached to the console panel. Then, undo all 10mm bolts (there are typically around eight). Leave the handbrake in place. Carefully lift the entire panel and rest it on the folded-back rear seats, ensuring it's stable and won't fall.

5. Accessing the Cam Cover

With the centre panel out, you can now access the cam cover, which protects the camshafts. The cam cover is held in place by 10mm bolts. Two are usually accessible from the passenger side, with the rest on the driver's side. Be aware that the lowest bolt on the inside can be particularly challenging to reach and undo. Once all bolts are removed, gently wiggle the cam cover off and move it out of the way. This exposes the top of the fuel pump assembly.

6. Loosening the Fuel Pump

The fuel pump itself is secured by two 12mm nuts and one 12mm bolt. The two nuts are typically at the front of the pump, while the bolt is at the back, securing a plate. Undo these fasteners, but do not remove them completely yet; leave them with plenty of slack. This will allow the pump to release from its taper later, but still be held in place.

7. Locking the Crank and Removing the Pulley Nut

This is a critical step for safely removing the pump. You'll need a large 38mm socket to lock the crank in place. This prevents the engine from rotating while you work on the pulley. Once the crank is locked, use a 19mm socket to undo the nut located in the middle of the lower/fuel pump pulley. Be extremely careful, as there is a vital copper washer positioned behind this nut. Ensure you retrieve it and keep it safe for reassembly.

8. Releasing the Pump from the Taper

This step requires precision to avoid damaging the pump or engine components. There are two primary methods:

• Using a Puller/Pusher: If you have access to a specialised puller/pusher tool, undo a pair of bolts on the pulley. You can then use the tool to apply even pressure and push the pump out from its tapered seating. This is generally the safest and most controlled method.
• Using a Pin Punch (if no puller): If a puller isn't available, you'll need to use a long pin punch. First, pull back the carpet inside the vehicle, and you should see a hole covered with tape directly in front of/above the pulley. The pump shaft has an inversion designed for this purpose. Insert the long pin punch into this hole and give it a couple of sharp, firm hits. This should release the pump from its taper. Remember, the pump is still loosely held by the 12mm nuts/bolts you loosened earlier, preventing it from falling out completely.

9. Final Disconnection and Removal

With the pump released from its taper, the final step is to disconnect any remaining electrical plugs. Pay particular attention to the rev counter wiring, which often runs directly past the pump and can be easily overlooked. Once all connections are clear, undo the last 12mm bolt/nut that was holding the pump loosely. The faulty fuel pump should now come free in your hand.

The Tricky Part: Refitting the Fuel Pump

Refitting the new fuel pump is often considered more challenging than removal, primarily due to the precise alignment required for the woodruff key and the pump's drive. This is where patience and meticulous attention to detail are crucial.

1. Aligning the Woodruff Key

The pump's drive, which contains a small component known as a woodruff key, needs to align perfectly with its corresponding slot. This key typically sits in one of four positions (up, down, left, or right). You will need to gently tweak the crank very slightly to get it to line up correctly. It's possible to push the pump in and feel like it's seated, but if the woodruff key isn't perfectly aligned, it won't be fully engaged. You won't know you've got it wrong until the car is fully assembled and refuses to start or runs poorly.

2. Monitoring Pulley Alignment

As you wiggle the new pump into place, keep a close eye on the lower pulley (with the cambelt still on it). It is essential that the pulley remains 'flat' or perfectly in line with the engine. If the pump goes in incorrectly, the pulley will appear 'wonky' or push out slightly on one edge. This subtle misalignment is a clear indicator that the pump is not correctly seated on its taper and the woodruff key is not engaged. A misaligned pulley can lead to serious issues, including premature wear of the cambelt or even engine damage. Take your time, re-adjust the crank as needed, and ensure the pulley remains perfectly flat and aligned before fully tightening the pump.

3. Reassembly in Reverse Order

Once the pump is correctly seated and aligned, you can proceed with reassembly by reversing the removal steps. Ensure all bolts are tightened to their correct specifications (if known), and all electrical connections and fuel lines are securely reconnected. Double-check all connections to prevent leaks or electrical issues.

Common Pitfalls and Troubleshooting Tips

• Fuel Leaks: After reassembly, check thoroughly for any fuel leaks, especially around the fuel line connections. Tighten carefully, but avoid over-tightening which can strip threads.
• Engine Not Starting: If the engine doesn't start after reassembly, the most common culprit is incorrect fuel pump alignment (woodruff key not engaged) or improperly connected electrical wiring. Revisit the pump seating and electrical connections.
• "Wonky" Pulley: As mentioned, if the lower pulley appears off-kilter, the pump is not seated correctly. Do not attempt to start the engine. Disassemble and re-align the pump.
• Leftover Bolts/Parts: Always ensure you've used all removed components. A stray bolt can indicate a missed connection or an incorrectly assembled part.

Frequently Asked Questions (FAQs)

Q1: What are the common symptoms of a faulty Mazda Bongo fuel pump?

Common symptoms include difficulty starting the engine (especially when warm), engine misfires, a noticeable loss of power or acceleration, a whining noise from the fuel tank area, or the engine stalling, particularly at higher speeds.

Q2: How long does it typically take to replace a Bongo fuel pump?

For an experienced mechanic, this job might take 3-5 hours. However, for a DIY enthusiast tackling it for the first time, it could easily take a full day or even spread over two days, especially given the intricate access and crucial alignment steps. Patience is key.

Q3: Do I absolutely need a puller/pusher tool for the pump release?

While the pin punch method is an alternative, a puller/pusher tool is highly recommended. It offers a more controlled and safer way to release the pump from its taper, reducing the risk of damage to the pump or surrounding components.

Q4: Can I perform this repair if I'm a novice mechanic?

This repair is quite involved and requires a good understanding of automotive mechanics, attention to detail, and patience. If you have very limited experience with engine work, it might be best to seek assistance from an experienced friend or a professional mechanic. The critical alignment step during reassembly can be particularly challenging for novices.

Q5: Where can I source a replacement fuel pump for my Bongo?

Replacement fuel pumps can be purchased from Mazda dealerships, reputable aftermarket parts suppliers, or online automotive parts retailers. Always ensure you purchase the correct pump model for your specific Bongo year and engine type.

Conclusion

Replacing the fuel pump on your Mazda Bongo is undeniably a challenging undertaking, requiring careful attention to detail and a methodical approach. However, by following this comprehensive guide and exercising patience, you can successfully complete this repair, saving on labour costs and gaining invaluable experience. Remember, the most critical aspect of this job is the precise alignment during reassembly. Take your time, double-check your work, and your Bongo will be back on the road, running smoothly, ready for its next adventure.
