Bonfiglioli W Series Gearbox Care

The Bonfiglioli W Series represents a robust and reliable range of gearboxes, widely employed across various industrial sectors for their efficiency and durability. To ensure these vital components operate at peak performance and have a prolonged service life, understanding their maintenance requirements is paramount. This guide delves into the essential aspects of caring for your Bonfiglioli W Series gearbox, covering crucial procedures such as lubrication, oil changes, and general upkeep. By adhering to these guidelines, you can significantly minimise downtime and prevent costly repairs.

Understanding Your Bonfiglioli W Series Gearbox

Bonfiglioli gearboxes are engineered with precision, and their proper maintenance is key to unlocking their full potential. The W Series, in particular, is designed for a multitude of applications, from conveyor systems to processing machinery. Each gearbox comes with specific operational parameters and maintenance schedules that should be followed diligently. An owner's manual is your primary resource for this information, detailing everything from initial setup to routine checks. While the specific details might vary slightly between models within the W Series, the fundamental principles of maintenance remain consistent.

The Importance of Proper Lubrication

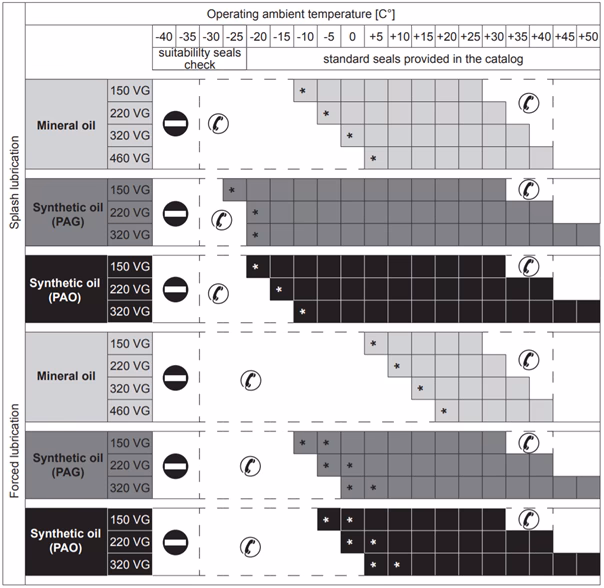

Lubrication is the lifeblood of any gearbox. Without adequate and appropriate lubrication, gears are subjected to excessive friction, heat, and wear, leading to premature failure. For your Bonfiglioli W Series gearbox, selecting the correct lubricant is the first critical step. The type of oil required will depend on factors such as operating temperature, load, speed, and environmental conditions. Your Bonfiglioli W Series owner's manual will specify the recommended lubricant viscosity and type. Always refer to this manual for precise recommendations.

Key Lubrication Procedure:

• Locate the Filling Port: Identify the designated oil filling hole, often marked with a specific symbol or labelled.
• Add Lubricant: Using a clean, dedicated lubricant dispenser, add the recommended oil. The correct fill level is crucial. For most Bonfiglioli gearboxes, the oil should be filled until it reaches the midpoint of the sight glass. If no sight glass is present, the oil level should be up to the reference notch on the dipstick, or until it just begins to flow out of the oil level hole, depending on the gearbox's mounting position as specified in your order or manual.
• Secure Plugs: Once the correct oil level is achieved, securely screw in the filling and level oil plugs.
• Run and Re-check: Start the gearmotor and allow it to run for a few minutes. After stopping the unit, re-check the oil level. If the level has dropped due to oil circulating within the gearbox, top it up as necessary to maintain the correct level.

Regularly checking the oil level is a simple yet effective way to ensure your gearbox is adequately lubricated. Low oil levels can quickly lead to overheating and internal damage.

When and How to Perform Oil Changes

Over time, lubricating oil degrades. It can become contaminated with wear particles, moisture, or byproducts of oxidation, reducing its effectiveness. Therefore, regular oil changes are essential for maintaining the health of your Bonfiglioli W Series gearbox. The frequency of oil changes is typically dictated by operating hours, load conditions, and the environment in which the gearbox is operating. Again, your owner's manual will provide a recommended service interval.

Steps for a successful oil change:

1. Preparation: Ensure the gearbox has been running for a short period to warm the oil, making it more fluid and easier to drain. However, be cautious of hot components. Place a suitable container beneath the drain plug to catch the old oil.
2. Drain Old Oil: Carefully unscrew the drain plug and allow all the old oil to drain completely. It's advisable to inspect the drained oil for any unusual debris or metal particles, which could indicate internal wear.
3. Replace Drain Plug: Once the oil has drained, clean the drain plug and the surrounding area, and then screw the drain plug back in securely.
4. Refill with New Oil: Following the same procedure as described for lubrication, refill the gearbox with the correct type and amount of fresh lubricating oil. Ensure the oil level is correct after refilling.
5. Dispose of Old Oil Responsibly: Used lubricating oil is a hazardous waste. Ensure it is disposed of in an environmentally responsible manner, in accordance with local regulations.

Important Note: Never mix different types of lubricating oils, as this can lead to chemical reactions that degrade their performance or even damage the gearbox.

Troubleshooting Common Gearbox Issues

Even with regular maintenance, gearboxes can occasionally present issues. Understanding common problems and their potential causes can help you address them promptly.

Excessive Noise

Unusual noises, such as grinding, whining, or knocking, can indicate several problems:

• Low Lubrication: Insufficient oil can cause gears to mesh improperly, leading to noise.
• Worn Bearings: Damaged bearings will often produce a distinct whining or rumbling sound.
• Gear Damage: Chipped or broken gear teeth can cause a grinding or knocking noise.
• Improper Mounting: Misalignment during installation can put undue stress on components, resulting in noise.

Overheating

An excessively hot gearbox is a clear sign of trouble:

• Low Oil Level: Insufficient lubrication leads to increased friction and heat.
• Incorrect Lubricant: Using the wrong type or viscosity of oil can lead to poor lubrication and overheating.
• Overloading: Operating the gearbox beyond its rated capacity will generate excessive heat.
• Poor Ventilation: If the gearbox is in an enclosed space without adequate airflow, it may overheat.

Oil Leaks

Oil leaks are often caused by:

• Worn Seals: The seals around shafts can degrade over time, allowing oil to escape.
• Loose Plugs: Ensure that drain and fill plugs are tightened correctly.
• Cracked Casing: Though rare, a damaged gearbox casing can cause leaks.

Finding Your Bonfiglioli Manual

As repeatedly mentioned, the owner's manual is your definitive guide. If you do not have a physical copy, Bonfiglioli typically provides comprehensive documentation on their official website. You can usually find a section dedicated to technical documentation or downloads where you can search for your specific W Series model. Inputting the model number or serial number will often lead you to the relevant manual, which can usually be downloaded as a PDF. Some platforms may also offer a feature to automatically add manuals to a "My Manuals" section for easy access.

Preventative Maintenance Schedule (General Guidelines)

While specific intervals should be taken from your owner's manual, a general preventative maintenance schedule can look like this:

Key Takeaways for Bonfiglioli W Series Gearbox Longevity

To ensure your Bonfiglioli W Series gearbox serves you reliably for years to come, remember these core principles:

• Always refer to the official Bonfiglioli W Series owner's manual for specific lubricant types, fill levels, and service intervals.
• Use only the recommended lubricants to avoid compatibility issues and ensure optimal performance.
• Maintain the correct oil level at all times.
• Perform regular oil changes to remove contaminants and maintain lubricant integrity.
• Listen for unusual noises and monitor for overheating; these are early indicators of potential problems.
• Keep the gearbox clean and ensure adequate ventilation.

By implementing these maintenance practices, you are investing in the reliability and efficiency of your industrial operations, ensuring your Bonfiglioli W Series gearbox continues to perform optimally.
