Bobcat E32 Final Drive Maintenance Guide

Keeping Your Bobcat E32 & E35 Final Drives in Top Condition

The Bobcat E32 and E35 mini-excavators are renowned for their robust performance and versatility in various construction and landscaping applications. As part of the R-series, these 3- to 4-ton compact excavators, manufactured by the sole American producer of compact excavators, Bobcat, boast features designed to enhance efficiency and operator comfort. One notable innovation is the auto-shift function, which seamlessly transitions between high and low speed travel, optimising performance on the go. However, like any sophisticated piece of machinery, these excavators require regular and diligent maintenance to ensure their longevity and prevent costly downtime. This guide will focus on the critical aspects of maintaining the final drive motors of your Bobcat E32 and E35, with a particular emphasis on gear oil and hydraulic filters, essential components that, if neglected, can lead to significant damage and expense.

Understanding Bobcat E32 & E35 Final Drives

The final drive motor is the powerhouse that translates the hydraulic power of your excavator into the rotational force needed to drive the tracks. It's a complex assembly comprising gears, bearings, and seals, all working in harmony. The Bobcat E32 and E35, with their intelligent auto-shift capabilities, place even more demands on these components. Regular preventative maintenance is not just a recommendation; it's a necessity to safeguard these vital parts. Paying close attention to seemingly minor details, such as the condition of case drain filters, can be the difference between a minor service and a major, wallet-draining repair. Ignoring these checks can significantly shorten the lifespan of your final drive motors, leading to premature wear and eventual failure.

Gear Oil: The Lifeblood of Your Final Drives

Gear oil is the lubricant that keeps the gears and bearings within the final drive motor running smoothly. It reduces friction, dissipates heat, and protects against wear. For a new Bobcat E32 or E35, Bobcat's official recommendation is to check the gear oil level within the first 50 hours of operation. Following this initial check, it's advised to inspect the gear oil level every 250 hours thereafter. Crucially, the gear oil should be completely replaced every 1,000 hours of operation or annually, whichever comes first. Bobcat also specifically recommends an initial oil change after the first 50 hours on a new machine. The specified lubricant for these final drives is SAE 90W gear oil. Adhering to these basic maintenance schedules is not only vital for the performance of your machine but is also a prerequisite for maintaining your manufacturer's warranty. Failure to comply can void your warranty, leaving you responsible for all repair costs.

Consequences of Neglecting Gear Oil

The repercussions of allowing the gear oil to fall below the recommended level or failing to change it at the prescribed intervals can be severe. Low oil levels lead to increased friction and heat, causing accelerated wear on the delicate gears and bearings within the gear hub. This wear can manifest as noise, reduced efficiency, and eventually, complete failure of the final drive. Furthermore, if you suspect a leak in the gear hub, it is imperative to have the seals replaced as a matter of urgency. A leaking seal allows the protective gear oil to escape while simultaneously permitting contaminants like dirt and grit to enter the system. The image below [conceptually, as no image is provided] would illustrate the devastating impact of a failed seal, showing how ingress of dirt can contaminate the oil and cause catastrophic damage to the internal components of the final drive motor.

Table 1: Bobcat E32/E35 Gear Oil Maintenance Schedule

Hydraulic Filters: The Unsung Heroes

Beyond the gear oil, the hydraulic system of your Bobcat E32 and E35 relies heavily on its filters to maintain clean and efficient operation. Among these, the case drain filters play a particularly crucial role in protecting the final drive motors. These filters are designed to remove any debris or contaminants that may have entered the hydraulic system, preventing them from circulating and causing damage. Failure to regularly replace these case drain filters can be equally, if not more, detrimental to the final drive than neglecting the gear oil. In essence, a neglected case drain filter can render an otherwise perfectly good final drive motor a complete write-off.

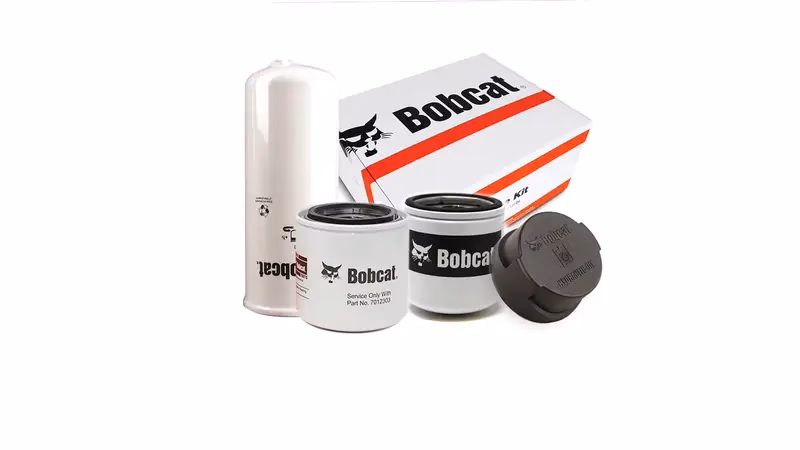

The recommended replacement schedule for the case drain filters is to change them once during the initial 50 hours of operation, and then every 500 hours thereafter. It is often convenient and good practice to perform this task concurrently with the replacement of the main hydraulic filter and the reservoir breather filter. While all filters within a hydraulic system are important, the case drain filter's direct impact on the health of the final drive motor makes its maintenance paramount. Many of the final drive motor repairs that are undertaken can, unfortunately, be traced back to a contaminated or clogged case drain filter, much like the one depicted [conceptually].

Accessing and Replacing the Case Drain Filter

For the Bobcat E35 and E32 models, locating and accessing the case drain filter typically involves removing the floor plate. This means you'll need to lift the floor mat and then unbolt the floor plate to gain access. The filter housing itself usually resembles an aluminium canister, measuring approximately 1 ¼ inches in diameter and between 3 and 3 ½ inches in length. Once you've located the filter, carefully remove it from the drain lines. It is crucial to plug the drain lines immediately after removing the filter to prevent any loss of valuable hydraulic fluid. To access the actual filter element within the housing, you'll need to unscrew the hexagonal nut at the end of the canister. Inside, you'll typically find a tapered sintered-bronze filter element, often held in place by a couple of springs. The tell-tale sign that the filter needs replacing is if its colour has changed from its original bronze hue; this indicates it has captured a significant amount of particulate matter.

After removing the old filter element, it's essential to clean the inside of the filter housing thoroughly, paying particular attention to the area where the new filter gasket will seat. Apply a small amount of clean hydraulic fluid to the new gasket to ensure a proper seal. Then, carefully insert the new filter element and springs back into the housing. Finally, screw the hexagonal nut back onto the housing, tightening it by hand to ensure you don't cross-thread or overtighten it. This meticulous approach to replacing the case drain filter will help ensure the continued health of your final drive motors.

Table 2: Bobcat E32/E35 Hydraulic Filter Maintenance Schedule

Preventative Maintenance: The Smart Approach

The Bobcat E32 and E35 are indeed excellent and reliable mini-excavators. However, their true potential and longevity are unlocked through consistent and correct preventative maintenance. Simple tasks, such as diligently checking and changing the gear oil, and religiously replacing the case drain filters, can dramatically maximise the operational life of your final drive motors. This proactive approach not only ensures your machine is ready to work when you are but also saves you a considerable amount of money in the long run by avoiding costly repairs and premature replacements. It’s a common misconception that new machines don’t require immediate attention; however, establishing good maintenance habits from day one, including the initial oil changes and filter checks, is crucial for the machine's entire service life.

Key Takeaways:

• Regularly check Bobcat E32/E35 gear oil levels every 250 hours.
• Replace gear oil every 1,000 hours or annually.
• Perform an initial gear oil change after the first 50 hours.
• Replace case drain filters every 500 hours, along with main hydraulic filters.
• A failed case drain filter can destroy a final drive motor.
• Address any suspected gear hub leaks promptly by replacing seals.
• Use only SAE 90W gear oil as specified by Bobcat.

Frequently Asked Questions (FAQs)

Q1: How often should I check the gear oil on my Bobcat E32?
You should check the gear oil level on your Bobcat E32 within the first 50 hours of operation for a new machine, and then every 250 hours thereafter.

Q2: What type of gear oil does the Bobcat E32 require?
The Bobcat E32 requires SAE 90W gear oil.

Q3: When should the case drain filter on a Bobcat E32 be replaced?
The case drain filter should be replaced after the first 50 hours and then every 500 hours of operation.

Q4: Can I ignore the case drain filter if my final drive seems to be working fine?
No, absolutely not. A clogged or degraded case drain filter can cause irreversible damage to your final drive motor over time, even if it's not immediately apparent. It's a critical component for protecting the final drive.

Q5: What happens if the gear oil leaks from the final drive?
A gear oil leak indicates a seal failure. If not addressed promptly, the loss of lubricant and ingress of contaminants will lead to severe wear and potential catastrophic failure of the gears and bearings within the final drive.

By adhering to these maintenance guidelines, you can significantly extend the operational life of your Bobcat E32 and E35 mini-excavators, ensuring they remain reliable workhorses for years to come. Investing a little time and care in preventative maintenance will undoubtedly save you substantial costs and headaches in the future.
