BMW F31 320d Touring: Key Components

Exploring the Heart of the BMW F31 320d Touring

The BMW F31 3 Series Touring, particularly the 320d variant, has long been a favourite among those seeking a blend of practicality, performance, and premium quality. Its enduring appeal lies not just in its stylish estate design but also in the sophisticated engineering that underpins its operation. Understanding the core components of this vehicle can provide valuable insight for owners, enthusiasts, and potential buyers alike, aiding in everything from routine maintenance to appreciating the intricate systems at play. This article delves into the key parts that constitute the BMW F31 320d Touring, offering a comprehensive overview of its mechanical and electrical makeup.

The Powertrain: Engine and Transmission

At the forefront of any vehicle's identity is its powertrain, and the BMW F31 320d is no exception. The 'd' in 320d signifies its diesel engine, a powerplant renowned for its torque, efficiency, and longevity.

The N47 Engine (Commonly Found in F31 320d models

The F31 generation of the 320d typically features the N47 diesel engine. This 2.0-litre, four-cylinder, turbocharged unit is a marvel of modern diesel technology. Key aspects of the N47 engine include:

• Common Rail Direct Injection: This system delivers fuel at extremely high pressures directly into the combustion chamber, optimising fuel atomisation and combustion for improved efficiency and power output.
• Variable Geometry Turbocharger (VGT): The VGT adjusts the airflow into the engine based on demand, providing consistent power delivery across the rev range and reducing turbo lag.
• Intercooler: This component cools the compressed air from the turbocharger before it enters the engine, increasing its density and thus improving combustion efficiency and power.
• Exhaust Gas Recirculation (EGR): The EGR system recirculates a portion of exhaust gas back into the combustion chamber to reduce NOx emissions.
• Diesel Particulate Filter (DPF): Fitted to meet emissions standards, the DPF traps soot particles from the exhaust, which are then periodically burned off during a process called regeneration.

While the N47 engine is generally robust, it's worth noting some common considerations discussed by owners, such as potential issues with timing chains in earlier iterations, which BMW has addressed through updates and revised parts.

Transmission Options

The F31 320d was offered with two primary transmission types:

• ZF 8-Speed Automatic: This is the more prevalent and often preferred transmission. Known for its smooth shifts, quick responses, and contribution to fuel economy, the ZF 8-speed is a highly regarded piece of engineering. It features multiple clutch packs and planetary gearsets to achieve its eight forward gears.
• 6-Speed Manual: For those who prefer a more engaging driving experience, a six-speed manual gearbox was also available. This unit offers direct control over gear selection and is a testament to BMW's commitment to driver involvement.

Chassis and Suspension: The Driving Dynamics

The F31's ability to offer a dynamic driving experience while maintaining practicality is largely down to its chassis and suspension setup. BMW's signature driving dynamics are evident here.

Suspension Components

The F31 3 Series Touring typically employs a sophisticated suspension system designed for a balance of comfort and sporty handling. Common components include:

• Front Suspension: Often a double-wishbone or MacPherson strut design, this setup provides excellent control over wheel movement, minimising torque steer and maximising tyre contact with the road. Key parts include control arms, ball joints, shock absorbers, and coil springs.
• Rear Suspension: A multi-link independent suspension system is typically found at the rear. This complex arrangement uses several links (often five) to control wheel movement precisely, leading to superior ride comfort and handling stability, especially under load. Components include trailing arms, control arms, hub carriers, shock absorbers, and coil springs.
• Anti-Roll Bars (Sway Bars): These bars connect opposite wheels, reducing body roll during cornering and contributing to a flatter, more stable stance.
• Adaptive M Sport Suspension (Optional): Higher-specification models or those equipped with the M Sport package might feature adaptive suspension, which electronically controls the damping force of the shock absorbers, allowing for adjustable stiffness.

Steering System

The F31 features electric power steering (EPS). This system uses an electric motor to provide power assistance, offering benefits such as reduced fuel consumption (as it only draws power when steering assistance is needed) and the ability to incorporate advanced functions like variable steering ratios and parking assist.

Braking System: Safety and Performance

A robust braking system is crucial for any vehicle, and the F31 320d is equipped with reliable components to ensure safety and responsive stopping power.

• Front and Rear Disc Brakes: Typically, ventilated discs are used at the front for better heat dissipation, while solid discs may be used at the rear.

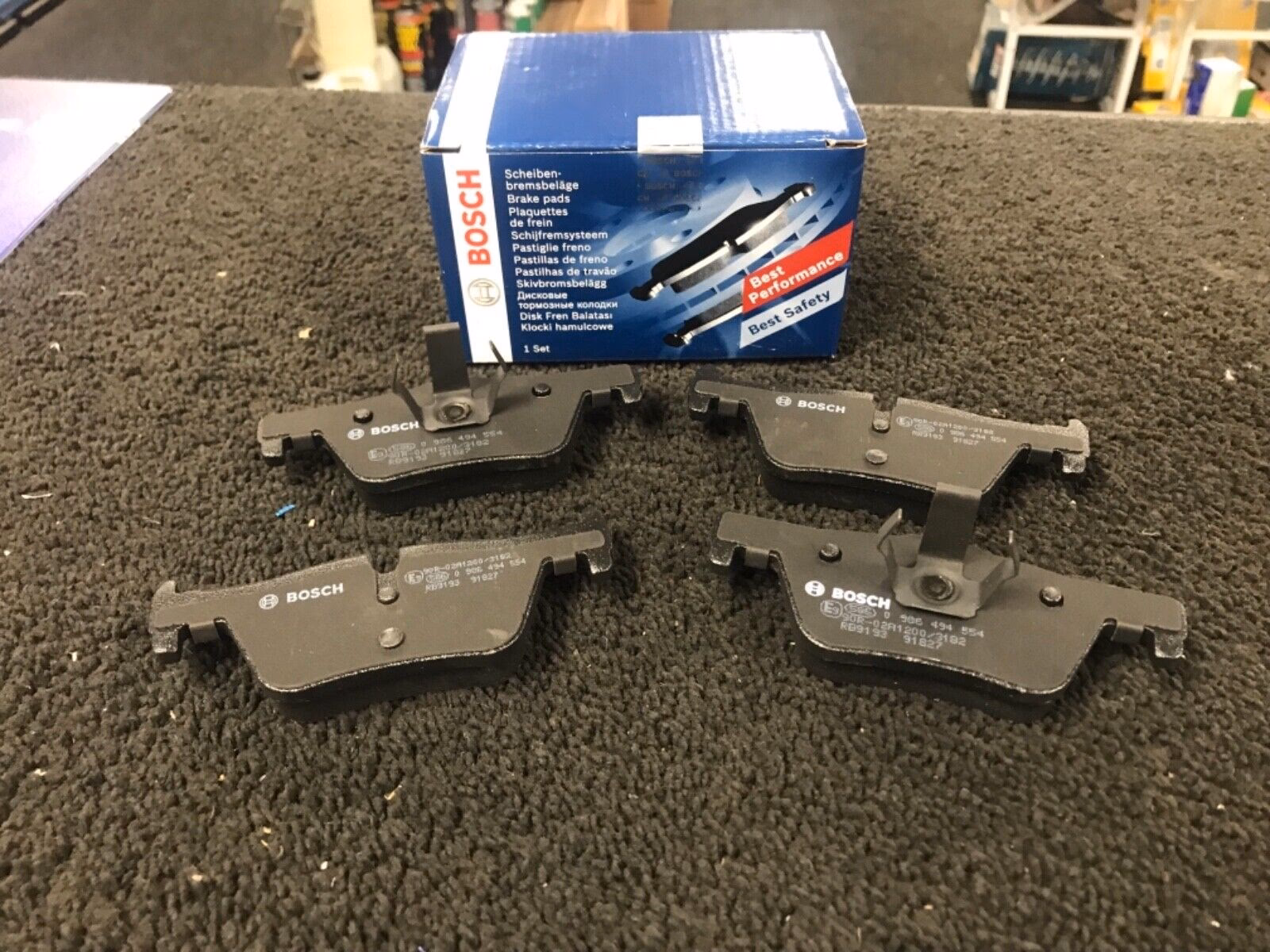

• Brake Calipers: These house the brake pads and hydraulic pistons that apply pressure to the discs.
• Anti-lock Braking System (ABS): ABS prevents the wheels from locking up during heavy braking, allowing the driver to maintain steering control.
• Electronic Stability Control (ESC) / Dynamic Stability Control (DSC): BMW's DSC system works in conjunction with ABS to prevent skids and maintain stability, particularly during cornering or in slippery conditions.

Body and Exterior: Style and Utility

The Touring body style of the F31 is its defining characteristic, offering greater practicality than its saloon counterpart.

• Body Panels: This includes the doors, bonnet, tailgate, roof, wings, and bumpers, all constructed from steel and aluminium for a balance of strength and weight.
• Roof Rails: Standard on the Touring model, these provide a mounting point for roof racks and carriers, significantly increasing luggage capacity.
• Tailgate: The F31 features a split tailgate, allowing the rear window to open independently of the main tailgate. This is a highly practical feature for loading smaller items without needing to open the entire boot.
• Headlights and Taillights: Incorporating modern lighting technology, often including Xenon or LED units for improved visibility and a distinctive look.

Interior and Technology: Comfort and Connectivity

The F31's interior is designed with the driver and passengers in mind, offering a premium feel and a range of technologies.

• Seating: Comfortable and supportive seats, often with options for electric adjustment, lumbar support, and heating. The rear bench seat provides ample space for passengers, with a split-folding function for increased cargo versatility.
• Infotainment System (iDrive): BMW's iDrive system is the central hub for navigation, audio, climate control, and vehicle settings, operated via a rotary controller and buttons.
• Climate Control: Automatic climate control systems ensure passenger comfort.
• Driver Assistance Systems: Depending on specification, the F31 can be equipped with various driver aids like parking sensors, a reversing camera, adaptive cruise control, and lane departure warning.

Electrical System: The Nervous System

The complex array of features in the F31 relies on a sophisticated electrical system.

• Battery: Powers all the vehicle's electrical components. Modern BMWs often use AGM (Absorbent Glass Mat) batteries.
• Alternator: Recharges the battery while the engine is running.
• Engine Control Unit (ECU): The 'brain' of the engine, managing fuel injection, ignition timing, turbocharger operation, and emissions control.
• Body Control Module (BCM): Manages various body functions, including lighting, windows, locks, and interior features.
• Sensors: A vast network of sensors monitors everything from engine temperature and oil pressure to wheel speed and ambient air temperature, feeding data to the ECUs.

Frequently Asked Questions

Q1: What is the main engine in the BMW F31 320d?
The most common engine is the 2.0-litre, four-cylinder, turbocharged N47 diesel engine.

Q2: What are the transmission options for the F31 320d?
It was available with a 6-speed manual transmission or an 8-speed ZF automatic transmission.

Q3: What makes the F31 320d practical?
Its Touring (estate) body style, split tailgate, and roof rails offer excellent practicality and cargo space.

Q4: What are the key benefits of the electric power steering in the F31?
EPS offers improved fuel efficiency and enables features like variable steering ratios and parking assistance.

Q5: Does the F31 320d have a DPF?
Yes, the diesel particulate filter (DPF) is a standard component to reduce emissions.

Understanding these core components provides a solid foundation for appreciating the engineering excellence and practical utility of the BMW F31 320d Touring. Regular maintenance and awareness of these parts will help ensure its continued reliable performance on the road.
