How Long to Change Transfer Case Fluid?

The transfer case, a vital component in four-wheel drive (4WD) and all-wheel drive (AWD) vehicles, is often overlooked when it comes to routine maintenance. Much like your engine and transmission, the transfer case relies on specialised fluid to ensure its internal gears, chains, and bearings operate smoothly, efficiently, and without excessive wear. Neglecting this fluid can lead to costly repairs and compromise your vehicle's ability to distribute power effectively to all wheels. So, if you're wondering how long it takes to change transfer case fluid, and whether it's a task you can tackle yourself, you've come to the right place. This guide will walk you through the process, demystify the timing, and provide comprehensive insights to empower you with the knowledge needed for this essential automotive service.

Understanding the Transfer Case: A Brief Overview

At its core, the transfer case is a gearbox that splits power from the transmission and sends it to both the front and rear axles. In 4WD vehicles, it allows you to select between two-wheel drive (2WD), four-wheel drive high-range (4H), and four-wheel drive low-range (4L) modes, optimising traction for various driving conditions, from highway cruising to challenging off-road terrains. For AWD vehicles, the transfer case continuously distributes power to all wheels, often varying the power split dynamically to maintain optimal grip. Inside, it houses a complex array of gears, chains, and clutches, all operating under immense pressure and generating considerable heat. The transfer case fluid plays a critical role in cooling these components, providing essential lubrication to prevent metal-on-metal contact, and flushing away microscopic wear particles that can otherwise cause abrasive damage. Over time, this fluid degrades, losing its viscosity and protective properties, becoming contaminated with metallic debris and sludge. Changing it ensures the longevity and efficient operation of your vehicle's drivetrain.

How Long Does a Transfer Case Fluid Change Take?

The question of "how long" is a common one, and the answer, as with many automotive tasks, isn't a single definitive number. Based on the experience of many mechanics and keen DIY enthusiasts, including one recent account, a first-time transfer case fluid change can realistically take anywhere from 2 to 3 hours. This timeframe accounts for the learning curve, gathering the right tools, safely elevating the vehicle, and familiarising yourself with the specific layout of your car's undercarriage. However, once you've successfully completed the task once, and understand the nuances specific to your vehicle, that time can be significantly reduced. Many experienced individuals report being able to complete the job in as little as 1 hour, sometimes even less, once they have a routine established and all the necessary equipment readily available.

Factors Influencing the Duration

Several elements can influence how long the process takes:

• Vehicle Type & Accessibility: Some vehicles offer easier access to the transfer case drain and fill plugs than others. SUVs and trucks often provide more ground clearance, making the job simpler, while some cars or crossovers might require more intricate manoeuvres or the removal of additional components. Certain models, like those with air suspension, might benefit from raising the suspension for increased working room, adding a few minutes to the setup.
• Tools & Equipment: Having the right tools readily available is paramount. This includes specific hex or Torx bits for plugs and brace bolts, a reliable fluid extractor, a torque wrench for precise reassembly, and proper safety equipment like ramps or jack stands. Searching for a tool mid-job can significantly extend the duration.
• Experience Level: A seasoned mechanic or an experienced DIYer will naturally complete the task faster than a novice. Familiarity with automotive procedures, knowing where everything is, and anticipating potential challenges can shave off considerable time.
• Electronic Procedures: Modern vehicles, particularly those with sophisticated drivetrain management systems or hybrid powertrains, may require connecting to diagnostic software (like ISTA+ for BMWs) to initiate a "service routine" or put the vehicle into a "drive ready" mode to allow the fluid change procedure to complete correctly. This step can add a significant amount of time, especially if you're troubleshooting connectivity issues or software quirks. This was highlighted by one user who needed to involve another person to keep the car in "drive ready" mode.
• Fluid Condition and Volume: While not a major time factor, extremely degraded fluid might take slightly longer to extract, and larger transfer cases naturally take longer to drain and refill. Most passenger car transfer cases hold between 0.6 to 1.5 litres of fluid.

Why is Transfer Case Fluid Maintenance Crucial?

Neglecting your transfer case fluid is akin to running your engine without oil – it's a recipe for disaster. The fluid performs several vital functions:

• Lubrication: It lubricates the gears, bearings, and chains, reducing friction and wear between moving parts. Without proper lubrication, these components would grind against each other, leading to accelerated wear and eventual failure.
• Cooling: The constant motion within the transfer case generates significant heat. The fluid absorbs and dissipates this heat, preventing overheating that can damage seals and internal components.
• Cleaning: As the fluid circulates, it picks up microscopic metal particles and other contaminants that are by-products of normal wear. These particles are then held in suspension until the fluid is drained, preventing them from causing abrasive damage.
• Corrosion Protection: The fluid contains additives that protect internal components from rust and corrosion, especially important in environments where moisture might be present.
• Optimal Performance: Fresh fluid ensures smooth engagement of gears and clutches, contributing to seamless power delivery and responsive handling, especially in varying traction conditions.

A failing transfer case can manifest as strange noises, difficulty engaging 4WD/AWD modes, or even a complete loss of power to one or more wheels, leading to extremely expensive repair bills that far outweigh the cost and effort of regular fluid changes.

Signs Your Transfer Case Fluid Needs Attention

While regular scheduled maintenance is the best approach, certain symptoms might indicate your transfer case fluid is past its prime:

• Unusual Noises: Whining, clunking, or grinding sounds coming from beneath your vehicle, especially when accelerating, turning, or shifting between drive modes, can be a sign of worn gears or bearings due to inadequate lubrication.
• Difficulty Shifting: If your vehicle struggles to engage 4WD or AWD, or if there's a noticeable delay or harshness, it could be related to fluid issues affecting the internal clutches or solenoids.
• Fluid Leaks: Puddles or drips beneath the centre of your vehicle could indicate a leaking transfer case seal. Low fluid levels can quickly lead to catastrophic damage.
• Burning Odour: Overheated or severely degraded fluid can emit a distinct burning smell, often noticeable after driving.
• Warning Lights: Some modern vehicles might illuminate a "Check Engine" or "Drivetrain Malfunction" light if the transfer case sensors detect an issue, though this is less common for simple fluid degradation.

However, the most common reason to change transfer case fluid is simply reaching the manufacturer's recommended service interval, which can vary widely from 30,000 to 100,000 miles, depending on the vehicle and driving conditions. Always consult your owner's manual.

DIY vs. Professional Service: Which is Right for You?

Deciding whether to tackle the transfer case fluid change yourself or take it to a professional workshop depends on several factors, including your mechanical aptitude, access to tools, and comfort level with getting under your vehicle.

For many, the satisfaction and cost savings of a DIY job are compelling. However, if you lack confidence, tools, or time, a professional service is a reliable alternative, ensuring the job is done correctly.

Step-by-Step Guide: Changing Your Transfer Case Fluid

This guide is based on a typical procedure, similar to the one described by a DIYer, but remember to always consult your vehicle's specific service manual for precise instructions and torque specifications.

1. Preparation is Key

Before you begin, ensure your vehicle is on a flat, level surface. Drive the car for 10-15 minutes beforehand to warm up the transfer case fluid; warm fluid drains more completely.

• Safety First: Use sturdy ramps or jack stands to elevate the front of your vehicle, ensuring it's stable. Never rely solely on a jack. If your vehicle has air suspension, raising it to its highest setting can provide valuable extra working room underneath.
• Gather Your Tools: Have everything within reach:
  • New transfer case fluid (ensure it's the correct type and quantity for your specific vehicle).
  • New drain and fill plugs, or at least new crush washers/seals for them.
  • Socket set and wrenches (you'll likely need a large hex bit, possibly H16, for the plugs, and various Torx bits or sockets for underbody shields and braces, such as E8 or 16mm).
  • Torque wrench for precise reinstallation.
  • Fluid extractor/vacuum pump with a flexible, narrow tube (e.g., 4mm diameter) if your transfer case requires extraction rather than gravity drain.
  • Drain pan to collect old fluid.
  • Measuring container to accurately measure the extracted fluid.
  • Gloves, safety glasses, and plenty of shop rags.

2. Accessing the Transfer Case

The transfer case is typically located beneath the centre of the vehicle, behind the transmission.

• Remove Underbody Shields: Many vehicles have plastic or metal underbody shields for protection. These are usually secured by numerous hex screws or bolts (one user reported around 19 hex screws). Carefully remove these and set them aside.
• Remove Transmission Brace/Support: On some vehicles, a transmission brace or cross member might obstruct access to the transfer case. This brace will need to be unbolted (e.g., 6 Torx bolts and 1 hex bolt). If it supports the transmission, it's crucial to place a block and jack underneath the transmission pan (with a piece of wood for protection) to support it before removing the brace. While some might feel it's not strictly necessary, it's a wise precaution to prevent undue stress on engine/transmission mounts.

3. Navigating Electronic Procedures (If Applicable)

This step is highly specific to certain modern vehicles, particularly those with complex electronic drivetrains or hybrid systems.

• Diagnostic Software: Some manufacturers require you to connect to their diagnostic software (e.g., BMW's ISTA+) to initiate a "transfer case oil change service routine." This might involve putting the vehicle into a specific "drive ready" mode or cycling the ignition in a particular sequence.
• Follow Prompts Carefully: If your vehicle requires this, follow the software's prompts precisely. As noted by one user, it might even require someone to be in the car to keep it in the necessary mode, which can be an unexpected hurdle. Do not skip this step if your vehicle manufacturer specifies it, as it could affect proper fluid level calibration or system functionality.

4. Draining the Old Fluid

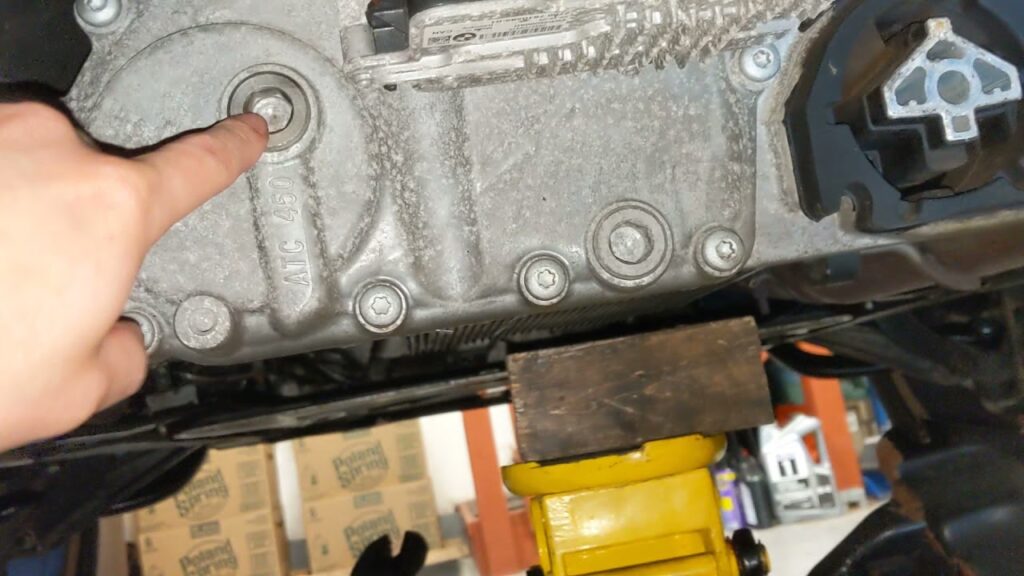

Locate both the fill plug and the drain plug on the transfer case. The fill plug is usually above the drain plug.

• Open Fill Plug First: Always open the fill plug *before* the drain plug. This ensures you can refill the transfer case once it's drained. If you drain it and then can't open the fill plug, you're stuck! The plugs often require a large hex bit, possibly H16.
• Extract the Fluid: Many transfer cases, especially those without a traditional lower drain plug, require fluid extraction from the fill port using a vacuum pump. Insert a very flexible and small-diameter rubber tube (e.g., 4mm) deep into the fill port. Begin extracting the fluid into your measuring container.
• Measure and Observe: Note the quantity of fluid extracted (a typical amount is 600-700 ml, but it varies). Observe the colour and consistency of the old fluid; it's often darker than new fluid, but excessive metallic sheen or strong burning smell indicates significant wear. Empty your extractor as needed if its capacity is less than the total fluid volume.

5. Refilling with New Fluid

• Use Correct Fluid: This is perhaps the most critical step. Use only the manufacturer-specified transfer case fluid. Different transfer cases use different types of fluid (e.g., ATF, specific transfer case fluid, or even gear oil), and using the wrong type can lead to immediate and severe damage. Refer to your owner's manual or a reputable parts catalogue.
• Pump in New Fluid: Fill your extractor with the new, clean fluid. Pump it back into the transfer case through the fill port.
• Fill Level: Refill the exact amount you extracted, or fill until the fluid just begins to trickle out of the fill plug opening. Both methods should result in the correct level, assuming the previous level was correct.

6. Reassembly and Torque Specifications

• Replace Drain Plug: If your transfer case had a separate drain plug, reinsert it with a new crush washer or plug. Tighten to the manufacturer's specified torque. For the drain plug, a common torque value might be around 60Nm (Newton-meters), but this varies significantly by vehicle.
• Replace Fill Plug: Reinstall the fill plug with a new crush washer/seal and tighten to the specified torque.
• Reinstall Brace and Shields: Reattach any transmission braces or cross members, ensuring they are properly aligned. Torque values for brace bolts can vary, for example, 28Nm for smaller bolts and 50-60Nm for larger ones, but *always confirm with your vehicle's specific service manual*. Finally, reattach the underbody shields.

7. Post-Service Checks

Lower your vehicle safely. Take it for a short test drive, paying attention to any unusual noises, vibrations, or leaks. After the drive, check under the vehicle again for any drips or signs of fluid.

Essential Tools and Materials You'll Need

To successfully complete a transfer case fluid change, you'll need the following:

• Vehicle Ramps or Jack Stands: For safe elevation and access.
• Wheel Chocks: To prevent the vehicle from rolling.
• Socket Set & Wrenches: Including specific hex bits (e.g., H16 for plugs), Torx bits (e.g., E8) or sockets (e.g., 16mm) for shields and braces.
• Torque Wrench: Crucial for tightening plugs and bolts to manufacturer specifications, preventing overtightening or loosening.
• Fluid Extractor/Vacuum Pump: With a long, flexible, narrow tube (around 4mm diameter) for drawing out old fluid, especially if there's no dedicated drain plug.
• Measuring Container: To accurately measure the volume of old fluid extracted and new fluid to be added.
• Drain Pan: To collect the old fluid.
• New Transfer Case Fluid: Absolutely essential to use the correct type and viscosity specified by your vehicle manufacturer.
• New Drain/Fill Plugs or Crush Washers: Highly recommended to prevent leaks.
• Gloves & Safety Glasses: For personal protection.
• Shop Rags or Paper Towels: For spills and clean-up.
• Diagnostic Tool/Software (Optional/Vehicle Specific): If your vehicle requires electronic procedures for fluid changes.

Common Mistakes to Avoid During a Transfer Case Fluid Change

Even seemingly simple maintenance tasks can go wrong if not approached carefully. Here are common pitfalls to avoid:

• Using the Wrong Fluid: This is the biggest and most costly mistake. Transfer cases are highly sensitive to fluid type. Using ATF instead of specific transfer case fluid, or vice-versa, can lead to rapid and catastrophic failure. Always double-check your owner's manual.
• Not Checking Fill Before Draining: Always loosen the fill plug first. If you drain the fluid and then find you can't open the fill plug, your vehicle is immobilised until you can resolve the issue.
• Stripping Plugs or Over-Torquing: Aluminium transfer case housings can be easily damaged by overtightening. Conversely, undertightening can lead to leaks. Use a torque wrench and the correct specifications.
• Ignoring Electronic Procedures: For vehicles that require diagnostic software interaction, skipping this step can lead to incorrect fluid levels, warning lights, or even damage to the transfer case's internal components or control module.
• Not Using New Crush Washers/Plugs: Old crush washers can fail to seal properly, leading to leaks. New plugs often come with integrated seals or are designed for single use.
• Improper Disposal of Old Fluid: Automotive fluids are hazardous waste. Never pour them down drains or onto the ground. Take them to an authorised recycling centre or mechanic's shop for proper disposal.

Frequently Asked Questions About Transfer Case Fluid

Q: How often should transfer case fluid be changed?

A: This varies significantly by vehicle manufacturer and driving conditions. Some recommend as early as 30,000 miles (especially for heavy-duty use or frequent towing), while others suggest 60,000 to 100,000 miles. Always consult your vehicle's owner's manual for the precise recommended service interval.

Q: What type of fluid should I use?

A: Only use the fluid type specified by your vehicle's manufacturer. This is critical. Some transfer cases use automatic transmission fluid (ATF), others use specific transfer case fluids (often with designations like DTF-1, TF-0870), and a few might use gear oil. Using the wrong type can cause severe damage.

Q: Can I mix different types of transfer case fluid?

A: Absolutely not. Mixing different types of transfer case fluid, or even different brands of the same type if they don't meet the exact same specifications, can lead to chemical incompatibilities, reduced lubrication, and accelerated wear. Stick to the manufacturer's recommended fluid.

Q: What happens if I don't change my transfer case fluid?

A: Over time, the fluid degrades, losing its lubricating and cooling properties. It also becomes contaminated with microscopic metal particles. Neglecting changes can lead to increased friction, overheating, premature wear of gears, bearings, and clutches, leading to expensive transfer case failure, unusual noises, and impaired 4WD/AWD performance.

Q: Is a transfer case fluid change part of regular service?

A: Yes, it is a crucial part of preventative maintenance for 4WD and AWD vehicles, much like changing engine oil or transmission fluid. While not always included in every basic service package, it should be part of your vehicle's long-term maintenance schedule as recommended by the manufacturer.

Conclusion

Changing your transfer case fluid is a critical maintenance task that directly impacts the longevity and performance of your four-wheel drive or all-wheel drive vehicle. While it might seem daunting at first, especially for a DIY novice, it's a perfectly achievable job that can save you significant money in labour costs. Expect your first attempt to take around 2 to 3 hours, allowing for learning and meticulousness. With experience, this can easily be reduced to an hour or even less. The key takeaways are preparation, using the correct fluid, adhering to torque specifications, and understanding any vehicle-specific electronic procedures. By proactively maintaining your transfer case, you ensure smooth power delivery, avoid costly repairs, and keep your vehicle performing optimally for many miles to come.
