Wheel Alignment Essentials

Ensuring your vehicle's wheels are correctly aligned is paramount for a safe, efficient, and comfortable driving experience. Misaligned wheels can lead to a host of problems, including accelerated tyre wear, poor fuel economy, and compromised handling. Understanding the key specifications involved in wheel alignment is the first step towards maintaining your vehicle's optimal performance. This article will delve into the fundamental parameters that define proper wheel alignment, explaining why each is important and what happens when they fall out of specification.

What is Wheel Alignment?

Wheel alignment, often referred to as 'tracking', is the process of adjusting the angles of the wheels so that they are set parallel to each other and perpendicular to the ground. This ensures that your vehicle drives straight and true, minimising drag and wear on your tyres. The alignment is determined by a series of angles, which are precisely measured and adjusted by trained technicians using specialised equipment.

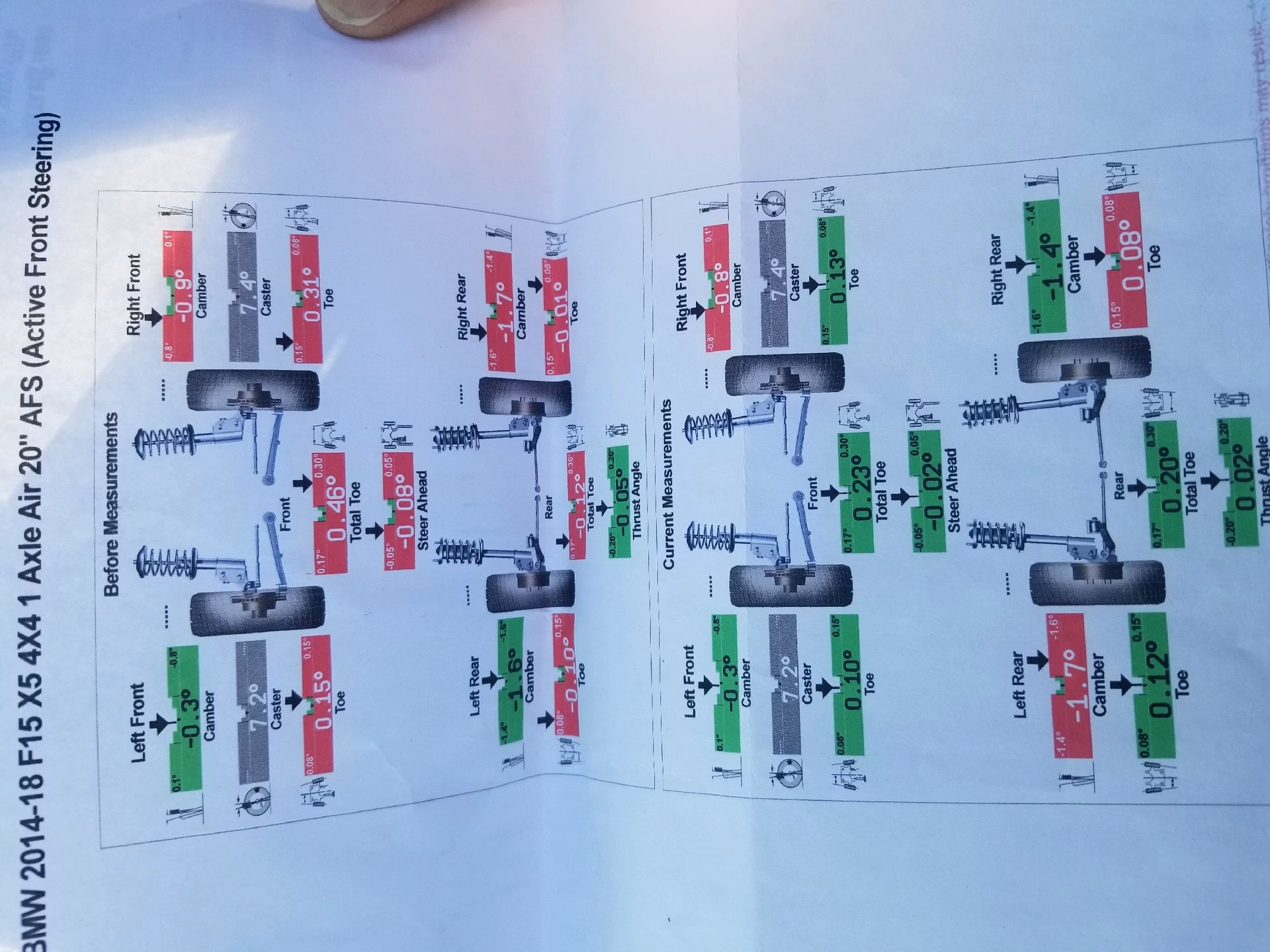

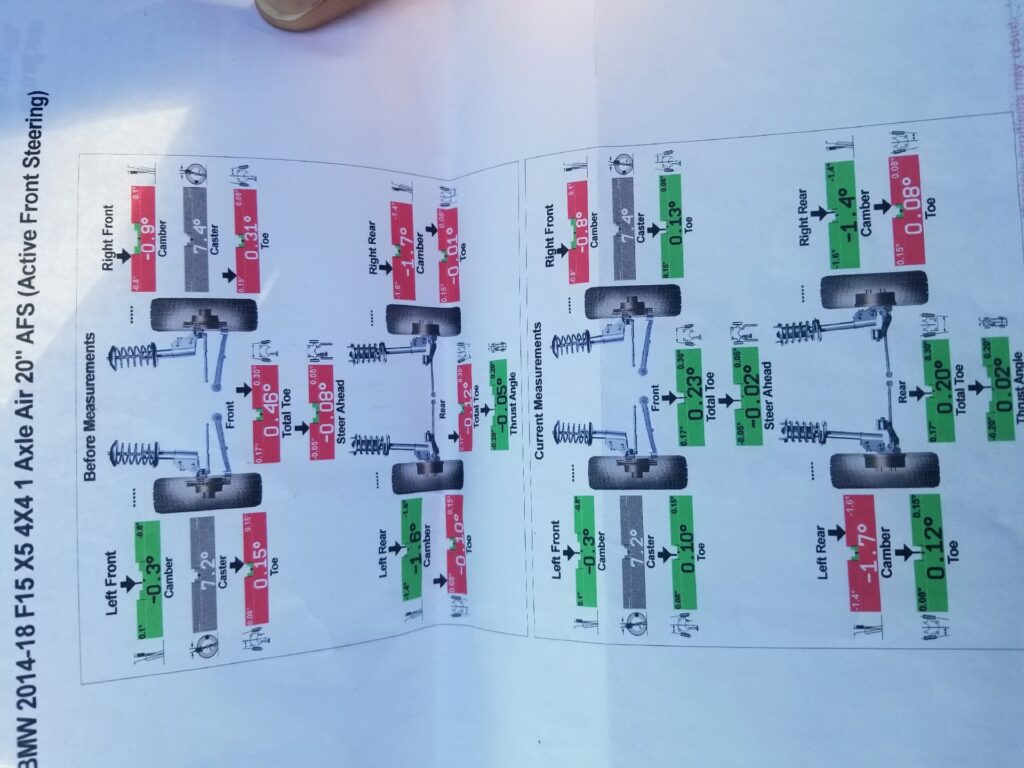

Key Wheel Alignment Specifications

There are three primary angles that are adjusted during a wheel alignment: Camber, Castor, and Toe. Each of these angles plays a distinct role in how your vehicle handles and how your tyres wear. It's important to note that the specific specifications for these angles vary significantly between different vehicle makes and models. Always refer to your vehicle manufacturer's guidelines for the precise figures.

Camber

Camber refers to the angle of the wheel relative to the vertical axis, as viewed from the front of the vehicle. If the top of the wheel is tilted outwards, it's positive camber. If it's tilted inwards, it's negative camber. If the wheel is perfectly vertical, it has zero camber.

• Negative Camber: Tilts the top of the wheel inwards towards the vehicle. This can improve cornering grip as the tyre remains more perpendicular to the road surface during a turn. However, excessive negative camber can cause increased wear on the inner edge of the tyre, particularly during straight-line driving.
• Positive Camber: Tilts the top of the wheel outwards, away from the vehicle. This can aid in steering returnability but can lead to uneven wear on the outer edge of the tyre and a tendency for the vehicle to pull to one side.
• Zero Camber: The wheel is perfectly vertical. This is ideal for minimising tyre wear during straight-line driving but may not offer the best cornering performance.

Impact of Incorrect Camber:

• Excessive negative camber: Inner tyre wear, poor straight-line stability.
• Excessive positive camber: Outer tyre wear, vehicle pulling to one side.

A slight amount of camber is typically specified by manufacturers to optimise handling and tyre life. Modern vehicles often have slightly different camber settings for the front and rear wheels, and sometimes even for the left and right sides.

Castor

Castor is the angle of the steering axis relative to the vertical axis, as viewed from the side of the vehicle. It's essentially the forward or backward tilt of the steering pivot point. Castor influences the steering's tendency to return to the centre position after a turn and the vehicle's straight-line stability.

• Positive Castor: The steering pivot is tilted backwards, towards the rear of the vehicle. This is the most common configuration and helps the steering wheel return to centre, making the vehicle feel more stable.
• Negative Castor: The steering pivot is tilted forwards, towards the front of the vehicle. This is less common and can make steering feel lighter but can also reduce straight-line stability and self-centring.
• Zero Castor: The steering pivot is perfectly vertical. This would result in very light steering but no self-centring action.

Impact of Incorrect Castor:

• Insufficient positive castor: Poor steering self-centring, feeling “wandery” at speed.
• Excessive positive castor: Steering can feel heavy, especially at low speeds, and may not return to centre smoothly.

Castor is crucial for a vehicle's handling characteristics, particularly at higher speeds. It contributes to the feeling of the steering wheel returning to its neutral position after a corner, making it easier to control the vehicle.

Toe

Toe refers to the angle of the wheels relative to the vehicle's longitudinal axis, as viewed from above. If the front of the wheels are turned inwards, it's toe-in. If they are turned outwards, it's toe-out.

• Toe-in: The front edges of the wheels are closer together than the rear edges. This can improve straight-line stability and reduce tyre scrub.
• Toe-out: The front edges of the wheels are further apart than the rear edges. This can improve turn-in response and reduce understeer.
• Zero Toe: The wheels are perfectly parallel to the vehicle's longitudinal axis.

Impact of Incorrect Toe:

• Excessive toe-in: Increased tyre wear (feathering on the inner edges), sluggish steering response.
• Excessive toe-out: Increased tyre wear (feathering on the outer edges), “darting” or unstable steering, particularly on uneven surfaces.

Toe is often adjusted on both the front and rear axles. The precise amount of toe-in or toe-out is critical, as even small deviations can significantly impact tyre wear and handling. For instance, a small amount of toe-out on the front wheels is common in many performance cars to enhance turn-in agility.

Other Important Alignment Considerations

Thrust Angle

The thrust angle is the direction in which the rear axle is pointing relative to the vehicle's centreline. If the thrust angle is incorrect, the vehicle will not track straight, even if the front wheels are aligned correctly. This can be caused by bent components in the rear suspension or chassis damage. A thrust angle that is not zero means the rear wheels are “crabbing” or steering the vehicle in a direction different from the front wheels, leading to poor handling and accelerated tyre wear.

Included Angle

The included angle is the sum of the camber and KPI (Kingpin Inclination). KPI is the angle of the steering axis when viewed from the front of the vehicle. While technicians don't typically adjust KPI directly (it's usually a result of the suspension design), they do check the included angle. If the included angle is out of specification, it can indicate a bent steering knuckle or other suspension component damage.

Total Toe

This refers to the sum of the toe angles for both wheels on an axle. It's a measure of how much the wheels are pointing in or out relative to each other.

Why are These Specifications Important?

Adhering to the manufacturer's specified alignment angles is crucial for several reasons:

• Tyre Longevity: Correct alignment ensures that your tyres wear evenly across the tread, significantly extending their lifespan. Misalignment causes tyres to drag or scrub against the road surface, leading to rapid and uneven wear patterns like cupping, feathering, and bald spots.
• Fuel Efficiency: When wheels are misaligned, they create more rolling resistance. This means your engine has to work harder to maintain speed, leading to increased fuel consumption. Proper alignment reduces this resistance, improving your miles per gallon.
• Handling and Stability: Correct alignment contributes to predictable steering and a stable ride. It ensures the vehicle tracks straight on the road, resists pulling to one side, and provides a responsive feel through the steering wheel.
• Driver Comfort: A vehicle with proper alignment is easier to control, requiring less effort from the driver to keep it going straight. This reduces driver fatigue, especially on longer journeys.

When Should You Get Your Wheel Alignment Checked?

It's advisable to have your wheel alignment checked periodically, and especially after certain events:

• After replacing tyres: To ensure the new tyres are properly aligned from the start.
• After a suspension or steering component replacement: Such as ball joints, tie rods, shock absorbers, or springs.
• After hitting a kerb or pothole: Significant impacts can easily knock your wheels out of alignment.
• If you notice uneven tyre wear: This is a tell-tale sign of misalignment.
• If the vehicle pulls to one side: Even if there's no obvious damage.
• If the steering wheel is not centred when driving straight: This indicates a misalignment issue.
• As part of regular vehicle servicing: Many manufacturers recommend an annual alignment check.

Table: Common Alignment Issues and Their Effects

Frequently Asked Questions

Q1: How much does a wheel alignment cost?

The cost of a wheel alignment can vary depending on your location, the garage, and the complexity of the adjustment required. Typically, you can expect to pay between £50 and £100 for a standard four-wheel alignment. Some vehicles may require more specialised adjustments, which could increase the price.

Q2: Can I adjust my wheel alignment myself?

While some minor adjustments might be possible on older vehicles, modern cars have complex suspension systems. It is strongly recommended to have wheel alignment performed by a qualified technician using professional equipment. Incorrect adjustments can worsen the problem and potentially damage your vehicle.

Q3: How long does a wheel alignment take?

A standard wheel alignment usually takes between 45 minutes and 1.5 hours to complete, depending on the vehicle and the technician's efficiency. The process involves measuring all angles, making adjustments, and then re-measuring to ensure accuracy.

Q4: What is the difference between a two-wheel and a four-wheel alignment?

A two-wheel alignment typically only adjusts the front wheels, while a four-wheel alignment adjusts both the front and rear wheels. For most modern front-wheel-drive and all-wheel-drive vehicles, a four-wheel alignment is recommended to ensure all wheels are tracking correctly and to address potential rear-axle misalignment.

Q5: Can a wheel alignment fix a pulling steering wheel?

Yes, a pulling steering wheel is often a symptom of misalignment. By correcting the camber, castor, and toe angles, a professional wheel alignment can often resolve pulling issues. However, if the pulling persists after an alignment, it could indicate other underlying problems, such as uneven tyre pressure, worn suspension components, or brake issues.

Conclusion

Understanding the specifications for wheel alignment – Camber, Castor, and Toe – is fundamental to maintaining your vehicle's health and ensuring a safe and efficient driving experience. These angles, along with factors like the thrust angle, are precisely set by manufacturers to optimise tyre wear, fuel economy, and handling. Regular checks and prompt adjustments when issues are detected will save you money on premature tyre replacements and improve the overall performance and longevity of your vehicle. Always consult your vehicle's service manual or a trusted mechanic for the precise alignment specifications applicable to your car.
