Steering Wheel and Wheel Alignment: A Comprehensive Guide for BMW X5 Owners

Ensuring your BMW X5's steering wheel is correctly aligned and its wheels are properly adjusted is crucial for a safe, comfortable, and efficient driving experience. Misalignment can lead to uneven tyre wear, poor fuel economy, and a compromised steering feel. This guide will walk you through the process of adjusting the steering wheel and performing wheel alignment on both the front and rear axles of your BMW X5, with a special focus on models equipped with Active Front Steering.

Understanding the Importance of Wheel Alignment

Wheel alignment, often referred to as tracking, is the process of adjusting the angles of your wheels so they are set parallel to each other and perpendicular to the ground. The primary goal is to ensure your vehicle drives straight and true, without pulling to one side. Proper alignment significantly impacts:

• Tyre Longevity: Correct alignment prevents premature and uneven tyre wear, saving you money and extending the life of your tyres.
• Fuel Efficiency: When wheels are misaligned, they create more rolling resistance, forcing your engine to work harder and consume more fuel.
• Handling and Stability: Precise alignment contributes to a stable and predictable driving experience, especially at higher speeds and during cornering.
• Steering Comfort: A properly aligned vehicle will have a steering wheel that feels centred and responsive, without any unwanted pulling or vibration.

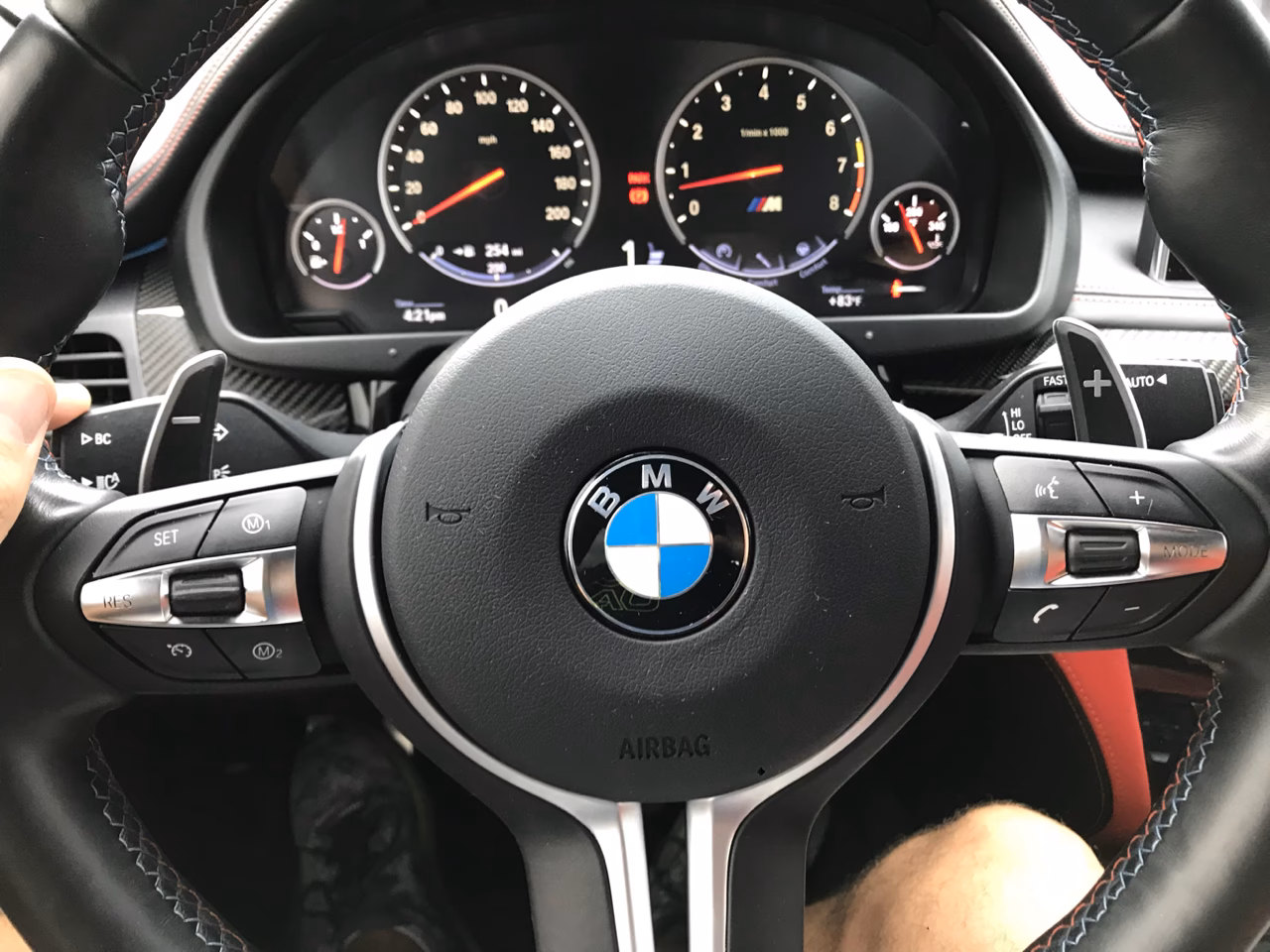

Adjusting the Steering Wheel: Getting it Straight

The steering wheel's position should correspond to the vehicle's straight-ahead driving direction. If your steering wheel is off-centre when driving in a straight line, it indicates a need for adjustment. The procedure can vary slightly depending on whether your X5 has Active Front Steering (AFS).

Version with Active Front Steering (AFS)

For X5 models equipped with Active Front Steering, a specific electronic calibration is required to ensure the system functions correctly. The cumulative steering angle needs to be reset to zero.

1. Align the steering wheel to what you perceive as the straight-ahead position.
2. Connect the vehicle to a BMW diagnosis system.
3. Navigate to the 'Service functions' menu and select the service function "Carry out initial operation/adjustment for active front steering".
4. Set the cumulative steering angle to "zero" as prompted by the system.
5. If necessary, secure the steering wheel with a steering wheel arrester to prevent it from moving during the process.

Note: After this electronic adjustment, it is essential to check the cumulative steering angle again and reset it to zero if necessary.

Version without Active Front Steering

On models without AFS, the adjustment is primarily mechanical.

1. If necessary, remove the steering gear cover at the top to gain access.
2. Locate the markings on the cap (1) and the steering gear (2) to identify the straight-ahead position.
3. Move the steering to this straight-ahead position using these markings.
4. Align the steering wheel correctly with the wheels pointing straight.
5. Secure the steering wheel with a steering wheel arrester to maintain its position.

Front Axle Toe-In Adjustment on BMW X5

Toe-in refers to the angle of the wheels relative to the vehicle's longitudinal axis. When viewed from above, if the front edges of the wheels are closer together than the rear edges, it's toe-in. If they are further apart, it's toe-out. Adjusting toe-in is crucial for directional stability and tyre wear.

Important Note: Camber and toe-in influence each other. It is recommended to adjust the toe-in first to simplify the overall adjustment procedure.

Procedure for Front Axle Toe-In Adjustment:

1. Ensure the steering wheel is correctly aligned and secured (as described above).
2. Clean the thread on the tie rod.
3. Locate and slacken the clamping nut (2), ensuring you grip the tie rod end (1) to prevent it from turning.
4. Remove the clamp (4).
5. Turn the tie rod (3) to adjust the toe-in to the specified value. Turning the tie rod in one direction will adjust toe-in on one side, and turning it in the opposite direction will adjust it on the other.
6. For versions with Active Front Steering: Check the cumulative steering angle. If it's not zero, reset it using the diagnostic system as previously described.
7. Check the toe values using a wheel alignment rig. Repeat the adjustment if necessary to achieve the specified values.
8. Tighten down the clamping nut (2) to the specified torque: 32 21 2AZ.
9. Fit the clamp (4) securely.

Post-Adjustment Check: After completing the toe-in adjustment, it is vital to check the directional stability of the car. If the vehicle still pulls to one side or feels unstable, repeat the toe-in adjustment procedure.

Rear Axle Adjustment on BMW X5

The rear axle also requires precise alignment to ensure optimal handling and tyre wear. The adjustment process for camber and toe on the rear axle involves eccentric bolts.

Important Note: A camber change always results in a toe change as well. Therefore, the camber must be adjusted first before proceeding with toe adjustment on the rear axle.

Note for Vehicles with Reversing Cameras: If your X5 is equipped with reversing cameras, it is essential to calibrate them after any chassis or wheel alignment work has been completed.

Adjusting Rear Axle Camber:

1. Replace the nut (2) prior to starting the adjustment.
2. Tighten the nut to 5 Nm.
3. Locate the eccentric bolt (1).
4. Turn the eccentric bolt (1) to adjust the camber to the manufacturer's specified setpoint value.
5. Tighten the nut (2) to the specified torque: 33 32 2AZ.

Adjusting Rear Axle Toe:

1. Replace the nut (2) prior to starting the adjustment.
2. Tighten the nut to 5 Nm.
3. Locate the eccentric bolt (1).
4. Turn the eccentric bolt (1) to adjust the toe to the manufacturer's specified value.
5. Tighten the nut (2) to the specified torque: 33 32 5AZ.

Visual Aid: Refer to Figure 26 and Figure 27 for visual identification of the eccentric bolt and the adjustment process for camber and toe respectively.

Adjustment for Active Front Steering (AFS) – Detailed Steps

The Active Front Steering system on your BMW X5 requires specific recalibration procedures under certain circumstances. This ensures the system's complex functions, which can alter steering ratio and assist at different speeds, operate correctly.

Recalibration is mandatory after:

• Any adjustment work on the front axle or steering components.
• All mechanical work performed on the steering system.
• Replacement, programming, or coding of the following components:
  • Steering column switch cluster
  • DSC control unit
  • Active front steering control unit
  • ARS control unit

The recalibration process involves:

1. Connect the vehicle to a compatible BMW diagnosis system.
2. Select and execute the 'Initial operation/adjustment for active front steering' function within the 'Service functions' menu.

When is a Wheel/Chassis Alignment Check Required?

A comprehensive wheel and chassis alignment check is not just for when you notice steering issues. It's a preventative measure and a necessary step after certain maintenance or repair procedures. A check must be carried out after the following work:

• Release of screw/bolt connections on the swinging arm (front/rear).
• Release of suspension components.
• Replacement of suspension struts.
• Replacement of steering gear components.
• Accident repair work.

Failure to perform an alignment check after these procedures can lead to the issues mentioned earlier, such as accelerated tyre wear and compromised handling.

Frequently Asked Questions (FAQ)

Q1: How often should I have my wheel alignment checked?
It's recommended to have your wheel alignment checked annually or every 12,000 miles, whichever comes first. You should also have it checked if you hit a pothole or curb forcefully, or if you notice any changes in your car's handling or tyre wear.

Q2: Can I adjust my steering wheel myself?
While you can adjust the steering wheel's position for comfort (tilt and reach), the mechanical and electronic alignment adjustments described here require specialized tools, diagnostic equipment, and a good understanding of automotive mechanics. It's best left to qualified technicians.

Q3: What are the signs of poor wheel alignment?
Common signs include the car pulling to one side, the steering wheel being off-centre when driving straight, uneven or rapid tyre wear (especially on the edges), and a feeling of looseness or vagueness in the steering.

Q4: Does Active Front Steering affect how the steering wheel is aligned?
Yes, AFS systems require a specific electronic calibration in addition to mechanical adjustments. The cumulative steering angle must be zeroed out using diagnostic equipment to ensure the system functions correctly.

Q5: What is the difference between camber and toe?
Camber is the inward or outward tilt of the top of the wheel when viewed from the front. Toe is the inward or outward angle of the wheels relative to the vehicle's longitudinal axis when viewed from above. Both affect steering and tyre wear.

Conclusion

Maintaining the correct steering wheel position and precise wheel alignment on your BMW X5 is paramount for safety, performance, and the longevity of your tyres. While minor adjustments to the steering wheel's position can be made for driver comfort, the critical alignment procedures require professional expertise and equipment. By understanding the importance of these adjustments and following the guidelines, especially for models with Active Front Steering, you can ensure your X5 continues to provide the exceptional driving dynamics it's known for.
