BMW X5 Fuel System: Pumps, Leaks & HPFP Faults

The sophisticated engineering beneath the bonnet of a BMW X5 ensures both exhilarating performance and stringent adherence to modern environmental standards. Central to this is the intricate fuel system, designed to deliver precise amounts of fuel at varying pressures. However, like any complex system, components can develop faults. This article delves into two critical aspects: the innovative fuel system leak diagnosis pump and the often-troublesome high-pressure fuel pump, providing clarity on their functions and common issues.

The DM-TL Pump: BMW X5's Advanced Leak Detector

Modern vehicles, especially those adhering to strict emissions regulations, employ sophisticated systems to detect even the most minor fuel vapour leaks. For the BMW X5, a new component has been introduced to enhance this capability: the Fuel System Leak Diagnosis Pump, more commonly known as the DM-TL (Diagnosis Module Tank Leak) pump.

This innovative pump is a significant upgrade from the older vacuum-based Leak Diagnosis Pump (LDP) found in previous models. Manufactured by Bosch to BMW's exacting specifications, the DM-TL pump is designed to actively pressurise the fuel tank and lines with air, then monitor for any pressure drops that would indicate a leak. This method offers a more precise and reliable way to identify even minuscule breaches in the fuel system, preventing harmful fuel vapour from escaping into the atmosphere.

On the BMW X5, you'll typically find the DM-TL pump conveniently located within the driver's side rear wheel well. The vehicle's Engine Control Module (ECM) identifies and communicates with this electrical pump specifically under the 'DM-TL' designation. Its primary role is not to deliver fuel, but rather to ensure the integrity of the entire fuel system, acting as a crucial guardian against environmental pollution and potential safety hazards associated with fuel leaks.

Understanding High-Pressure Fuel Pump (HPFP) Failures

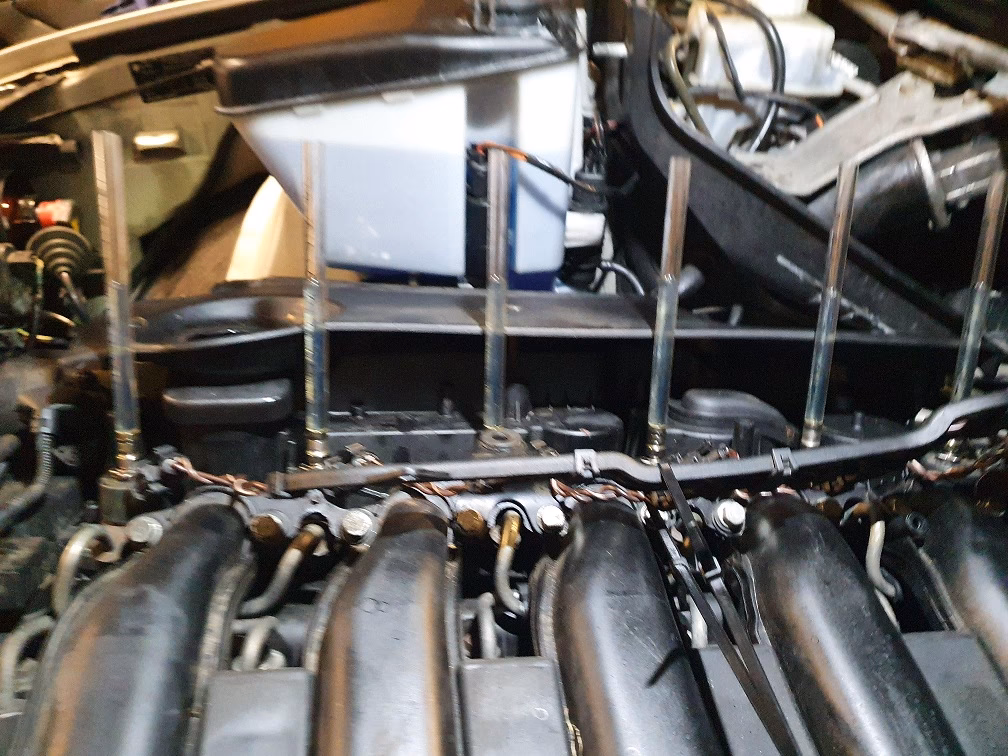

While the DM-TL pump handles leak detection, the high-pressure fuel pump (HPFP) is responsible for delivering fuel to the engine's injectors at extremely high pressures, crucial for efficient direct injection systems. A failure of this component can lead to immediate and significant operational issues, often manifesting as a sudden loss of power or even complete engine shutdown.

Symptoms and Initial Diagnosis

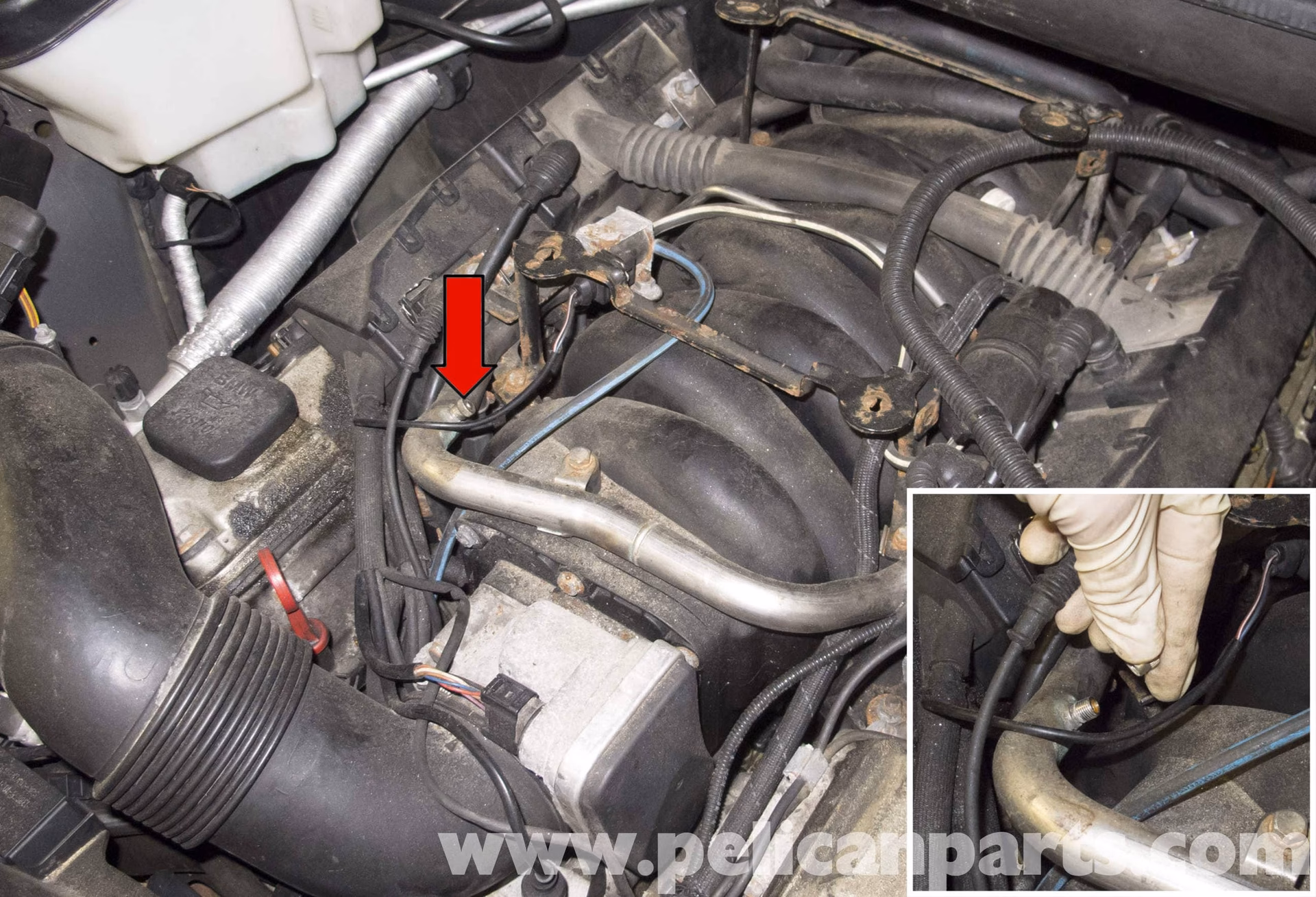

Imagine driving steadily, perhaps on a dual carriageway, when suddenly your dashboard flashes a "Fuel Injection System" warning, followed by a complete loss of power. This scenario, unfortunately, is a classic symptom of an HPFP malfunction. While a temporary reset by cycling the ignition might allow the car to restart, it's a clear indication that a deeper issue is at play.

When connecting a diagnostic tool like INPA, you might encounter specific fault codes pointing towards a plausibility issue with the fuel rail pressure. Codes such as 4560, 4570, and 4610, all related to "plausibility rail-pressure volume regulated," indicate that the actual fuel pressure in the rail is not matching the desired or nominal pressure the engine control unit (ECU) expects. For instance, a reading showing a "maximal rail pressure of the last 10ms 661.68 bar" when the "rail pressure index value 1150.06 bar" was expected, directly points to the HPFP failing to meet the required pressure target. Your assumption regarding these values is correct: the recorded value (661.68 bar) is what was observed, significantly lower than the target (1150.06 bar).

Interpreting Live Data Readings

Observing live data, particularly the nominal (desired) and actual (current) fuel rail pressures, is vital for diagnosing HPFP issues. While it might seem confusing if these readings appear low but remain relative to one another (e.g., 700 RPM = 316 bar, 1600 RPM = 402 bar, 3000 RPM = 550 bar, 4000 RPM = 650 bar), it suggests that the system is attempting to regulate, but the pump is simply incapable of achieving the higher pressures required. The readings agreeing with each other means the sensor is likely accurate, but the pump itself is underperforming or there's a restriction preventing it from reaching optimal pressure.

The difficulty in accessing low-pressure fuel pump (LPFP) readouts through INPA's live data (e.g., under tab F6) can be frustrating. This can sometimes be due to specific INPA versions, module types, or requiring a deeper dive into specific test plans or diagnostic functions beyond standard live monitoring. However, it's a crucial step because the HPFP relies on a consistent supply of fuel from the LPFP. If the LPFP isn't delivering adequate pressure or volume, the HPFP will struggle, even if it's otherwise healthy.

Common Causes of HPFP Failure

High-pressure fuel pumps are complex mechanical and electrical components. Their failure can stem from several factors:

• Mechanical Wear: Over time, the internal components of the pump (pistons, cam lobes, seals) can wear out due to high operating pressures and constant use.
• Fuel Contamination: Although less common with modern fuel filtration, contaminants or poor-quality fuel can accelerate wear or cause blockages within the pump.
• Low-Pressure Fuel Supply Issues: If the low-pressure fuel pump (LPFP) in the tank is weak or failing, or if the fuel filter is blocked, the HPFP won't receive an adequate supply of fuel, leading to cavitation and premature failure, or simply an inability to generate the required high pressure. Your action of changing the fuel filter was an excellent troubleshooting step, ruling out a common restriction.
• Electrical Issues: Problems with the HPFP's electrical connector, wiring harness, or the fuel pressure sensor itself can lead to incorrect readings or prevent the pump from operating correctly.
• Fuel Pressure Regulator Issues: The HPFP often incorporates a fuel pressure regulator valve (or a separate one on the rail) that can malfunction, leading to incorrect pressure regulation.
• ECU Malfunction: While rare, a faulty Engine Control Unit could send incorrect signals to the HPFP, though this is usually accompanied by other, broader system faults.

Troubleshooting and Diagnostic Steps

When faced with HPFP-related fault codes and symptoms, a systematic approach is key:

1. Verify Low-Pressure Fuel Pump (LPFP) Operation: Before condemning the HPFP, ensure the LPFP is delivering adequate pressure and flow. This often requires specific diagnostic tests or a fuel pressure gauge connected to the low-pressure side. If the LPFP output is insufficient, the HPFP cannot function correctly.
2. Check Fuel Pressure Sensor Plausibility: Ensure the fuel rail pressure sensor itself is providing accurate readings. Sometimes, a faulty sensor can mimic HPFP failure.
3. Inspect Wiring and Connectors: Examine the electrical connections to both the HPFP and the fuel pressure sensor for corrosion, damage, or looseness.
4. Fuel Quality and Level: Ensure there's sufficient, uncontaminated fuel in the tank.
5. Advanced Diagnostics: Professional diagnostic tools can often run specific test plans for the fuel system, which might include HPFP activation tests or detailed monitoring of fuel volume regulation.

Here's a quick reference table for common HPFP symptoms and potential causes:

And for context, here are approximate target fuel rail pressures for a direct injection BMW, though these can vary significantly based on engine type, RPM, and load:

Comparing your live readings (316 bar at 700 RPM, 650 bar at 4000 RPM) against these typical ranges, it's clear that while the pressure *is* increasing with RPM, it's consistently falling short of what would be expected under load (150-250 bar range), reinforcing the diagnosis of an HPFP underperformance or failure.

Frequently Asked Questions (FAQs)

What is the difference between the Low-Pressure Fuel Pump (LPFP) and the High-Pressure Fuel Pump (HPFP)?

The LPFP, typically located in the fuel tank, draws fuel from the tank and delivers it at a relatively low pressure (around 5-7 bar) to the engine bay. The HPFP then takes this low-pressure fuel and boosts it to extremely high pressures (50-250+ bar) required for direct injection into the combustion chambers.

Can I drive my BMW X5 with a failing HPFP?

It is strongly advised against driving with a failing HPFP. While the car might restart after a reset, the issue will almost certainly recur. Driving with a faulty HPFP can lead to sudden engine shutdown, leaving you stranded, or even cause engine damage due to incorrect fuel delivery. Seek professional diagnosis and repair immediately.

How long do HPFPs typically last in a BMW X5?

The lifespan of an HPFP can vary significantly depending on driving conditions, maintenance, and specific engine design. Some can last over 100,000 miles, while others might fail earlier. There isn't a fixed service interval for HPFPs, but using quality fuel and regular fuel filter changes can contribute to their longevity.

Is replacing a BMW X5 HPFP expensive?

Yes, replacing an HPFP can be a significant expense. The pump itself is a precision-engineered component, and the labour involved can be substantial due to its location and the need for careful pressure line handling. Costs can vary widely depending on the specific X5 model, engine, and the workshop you choose.

Could a blocked fuel filter cause HPFP issues?

Absolutely. A severely blocked fuel filter can restrict the flow of fuel to the HPFP. If the HPFP isn't receiving an adequate supply of low-pressure fuel, it will struggle to generate high pressure, leading to the same symptoms and fault codes as a failing pump. Changing the fuel filter, as you did, is always a sensible first step in diagnosing fuel delivery issues.

Conclusion

The BMW X5's fuel system is a marvel of modern engineering, from the sophisticated DM-TL pump ensuring environmental compliance to the high-pressure fuel pump delivering precise fuel for performance. Understanding the roles of these components and recognising the early warning signs of their failure is crucial for maintaining your vehicle's reliability and avoiding costly breakdowns. While the symptoms of an HPFP failure can be alarming, a methodical diagnostic approach, often involving specific fault codes and live data analysis, can pinpoint the root cause. Always consult with a qualified BMW specialist for accurate diagnosis and repair, ensuring your X5 remains a pleasure to drive for many miles to come.
