Understanding the BMW E39 Transmission Failsafe Mode

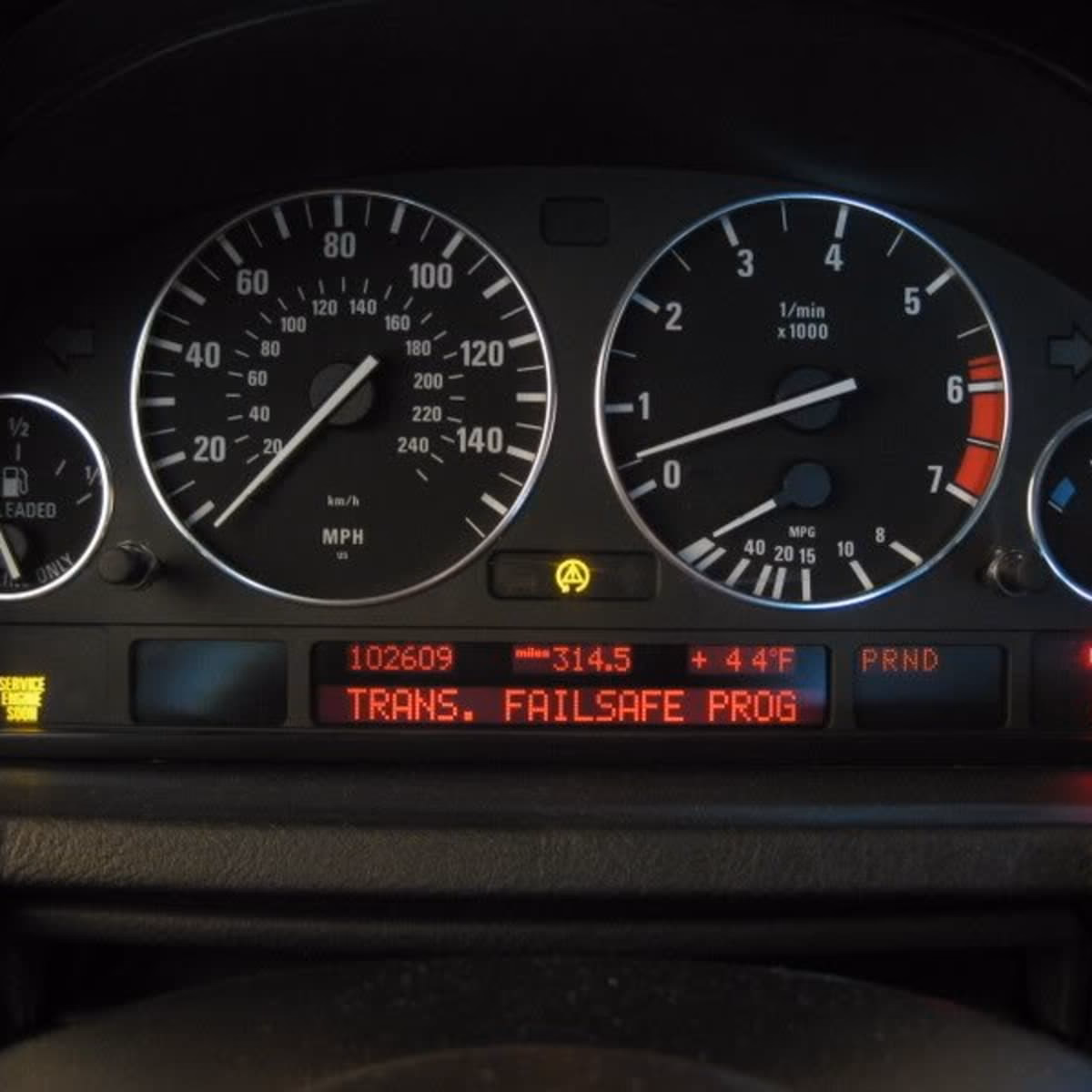

Experiencing the dreaded "Failsafe" message on your BMW E39's instrument cluster can be a concerning moment for any driver. This warning indicates that your car's automatic transmission has entered an emergency program, often referred to as 'limp mode'. While it might sound alarming, understanding what this mode entails, why it activates, and how to diagnose the underlying issues can save you time, money, and a lot of stress. This article will delve deep into the mechanics and electronics behind the E39's automatic transmission failsafe, providing you with the knowledge to tackle this common problem.

The sophisticated automatic transmissions found in BMW E39 models are designed to adapt to wear and tear over time. They can adjust fluid pressure and shift points to maintain smooth operation. However, this adaptive capability has its limits. When the transmission's control unit (TCM) detects a fault or a condition that exceeds its adaptive parameters, it will engage the failsafe mode to protect the transmission from further damage. Essentially, the TCM has been working overtime to compensate for an issue, and when it can no longer adapt, it defaults to a safe operating state.

What Happens When Your E39 Goes into Failsafe?

When the transmission enters failsafe mode, several key changes occur to ensure the vehicle can still be driven, albeit with restricted performance, to a repair facility. These changes are orchestrated by the TCM to prevent unintended gear shifts and potential internal damage:

• Shift Solenoids: All shift solenoids are de-energized by an internal relay within the TCM. These solenoids are responsible for directing hydraulic fluid to engage different gears.
• Line Pressure: The pressure regulation solenoid is de-energized, resulting in maximum line pressure. This ensures that whatever gear is engaged, it is done so with the highest possible pressure to prevent slipping.
• Torque Converter Clutch (TCC): The TCC, which locks the engine to the transmission for improved efficiency at cruising speeds, is de-activated.
• Reverse Lockout: The function that prevents shifting into reverse while the vehicle is in motion is cancelled.
• Shift Lock Solenoid: This solenoid, which prevents shifting out of Park without the brake pedal being pressed, is also de-energized.
• Fault Indicators: As a clear signal to the driver, fault indicators are activated. This includes the "Failsafe" message displayed in the instrument cluster. Additionally, the Check Engine Light (CEL) will typically be illuminated by the Engine Control Unit (DMC) in conjunction with the transmission fault.

Failsafe Mode and Gear Selection

The specific gear the transmission defaults to in failsafe mode can vary depending on the transmission model and the nature of the fault. Generally, the transmission will engage a higher gear to allow for a more stable and efficient drive to a workshop. For four-speed automatic transmissions, this is typically 3rd or 4th gear. For five-speed transmissions, it will usually be 4th or 5th gear.

A crucial diagnostic note here is the distinction between mechanical and electrical failures. For example, the A5S360R transmission might default to 5th gear in the event of a mechanical malfunction, whereas a power failure to the TCM could result in it engaging 4th gear. This difference can be a significant clue when troubleshooting.

Because the pressure regulation ceases in failsafe mode, the engagement into the failsafe gear, or any subsequent shifts if the mode is engaged mid-drive, can be abrupt or harsh. This is especially true if the transmission wasn't already in its designated failsafe gear when the fault occurred.

Diagnosing Transmission Failsafe Issues

When your E39 displays the failsafe warning, a systematic diagnostic approach is essential. The problem could stem from a variety of sources, ranging from simple fluid issues to complex electronic failures.

Initial Checks: Fluid and Linkage

Before diving into complex electronic diagnostics, always start with the basics:

• Transmission Fluid: The level and condition of the transmission fluid are paramount. Low fluid levels can cause slipping and incorrect pressures, leading to failsafe activation. Old, burnt, or contaminated fluid can also indicate internal wear or overheating. Check the fluid when the transmission is warm and the engine is running. If the fluid is low, add the correct type of BMW-approved ATF. If the fluid is dark, smells burnt, or contains debris, a fluid and filter change is highly recommended. Consider replacing the transmission fluid as a complementary modification.
• Shift Linkage: Ensure the shift linkage is properly adjusted. An improperly adjusted linkage can lead to incorrect gear engagement and may trigger fault codes.

Reading Fault Codes

The next critical step is to retrieve fault codes from both the DME (Digital Motor Electronics) and the TCM (Transmission Control Module). This often requires a BMW-specific diagnostic tool or a high-quality OBD-II scanner capable of reading manufacturer-specific codes.

Common fault codes associated with failsafe mode include those related to:

• Transmission Slip: Codes indicating that the transmission is slipping indicate that the clutch packs within the transmission may be worn or that hydraulic pressures are not being maintained correctly. This often points to the transmission having reached its adaptation limit.
• Gear Ratio Errors: These codes suggest that the transmission control module is detecting a discrepancy between the expected gear ratio and the actual gear ratio, which can be caused by internal mechanical issues or faulty speed sensors.

It's vital to check all vehicle systems for fault codes, not just the transmission. Sometimes, a fault in a related system, such as the ABS or DSC, can indirectly impact the transmission's operation and trigger a failsafe condition.

Common Transmission Complaints and Their Causes

Understanding common symptoms can help pinpoint the root cause:

Troubleshooting Specific Scenarios

Delayed Upshifts

If you're experiencing delayed upshifts, especially when the engine is cold, this might be normal operation as the transmission follows a warm-up program. However, if it persists when the transmission is hot, consider other factors. Crucially, check your front tires. Incorrect tire pressure, mismatched tire sizes, or uneven wear on the front tires can trick the ABS and DSC systems. These systems communicate wheel speed data, and if they detect a difference between the front left and right wheels (as if you're turning), they can signal the TCM to suppress or delay upshifts. This is a common, yet often overlooked, cause of delayed shifts.

Transmission Leaks

Investigating transmission leaks requires careful identification of the fluid. Engine oil, power steering fluid, or brake fluid can sometimes be mistaken for transmission fluid. Common leak points include the transmission cooler lines, the transmission cooler itself, and the transmission pan gasket. Thoroughly inspect these areas. Do not proceed with major repairs until you have positively identified the source and nature of the leak.

Advanced Diagnostics: Verifying a Faulty TCM

In some cases, the TCM itself might be the culprit. Diagnosing a faulty TCM often involves advanced techniques using a lab scope and DVOM (Digital Volt-Ohm Meter). Here’s a general outline of steps you might take (note: these are advanced procedures and require a good understanding of automotive electronics):

1. Battery Disconnection: Always disconnect the battery and wait at least five minutes before unplugging or plugging in any electronic control modules, including the TCM. This prevents potential damage from static electricity or voltage spikes.
2. Component Testing: Use a lab scope to monitor the signals from various sensors (e.g., turbine speed sensor, output shaft speed sensor) and to observe the output signals to the solenoids. This can reveal intermittent failures or incorrect signal patterns that a simple code reader might miss.
3. Solenoid Testing: Using a DVOM, you can test the resistance of the shift solenoids. Compare the readings to the manufacturer's specifications. Open circuits or shorts indicate a faulty solenoid.
4. Wiring Harness Inspection: Carefully inspect the wiring harness connecting the TCM to the transmission and other relevant modules. Look for any signs of damage, corrosion, or loose connections. Use your DVOM to check for continuity and shorts in the wiring.
5. TCM Power and Ground: Verify that the TCM is receiving proper power and ground signals. A lack of power or a poor ground connection can cause erratic behaviour or complete failure.

If, after performing these checks, the TCM is consistently not responding correctly or is showing evidence of internal failure (e.g., burnt components visible upon inspection), replacement of the TCM may be necessary. It is often recommended to have the new TCM programmed by a specialist to ensure it communicates correctly with the rest of the vehicle's systems.

Frequently Asked Questions (FAQs)

Q1: Can I drive my BMW E39 in failsafe mode?

Yes, you can typically drive your E39 in failsafe mode to reach a repair shop. However, performance will be limited, and shifts may be harsh. It is not recommended for prolonged driving.

Q2: What is the most common cause of transmission failsafe on an E39?

While it can vary, common causes include low or degraded transmission fluid, faulty shift solenoids, or issues with the transmission control module (TCM). Transmission slip due to worn internal components is also a frequent culprit.

Q3: How much does it cost to fix transmission failsafe?

The cost can range significantly, from around $200 for a fluid and filter change to several thousand dollars if the transmission requires internal repairs or the TCM needs replacement and programming.

Q4: Do I need to replace the transmission if it goes into failsafe?

Not necessarily. Failsafe mode is a protective measure. Often, the issue can be resolved with a fluid change, solenoid replacement, or TCM repair/replacement. A thorough diagnosis is crucial before condemning the entire transmission.

Q5: Can a simple electrical issue cause failsafe mode?

Yes, a faulty sensor, a damaged wire in the harness, or even a poor ground connection to the TCM can trigger the failsafe mode. It's essential to rule out electrical faults before assuming a major mechanical problem.

Conclusion

The "Failsafe" warning on your BMW E39's automatic transmission is a signal that the transmission control module has detected a fault and engaged a protective mode. By understanding the symptoms, performing thorough initial checks, reading fault codes, and systematically diagnosing potential issues, you can effectively address the problem. Remember to always prioritize safety by disconnecting the battery before working with electronic components and to consult a qualified technician if you are unsure about any diagnostic or repair procedures. Addressing failsafe issues promptly can help prevent more severe and costly damage to your E39's transmission.

Key Takeaways:

• Failsafe mode is a protective measure to prevent transmission damage.
• Always check fluid level and condition first.
• Read fault codes from both DME and TCM.
• Inspect tires for correct size and pressure, as this can affect shifting.
• A faulty TCM is a potential, but not always the primary, cause.
