BMW E60 Transfer Case Service Guide

Many BMW owners, particularly those with the xDrive all-wheel-drive system, often wonder about the specific maintenance requirements for their vehicle's transfer case. For those driving a 2006 BMW 530xi, understanding the need for and the process of a transfer case service is crucial for maintaining optimal performance and longevity of the drivetrain. This often-overlooked component plays a vital role in how your BMW distributes power, and neglecting its upkeep can lead to costly repairs down the line.

What is a Transfer Case and Why Does it Need Service?

The transfer case in your BMW xDrive vehicle is essentially the brain of the all-wheel-drive system. It's an electronically actuated set of gears, typically located behind the main transmission, right in the middle of the vehicle. Think of it as a sophisticated differential that manages the distribution of power between the front and rear axles. In a BMW E60, this unit acts as a 'middle' differential, taking power from the transmission and splitting it, usually in a 40% to the front and 60% to the rear ratio. However, its intelligence lies in its ability to dynamically adjust this split. If the rear wheels begin to lose traction, the transfer case automatically redirects more power to the front wheels, ensuring you maintain control and stability, especially in adverse weather conditions. This constant adjustment and the inherent mechanical forces mean that the transfer case fluid, vital for lubrication and cooling, degrades over time. Therefore, it is not a maintenance-free component.

Recommended Service Interval for Your BMW E60 Transfer Case

BMW recommends a specific service interval for the transfer case fluid to ensure its continued optimal operation. For the BMW E60 model, the general guideline is to service the transfer case fluid every fifth oil change or, more definitively, every 50,000 miles, whichever milestone is reached first. For those diligent owners who opt for more frequent oil changes, perhaps every 5,000 miles, it's advisable to stick to the 50,000-mile mark for the transfer case service rather than synchronising it with every fifth oil change. This ensures that the fluid is replaced with sufficient regularity to prevent excessive wear and tear on the internal components. Ignoring this recommendation can lead to premature wear, increased friction, and potential damage to the transfer case itself, which is a complex and expensive part of your vehicle's drivetrain.

The Transfer Case Fluid Change Procedure: A Complex Task

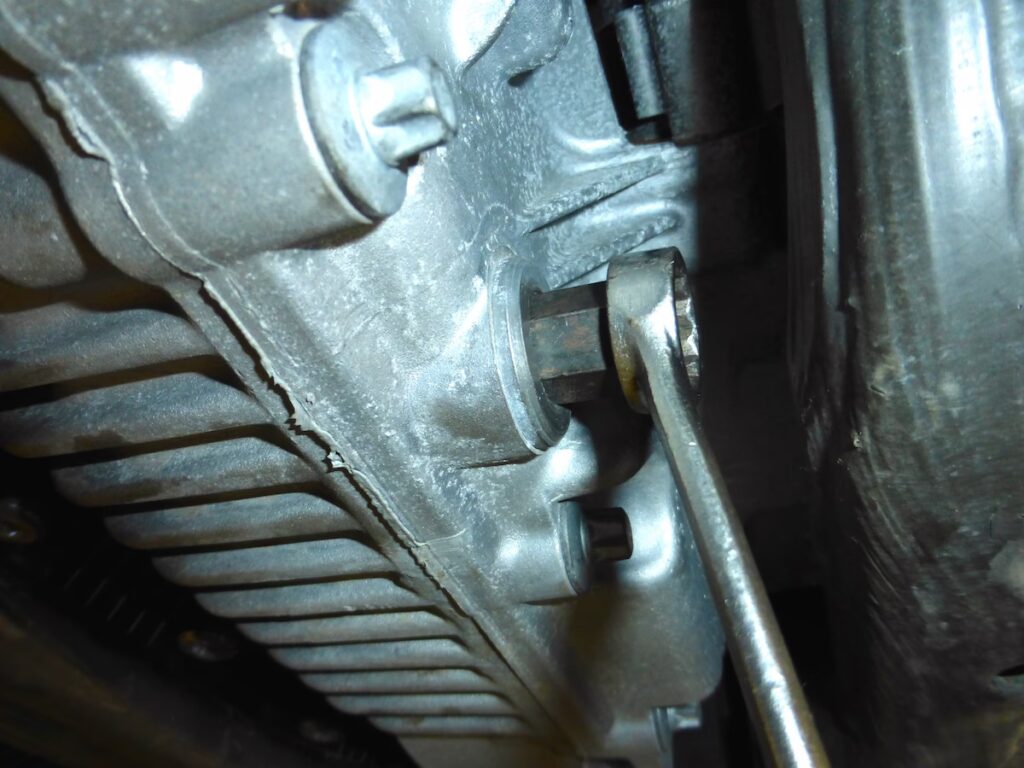

Now, let's address how this vital service is performed. The procedure for filling the BMW E60 transfer case with new fluid is, unfortunately, notoriously difficult. The fill plug, which is essential for adding the new fluid, is strategically placed on the upper right side of the transfer case, positioned above its mounting bracket. To even gain access to this fill plug, a significant amount of disassembly is typically required. The exhaust system usually needs to be lowered, and the heat shield situated underneath must be removed. Furthermore, the transfer case itself must be carefully supported, often with a floor jack, to relieve the stress on its mounting bracket, which then also needs to be removed. Once the fill plug is accessed and the old fluid is drained, and the new fluid is replenished, all components must be meticulously reassembled and torqued to their precise specifications. Failure to do so can introduce new problems into the drivetrain, potentially causing more issues than were originally present.

Challenges for the Home Mechanic

The complexity of this procedure presents a significant challenge, not just for the average car owner but even for experienced technicians working in well-equipped workshops with hydraulic lifts. For the home mechanic, attempting this task lying on their back under the vehicle, with limited space and tools, can be an absolute nightmare. The cramped working environment, coupled with the need for specialised knowledge regarding torque settings and component removal, makes it a task that many would prefer to delegate to professionals. While the BMW Repair Guide generally advocates for following manufacturer procedures, they also acknowledge when a practical alternative exists. In the case of the E60 transfer case fill plug, the extensive dismantling of the exhaust and mounting bracket is often considered impractical for the home mechanic, prompting a search for more accessible methods that yield the same correct result.

Why Professional Service is Often Recommended

Given the intricate nature of the transfer case fluid change on a BMW E60, seeking professional assistance is often the most sensible and effective approach. BMW dealerships and reputable independent BMW specialists have the necessary tools, equipment, and expertise to perform this service correctly and efficiently. They understand the importance of precise torque settings and the correct type and amount of fluid required. While it might seem like an additional expense, the potential cost of rectifying damage caused by an improperly performed DIY transfer case service can far outweigh the initial professional service fee. A professional service ensures the job is done right the first time, safeguarding your vehicle's advanced all-wheel-drive system.

Signs Your Transfer Case Might Need Attention

While regular servicing is preventative, there are sometimes audible or noticeable signs that your transfer case might be experiencing issues or is due for attention sooner rather than later. These can include:

• Whining or Humming Noises: Especially noticeable when accelerating or turning, these noises can indicate low fluid levels or internal wear.
• Clunking or Jerking: If you feel a sudden jolt or jerk when engaging gears or changing speed, it could be a sign that the transfer case is not distributing power smoothly.
• Vibrations: Unusual vibrations felt through the vehicle, particularly at certain speeds, might point to an imbalance or issue within the transfer case.
• Warning Lights: Modern BMWs have sophisticated diagnostics. A "4x4" or "AWD" warning light illuminated on your dashboard could indicate a problem with the transfer case or its control module.
• Difficulty in Steering: In some cases, a malfunctioning transfer case can affect the steering feel, making it feel heavier or less responsive.

Table: Transfer Case Service Comparison

To help illustrate the considerations, here's a simplified comparison:

Frequently Asked Questions (FAQs)

Q1: Do I really need to service my transfer case if my BMW is all-wheel drive?

Yes, absolutely. The transfer case is a critical component of the xDrive system and contains fluid that degrades over time due to heat and mechanical stress. Regular fluid changes are essential for its longevity and proper function.

Q2: Can I use any all-wheel-drive fluid for my BMW E60?

No. It is crucial to use the specific transfer case fluid recommended by BMW. Using the incorrect fluid can lead to improper lubrication, damage to the electronic components, and ultimately, failure of the transfer case. Always consult your owner's manual or a BMW specialist for the correct fluid specification.

Q3: How long does a professional transfer case service typically take?

The time can vary depending on the specific vehicle and workshop, but a professional transfer case fluid change for a BMW E60 typically takes a few hours. This includes the time for draining, refilling, and ensuring all components are correctly reassembled and torqued.

Q4: What happens if I don't service my transfer case?

Neglecting transfer case service can lead to several issues, including increased wear on internal components, overheating of the fluid, reduced efficiency of the all-wheel-drive system, potential for the system to disengage, and eventually, costly mechanical failure of the transfer case itself.

Conclusion

For your 2006 BMW 530xi, adhering to the recommended transfer case service interval of every 50,000 miles is a vital part of maintaining your vehicle's sophisticated xDrive system. While the procedure is complex and presents significant challenges for DIY enthusiasts, the benefits of a properly serviced transfer case—smooth power delivery, enhanced traction, and prevention of expensive future repairs—are undeniable. Prioritising this maintenance task with a qualified professional is a wise investment in the overall health and performance of your BMW.
