Decoding the Red Car on Lift Warning Light

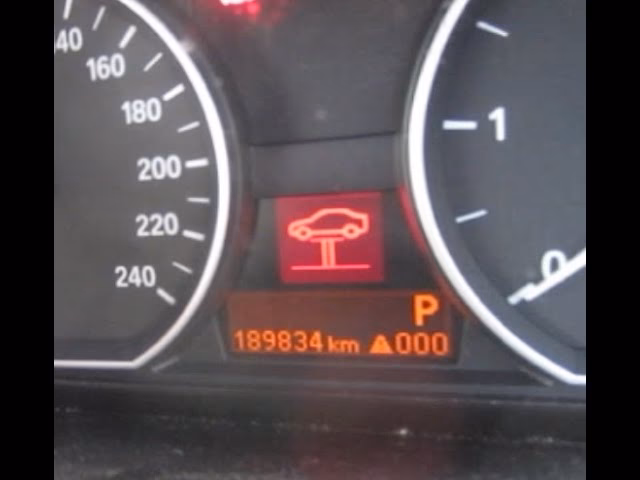

That dreaded moment when a new, unfamiliar symbol lights up your dashboard can send shivers down any car owner's spine. Even more perplexing is when the warning appears, yet everything seems to be functioning perfectly. You've just encountered the enigmatic 'red car on a lift' symbol, a warning light that often leaves drivers scratching their heads. You've checked your manual, performed your own diligent inspections, and still, the mystery persists. While your manual might point to specific issues like a starter failure or a lighting system malfunction, the reality behind this symbol can be far more complex, often hinting at deeper electrical or module-related problems that aren't immediately obvious.

This particular warning, often seen in certain European marques, is typically a generic 'service required' or 'vehicle fault' indicator. It's the car's way of telling you, 'Hey, something's not quite right, and I might need to see a professional.' However, because it's so broad, pinpointing the exact cause without specialist tools can feel like finding a needle in a haystack. Let's delve into the common explanations provided by manuals and then explore the less obvious, yet prevalent, reasons why this light might be shining brightly.

Understanding the Manual's Clues

Your car's manual is your first port of call, and it's valuable for providing manufacturer-specific insights. The three possibilities you've identified are indeed common interpretations for this symbol:

1. Starter Failed

This is usually the most straightforward diagnosis. If your starter has genuinely failed, your car simply won't start. You'll turn the key or press the start button, and you'll likely hear nothing, or perhaps a single click, but no engine turnover. Since your car starts repeatedly and without issue, you've correctly ruled this out. A failed starter is a clear-cut symptom, not an intermittent one that allows normal operation.

2. Starter Malfunction (Car can only be restarted with the brake depressed)

This is a more nuanced issue. While you've stated your car starts normally, it's worth considering the specifics. Some starter malfunctions can be intermittent, or they might relate to a specific condition that hasn't presented itself consistently. For instance, if the car's system believes there's an issue with the brake pedal sensor (which is often tied into the starter interlock mechanism for safety), it might trigger this warning. Even if the car starts now, a marginal sensor or wiring issue could cause this warning to appear. However, given your repeated normal starts, it's less likely to be the primary cause unless it's a very specific, transient fault that resolves itself quickly.

3. Lighting System Failed

This is where things get interesting, especially with your observation that 'all other systems failed.' While you've diligently checked your low beams, tail lights, and brake lights and found them operational, the term 'lighting system' can encompass far more than just the main bulbs. Modern vehicles have incredibly complex lighting systems, managed by dedicated control modules (such as the Footwell Module or FRM in some cars). These modules control everything from interior lights, indicators, high beams, fog lights, number plate lights, and even adaptive lighting functions. If one of these less obvious lights has failed, or if the module itself is experiencing an internal fault or communication error, it could trigger this warning. Furthermore, a fault within a lighting module can often lead to a cascade of errors, affecting other systems and leading to the 'all other systems failed' symptom you've observed. This suggests a potential communication breakdown on the car's internal network (CAN bus), which is often initiated by a fault in a module that's part of that network.

Beyond the Manual: Other Common Culprits

Given the complexity of modern vehicles, the 'red car on a lift' symbol can be triggered by a multitude of issues not explicitly listed in your manual, especially when accompanied by the 'all other systems failed' message. This often points towards electrical gremlins or communication problems within the car's intricate network.

1. Module Communication Issues (CAN Bus Problems)

This is a highly probable cause for a general warning coupled with widespread system failures. Your car has dozens of electronic control units (ECUs) or modules that communicate with each other over a network called the Controller Area Network (CAN bus). If one module malfunctions, loses power, or has a wiring fault, it can disrupt communication on the bus. When the car's main computer (DME/DDE) can't 'talk' to other essential modules (like the FRM, CAS, DSC, JBE, etc.), it often flags a generic fault, as it can't definitively identify the specific problem. This could manifest as the 'red car on a lift' symbol because the car knows there's a problem but can't specify what it is due to the communication breakdown.

2. Battery or Alternator Issues

A weak or failing battery, or a struggling alternator, can cause a myriad of seemingly unrelated electrical issues. Low voltage can make modules behave erratically, leading to communication errors and triggering various warning lights, including the 'red car on a lift' symbol. While your car starts, the battery might still be on its way out, or the alternator might not be consistently providing adequate voltage under certain loads. It's a common oversight, but a simple battery health check can sometimes reveal the root cause of perplexing electrical faults.

3. Sensor Malfunctions

While the manual points to specific systems, a faulty sensor in an unrelated system (e.g., a wheel speed sensor, a steering angle sensor, or even a simple temperature sensor) could potentially trigger a general system fault. If the car's computer deems the sensor reading critical or implausible, it might illuminate a general warning, especially if it affects multiple integrated systems.

4. Software Glitches or Corruptions

Just like your computer, your car's software can sometimes encounter bugs or corruptions. A temporary software glitch within a control module could lead to a false warning. Sometimes, a simple battery disconnect (for 15-30 minutes) can 'hard reset' some modules and clear transient software errors, but this is not guaranteed and should be done with caution, as it can sometimes reset other learned parameters.

5. Wiring Harness Damage or Corrosion

Over time, wiring harnesses can suffer from wear, rodent damage, or corrosion, especially in areas exposed to moisture. A damaged wire, even a partially frayed one, can lead to intermittent connections or short circuits that confuse modules and trigger general system faults. Locating such damage can be incredibly challenging without professional diagnostic equipment and circuit diagrams.

Diagnostic Steps: What to Do Before the Dealer

Before you spend time and money at the dealer, a more thorough DIY check can be beneficial, but be aware of its limitations.

1. Comprehensive Light Check

• Re-check ALL lights: Not just low beams, tail, and brake lights. Check high beams, front and rear fog lights, indicators (all corners), side marker lights, number plate lights, and ALL interior lights (dome, map, glovebox, boot).
• Check for subtle dimness: Sometimes a bulb isn't completely out but is failing, drawing too much or too little current, which can confuse the module.

2. Fuse Inspection

• Locate all fuse boxes: Your car likely has more than one (e.g., under the bonnet, in the glovebox, in the boot).
• Check ALL fuses related to lighting, starter, and general electrical systems. A blown fuse on a less critical circuit could still be part of the 'all other systems failed' message if it affects a module's power supply.

3. Battery Health Check

• Test the battery voltage with a multimeter. A healthy battery should read around 12.6V when the car is off.
• If possible, get a battery load test done (many auto parts stores offer this for free). This tests the battery's ability to hold voltage under load, which is crucial for starting and running electronics.
• Check battery terminals for corrosion and ensure they are tight.

4. Listen for Starter Anomalies

• Even if it starts, listen carefully for any abnormal sounds from the starter when cranking. A subtle grind or whir could indicate an early sign of trouble.

5. Professional Diagnostic Scan (Crucial Step)

This is perhaps the most important action you can take. Generic OBD-II scanners (the ones you can buy cheaply online) will only read basic powertrain codes (P-codes). The 'red car on a lift' symbol, especially with the 'all other systems failed' message, is almost certainly due to a manufacturer-specific code (B-codes for body, C-codes for chassis, U-codes for network communication). These codes can only be read by a sophisticated diagnostic scan tool used by dealerships or specialist independent garages. These tools can communicate with all the individual modules in your car, pinpointing which module is reporting the fault and often providing a detailed description of the error. This is the only way to accurately diagnose a complex electrical or communication issue.

Frequently Asked Questions

Is it safe to drive with the 'red car on a lift' warning light on?

It depends entirely on the underlying cause. If it's a minor lighting fault, it might be safe for a short drive to a garage. However, if it's related to a critical system like the braking system, steering, or a major electrical component, driving could be dangerous. The 'all other systems failed' message is particularly concerning, as it suggests a widespread issue. It's always best to have it checked as soon as possible by a professional. If you notice any changes in driving dynamics, pull over immediately.

Can I fix this myself if I'm not a mechanic?

For simple issues like a blown fuse or a dead bulb, yes. However, for anything related to module communication, complex wiring, or internal component failures, it's highly unlikely. Modern car diagnostics require specialist tools and expertise to interpret the fault codes and perform necessary repairs or coding. Attempting to fix something you don't fully understand can lead to further damage.

What's the typical cost of diagnosing this issue?

Diagnostic fees vary greatly depending on the garage and the complexity. A reputable independent specialist might charge less than a main dealer, but expect to pay for at least an hour of labour for a full diagnostic scan and initial assessment. The cost of the repair itself will then depend on the identified fault.

Why does my manual list different things for this warning?

Car manufacturers often use generic warning symbols across different models and years, but the exact meaning can vary slightly. Furthermore, manuals simplify complex issues for general understanding. The 'red car on a lift' symbol is often a catch-all for 'service required' or 'fault detected,' and the specific sub-causes listed in your manual are just the most common ones for your particular vehicle's design. The car's internal diagnostics are far more granular.

Conclusion

The 'red car on a lift' warning light, especially when accompanied by the perplexing 'all other systems failed' message, is a clear signal that your vehicle requires attention. While your initial checks are commendable and help rule out the most obvious mechanical failures, the nature of this warning often points towards more intricate electrical, module, or communication issues that require specialist equipment to diagnose. Don't let the apparent normalcy of your car's operation lull you into a false sense of security; intermittent fault or hidden issues can escalate quickly. Investing in a professional diagnostic scan is the most prudent step. It will save you time, potential frustration, and ultimately, money, by accurately identifying the root cause and preventing further damage or unexpected breakdowns. Think of it as essential preventative maintenance for your car's complex nervous system.
