BMW S63 Engine: A Comprehensive Guide

The BMW S63 engine represents a pinnacle of performance engineering from the Bavarian marque. This formidable 4.4-litre twin-turbocharged V8 is the heart of many of BMW's most potent M models, delivering exhilarating power and a driving experience that is both refined and ferocious. Built upon the foundation of the N63 engine, the S63 incorporates significant enhancements to elevate its performance capabilities, making it a favourite amongst enthusiasts and a benchmark in its class.

BMW S63 Engine: General Overview

At its core, the BMW S63 is a 4.4-litre V8 engine that employs a 'hot-vee' configuration. This innovative design positions the twin-scroll turbochargers and exhaust manifolds centrally between the two banks of cylinders. This arrangement not only contributes to a more compact engine design but also significantly reduces turbo lag and improves exhaust gas flow, leading to quicker throttle response and increased power output. Furthermore, the S63 was the first BMW engine to feature the brand's Valvetronic variable valve lift system, working in conjunction with Double VANOS (variable valve timing) to optimise engine breathing across the entire rev range.

Evolution of the S63 Engine

Since its introduction, the S63 has undergone several technical updates, each iteration building upon the strengths of its predecessor. These updates have focused on enhancing power delivery, improving efficiency, and boosting overall reliability. The S63 family can be broadly categorised into distinct variants, each powering specific BMW M models:

Performance Figures and Capabilities

The horsepower output of the S63 engine has steadily increased with each revision. Early models produced around 547 hp, while the latest iterations can churn out up to 617 hp in their most potent 'Competition' forms. Torque figures are equally impressive, typically ranging from 502 lb-ft to 553 lb-ft. These figures translate into blistering acceleration, with S63-powered vehicles often capable of reaching 60 mph in under 4 seconds. While most models are electronically limited to 155 mph, the M Driver's Package can raise this limit to 190 mph, with further increases possible through tuning.

Internal Construction

The S63 engine benefits from robust internal components designed to handle the immense power it produces. The crankshaft and connecting rods are forged from high-strength steel, ensuring durability under extreme stress. While the pistons are typically cast aluminium, they are engineered to be remarkably strong. Later 'TU' (Technical Update) versions feature revised connecting rods with improved lubrication channels to further enhance longevity, addressing some earlier concerns about bearing wear, which, while often overblown, did highlight the importance of meticulous maintenance. The engine's bore and stroke measure 89.0mm and 88.3mm respectively, classifying it as an undersquare or short-stroke engine. This design characteristic contributes to its ability to rev freely and produce substantial power in the upper rev range, typically between 5,000 and 7,000 RPM.

S63 Standard Maintenance

Maintaining the S63 engine is crucial for ensuring its longevity and optimal performance. While it's a high-performance unit, adhering to a regular maintenance schedule is key. The primary maintenance items include regular fluid changes, spark plug replacements, and occasional ignition coil checks.

Fluid Requirements

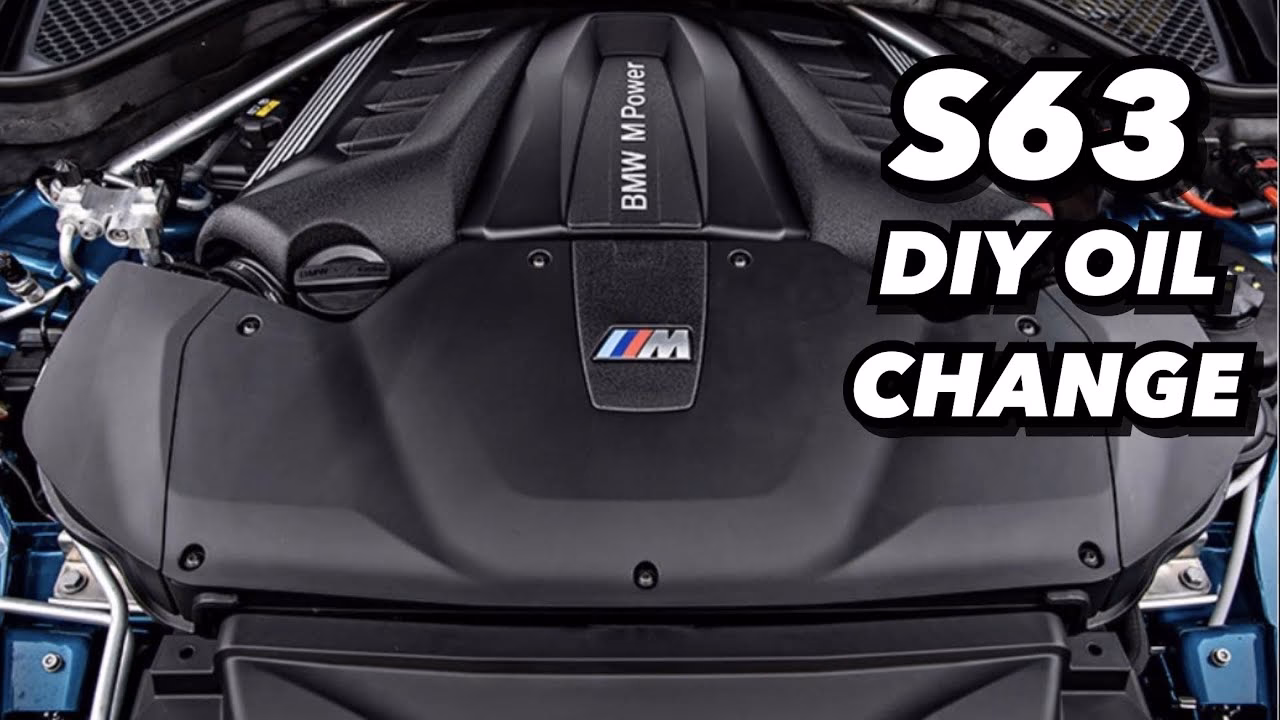

The S63 engine has a substantial oil capacity of approximately 8.4 litres (8.9 US quarts). BMW recommends using oils that meet the LL-14 or LL-17 specifications, with a standard viscosity of 0W-30. While older LL-01 oils are also suitable, the newer specifications are designed with fuel economy and emissions in mind. For those seeking the best, Liqui Moly oils are a popular choice among enthusiasts for their quality and reasonable pricing. Genuine BMW Twin-Power Turbo 0W-30 oil is also a reliable option. For owners who have tuned their S63, considering higher-end racing oils might be beneficial, especially if the vehicle is frequently driven hard.

Recommended Service Intervals

To keep your S63 running optimally, it's advisable to change the engine oil and filter every 5,000 to 8,000 miles, or annually, whichever comes first. For high-performance M cars, more frequent oil changes are generally recommended. The coolant should be a 50/50 mix of water and coolant. While BMW may label coolant as 'lifetime', it's best practice to replace it every 30,000 miles or three years to prevent corrosion and maintain cooling efficiency. Spark plugs, especially in tuned engines, have a shorter lifespan. For stock engines, replacement every 40,000 to 50,000 miles is recommended, while modified engines may require them every 15,000 to 20,000 miles. Ignition coils typically need replacement with every second spark plug change.

Walnut Blasting and Carbon Buildup

As a direct-injection engine, the S63 is susceptible to carbon buildup on the intake valves. This occurs because fuel is injected directly into the cylinder, bypassing the intake ports where it would normally help clean deposits. While the S63 benefits from an improved crankcase ventilation system compared to earlier BMW direct-injection engines, carbon buildup can still occur over time. Walnut blasting is a common procedure to remove these deposits. While not always immediately necessary, it's a good preventative measure, with significant buildup potentially occurring around the 100,000-mile mark. Neglecting this can lead to rough idling, misfires, and power loss.

BMW S63 Reliability and Common Issues

The BMW S63 engine is generally considered a reliable unit, especially in its later iterations. BMW's continued use of this engine in its flagship M models is a testament to its robust engineering. However, like any complex performance engine, it can encounter specific issues as it ages.

Key Reliability Points

With four major revisions, BMW has continuously refined the S63, addressing potential weak points and enhancing overall durability. While the earliest S63B44O0 variant may be less reliable than subsequent models, major catastrophic failures are uncommon with proper maintenance. Compared to earlier BMW performance engines like the N54 or N63, the S63 generally exhibits improved reliability.

Common S63 Engine Problems

Some commonly reported issues with the S63 include:

• VANOS Solenoids: Failure of the VANOS solenoids can lead to rough idling, power loss, and engine stuttering.
• Rod Bearing Wear: While often exaggerated, some S63 engines, particularly earlier non-TU models, can be prone to rod bearing wear, often due to inadequate oiling. This is a known issue in other high-performance BMW V8s like the S65 and S85.
• Oil Consumption: The 'hot-vee' turbo configuration, with turbos situated in a high-heat area, can contribute to increased oil consumption in some instances.

Addressing Rough Idle

A rough idle in an S63 engine can stem from several sources. The most common culprits are worn spark plugs and ignition coils. Other potential causes include failing VANOS solenoids, significant carbon buildup on intake valves, or, less commonly, leaking fuel injectors. A thorough diagnostic check, starting with the ignition system and addressing maintenance needs, is typically the first step in resolving a rough idle.

BMW S63 Tuning and Modifications

The S63 engine is highly receptive to tuning and modifications, offering significant potential for increased power and torque. Enthusiasts often opt for ECU tunes, upgraded downpipes, and improved intake systems to extract more performance.

Tuning Options

Popular tuning solutions for the S63 include the JB4, which offers precise boost control and can be stacked with a back-end flash tune for enhanced performance. Standalone flash tunes, such as those available through bootmod3, are also excellent options for unlocking the engine's full potential. These tunes can safely increase horsepower output, often pushing the engine towards its limits.

Bolt-On Modifications

Full bolt-on (FBO) typically refers to a combination of a tune, upgraded intake, performance downpipes (often catless), and an improved intercooler. With these modifications, it's possible to achieve around 700 horsepower on a stock S63 engine. However, it's important to note that the factory DCT clutch packs are generally rated for around 650 horsepower. For power levels exceeding this, upgrading the clutch packs is essential, with Dodson packs being a popular, albeit costly, option. Pushing beyond 700-800 horsepower may also necessitate upgrades to the fuel system and the consideration of a methanol injection kit to combat detonation and manage internal engine temperatures.

Turbocharger Limits and Downpipes

The stock twin-scroll turbochargers on the S63 can realistically handle up to approximately 30 psi of boost, though meaningful gains are often seen up to around 27 psi. A generally safe boost pressure limit for stock turbos is in the 24-26 psi range. Upgrading to a catless downpipe can yield significant power and torque gains, often in the region of 50-55 horsepower and 60 lb-ft of torque when combined with a tune. VRSF products are frequently recommended for their balance of quality, fitment, and performance.

Stock Internals and Power Limits

While many S63 enthusiasts believe that 650-700 horsepower is achievable on stock internals without significant risk, pushing beyond this threshold increases the likelihood of bending connecting rods or encountering clutch pack slippage. With an unlimited budget for upgrades, including forged pistons and enhanced clutch packs, the power potential of the S63 is virtually limitless.

S63 Maintenance Cost Summary

Maintaining a BMW S63 engine is generally more expensive than that of an average car, reflecting its high-performance nature. Expect costs for:

• Oil & Filter: £80 - £100 every 5,000 to 8,000 miles.
• Coolant: £25 - £180 every 30,000 miles or 3 years.
• Spark Plugs: £75 - £85 every 15,000 to 50,000 miles (depending on tune).
• Ignition Coils: £200 - £230 every 30,000 to 70,000 miles.
• Walnut Blasting: £350 - £500, potentially every 100,000+ miles.

These costs can be higher if performed at a dealership. However, DIY maintenance can significantly reduce these expenses, particularly for tasks like walnut blasting, which is primarily labour-intensive.

Frequently Asked Questions (FAQs)

What is the BMW S63 engine?

The BMW S63 is a 4.4-litre twin-turbocharged V8 engine featuring a 'hot-vee' configuration and Valvetronic technology, found in various BMW M models.

How much horsepower does the S63 have?

Horsepower varies by variant, ranging from approximately 547 hp in early models to up to 617 hp in the latest Competition versions.

Does the S63 have forged internals?

The crankshaft and connecting rods are forged. Pistons are typically cast aluminium but remain strong.

What is the recommended oil for the S63?

BMW recommends LL-14 or LL-17 oils, with a 0W-30 viscosity. Quality synthetic oils from reputable brands like Liqui Moly or Genuine BMW are advised.

How often should I change the oil in my S63?

It's recommended to change the oil every 5,000 to 8,000 miles or annually, whichever comes first, for optimal engine health.

What are common problems with the S63?

Common issues include failing VANOS solenoids, potential rod bearing wear (especially in earlier models), and increased oil consumption due to the hot-vee configuration.

Can the S63 be tuned?

Yes, the S63 is highly tunable, with significant power gains achievable through ECU tunes and bolt-on modifications.

What is the power limit of stock S63 internals?

Stock internals can typically handle around 650-700 horsepower, with further increases requiring upgraded components like clutch packs and potentially fueling modifications.
