Reviving Your S54: A Deep Dive into Stage 1 Rebuilds

The BMW S54 engine holds a hallowed place in the hearts of automotive enthusiasts worldwide. Heralded as the last naturally-aspirated inline-six to power the iconic M3 before the V8 era, its high-revving nature and exquisite power delivery earned it numerous accolades, including the International Engine of the Year award in its category for five consecutive years. Debuting in the E46 M3 in 2000, and later gracing the Z3 M and Z4 M models, the S54 is a testament to BMW's engineering prowess. However, like any performance engine, especially one that encourages spirited driving, the S54 is not immune to wear and tear. Over time, certain common issues can arise, potentially leading to significant engine problems. When these occur, understanding the options available, such as a professional engine rebuild, becomes paramount to preserving the legacy and performance of this magnificent power unit.

While the S54 is often confused with its M54 sibling due to similar naming conventions, it is, in fact, a highly evolved derivative of the S50 engine, sharing very few components with the standard M54. Its robust cast-iron block, aluminium cylinder head, double VANOS system, and individual throttle bodies set it apart, contributing to its impressive output of up to 355 hp in the M3 CSL variant. With a redline soaring to 8,000 RPM, it delivers a thrilling auditory and driving experience that few engines can match. But what happens when this engineering marvel encounters a hiccup?

Understanding Common S54 Engine Problems

Despite its formidable design and celebrated reliability, the S54 engine, particularly given its age and high-performance nature, is susceptible to a few well-documented issues. Awareness of these common problems is crucial for any S54 owner, as early detection and appropriate action can often prevent more catastrophic failures.

The Notorious VANOS System

The Variable Valve Timing (VANOS) system is a sophisticated component designed to enhance the S54's responsiveness and efficiency across the RPM range. Unfortunately, VANOS issues are a widespread concern across many BMW engines of this era, and the S54 is no exception. Symptoms of a failing VANOS unit can include a noticeable power loss, especially in lower RPMs, hesitation, rough idling, poor fuel efficiency, and difficulties with cold starts or long cranks. The Service Engine Soon (SES) light may also illuminate. The complexity of the S54 VANOS system means that various internal components can fail, such as the solenoid, camshaft sprocket bolts, exhaust camshaft hub, or the VANOS oil pump. While individual parts can sometimes be replaced, a comprehensive rebuild of the entire VANOS unit is often recommended to ensure long-term reliability, particularly given the unit's intricate nature.

Rod Bearing Failures: A Critical Concern

Perhaps the most severe and widely discussed issue affecting the S54 engine is rod bearing failure. This problem, which plagued early production models (primarily 2001-2003 M3s), can lead to catastrophic engine damage if not addressed. While BMW did issue a recall and replacement programme for affected engines, instances of rod bearing failure have still been reported even on later S54s. The primary cause is often attributed to the original bearing design and, in some cases, aggressive driving or over-revving. Symptoms can include metallic knocking noises from the engine, particularly under load, or a sudden loss of oil pressure. If a rod bearing spins, it can send metal particles throughout the engine, contaminating the oil system and damaging other crucial components like the crankshaft and block. This is a critical issue that necessitates immediate attention and often leads to the need for a full engine rebuild.

Water Pump Failure and Overheating

Another common point of failure for S54 engines, consistent with many BMW models of its generation, is the water pump. The water pump is vital for circulating coolant and maintaining optimal engine temperature. A failing water pump can lead to the engine overheating, which can cause significant damage to the cylinder head and other components. Symptoms of water pump failure typically include coolant leaks, the engine quickly overheating, the car entering 'limp mode' to protect itself, and the cooling fan running at maximum speed. While a water pump replacement is a relatively straightforward repair compared to VANOS or rod bearing issues, it's a critical maintenance item that should not be overlooked, with replacements often recommended around the 100,000-mile mark.

Why Consider a Stage 1 Engine Rebuild?

Given the potential severity of issues like rod bearing failure, a comprehensive engine rebuild becomes a highly attractive, and often necessary, solution. Rather than opting for a risky used engine or an exorbitantly priced new one, a Stage 1 rebuild offers a cost-effective and highly reliable alternative to restore your S54 to its former glory. This process addresses the root causes of common failures and renews critical components, providing a fresh start for the engine.

The Stage 1 S54 Engine Rebuild Explained

A Stage 1 S54 engine rebuild, such as that offered by specialists like Lang Racing Development, is a meticulously detailed process aimed at bringing a failed or high-mileage engine back to optimal condition. It involves a complete disassembly, thorough inspection, precision machining, and careful reassembly of the engine's core components. This level of service is particularly beneficial for engines that have suffered internal damage, such as from rod bearing failure, where metal contaminants have circulated throughout the system.

Initial Assessment and Teardown

The process begins with a complete teardown of your S54 engine. During this phase, all components are meticulously inspected to assess the extent of the damage, especially concerning the engine block, crankshaft, and connecting rods. This crucial step determines which parts are eligible for reuse or repair, and the customer is typically notified before any machining or assembly commences. Any accessories like the alternator, power steering pump, or air conditioning compressor must be removed from the engine prior to shipment to the rebuild facility, as the rebuild focuses solely on the long block.

Precision Machining Processes

Once the condition of the core components is determined, the engine block, cylinder head, and crankshaft undergo extensive machining to correct any damage and ensure perfect tolerances. This is where the magic of restoration truly happens:

• Engine Block Machining: The cast-iron block is bored and honed to an oversized dimension, typically 87.25mm for the S54. This specific size is chosen because it leaves enough material for a potential second rebuild in the distant future. Reputable piston manufacturers like Mahle and CP offer pistons specifically sized for this bore, which are commonly used in these rebuilds. The block is also 'decked' to ensure a perfectly flat mating surface for the cylinder head, crucial for a proper seal. Finally, the block is thoroughly cleaned in a hot tank to remove all contaminants.
• Cylinder Head Machining: The aluminium cylinder head undergoes a comprehensive 'head job'. This includes complete disassembly and cleaning, followed by rigorous leak, crack, and pressure tests to ensure its structural integrity. A precision five-angle valve job is performed, new valve seals are installed, and the mating surface is resurfaced to ensure a perfect seal with the block. Related areas are also chamfered to optimise flow.
• Crankshaft Repair and Refurbishment: For engines that have experienced spun rod bearings, it is common to find damage to at least one rod journal on the crankshaft. Before any repair, the crankshaft is magnafluxed to detect any hairline cracks not visible to the naked eye. If it passes inspection, damaged journal areas are welded and then precision-ground back to nominal dimensions. Each crankshaft is then heat-treated, nitrided (for surface hardening), balanced, polished, and straightened to ensure optimal performance and longevity.

Meticulous Assembly and Component Replacement

With the core components machined and refurbished, the assembly process begins. All engines undergoing a Stage 1 rebuild are blueprinted, meaning all clearances and tolerances are precisely measured and documented to meet or exceed factory specifications. Key new and reused components are integrated:

A crucial aspect of the S54 Stage 1 rebuild is the attention paid to the VANOS system, a common failure point. Specialists utilise high-quality components, often from Beisan Systems, to ensure the rebuilt VANOS unit is robust and reliable. Furthermore, a common issue with factory camshaft gear bolts, which can shear or back out leading to timing loss and bent valves, is addressed by replacing them with a higher-grade bolt kit, a specific enhancement offered by rebuilders like Lang Racing Development.

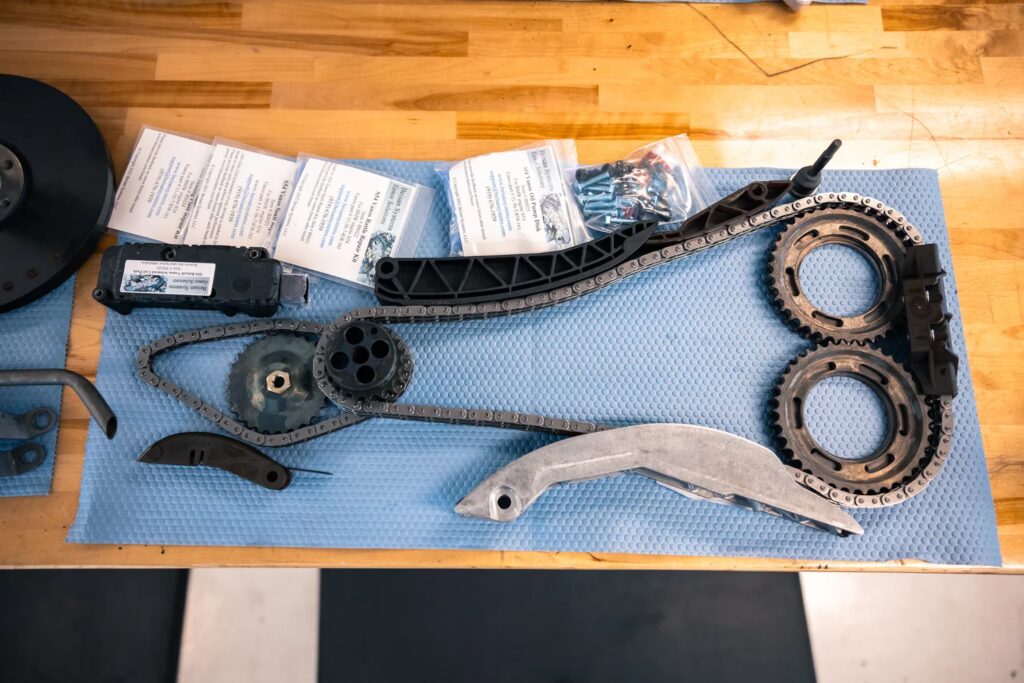

Once the engine is assembled, the timing is meticulously set, and valve adjustments are performed. Throughout the entire process, all engine consumables, such as gaskets, O-rings, timing and oil pump chains, chain guide rails, and one-time use bolts, are replaced with new parts. Before shipping or pick-up, the engine is cleaned thoroughly, including hardware, oil pans, and valve covers.

Optional Upgrades

For those seeking to further enhance their S54, some rebuilders offer optional upgrades that can be incorporated during the rebuild process. These include:

• S54 Rod Bearing Journal Widening Kit: This involves modifying the crankshaft journals to accommodate wider rod bearings, potentially increasing durability and oil film thickness.
• Dry Sump Oil System Upgrade: A more significant modification, a dry sump system provides superior oil control, especially under high G-force cornering, preventing oil starvation that can occur with the factory wet sump system, particularly in track-focused applications.

Frequently Asked Questions About S54 Engine Rebuilds

How long does an S54 engine typically last?

With proper maintenance and care, including regular oil changes and timely component replacements, an S54 engine can reliably serve for well over 150,000 miles. However, addressing common issues like VANOS and rod bearings proactively is key to maximising its lifespan. A professional rebuild can effectively reset the clock on its usable life.

Is the S54 considered a reliable engine?

Yes, for a high-performance, naturally aspirated engine, the S54 is generally considered one of BMW's more reliable engines. Its cast-iron block and robust design contribute to its durability. The key issues, such as rod bearings and VANOS, are well-documented, and with appropriate preventative maintenance or professional repair/rebuild, they can be managed, allowing the engine to provide many years of thrilling performance.

What are the primary signs of S54 rod bearing failure?

The most alarming symptom of rod bearing failure is a distinct metallic knocking sound coming from the engine, especially noticeable at specific RPMs or under load. Other signs can include a sudden drop in oil pressure or the presence of metal particles in the engine oil during an oil change. If any of these symptoms appear, it is critical to stop driving the vehicle immediately to prevent further, more severe damage.

Can a Stage 1 rebuilt S54 be modified or tuned?

Absolutely. A Stage 1 rebuild restores the engine to or beyond its original factory specifications, providing a robust foundation for further modifications. Whether you're considering CSL-style intake systems, performance exhausts, or even forced induction (supercharging or turbocharging), a freshly rebuilt engine ensures that the internal components can handle the increased stresses and power output. However, any significant modifications should always be accompanied by a professional ECU tune to optimise performance and maintain reliability.

Conclusion

The BMW S54 engine is a masterpiece of engineering, offering an unparalleled driving experience that continues to captivate enthusiasts. While common issues like VANOS problems, water pump failures, and particularly rod bearing concerns can arise with age and mileage, a comprehensive Stage 1 engine rebuild provides a definitive solution. This meticulous process, involving precision machining, careful assembly, and the replacement of critical components, ensures your S54 is restored to peak condition, often surpassing its original factory specifications in terms of component quality and durability. Investing in a professional rebuild not only resolves existing issues but also safeguards the future of your cherished M car, allowing you to continue enjoying the legendary performance and character of the S54 for many more years to come.
