BMW S14 Engine: A Tuner's Dream

The BMW S14 engine is a powerplant that resonates with enthusiasts and tuners alike. Revered for its motorsport pedigree and impressive performance, this four-cylinder marvel has carved out a significant niche in automotive history. Found in iconic models like the E30 M3, the E30 320iS, and the E36 318i Super Touring, the S14 is more than just an engine; it's a symbol of BMW's engineering prowess. This article delves into the heart of the S14, exploring its origins, its remarkable tuning potential, and what makes it a sought-after engine for performance modifications.

The Genesis of the S14: A Fusion of Powerhouses

At its core, the BMW S14 engine is a DOHC (Double Overhead Camshaft) four-cylinder petrol engine. Its design is a testament to clever engineering, being based on the robust BMW M10 block. This solid foundation was then married to what is essentially a shortened cylinder head from the formidable BMW S38 engine. This unique combination brought together the reliability of the M10 with the performance-oriented characteristics of the S38, creating an engine that was both potent and responsive.

The S14's lineage is closely tied to the world of motorsport. Its direct successor, the S42, was a racing engine based on the M42 and specifically built for the German Super Tourenwagen Cup. However, for production BMWs, there isn't a direct successor in the same vein as the S14. The subsequent generation of M3 models transitioned to the six-cylinder BMW S50 engine, marking a shift in BMW's performance philosophy.

Key Features and Innovations

One of the standout features of the S14 is its use of dual throttle bodies. Each of these throttle bodies incorporates two throttle butterfly plates, a design choice that significantly contributed to the engine's improved power output compared to single throttle body configurations. While these dual throttle bodies can be a bit tricky to balance correctly, the effort is well worth it. Issues with rough idling or a noticeable drop in power often point to an imbalance in this critical area.

The S14: A Tuner's Playground

The BMW S14 engine is widely regarded as an excellent platform for tuning. Its mechanical simplicity and inherent solidity, a legacy of its M10 roots, make it an approachable engine for home enthusiasts looking to extract more performance. With carefully selected modifications such as ECU remapping, turbo upgrades, and camshaft swaps, the S14 can be transformed to deliver exhilarating driving experiences.

Enhancing Performance: Best S14 Modifications

When it comes to tuning the S14, the goal is to achieve the biggest power gains for your investment. Several key areas offer significant returns:

• Engine Capacity (Stroking): BMW itself opted to increase displacement to boost power. Stroking the engine can achieve similar results. Combining this with a lowered compression ratio opens up a wider array of turbocharger options.
• Camshaft Upgrades: The camshaft profile plays a crucial role in an engine's power delivery. Upgrading camshafts can lead to substantial torque gains.
  • Fast Road Cams: These typically increase bhp across the entire RPM range, potentially sacrificing a little low-end grunt for improved high-end performance, making them ideal for spirited daily driving.
  • Race Cams: These focus on maximising high-end RPM power, but often result in a rougher idle and a noticeable reduction in low-end torque, making them less suitable for everyday use.

  It's essential to match the camshaft duration to your driving style. A competition camshaft, for instance, might not be the most pleasant for a daily commute.

• Engine Timing, Fuel Pump, and Injectors: These components have a significant impact on the torque gains you can achieve. Adjusting valve duration can alter the torque band, and often, intake and exhaust durations don't need to be identical, though matched pairs are common.
• ECU Remapping/Tuning Boxes: Remapping, or using piggy-back ECUs and aftermarket ECUs, is crucial for unlocking the full potential of other modifications. For naturally aspirated (NA) engines, this can yield around a 15% power increase, though actual results depend heavily on the other upgrades and the engine's condition.
• Intake Manifolds: The size, shape, and flow rate of the intake manifold and plenum can significantly affect fuel mixing and power output. While some manufacturers offer well-optimised headers, many aftermarket options can provide noticeable improvements.
• Head Work (Porting and Polishing): Increasing valve size, port enlargement, and head flowing can lead to substantial power gains and enhance the effectiveness of other modifications.

Tuning Stages for the S14

Tuning projects are often categorised into stages, reflecting the complexity and scope of modifications:

Forced Induction: Turbocharging the S14

Adding a turbocharger to an NA S14 requires significant work. Low-boost turbo installations can be effective, but it's advisable to lower the compression ratio and use higher octane fuel. Turbochargers work by forcing more air into the engine, allowing for more fuel to be burned and thus generating more power. The choice of turbocharger is critical:

• Big Capacity Turbos: Tend to suffer from low-end lag.
• Small Turbos: Spool up quicker but offer less high-RPM torque.
• Variable Vane Turbochargers: Adjust vane profiles according to speed to reduce lag and improve top-end power.
• Twin Scroll Turbochargers: Divert exhaust gases into two channels to improve spool and scavenging.

It's important to note that the stock Air Flow Meter (AFM) on the S14 can become a limitation when significantly more air is being drawn into the engine. Upgrading to a 4-bar air sensor can often accommodate much larger power gains.

Fuelling and Exhaust Considerations

Fueling Improvements

As you increase power, ensuring adequate fuel delivery is paramount. It's generally recommended to increase injector capacity by around 20% to account for potential deterioration and provide a buffer. Matching injector size to your power targets is essential. The following table provides a guideline for injector sizing based on power targets and engine configuration:

Exhaust Upgrades

An exhaust upgrade is typically only necessary if the stock system is causing a significant restriction, which is more common with higher power outputs. For most modest power gains, the factory exhaust is usually adequate. However, when pushing performance boundaries, a better-flowing exhaust system becomes essential. It's a common misconception that the widest exhaust is the best; in reality, exhausts that are too large can actually hinder flow. A diameter between 1.5 to 2.5 inches is often optimal, with the shape and material being more critical than bore size alone. Catalytic converters are frequent culprits for restricting exhaust flow, so a sports alternative can be beneficial.

S14 Engine Variants and Specifications

The S14 engine saw several variations throughout its production life, each offering different performance characteristics:

Weak Spots, Issues, and Maintenance

While the S14 is generally a reliable and robust engine, like any performance powerplant, it requires diligent maintenance to ensure longevity, especially when tuned. Key areas to watch out for include:

• Conrod Bearings: These are often the first area to show wear if oil changes are neglected. Regular oil changes are crucial, particularly for tuned engines. If your mileage is creeping past 100,000 miles, consider replacing the conrod bearing shells as a preventative measure.
• Timing Chain Tensioner: The spring in the timing chain tensioner can wear, leading to rattling noises and subsequent wear on the timing chain gears. Upgrading to an S52 tensioner is a common solution.
• Oil Leaks: Common sources of oil leaks include the thermostat cap, oil filter manifold gasket, and general engine seals.

Regular and frequent oil changes are the single most important factor in maintaining the S14's health and reliability, especially after performance modifications.

A Perfect S14B23 Restoration: The Schrick Example

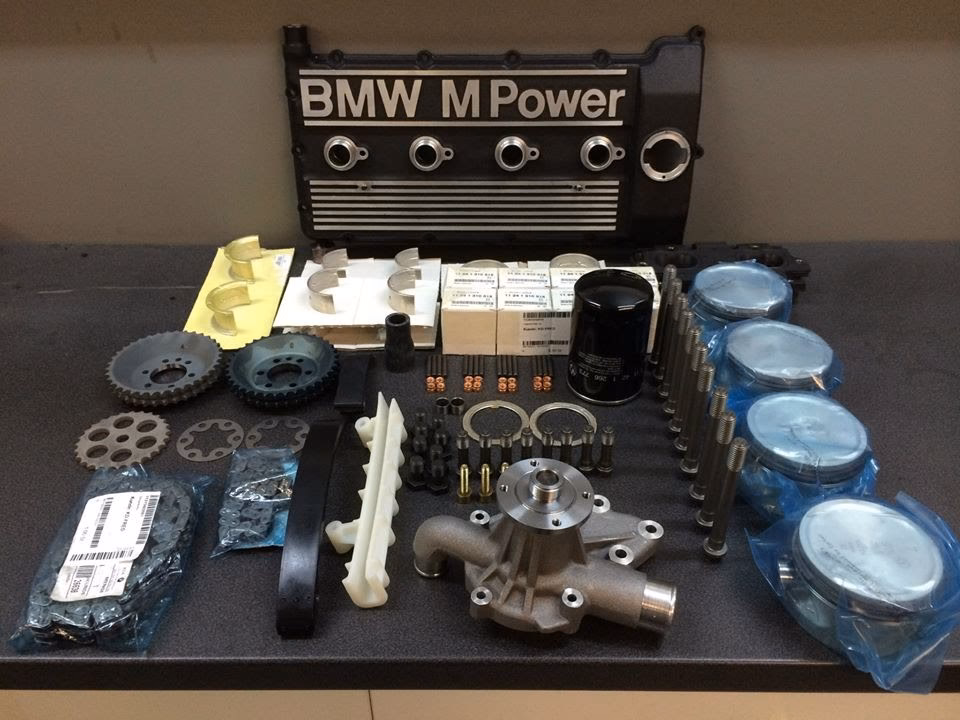

The case of a meticulously restored S14B23, often associated with Schrick camshafts, highlights the ultimate potential of this engine. Such restorations involve:

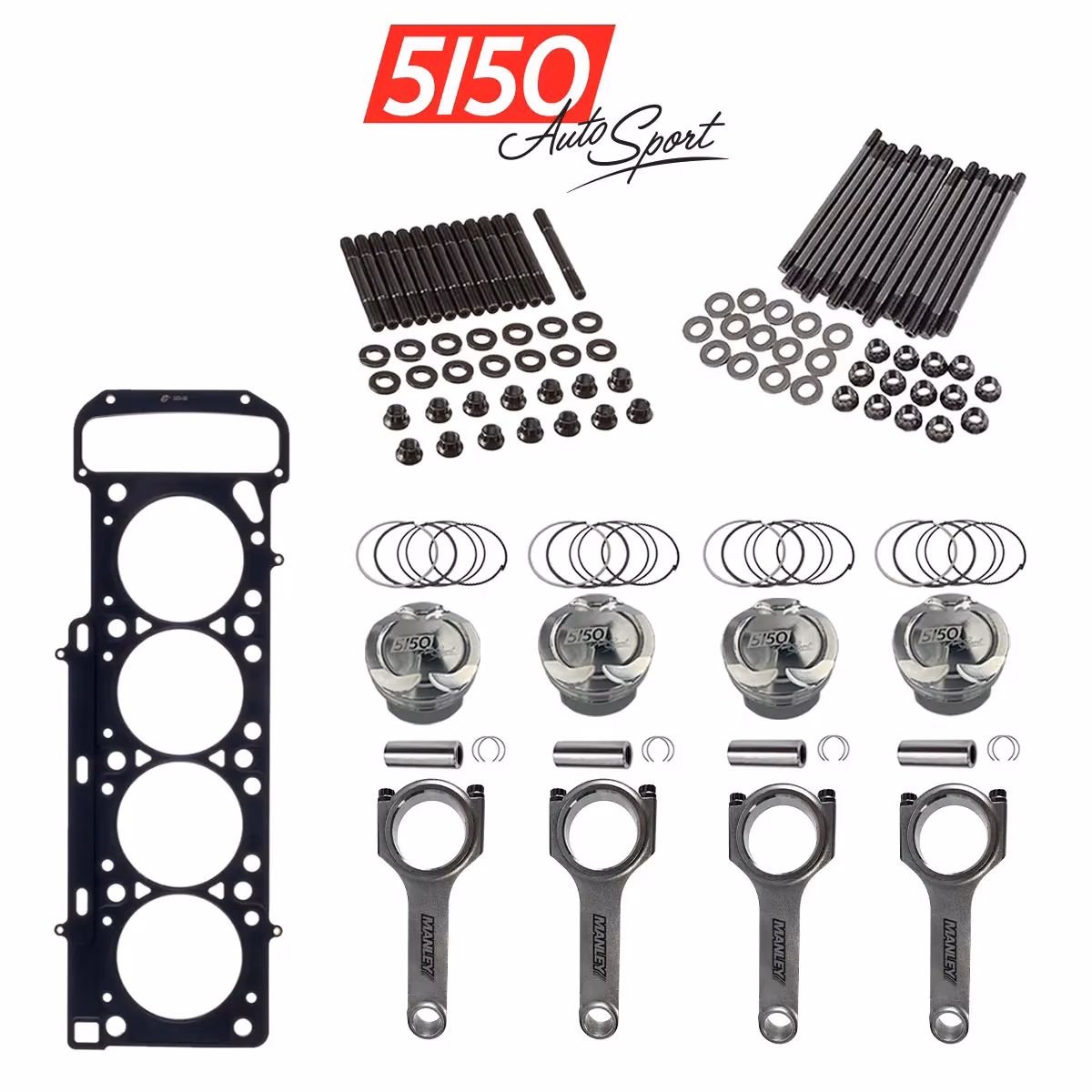

• High-Quality Internals: Using top-tier pistons (e.g., CP-Carrillo) and connecting rods (e.g., Arrow rods).
• Crankshaft Preparation: Regrinding and dynamically balancing the original crankshaft.
• Precision Assembly: Meticulous measurement of all operating clearances, including bearing oil clearances, piston-to-wall clearance, piston-to-valve clearance, and compression ratio.
• Component Refinishing: Vapour-blasting of aluminium externals and zinc-plating of fasteners for a pristine finish.
• Renewed Components: Replacing wear items such as chain guides, chains, oil pumps, and gaskets.
• Cylinder Head Enhancement: Fitting upgraded valvetrain components (e.g., Supertech), including new valve guides.
• Camshaft Optimisation: Modifying camshaft pulleys to allow for adjustable cam timing, enabling perfect dialling-in of performance camshafts like Schrick units.

Such a build results in an engine that is not only powerful but also incredibly precise and reliable, a true testament to the S14's capabilities.

Frequently Asked Questions

Q1: What is the BMW S14 engine based on?
The BMW S14 engine is based on the BMW M10 block and features a shortened cylinder head derived from the BMW S38 engine.

Q2: Is the BMW S14 a good engine for tuning?
Yes, the BMW S14 is considered an excellent engine for tuning due to its mechanical simplicity, robust construction, and responsive nature. Modifications like ECU remapping, camshaft upgrades, and intake/exhaust improvements can significantly enhance its performance.

Q3: What are the common weak points of the S14 engine?
Common areas of concern include conrod bearings (due to potential neglect of oil changes), the timing chain tensioner spring, and oil leaks from the thermostat cap or oil filter housing gasket.

Q4: What are the benefits of dual throttle bodies on the S14?
Dual throttle bodies improve airflow and throttle response, leading to increased power output compared to single throttle body designs.

Q5: What kind of power can a tuned S14 produce?
With appropriate modifications, a tuned S14 can see significant power increases, with Stage 2 and Stage 3 builds capable of producing well over 300-400 bhp, especially when incorporating forced induction.

The BMW S14 remains a highly desirable engine for enthusiasts who appreciate its blend of motorsport heritage and tuning potential. With proper care and strategic modifications, it continues to offer thrilling performance and a unique driving experience.
