BMW F30 Rear Differential Fluid Change

The rear differential is a crucial, yet often overlooked, component of your BMW's drivetrain. It's responsible for transferring power from the gearbox to the wheels, allowing them to rotate at different speeds when cornering. Without a properly functioning differential, you wouldn't be able to put power to the ground effectively. Whether your BMW F30 is equipped with an open or a limited-slip differential, the condition of the internal components, particularly the lubricating fluid, directly impacts its performance and longevity. Regularly replacing this fluid is one of the most effective ways to maintain your drivetrain's health and prevent costly repairs down the line.

Why Replace Your Differential Fluid?

Over time, the gear oil within your differential breaks down due to heat and shear forces. This degradation can lead to reduced lubricating properties, increased wear on the gears, and potential damage to the differential housing. Contaminants such as metal shavings from gear wear can also accumulate in the fluid, further accelerating wear. By flushing out the old, degraded fluid and replacing it with fresh, high-quality gear oil, you are essentially giving your differential a new lease on life, ensuring optimal lubrication and smooth operation. This proactive maintenance is far more cost-effective than repairing or replacing a damaged differential.

Recommended Fluid and Capacity

For your BMW F30, it is highly recommended to use the OE BMW G1 Hypoid gear fluid. While other gear fluids with a 75W-90 GL4 rating may be suitable, using the genuine BMW oil guarantees that the differential's internal components receive the precise lubrication they were designed for. BMW specifies this particular fluid for its excellent thermal stability and anti-wear properties, which are critical for the demanding environment within a differential. Your BMW F30's rear differential typically requires approximately 1 to 1.2 litres of fluid.

Cost and Time Investment

Performing this DIY maintenance yourself can save you a significant amount of money compared to having it done at a dealership or independent garage. The primary costs involved are the new fluid and a replacement drain/fill plug. BMW advises that the drain/fill plug, despite being metal, features a Viton-style seal that is designed for single use. A new plug will cost just over £5.

As mentioned, you'll need at least two 500ml bottles of the OE BMW G1 fluid, which retail at around £60 per bottle. Therefore, a budget of approximately £130-£150 should cover the fluid and plug. It's wise to allocate a little extra for cleaning supplies like brake cleaner and rags to tidy up any inevitable spills.

In terms of time, this job is remarkably quick. Once you've gained access to the differential's fill and drain plugs by removing the vibration dampener, the entire process should take no more than 30 minutes. This makes it an ideal weekend DIY project for any enthusiast.

Tools and Parts Required

To successfully complete this differential fluid change, you will need the following:

Parts:

• 1 x New BMW Rear Differential Drain/Fill Plug (with integrated seal)
• Approx. 1.2 litres of OE BMW G1 Hypoid Gear Fluid (or equivalent 75W-90 GL4)

Tools:

• Jack and Jack Stands (ensure they are rated for your vehicle's weight)
• E12 Torx Socket (for vibration dampener bolt)
• 14mm Hex Bit Socket (for differential drain/fill plug)
• Torque Wrench (capable of reaching 60Nm)
• Fluid Extractor Syringe with appropriate adapter
• Brake Cleaner
• Rags or Shop Towels
• Gloves (optional, but recommended)

Step-by-Step Guide

Step 1: Prepare the Vehicle and Remove the Vibration Dampener

Begin by safely jacking up the rear of your BMW F30 and supporting it securely on jack stands. Ensure the vehicle is stable before proceeding. Locate the rubber vibration dampener positioned on the underside of the subframe, directly behind the rear differential. This component is designed to absorb drivetrain vibrations for a smoother ride, but it obstructs access to the differential's fill and drain plugs.

Using your E12 Torx socket, carefully remove the mounting bolt that secures the vibration dampener to the subframe. Once the bolt is removed, set the dampener aside. You will re-install it later.

Step 2: Drain and Refill the Differential Fluid

Identify the large hex plug on the rear differential cover; this is your combined drain and fill plug. Using the 14mm hex bit socket, carefully loosen and remove this plug. Be prepared for old fluid to start draining out.

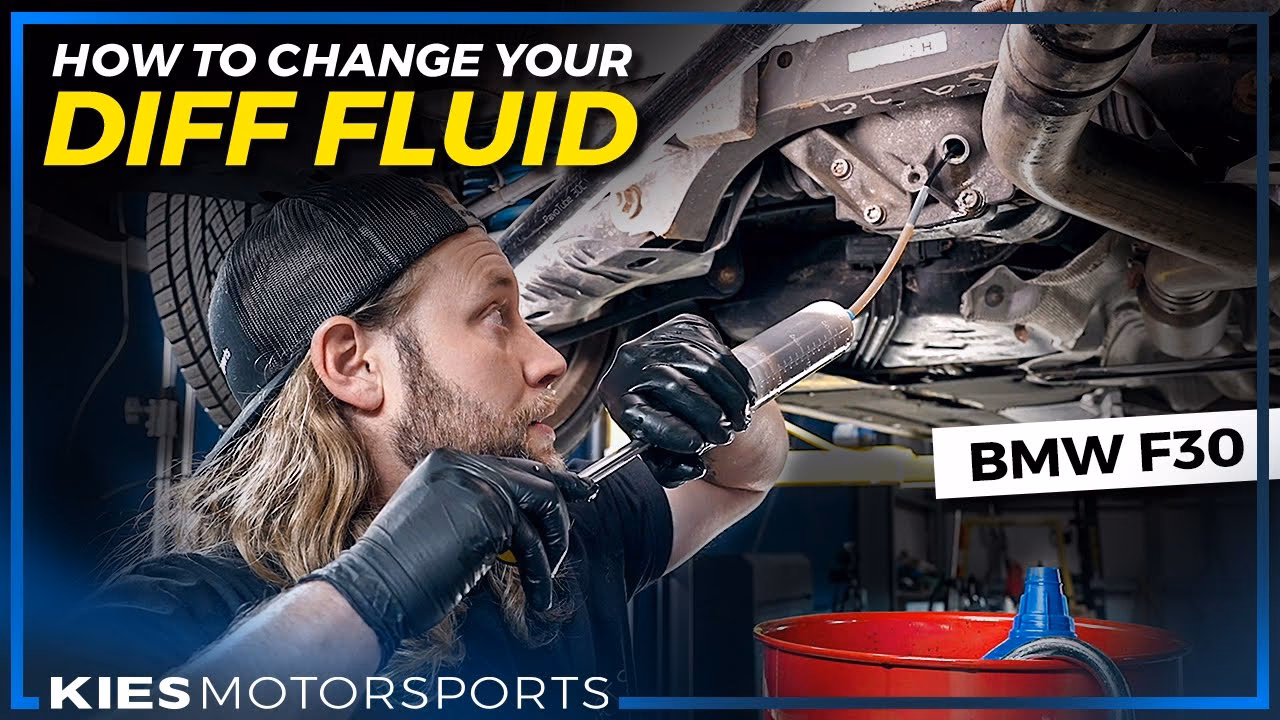

Next, attach the appropriate extractor adapter to your fluid extractor syringe. Insert the adapter into the differential's fill hole and use the syringe to carefully extract as much of the old, dark fluid as possible.

Once you have removed the majority of the old fluid, it's time to refill. You can use the same syringe for filling, although a dedicated fluid transfer pump might be quicker. Slowly and steadily fill the differential with the new OE BMW G1 Hypoid gear fluid. Continue filling until the fluid begins to seep out of the fill hole. This indicates that the differential is now at its correct fill level.

With the new fluid in place, carefully thread the new drain/fill plug back into the differential by hand. This helps to prevent cross-threading, which can damage the threads. Once the plug is hand-tight, use your torque wrench and the 14mm hex bit socket to tighten the plug to the specified torque of 60 Nm (44.3 ft-lbs). Finally, use brake cleaner and rags to thoroughly clean off any spilled fluid from the differential housing and surrounding areas.

Step 3: Re-install the Vibration Dampener and Lower the Vehicle

Position the vibration dampener back into its original place on the subframe. Thread its mounting bolt back in by hand to avoid cross-threading. Once the bolt is hand-tight, use the E12 Torx socket to tighten it securely.

Finally, carefully jack up the rear of the vehicle again, remove the jack stands, and slowly lower your BMW F30 back to the ground. Your rear differential fluid change is now complete!

Torque Specifications

It's crucial to adhere to the correct torque specifications to ensure a proper seal and prevent leaks or damage. For the BMW F30 rear differential:

Frequently Asked Questions (FAQs)

Q1: How often should I change my BMW F30's rear differential fluid?

While BMW doesn't specify a fixed interval for differential fluid changes in many of their models, it's generally recommended to change it every 50,000 to 70,000 miles, or sooner if you frequently drive in harsh conditions (e.g., towing, track use, or extreme temperatures). Regular inspection of the fluid condition can also help determine the appropriate interval.

Q2: Can I use a different brand of gear oil?

Yes, you can use a high-quality 75W-90 GL4 rated gear oil from a reputable brand if OE BMW fluid is unavailable or if you prefer an aftermarket option. However, always ensure it meets the specifications required by BMW to avoid potential damage.

Q3: What happens if I overfill the differential?

Overfilling the differential can lead to increased pressure within the housing, potentially causing seals to fail and leaks to occur. It can also lead to overheating and foaming of the oil, reducing its lubricating effectiveness.

Q4: Do I need to change the differential fluid on a BMW with an xDrive (all-wheel drive) system?

Yes, even on xDrive models, the rear differential requires maintenance. The front differential on xDrive models may have different maintenance requirements or may be considered a sealed unit for life by the manufacturer, but the rear unit is typically serviceable.

Conclusion

Replacing the rear differential fluid on your BMW F30 is a straightforward and cost-effective maintenance task that can significantly extend the lifespan of your drivetrain components. By following these steps and using the correct fluid and torque specifications, you can ensure your BMW continues to deliver its renowned driving experience. This DIY not only saves you money but also provides the satisfaction of maintaining your vehicle yourself. For more BMW DIY guides and technical information, explore resources like bmw.fcpeuro.com and consider subscribing to their YouTube channel.
